Product use:
The crossflow fan blade balancing machine is suitable for balancing the fan blades of various industrial production fans, centrifugal fans, ventilation equipment, etc., including but not limited to the following industries:
1. Power industry: large-scale ventilation equipment in power stations, wind turbine accessories, etc.
2. Chemical industry: tower radiators, process ventilation equipment, etc.
3. Petroleum industry: fans for oil refining units and gasification units, etc.
4. Metallurgical industry: steel plant drying equipment, rolling mill exhaust, water coolers, hot air furnaces, etc.
Working principle:

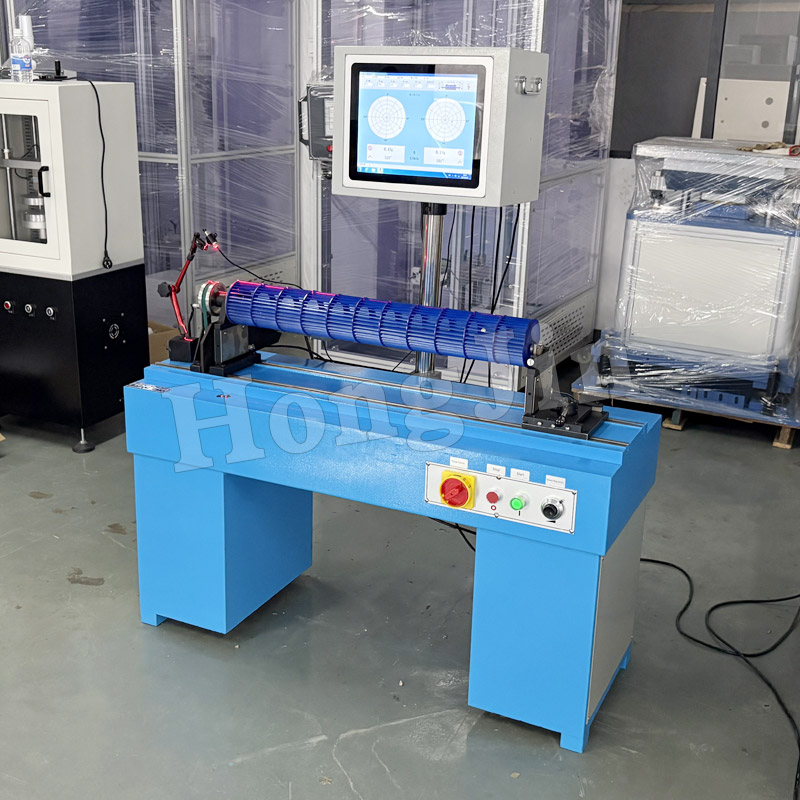

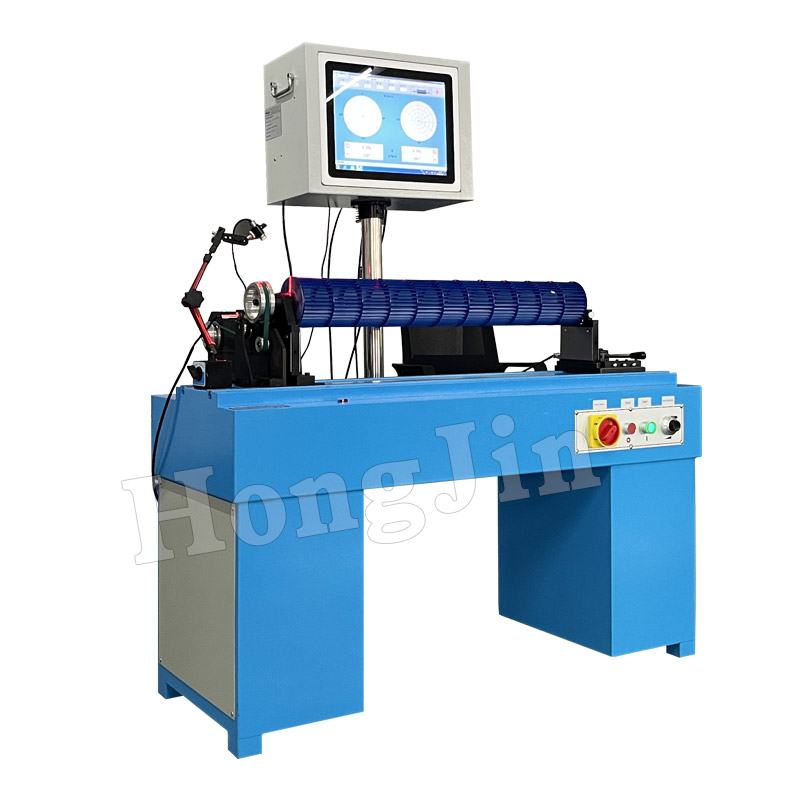

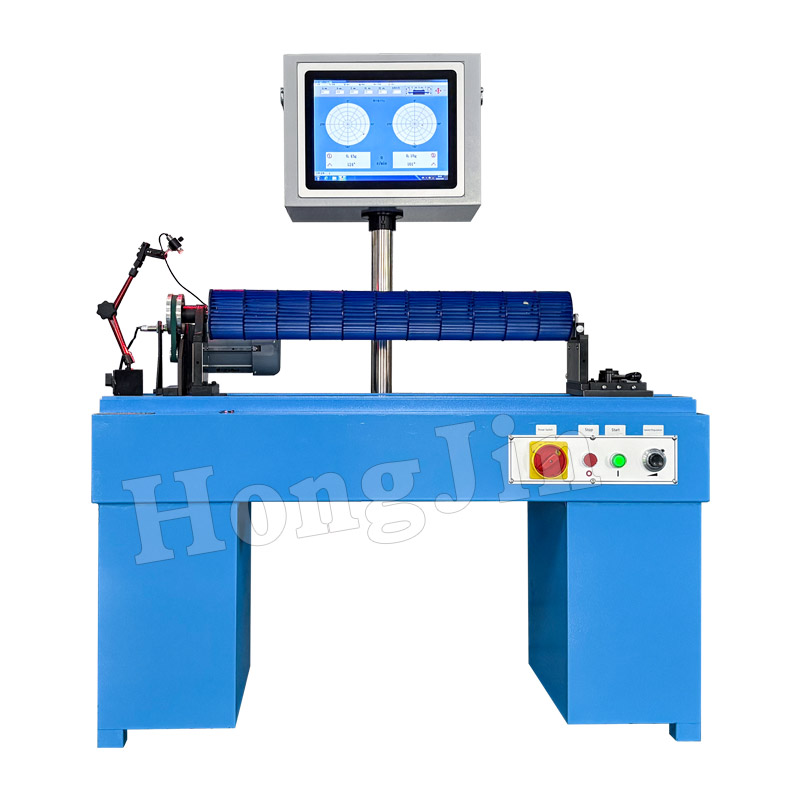

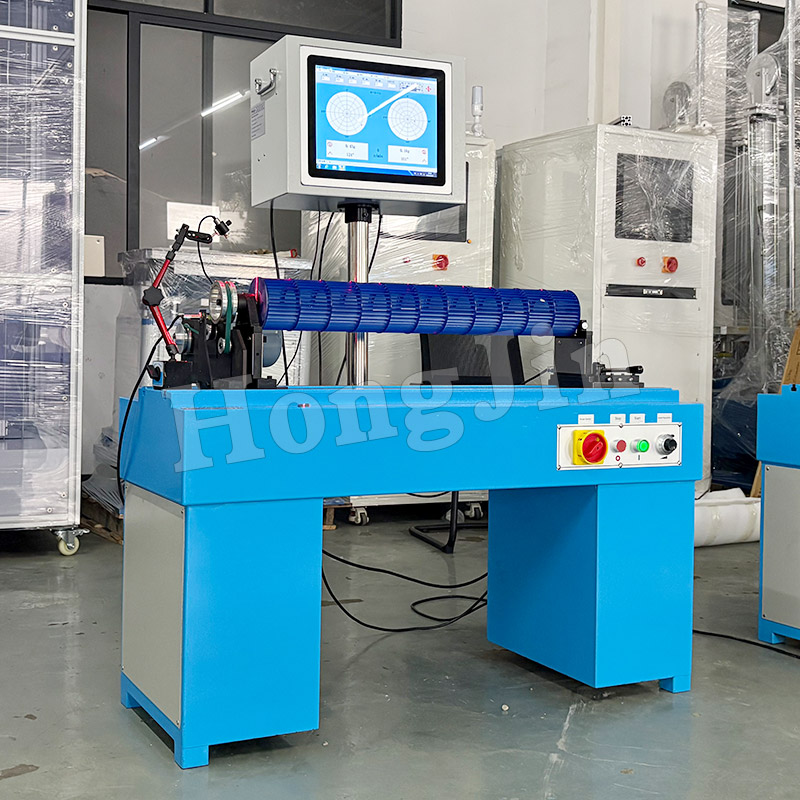

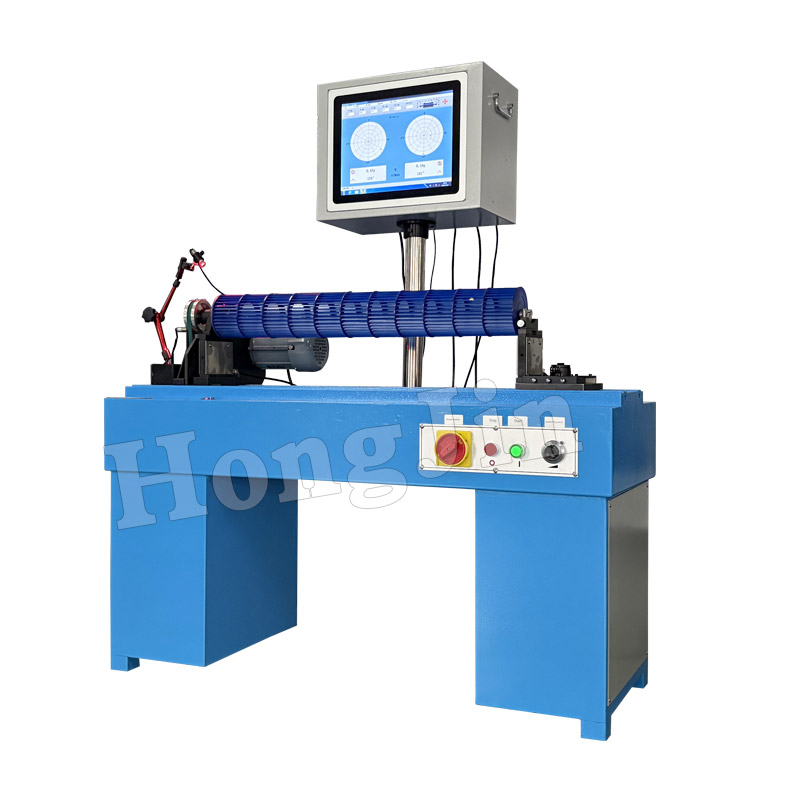

The crossflow blade balancing machine is mainly composed of a suspension bracket, a host, a control box, a measurement and analysis system, etc. The specific working process is as follows:

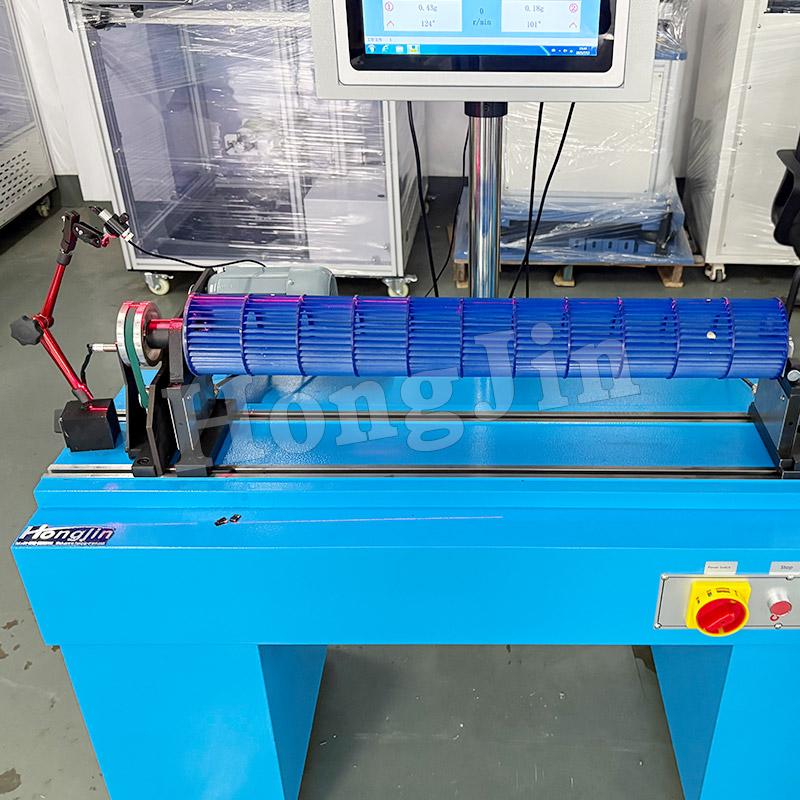

1. Install the blade to be tested on the suspension bracket and start the host through the control box.
2. The host will rotate the blade, and the measurement and analysis system will collect the operating data of the blade.
3. The measurement and analysis system analyzes the collected data and calculates the balance and adjustment amount of the blade.
4. The control box instructs the host to adjust until a balanced state is reached.
Product Features:
1. High precision: The crossflow blade balancing machine uses high-precision sensors and measuring instruments to achieve accurate data collection and analysis, thereby improving the balancing accuracy of the equipment.
2. Simple operation: The equipment is easy to operate and only needs to be operated according to the instruction manual without special skills.
3. High efficiency and energy saving: By achieving blade balancing, energy consumption can be reduced, production efficiency can be improved, and greater production benefits can be obtained.
4. Diversified applications: The equipment is suitable for balancing various types of blades and is widely used in chemical, electric power, petroleum, metallurgy and other industries.
| Workpiece mass | 5 Kg |
| Balanced speed | 300-1500r/min (optional inverter can achieve stepless frequency conversion speed regulation) |
| Distance between two support shafts | 250～1050mm |
| Minimum residual imbalance | ≤0.5g.mm/kg |
| Unbalance reduction rate URR | ≥90% |
| Complete machine load | ≤1KVA |
| Workpiece diameter | ≤300mm |
| Support shaft diameter range | 6～12mm |
| Power supply | 220V |
