Introduction:

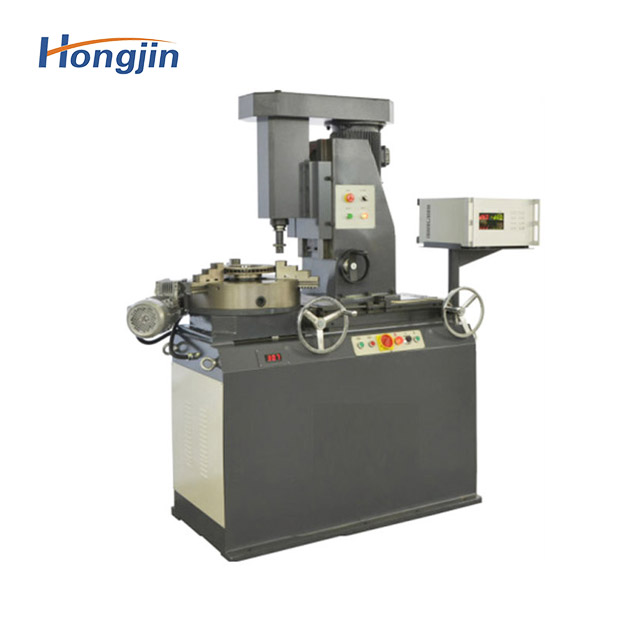

This product is mainly used for balance measurement and weight removal of automobile brake discs. The feature of this product is that the balance measurement and milling weight removal of the workpiece can be completed on the same equipment. This product has high production efficiency and is convenient for measuring and removing weight. Equipped with different fixtures, it can meet the needs of various specifications, and is suitable for the batch production of products and the production of single pieces.
product description:
This product is mainly used for balance measurement and milling weight removal of water pump impeller/brake disc/brake hub/etc.
The characteristic is that the balance measurement and milling weight removal of the rotor are completed on the same equipment.
High production efficiency, high precision, convenient measurement, milling and weight removal, equipped with different fixtures can meet the needs of various specifications of products, suitable for batch and single-piece production of products
Product parameter table
| Maximum mass of workpiece (kg) | 100 |
| Milling diameter range (mm) | φ220～φ450 |
| Three-jaw clamping range (mm) | φ200～φ450 |
| Individual balance maximum diameter (mm) | φ500 |
| Balance speed | Stepless variable frequency speed regulation |
| Brake disc positioning aperture range (mm) | φ65～φ90 (can be adjusted according to the actual user) |
| Brake disc thickness range (mm) | 20～75 |
| Maximum depth of deduplication for milling (mm) | 5 |
| Main motor power (KW) | 3 |
| Balance Measurement System | Equipped with HJ-S60 microcomputer digital display electric measuring box, with electric braking speed control device |
