| Quantity: | |
|---|---|
| Test Range: | IEC60529 IPX3-IPX4-IPX5-IPX6 |
| Water Temperature Range: | The spray water temperature is at ambient temperature. |
| Spraying Method: | IPX3-IPX4 oscillating pipe type rain shower, IPX5-IPX6 jet type rain shower. |
| Spray Flow Rate: | IPX3, X4: 0.07L/min per hole; IPX5: 12.5 L/min ±5%; IPX6: 100 L/min ±5%. |

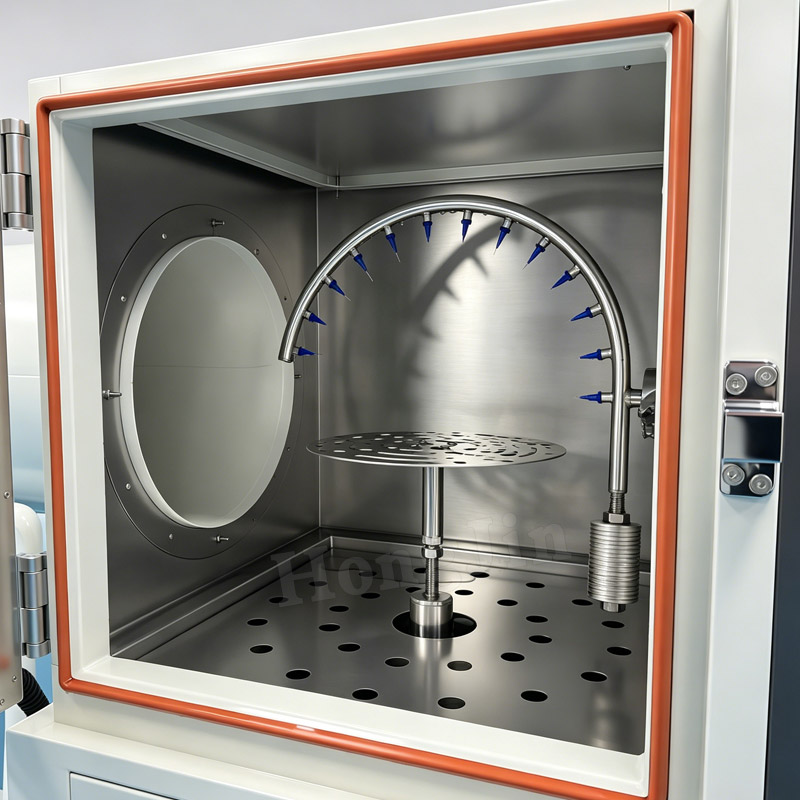

| Oscillating Pipe: | Semi-circular oscillating pipe 180° |
| Oscillating Pipe Radius: | R400 mm |
| Oscillating Pipe Inner Diameter: | ∮16mm |
| Oscillating Pipe Amplitude: | Angle can be set arbitrarily within a range of 90° front and back, totaling 180° |
| Spray Oscillating Pipe Cycle: | Adjustable from 1 to 20 times/min |
| Nozzle Placement: | Nozzles distributed on 90° arcs on both sides of the vertical plane |
| Nozzle Spacing: | 50mm |
| Nozzle Orifice Diameter: | IPX3, X4: 0.4mm; IPX5: 6.3mm; IPX6: 12.5mm |
| Sample Turntable Size: | ∮350mm |
| Sample Turntable Speed: | Adjustable from 1 to 20 r/min |
| Sample Turntable Load: | 20kg |
Features:
Water Circulation: Utilizes an internal circulating water tank.
Water Supply Method: Employs a tap water supply valve and a level switch to control the water level in the internal tank. Direct tap water connection is available; no purified water is required.
Spray Controller: Imported touchscreen controller, displaying oscillation time, oscillation speed, oscillation angle, and oscillation cycle.
Setting Method: Touchscreen with multiple language input options.
Control Method: Human-machine interface (HMI) input commands; the PLC receives commands and outputs signals to control the servo motor. It also receives servo motor pulse signals to control the oscillation angle, oscillation cycle, and oscillation time.
