Item | Specification |
Inner Chamber Dimension | W1000×H1000×D1000 mm |
Overall Dimension(Approx.) | W1450×H1750×D1500 mm |
Test Duration | 30s per position, total 120s for 4 positions |

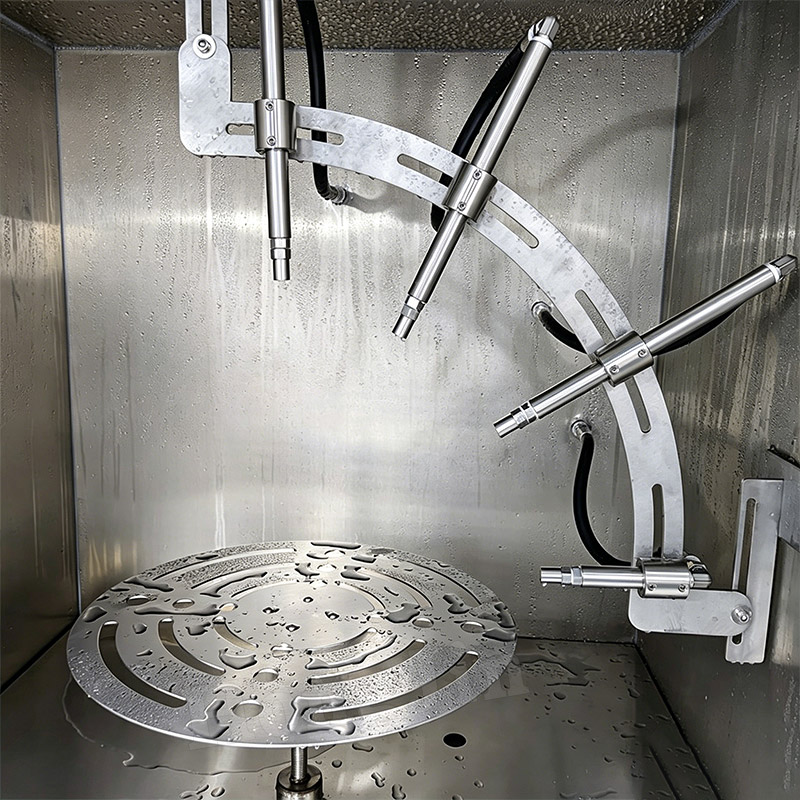

Spray Ring Angle | 0°, 30°, 60°, 90° |
Quantity of Spray Nozzles | 4 pcs |
Spray Water Temperature | Ambient ~ 85℃ |
Spray Distance | 100mm～200mm |
Spray Pressure | 8-10MPa |
Specimen Table Rotation Speed | 1～5r/min |
Load Capacity of Specimen Table | 15kg |
High-Temp Flowmeter Flow Rate | 14～16 L/min |
Jet Water Temperature | 80℃±5℃ |
Jet Water Pressure | 80~100 bar (8000~10000kPa) |
Spray Flow Rate | 14~16L/min |
Spray Distance | 10~15cm |
Spray Angle & Duration | 0°, 30°, 60°, 90°, 30 seconds for each angle |
Rotary Table Diameter | 300mm |
Power Supply | 380V |

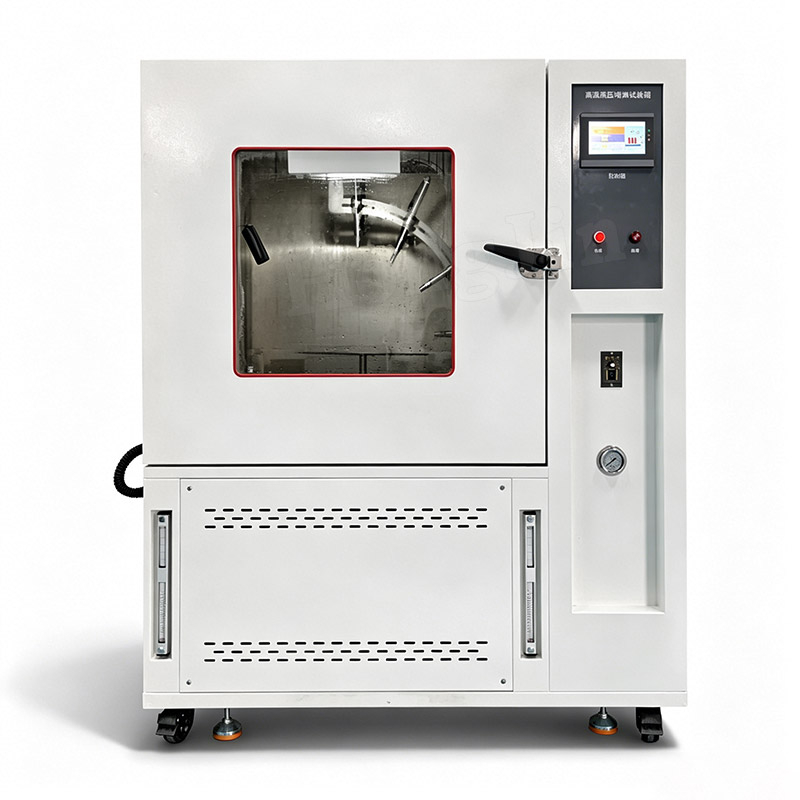

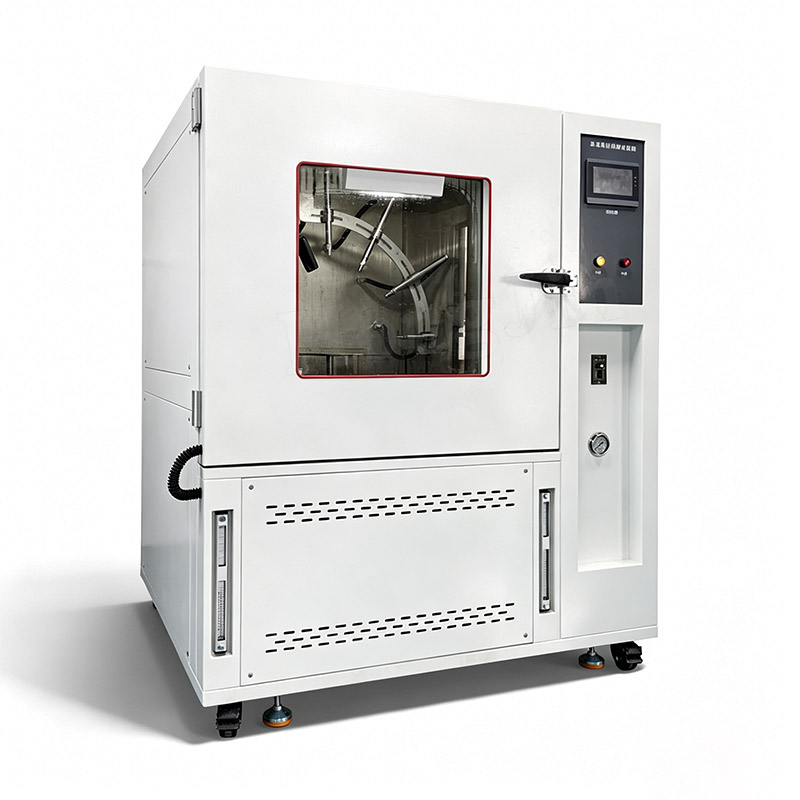

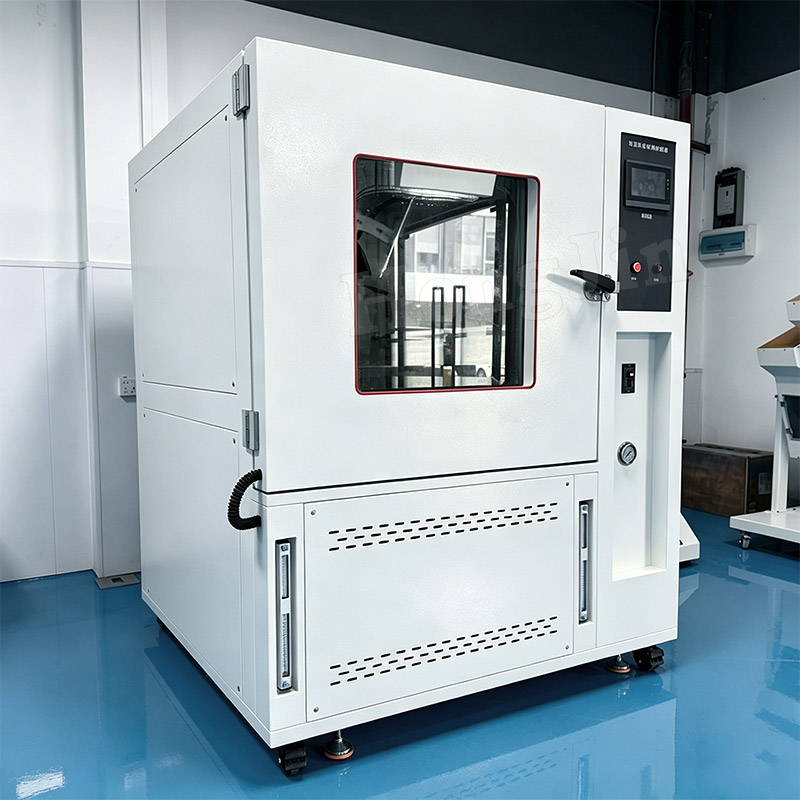

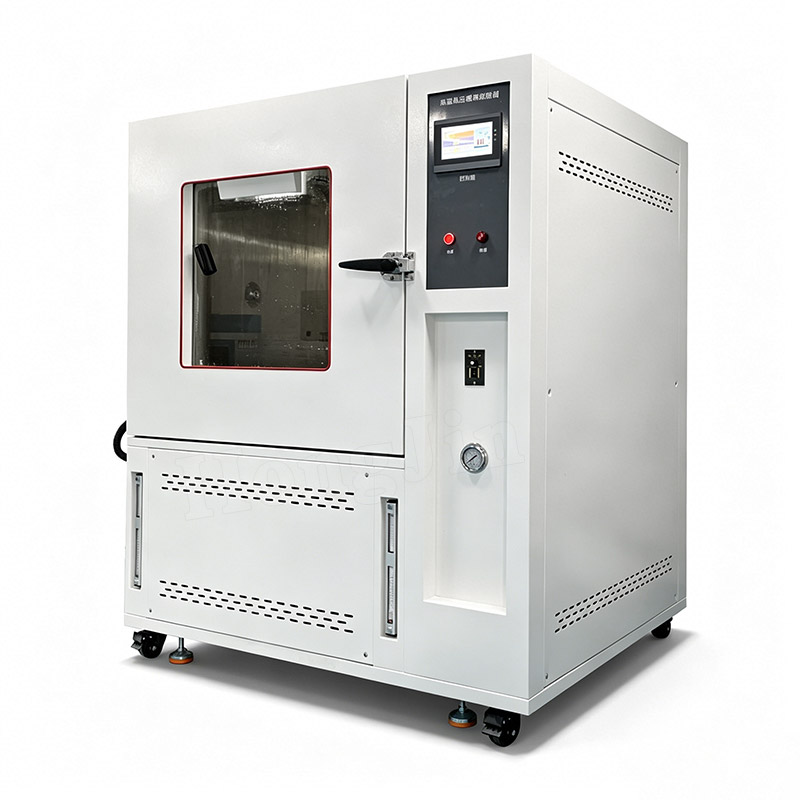

Product Features:
1. The outer shell is made of high-quality domestic steel plate with a baked enamel finish, making it aesthetically pleasing and durable.

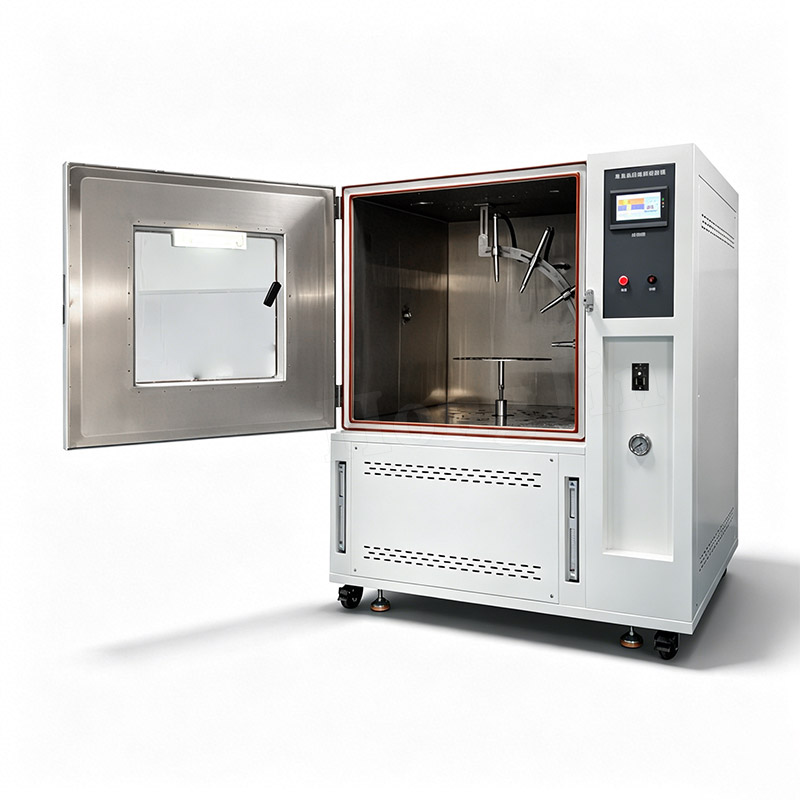

2. The inner casing and turntable are all made of SUS304# stainless steel, ensuring rust-free operation over long periods.
3. Imported 7-inch touchscreen + PLC as the core control components, enabling simple operation and fully automatic control.
4. The flow rate and pressure of the oscillating pipe are sampled and fed back to the PLC by electronic sensors. Flow rate and pressure can be directly set on the touchscreen, and the water pump frequency converter precisely controls the flow rate and pressure.
5. The turntable uses high-quality domestic stepper motors. Speed and angle can be set and adjusted on the touchscreen, with precise stepless adjustment within the standard range.
6. Automatic IPD temperature control; temperature can be set directly on the touchscreen.
7. The test time is adjustable from 0-999 minutes, with one-button start and automatic stop, making it simple and intelligent.
Testing Standards:
Compliant with IEC60529, GB4208, DIN40050-9, EN 60529, ISO20653, etc. The testing function (IPX9K) is used for the inspection of electrical products with IEC (IP Supplement Code Enhanced Test) enclosure protection ratings, manufactured according to the relevant specifications in DIN40050. Waterproof testing machines are designed for the automotive and motorcycle parts industry, the electrical and electronic industries, and to simulate natural environments or human factors.
