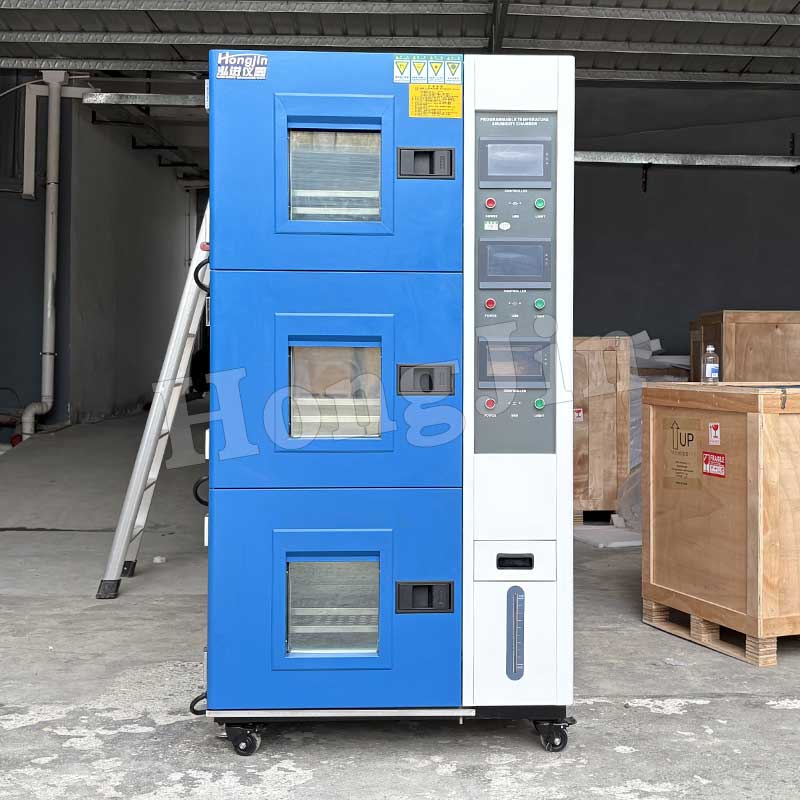

Product Introduction:
This machine can choose Chinese or English LCD touch screen, simple operation and easy program editing. It can display complete system operation status related data, execution and setting program curves. If an abnormal situation occurs during operation, the screen will automatically display the cause of the fault and provide troubleshooting methods.
Applicable standards:
GB11158 High temperature test chamber technical conditions GB10589-89 Low temperature test chamber technical conditions
GB10592-89 High and low temperature test chamber technical conditions GB/T10586-89 Humidity test chamber technical conditions
GB/T2423.1-2001 Low temperature test chamber test method GB/T2423.2-2001 High temperature test chamber test method
GB/T2423.3-93 Humidity test chamber test method GB/T2423.4-93 Alternating humidity test method
GB/T2423.22-2001 Temperature change test method IEC60068-2-1.1990 Low temperature test chamber test method
IEC60068-2-2.1974 High temperature test chamber test method GJB150.3 High temperature test
GJB150.4 Low temperature test GJB150.9 Wet heat test

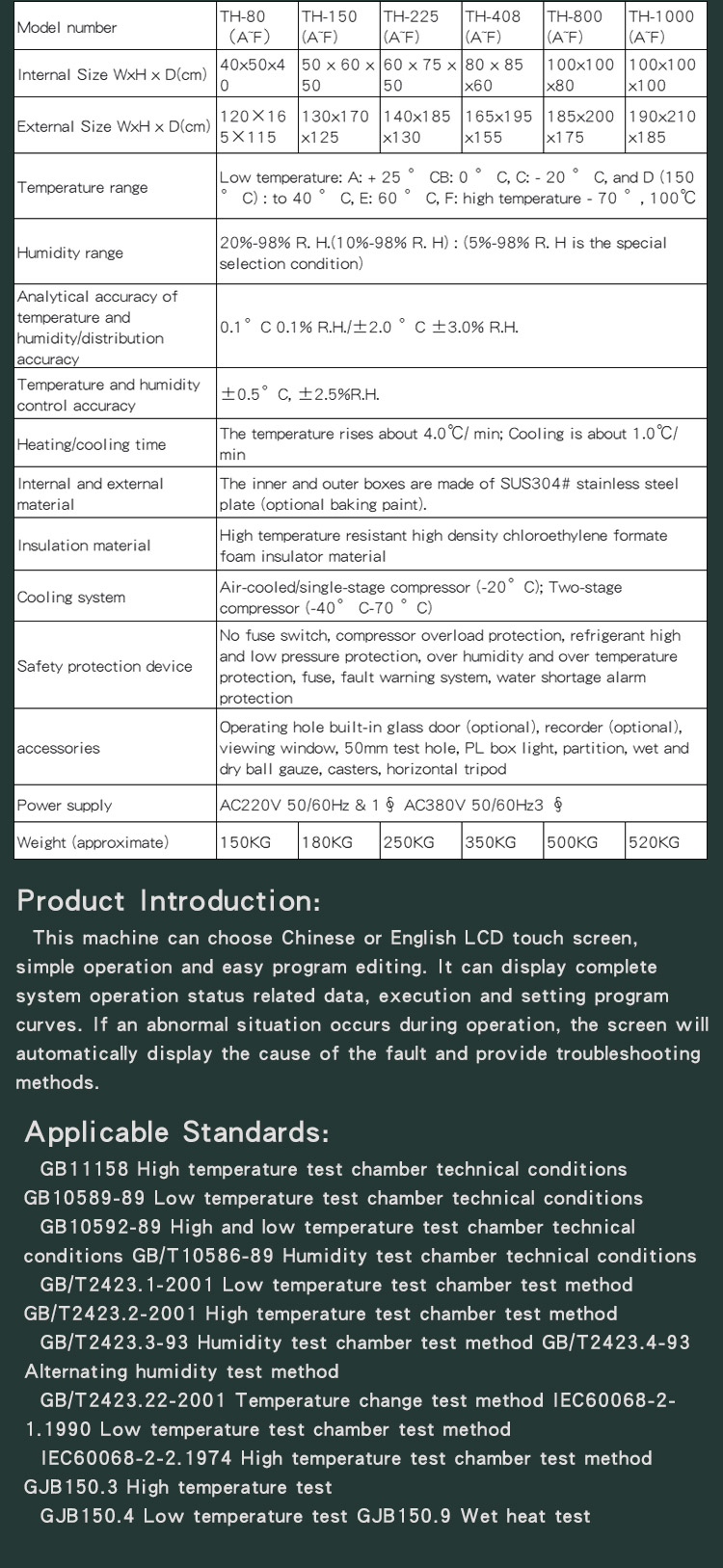

| Model | TH-80L | TH-150L | TH-225L | TH-408L | TH-800L | TH-1000L |
| Inner box size W*H*D (cm) | 40*50*40 | 50*60*50 | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
| Outer box size W*H*D (cm) | 120*165*115 | 130*170*125 | 140*185*130 | 165*195*155 | 185*200*175 | 190*210*185 |
| Temperature range | Low temperature: A: + 25 ° CB: 0 ° C, C: - 20 ° C, and D (150 ° C) : to 40 ° C, E: 60 ° C, F: high temperature - 70 °, 100℃ | |||||
| Humidity range | 20%-98% R. H.(10%-98% R. H) : (5%-98% R. H is the special selection condition) | |||||
| Analytical accuracy of temperature and humidity/distribution accuracy | 0.1°C 0.1% R.H./±2.0 °C ±3.0% R.H. | |||||
| Temperature and humidity control accuracy | ±0.5°C, ±2.5%R.H. | |||||
| Heating/cooling time | The temperature rises about 4.0℃/ min; Cooling is about 1.0℃/ min | |||||
| Internal and external material | The inner and outer boxes are made of SUS304# stainless steel plate (optional baking paint). | |||||
| Insulation material | High temperature resistant high density chloroethylene formate foam insulator material | |||||
| Cooling system | Air-cooled/single-stage compressor (-20°C); Two-stage compressor (-40° C-70 °C) | |||||
| Safety protection device | No fuse switch, compressor overload protection, refrigerant high and low pressure protection, over humidity and over temperature protection, fuse, fault warning system, water shortage alarm protection | |||||
| accessories | Operating hole built-in glass door (optional), recorder (optional), viewing window, 50mm test hole, PL box light, partition, wet and dry ball gauze, casters, horizontal tripod | |||||
| Power supply | AC220V 50/60Hz & AC380V 50/60Hz3 | |||||
| Weight (approximate) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
