| Quantity: | |
|---|---|
(1) temperature range: A: at low temperature 25 ℃ + B: C: 0 ℃ and 20 ℃ D: - 40 ℃ E: 60 ℃ : F - 70 ℃ high temperature: 100 ℃ ~ (150 ℃)
(2) the range of humidity: 20% ~ 98% R.H. (10% ~ 98% R.H.) (5% ~ 98% R.H. for special use conditions)
(3) Analytical accuracy/distribution accuracy of temperature and humidity: 0.1℃ 0.1%R.H./ +2.0℃ +3.0%R.H.
(4) Temperature and humidity control accuracy: ±0.5℃ ±2.5%R.H.
(5) Rise/fall time: temperature rise is about 4.0° C/min; Cooling is about 1.0℃/ min
(6) Material: the inner and outer boxes are made of SUS304# stainless steel plate (optional baking paint); Insulation material: high temperature resistance and high density chlorinated ethyl formate foam insulator material.
(7) Power supply: AC220V 50/60HZ&1

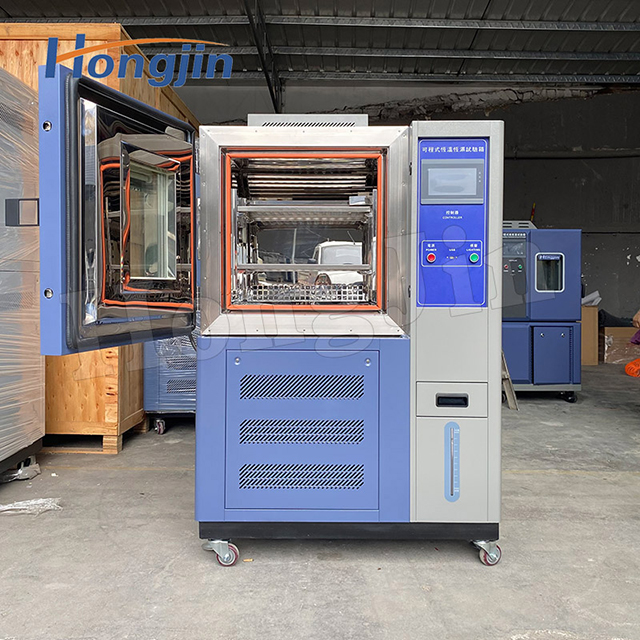

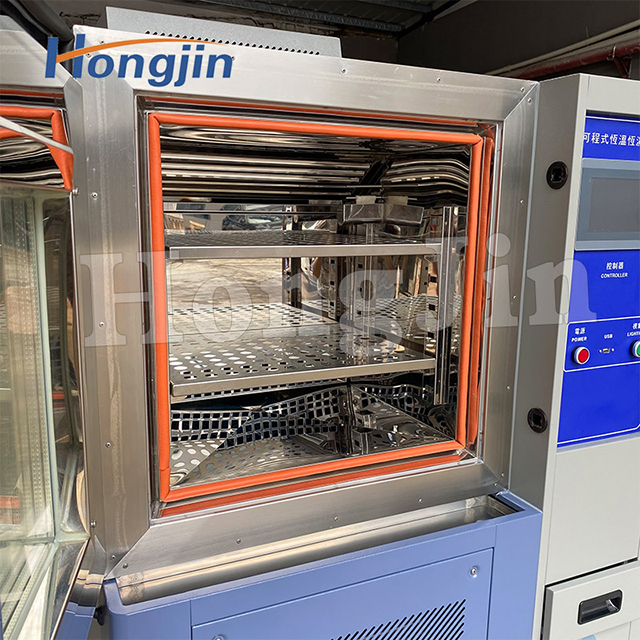

(8) Accessories: built-in glass door for hole (optional), recorder (optional), viewing window, 50mm test hole, PL box light, partition, wet and dry ball gauze, casters, horizontal tripod.
(9) Protection safety device: no fuse switch, compressor overload protection, refrigerant high and low pressure protection, high humidity and high temperature protection, fuse, fault warning system, water shortage alarm protection.
| Model number | TH-80L | TH-150L | TH-225L | TH-408L | TH-800L | TH-1000L |
| Inner box size W*H*D(cm) | 40 * 50 * 40 | 50 * 60 * 50 | 60 * 75 * 50 | 80 * 85 * 60 | 100 * 100 * 80 | 100 * 100 * 100 |
| Outer box size W*H*D(cm) | 120 * 165 * 115 | 130 * 170 * 125 | 140 * 185 * 130 | 165 * 195 * 155 | 185 * 200 * 175 | 190 * 210 * 185 |
| Weight (approx) | 150kg | 180kg | 250kg | 350kg | 500kg | 520kg |
(1) temperature range: A: at low temperature 25 ℃ + B: C: 0 ℃ and 20 ℃ D: - 40 ℃ E: 60 ℃ : F - 70 ℃ high temperature: 100 ℃ ~ (150 ℃)
(2) the range of humidity: 20% ~ 98% R.H. (10% ~ 98% R.H.) (5% ~ 98% R.H. for special use conditions)
(3) Analytical accuracy/distribution accuracy of temperature and humidity: 0.1℃ 0.1%R.H./ +2.0℃ +3.0%R.H.
(4) Temperature and humidity control accuracy: ±0.5℃ ±2.5%R.H.
(5) Rise/fall time: temperature rise is about 4.0° C/min; Cooling is about 1.0℃/ min
(6) Material: the inner and outer boxes are made of SUS304# stainless steel plate (optional baking paint); Insulation material: high temperature resistance and high density chlorinated ethyl formate foam insulator material.
(7) Power supply: AC220V 50/60HZ&1
(8) Accessories: built-in glass door for hole (optional), recorder (optional), viewing window, 50mm test hole, PL box light, partition, wet and dry ball gauze, casters, horizontal tripod.
(9) Protection safety device: no fuse switch, compressor overload protection, refrigerant high and low pressure protection, high humidity and high temperature protection, fuse, fault warning system, water shortage alarm protection.
| Model number | TH-80L | TH-150L | TH-225L | TH-408L | TH-800L | TH-1000L |
| Inner box size W*H*D(cm) | 40 * 50 * 40 | 50 * 60 * 50 | 60 * 75 * 50 | 80 * 85 * 60 | 100 * 100 * 80 | 100 * 100 * 100 |
| Outer box size W*H*D(cm) | 120 * 165 * 115 | 130 * 170 * 125 | 140 * 185 * 130 | 165 * 195 * 155 | 185 * 200 * 175 | 190 * 210 * 185 |
| Weight (approx) | 150kg | 180kg | 250kg | 350kg | 500kg | 520kg |
