This series of products is used to simulate various temperature and leakage environments. It is widely used in testing the reliability and stability performance of aviation, aerospace, information, electronic instruments, plastics, auto parts and other products in various environments, and will provide you with a basis for predicting and improving product quality and reliability.
Features
1. The large-scale environmental laboratory can provide large-scale industrial parts, semi-finished products, and finished products for temperature and leakage environmental testing. It is mainly composed of a control panel, a switchboard, a thermal insulation board, a blower, a heater, a water heater, and a refrigerator. The main specifications are divided into six standard indoor sizes and 28 test specifications under different conditions.
2. Using the combination of library board units, the internal volume can be arbitrarily enlarged, easy to disassemble and assemble, and can be designed according to the customer's needs and cooperate with the customer's expansion of the factory.
3. The material of the library board is made of stainless steel and melamine-resistant steel plate baking paint, which is solid in structure, waterproof and beautiful.
4. The horizontal diffusion vertical heat exchange circulation system adopts multi-wing centrifugal air supply method to avoid any dead angle and make the indoor temperature distribution uniform.
5.The programmable controller adopts the OYO touch screen controller, which is easy to operate and easy to edit the program. It is suitable for the temperature and humidity cycle change test conditions. It can be connected to the computer through the RS-232 interface. Users can design programs and collect test data on the computer screen. With functions such as recording call program execution.
6. When an abnormal situation occurs, the controller will automatically display the fault status in real time on the disaster screen, cut off the power switch, and provide troubleshooting methods.
7. The refrigeration system adopts imported compressors from Europe and the United States, and uses environmental cold-preserving coal. The refrigeration system adopts a binary low-temperature circuit system design, and uses different compressors for different temperature regions to increase the service life of the equipment.

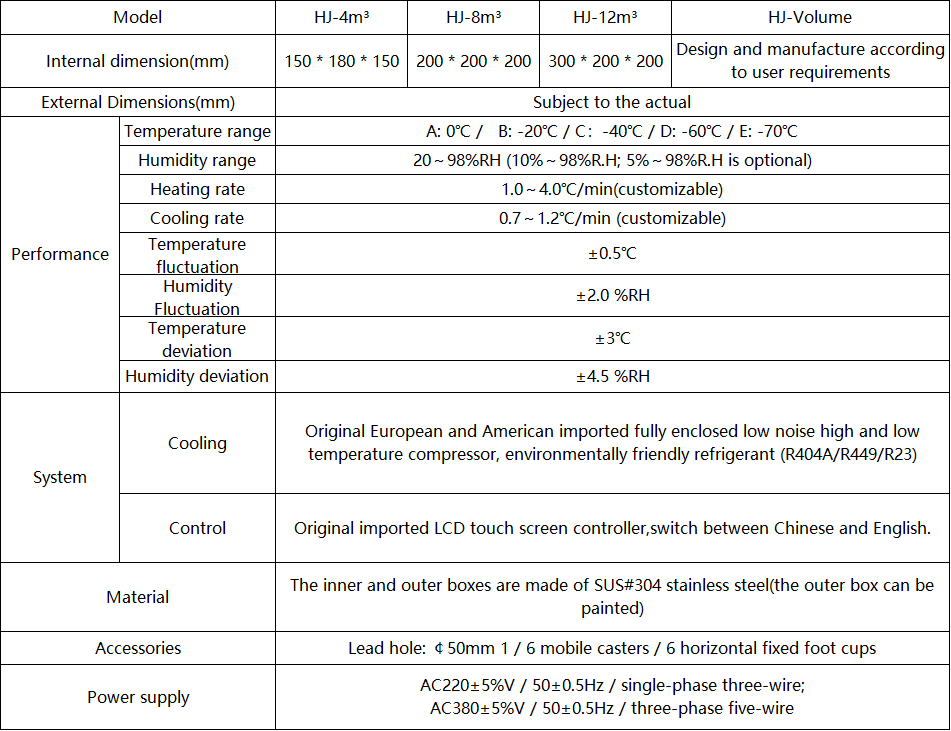

Product Parameters
This series of products is used to simulate various temperature and leakage environments. It is widely used in testing the reliability and stability performance of aviation, aerospace, information, electronic instruments, plastics, auto parts and other products in various environments, and will provide you with a basis for predicting and improving product quality and reliability.
Features
1. The large-scale environmental laboratory can provide large-scale industrial parts, semi-finished products, and finished products for temperature and leakage environmental testing. It is mainly composed of a control panel, a switchboard, a thermal insulation board, a blower, a heater, a water heater, and a refrigerator. The main specifications are divided into six standard indoor sizes and 28 test specifications under different conditions.
2. Using the combination of library board units, the internal volume can be arbitrarily enlarged, easy to disassemble and assemble, and can be designed according to the customer's needs and cooperate with the customer's expansion of the factory.
3. The material of the library board is made of stainless steel and melamine-resistant steel plate baking paint, which is solid in structure, waterproof and beautiful.
4. The horizontal diffusion vertical heat exchange circulation system adopts multi-wing centrifugal air supply method to avoid any dead angle and make the indoor temperature distribution uniform.
5.The programmable controller adopts the OYO touch screen controller, which is easy to operate and easy to edit the program. It is suitable for the temperature and humidity cycle change test conditions. It can be connected to the computer through the RS-232 interface. Users can design programs and collect test data on the computer screen. With functions such as recording call program execution.
6. When an abnormal situation occurs, the controller will automatically display the fault status in real time on the disaster screen, cut off the power switch, and provide troubleshooting methods.
7. The refrigeration system adopts imported compressors from Europe and the United States, and uses environmental cold-preserving coal. The refrigeration system adopts a binary low-temperature circuit system design, and uses different compressors for different temperature regions to increase the service life of the equipment.
Product Parameters
