Product Usage

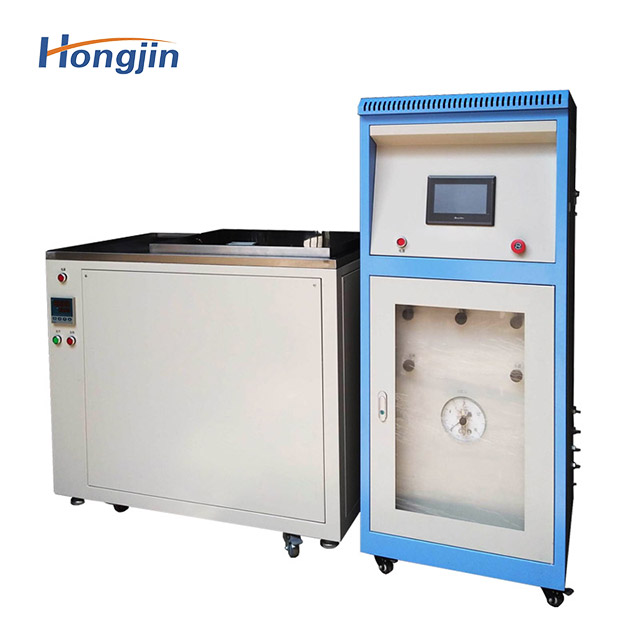

Pipe hydrostatic testing machine is used to measure thermoplastic pipe, composite pipe (such as PP-RPP-B, PPA, PE, PE-X, PVCPVC-UPVC-C and aluminum-plastic composite pipe and other pipes) in A long time of constant internal pressure and constant temperature under the pressure failure time or instantaneous blasting maximum pressure value. It is a commonly used testing equipment for plastic pipe manufacturers and testing institutions.
Product parameter table
| Maximum test pressure: | 0.6~ 10MPA, 0.6~ 16MPA ,0.6 ~20MPA | ||
| Sample diameter: | With diameter of 12-630mm (other pipe diameters specially made) | ||
| Test pipeline at the same time: | 1 way, 3 way, 6 way (can be expanded according to user needs, independent pressure, independent control) | ||
| Pressure accuracy: | ≤±1% | Constant pressure accuracy: | -1%-2% |
| Constant temperature range: | 20°℃-95℃ | Temperature fluctuation: | ≤±1℃ |
| Temperature uniformity: | ≤±1℃ | Constant pressure timing range: | 0 - 10000 H |
| Time display accuracy: | ≤0.1% | ||
| Pressure sensor: | Test pressure sampling frequency 0.02 seconds | ||
| Fixture: | Type A fixture with type O seal | Fixture material: | Carbon steel or stainless steel |
| Power supply voltage: | Three-phase 380V | ||
| External dimension of control cabinet: | About 700X 600x1800MM | ||
