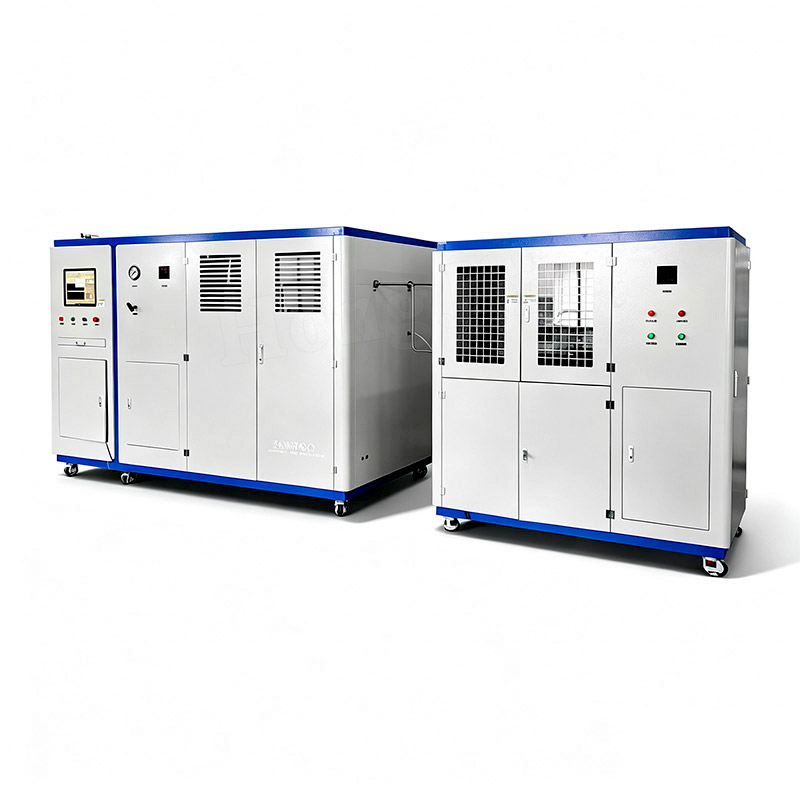

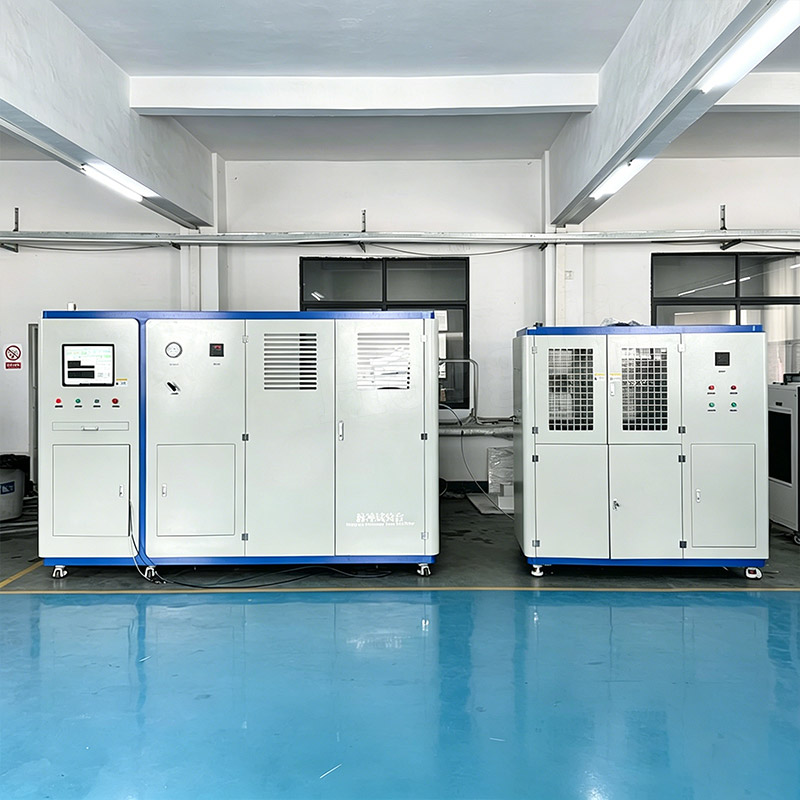

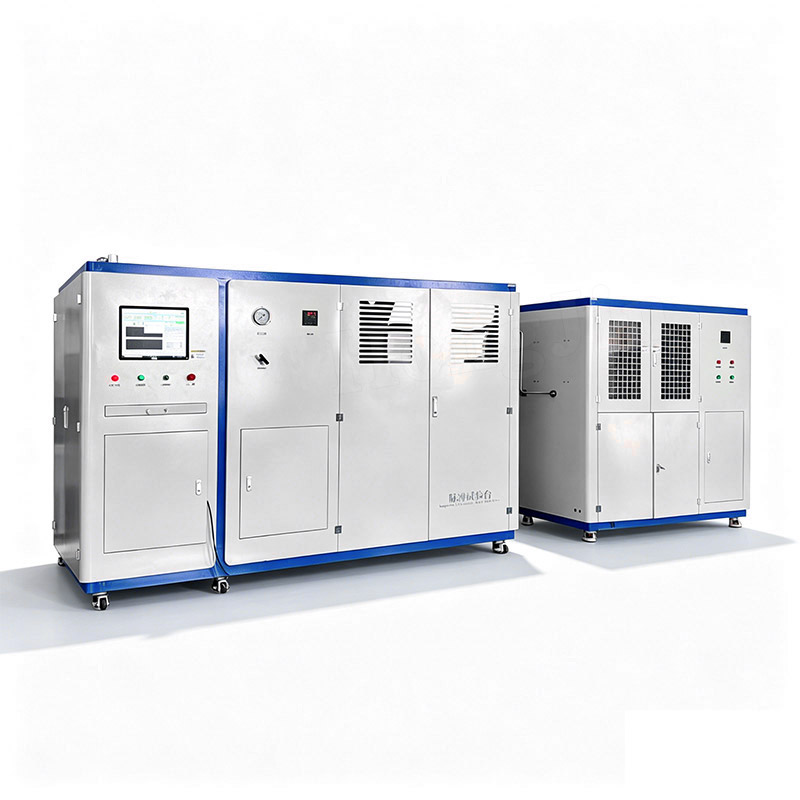

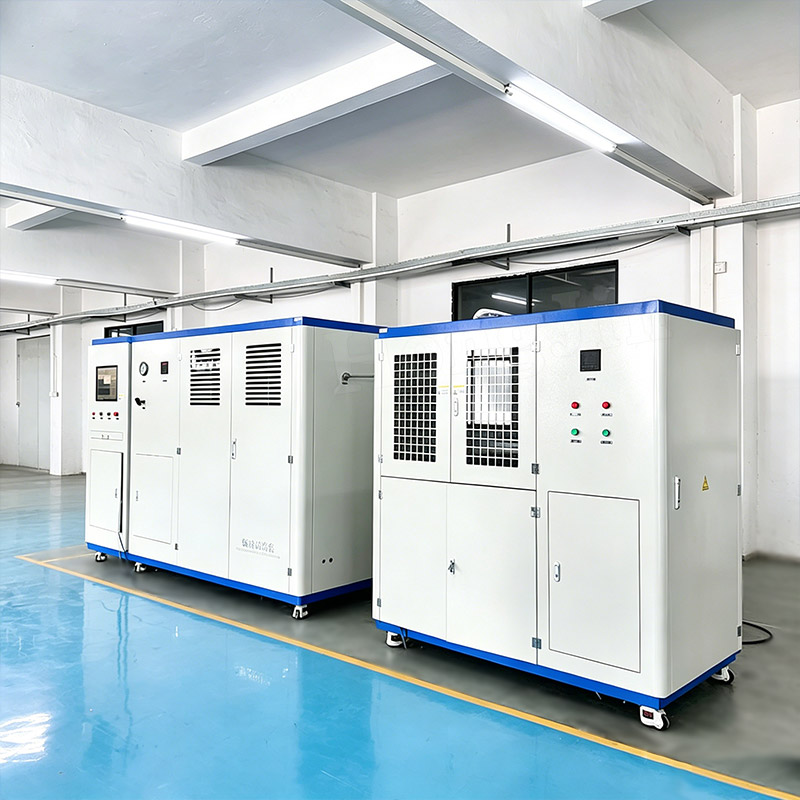

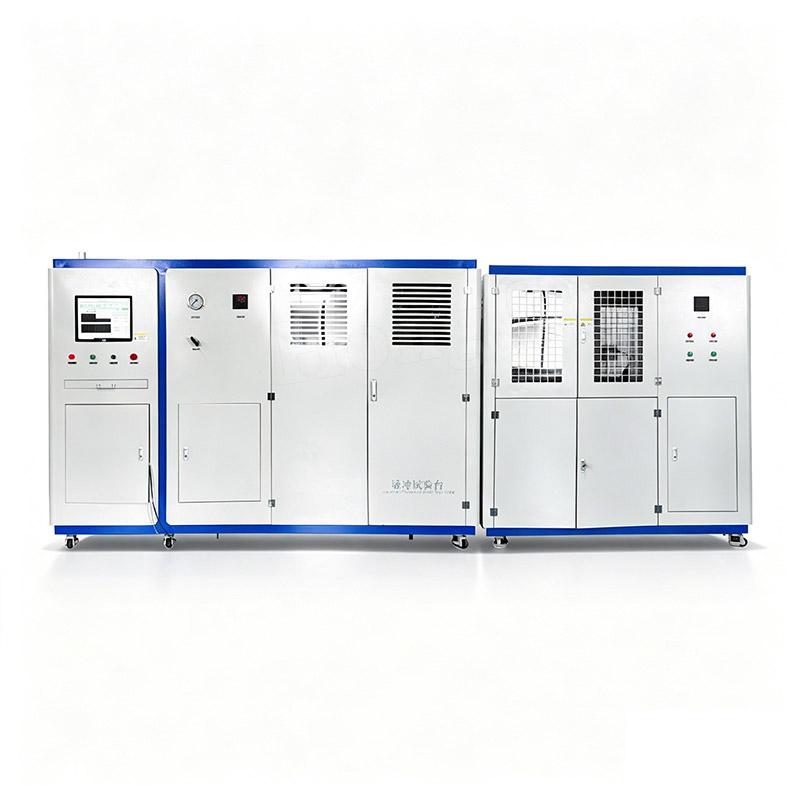

| Quantity: | |
|---|---|
Category | Name | Item | Specification |
Hydraulic Control System | Hydraulic Power Unit | Main Parameter | Total power:22KW, equipped with motor-pump assembly, valves, filter, pressure sensor and temperature sensor; water cooling equipped, cooling accessories to be provided by customer |
Medium System | Test Medium | Antifreeze, water, ethylene glycol, anti-wear hydraulic oil, brake fluid, etc. | |
Medium Temperature | Ambient temperature | ||
Medium Tank Volume | 50L | ||
Medium Circulation Pump | Flow rate:20L/min for full medium circulation | ||
Servo Pulse System | High Pressure Servo Pulse Cylinder | HONGJIN-SY-5MPa | |
Control Mode | Electro-hydraulic servo control | ||
Pulse Pressure | 0~5MPa | ||
Measurement Accuracy | ±0.5% | ||
Control Accuracy | ≤±2% of set value | ||
Pressure Rise Rate | 0-100MPa/S adjustable | ||
Pulse Frequency | 0-3HZ | ||
Cycle Times | 0~1,000,000 times adjustable | ||
Others | Accessory Description | 1.Water cooling, cooling water source provided by customer; 2.Anti-corrosion & rust-proof material for medium contacting parts; 3.With exhaust and medium recovery system; 4.With safety alarm switch | |
Computer Control System | Control Unit | Control Performance | Intelligent electro-hydraulic servo; pressure, waveform and cycle times freely settable; waveforms: sine wave, trapezoidal wave; closed-loop PID control; upper & lower computer linkage; automatic start-stop for oil pumps; protection with overtemp, filter clogging, overpressure, low liquid level, oil leakage alarm and emergency stop |
Software | Control Software | NI/Labview | |
Report Format | Microsoft Office Excel | ||
Test Chamber | Mounting Frame | Specimen Mounting Method | Customized as per customer’s requirement |
Overall Dimension (Approx.) | 2600×1500×1850mm(L×W×H) | ||
Chamber Color | Customizable | ||
Test Channel | 1 channel (expandable subject to specimen deformation) | ||
Connector Size | Customized as per customer's requirement | ||

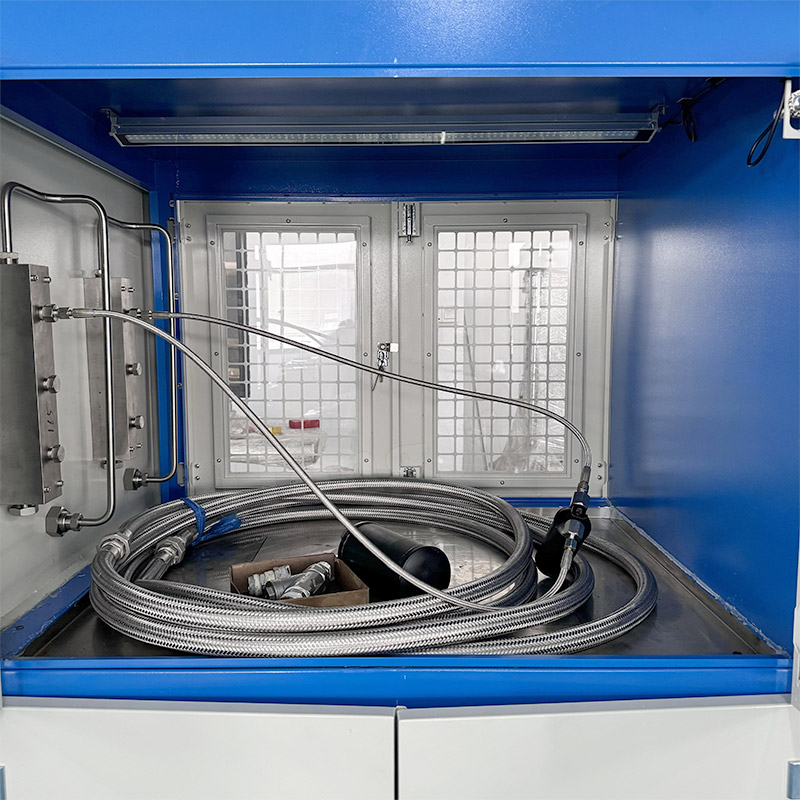

Safety Lighting | Inspection glass window, door interlock for stop function, built-in cabin lamp | ||
Others | Operating Conditions | Power Supply | AC380V 50HZ, 20KW |
Gas Supply | Clean & dry compressed air or nitrogen, supply pressure:5-6bar | ||
Installation Requirement | Flat & solid foundation with good ventilation and noise reduction | ||
Cooling Water Requirement | Temperature difference:4-5℃, pressure＞1.5bar, flow≥5 tons/hour | ||
Remark | Hydraulic oil source (46# anti-wear hydraulic oil) to be provided by the customer. |
Applications:
This instrument is suitable for various hoses, automotive hoses, hydraulic hose assemblies, metal pipelines, oil pipelines, automotive steering hoses, brake hoses, air conditioning hoses, fuel hoses, coolant hoses, radiators, heater hoses, hydraulic equipment, condensers, evaporators, air conditioning filter hoses, turbocharger system hoses, automotive brake pumps, cylinder blocks, engineering hydraulic hoses, aviation hoses and manifolds, rigid pipes, fittings, valves, pressure gauges, pressure vessels, pressure transmitters, etc.
