Product Usage

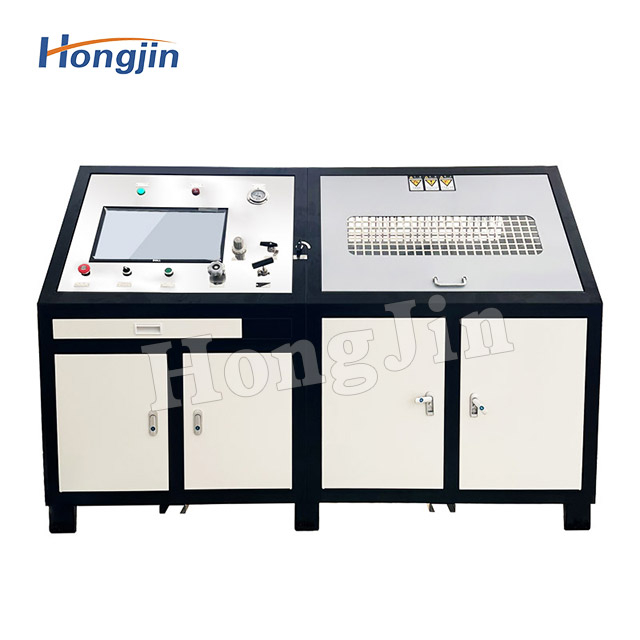

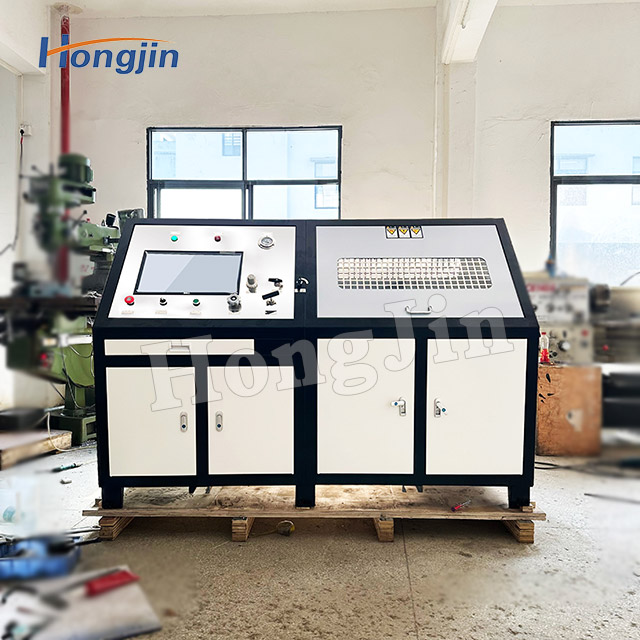

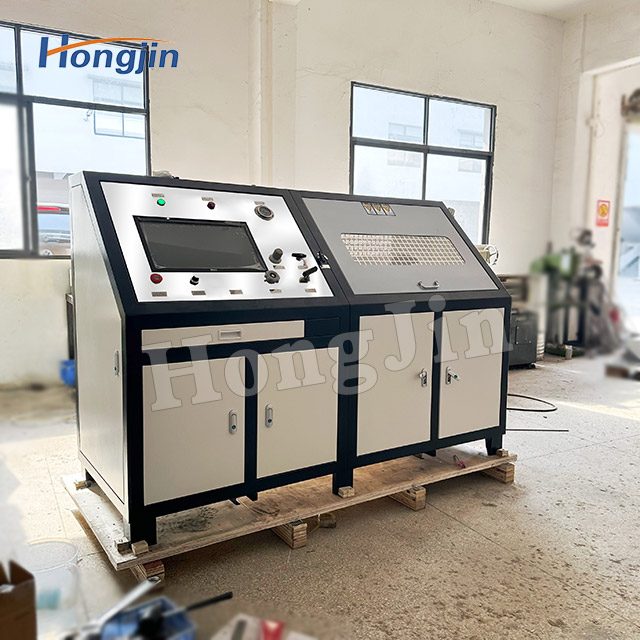

Automatic control blasting testing machine, the main application can test brake tube, brake tube, air conditioning tube, water tank, hard tube and accumulator, evaporator, hose assembly, welding parts, valves and other products to pressure test products do pressure, blasting and pulse test. It is widely used in various hose production factories, product quality inspection institutes, scientific research colleges and other units to inspect and develop all kinds of pipes.
Features:
1. Equipped with a booster pump, the output pressure can be adjusted and controlled easily.
2. Advanced technology and reasonable structure design. It has the characteristics of small size, light weight and beautiful appearance. Equipped with automatic blasting box.
3. All pressure-bearing parts are standard parts of well-known brands, without any welding connection, easy to disassemble, high safety factor, long life and easy maintenance.
4. Automatically controlled by computer software, it can realize the control of the boosting rate, display the pressure curve in real time and save the experiment report.
Product parameter table
| Test pressure | 0-300Mpa, according to the customer's actual demand, choose the corresponding pressure |
| Driving pressure | 0.1-0.69MPa: and the output pressure is proportional to the driving pressure |
| Maximum gas consumption | 1m3/min |
| Pressure control accuracy | The upper limit of the test pressure value is +2%, the lower limit is -1% |
| Pressure resolution | 0.1MMPa (equipped with automatic recording instrument function) |
| Pressure sensor | Test pressure sampling frequency 0.5 s |
| Test medium | Water, hydraulic fluid, emulsion |
| Pressure control mode | Pneumatic drive |
| Mode of operation | Computer control |
| Number of samples | 1 way control test pressure and test time (route number is optional) |
| Sample mounting mode | thread |
| Structural composition | Software pressure control device, booster device, software system |
