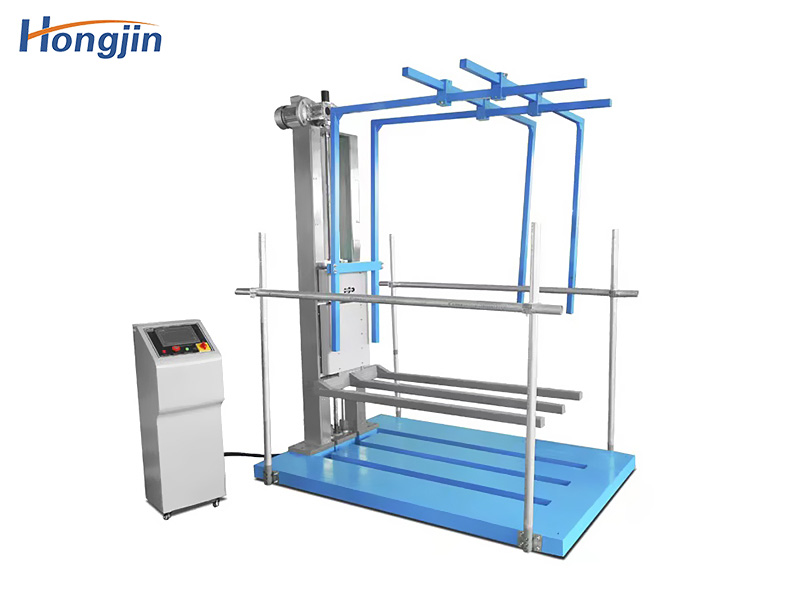

Large drop tester

The zero drop tester is mainly used to evaluate the impact of the packaged parts on the impact of drop during the actual transportation, loading and unloading process, and to evaluate the impact resistance strength of the packaged parts during the transportation process and the rationality of the packaging design. The zero drop tester is mainly used for the drop test of larger packages. The product meets the requirements of GB4857.5-92, GBT 1019-2008, GB-T4857.5-1992 and other standards. The zero drop test machine uses an "E" type fork as the bracket for the test piece, and the tested goods are tested according to the test requirements (surface, edge, corner test) placed in balance. During the test, the "E" type fork was embedded in the bottom plate under the action of the high-efficiency shock absorber before the tested packaged goods fell to the bottom plate. Theoretically, the zero drop tester can range from zero height to the maximum drop height Do a drop test. The drop height is digitally set according to the test requirements, and the drop test is automatically performed according to the set height.
