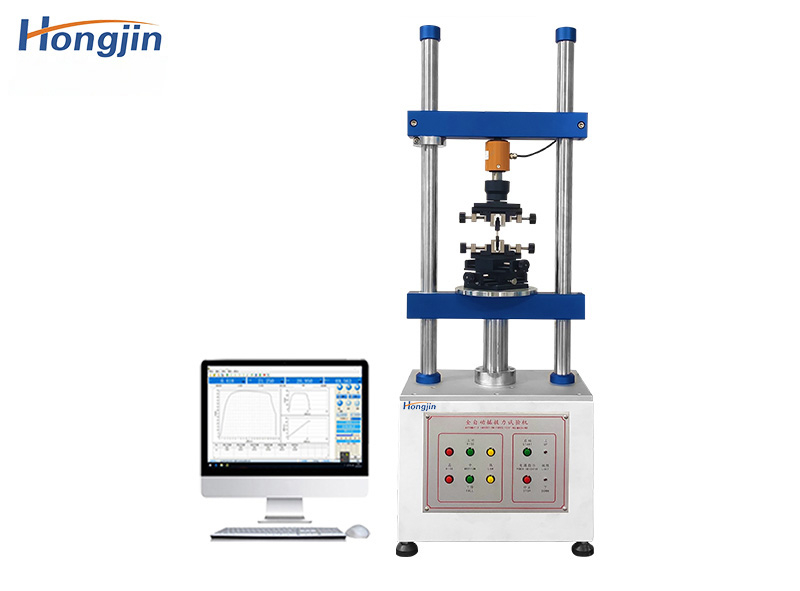

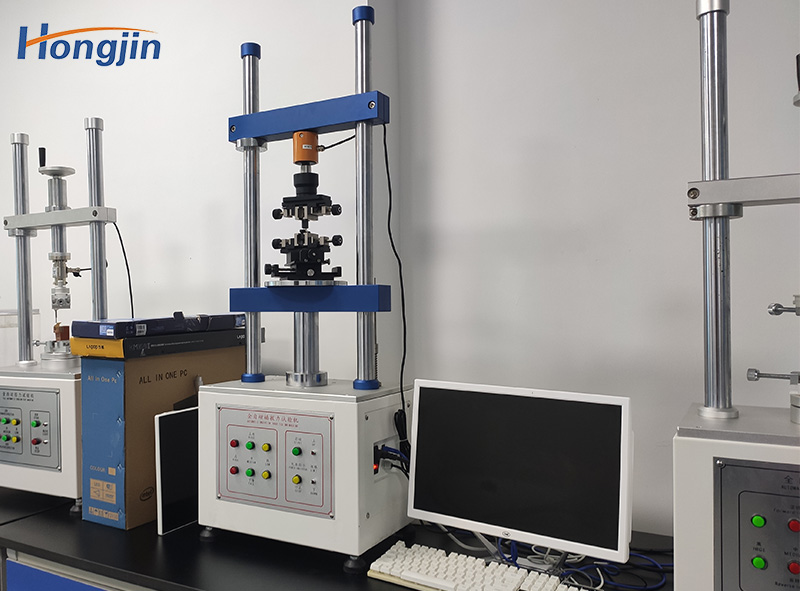

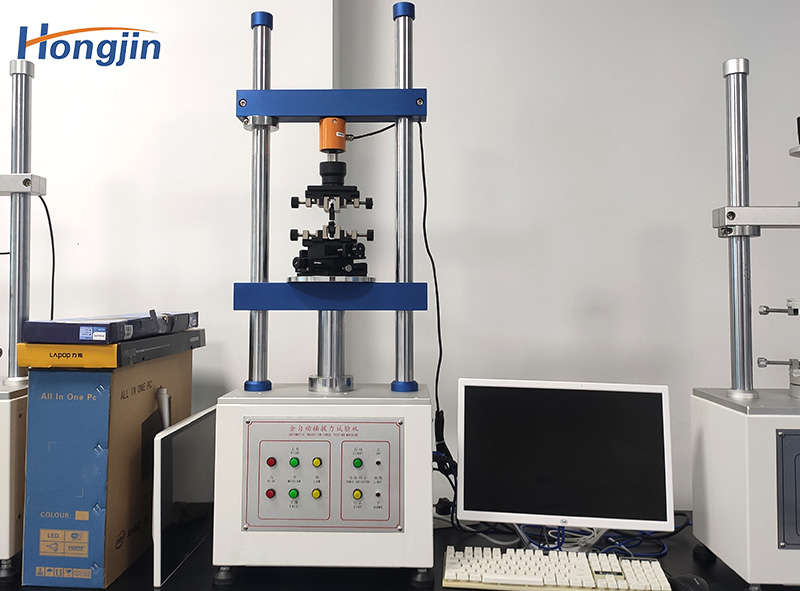

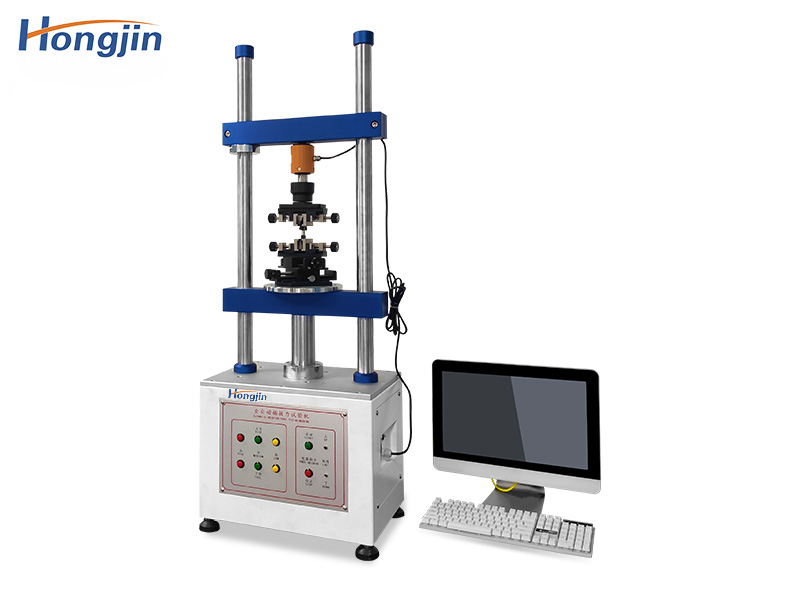

Fully automatic insertion force testing machine

1. Can do single hole plug test for connector

2. It can be used to connect the entire row of plug and pull tests to accept the connector life test

3. It can be used to test the retention force of a single connector product in the plastic

4. Can do connector NORMAL FORCE test

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. General compression and tensile failure test can be done

2. It can be connected to the side line of the contact impedance machine at the same time (optional)

3. Printable and storage graphics (plug displacement curve, life curve, inspection report)

4. The test data is stored in the hard disk (each data can be stored, unlimited times)

5. The test conditions are all set in writing by the computer, which is convenient and fast (including plug-in stroke, speed, pause time, etc.)

Determine the maximum load range	2, 5, 10, 20, 50kg (optional)
Control method	Full computer control
Test speed	0-200mm/min
Maximum measuring height	150mm
Minimum resolution	0.001kg or 1g
Minimum fine-tuning distance	0.01mm
X axis movement range	0-75mm
Y axis movement range	0-75mm
Transmission mechanism	Japan THK ball screw drive
Power supply	AC220V
Volume	360260940mm
