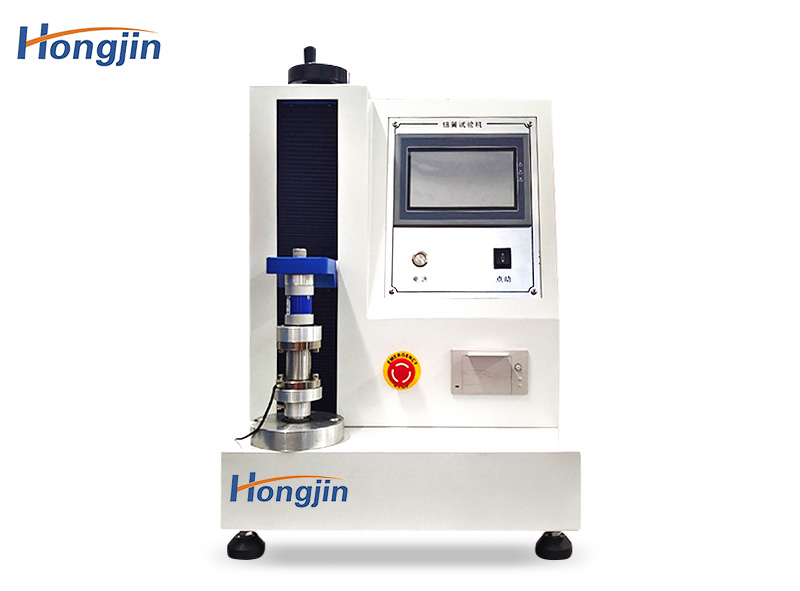

Touch spring torsion testing machine

The spring torsion testing machine mainly performs torsion tests on various torsion springs and scroll springs. To measure the torque of the spring under a certain rotation angle, or to measure the rotation angle of the spring under a certain torque, it can also be used for the torsional performance test of other elastic elements and friction mechanisms. This spring torsion testing machine is mainly used in spring manufacturers, electrical manufacturers, power Machinery factories, colleges and universities and related scientific research units.

Adopt foreign advanced technology, all-digital amplification and acquisition, so that the display is stable, high precision and easy to use. High-precision reducer has the characteristics of stable transmission, low noise, high speed accuracy, wide speed regulation range and long service life; large LCD real-time display, can display test torque, angle, peak value, etc., elegant appearance, easy to use, simple to operate ; With limit, overload automatic protection.

Product parameters:

Upper Torque (N.m) 1, 3, 5, 10, 20
Lower limit torque display value 0.0001/0.001
Unit N.m, Kg.cm, Lb.in
Test speed 1-1800deg/min
Test angle 7200deg
Power supply AC 200V (110AC)
Dimensions (mm) 697*450*623
Weight (kg) 120
