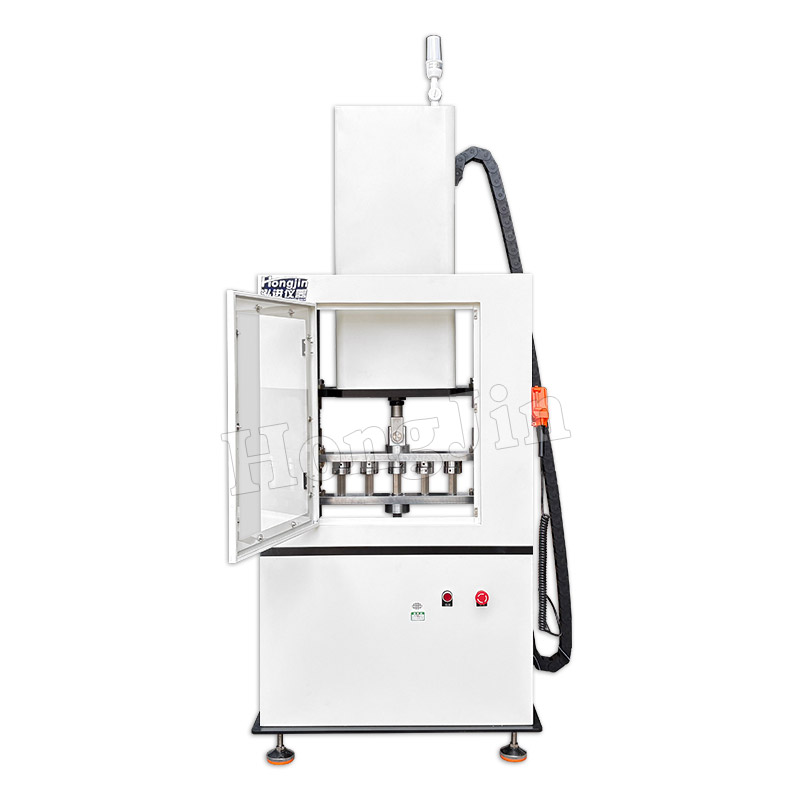

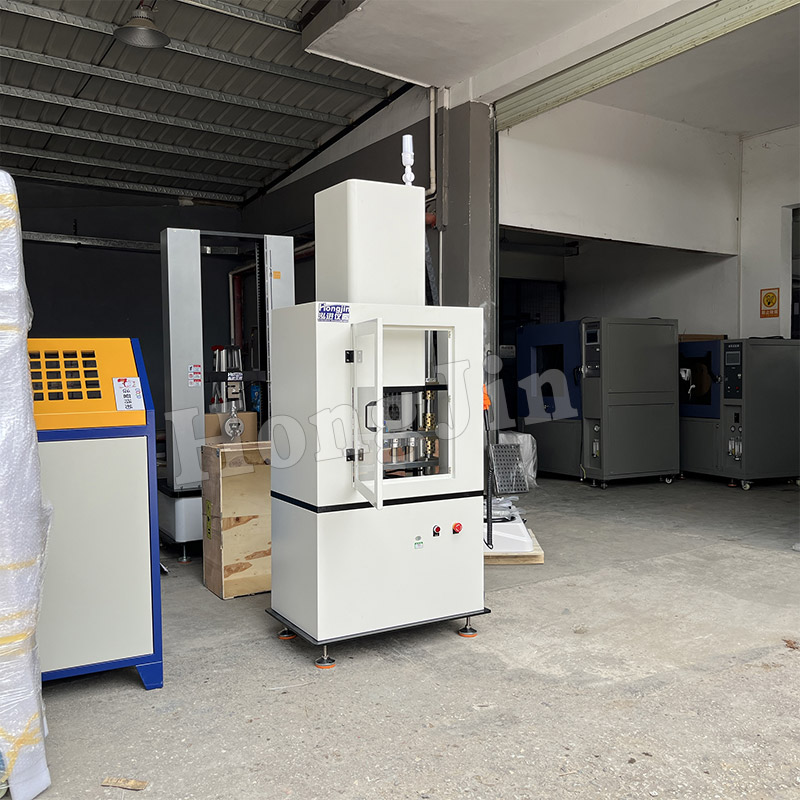

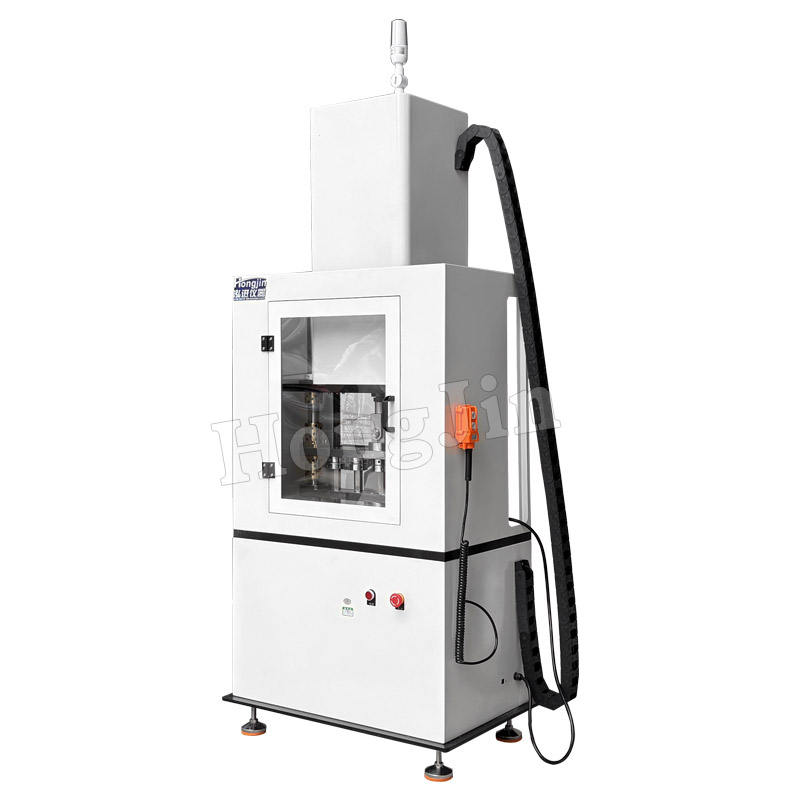

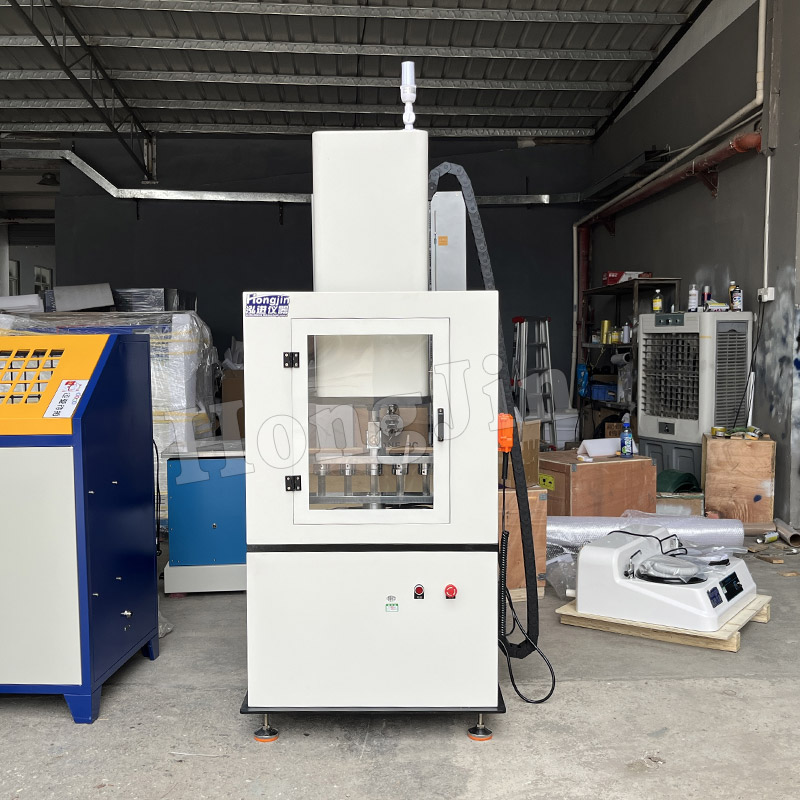

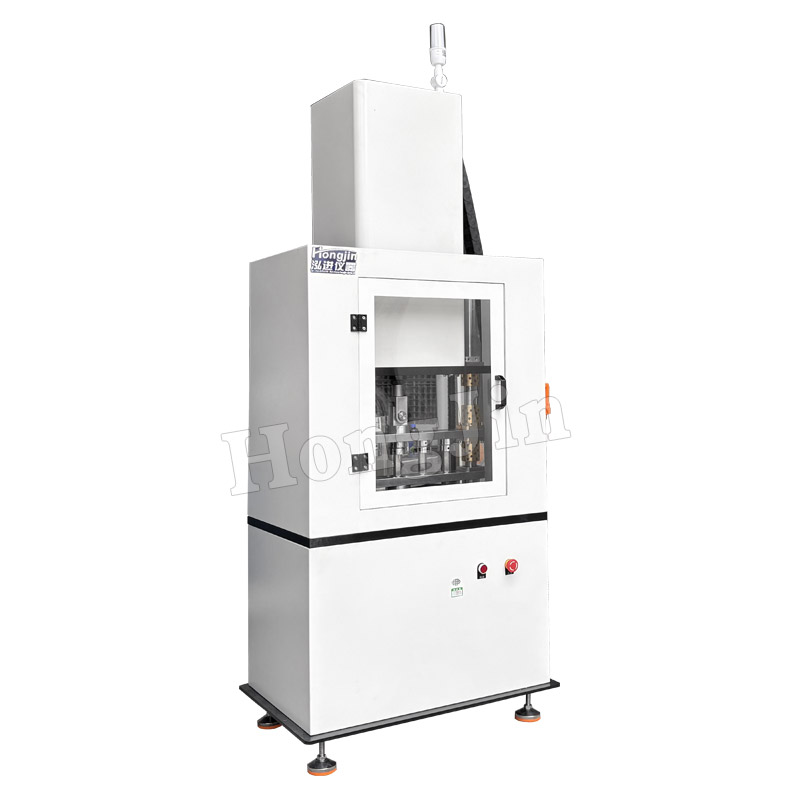

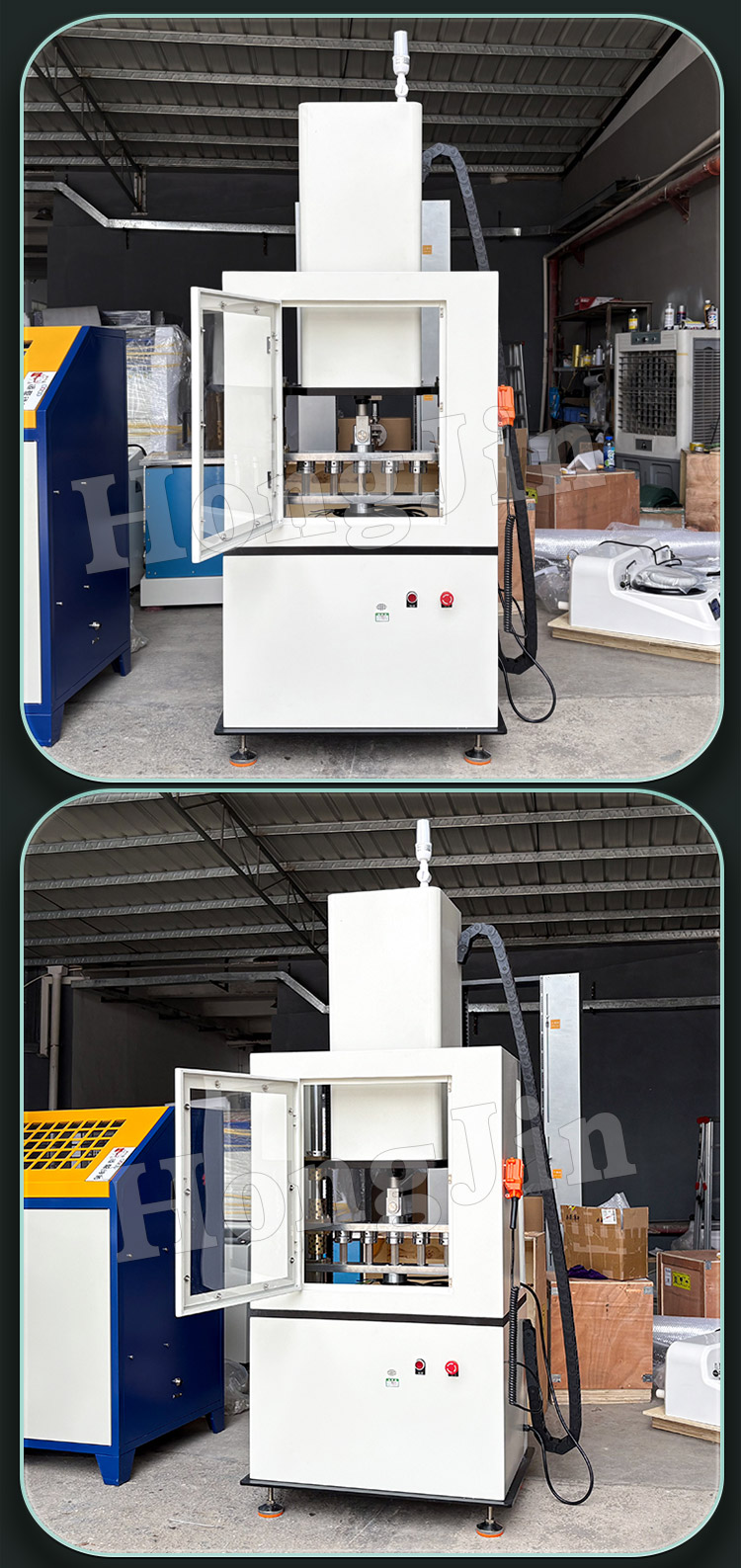

Five-station Spring Fatigue Testing Machine

Spring fatigue testing machine, spring durability testing machine, also known as microcomputer-controlled spring performance comprehensive test bench, is mainly used for fatigue life testing of various shock absorbers, shock absorbers, springs, etc. The whole machine has a reasonable structure, simple and reliable, accurate and convenient test space adjustment and test stroke adjustment; convenient and reliable specimen clamping; stable operation of the whole machine, easy maintenance and other characteristics.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

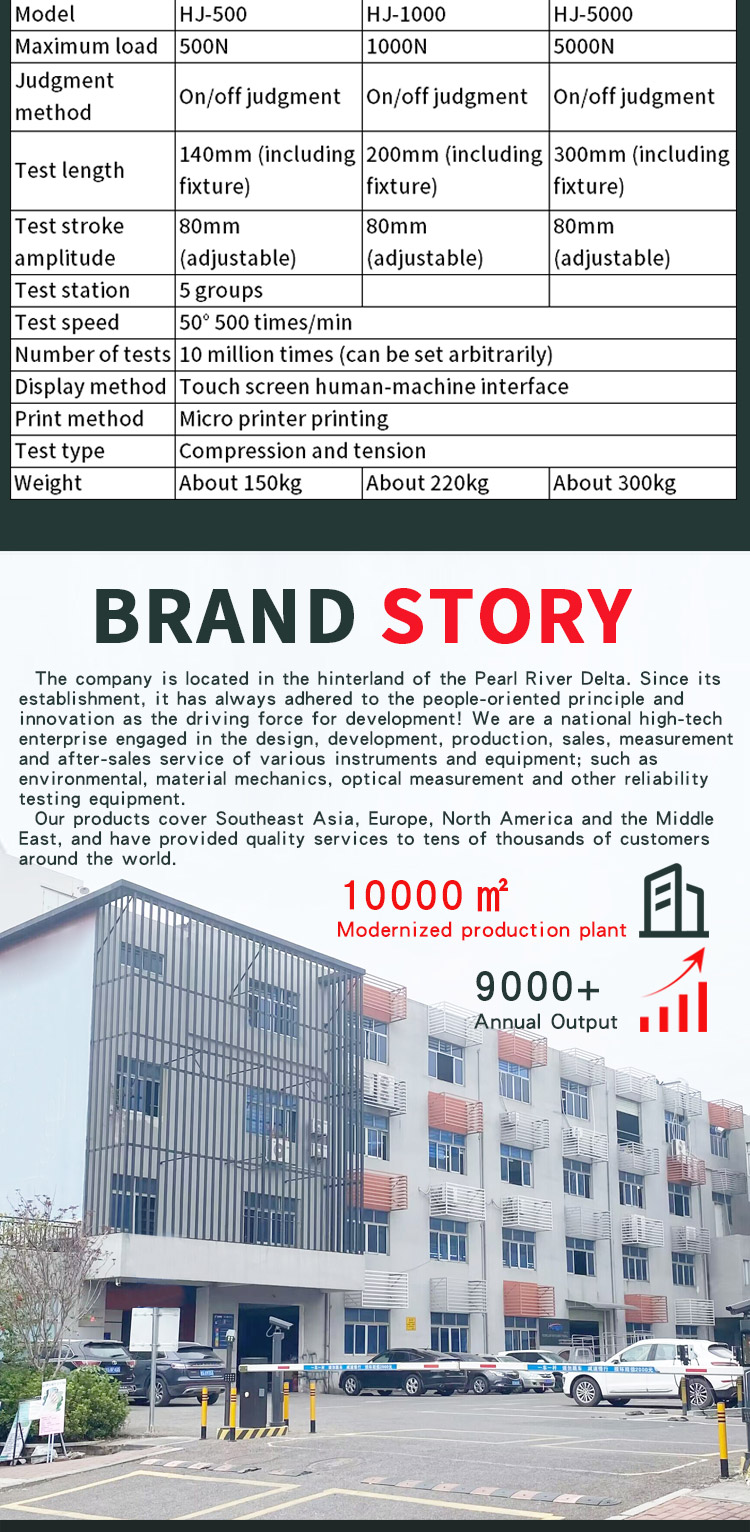

Model	HJ-500	HJ-1000	HJ-5000
Maximum load	500N	1000N	5000N
Judgment method	On/off judgment	On/off judgment	On/off judgment
Test length	140mm (including fixture)	200mm (including fixture)	300mm (including fixture)
Test stroke amplitude	80mm (adjustable)	80mm (adjustable)	80mm (adjustable)

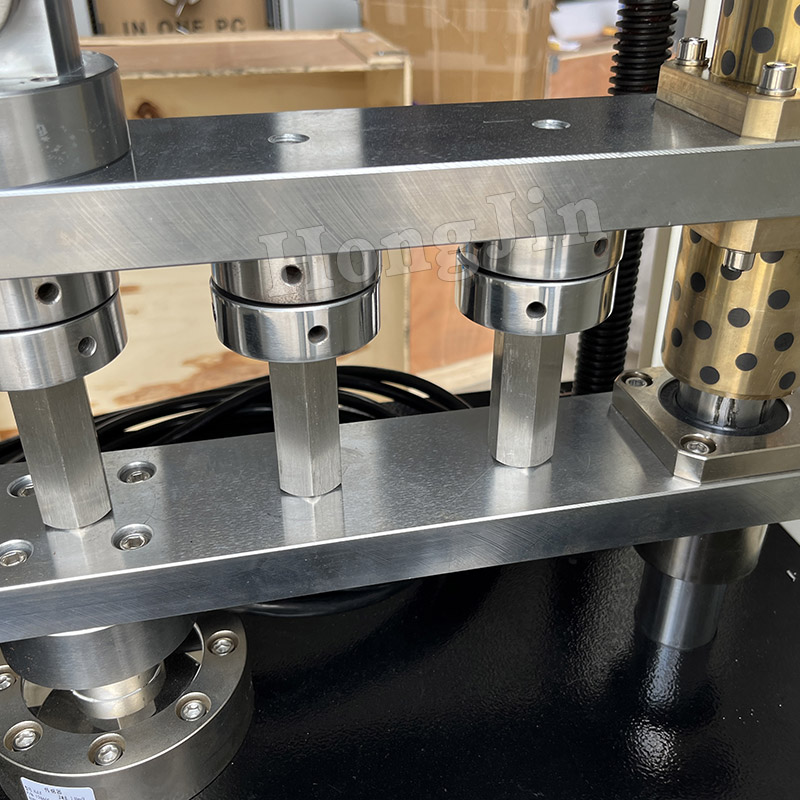

Test station	5 groups
Test speed	50° 500 times/min
Number of tests	10 million times (can be set arbitrarily)
Display method	Touch screen human-machine interface
Print method	Micro printer printing
Test type	Compression and tension
Weight	About 150kg	About 220kg	About 300kg
