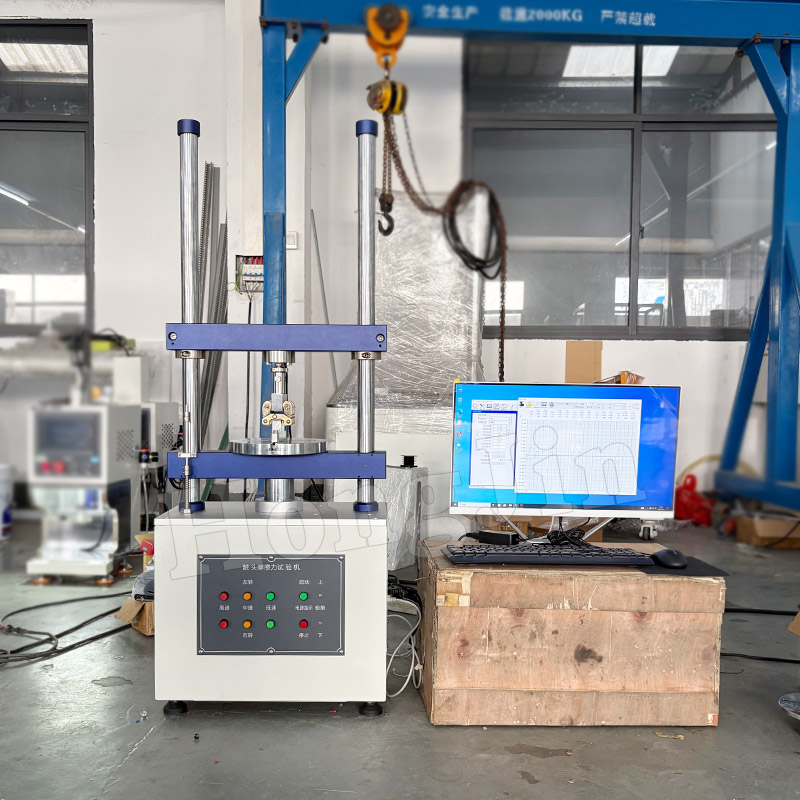

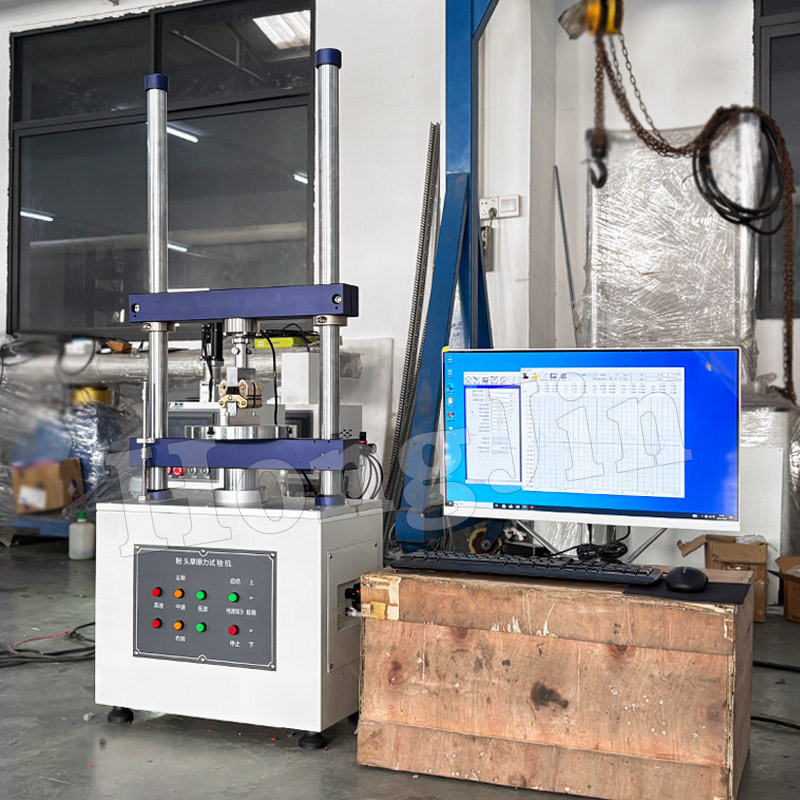

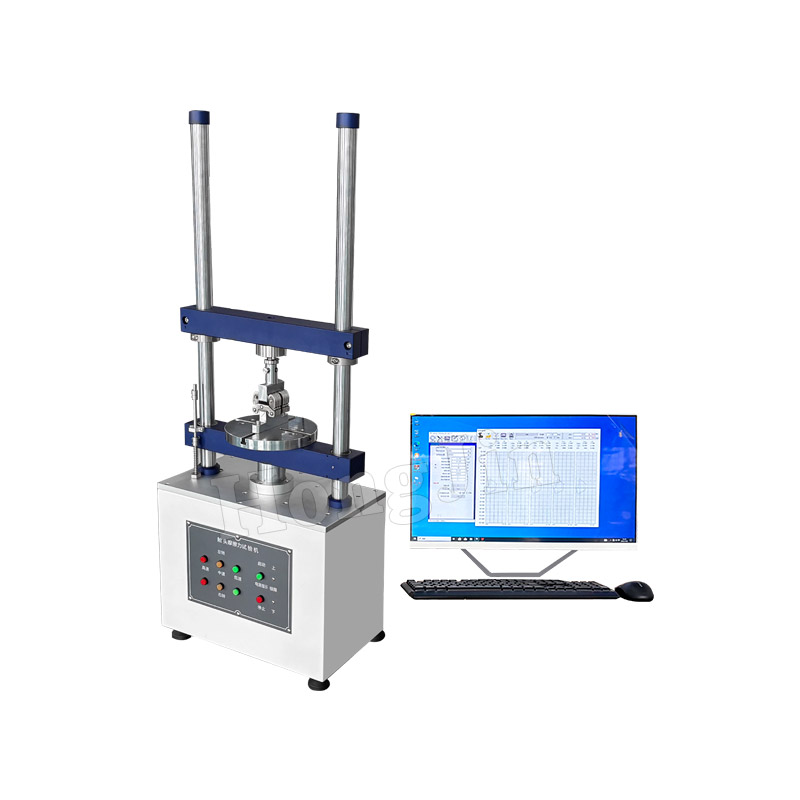

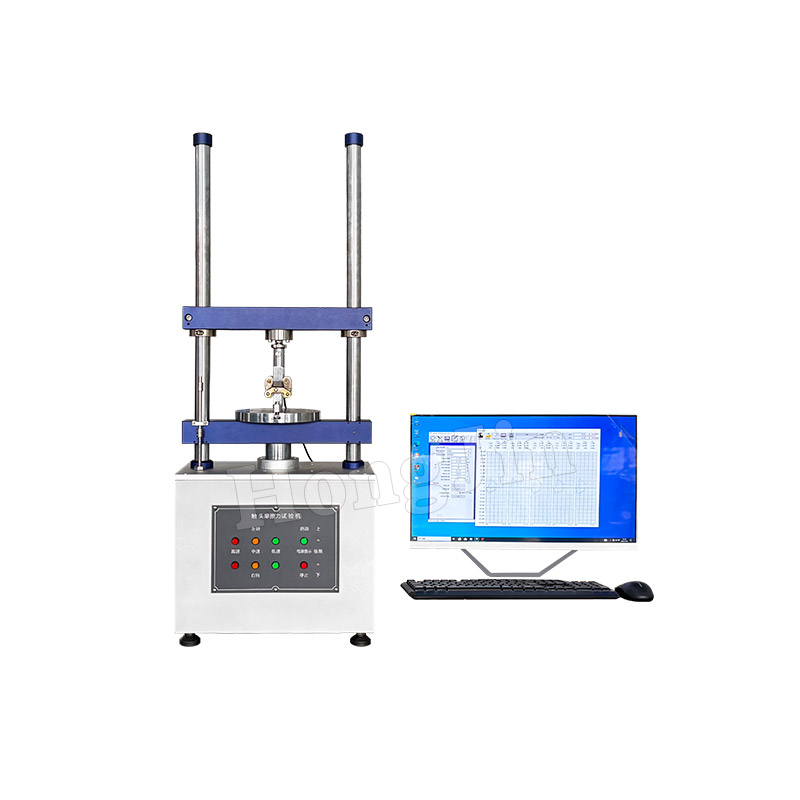

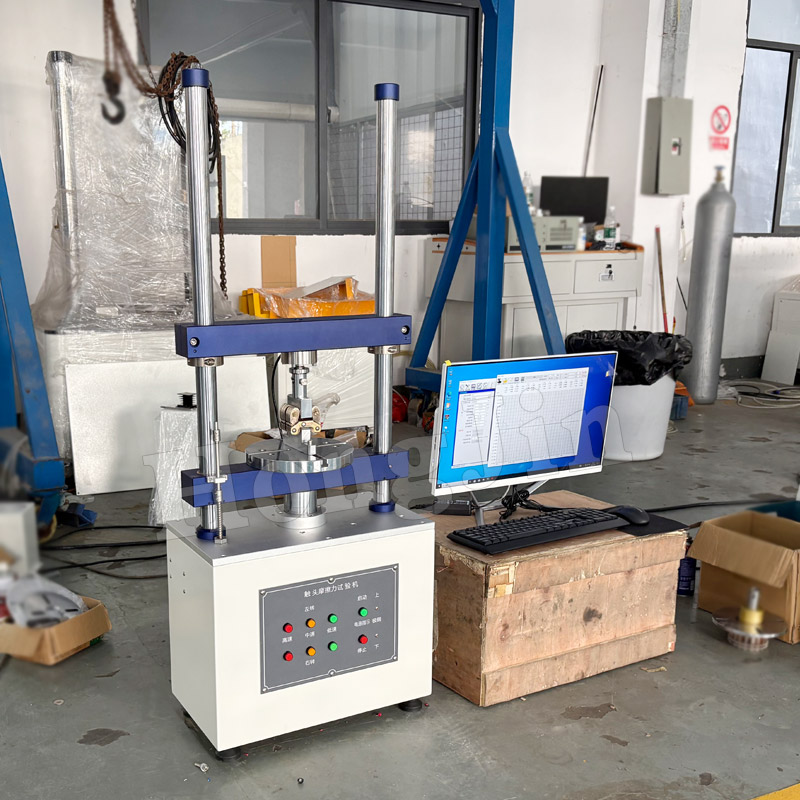

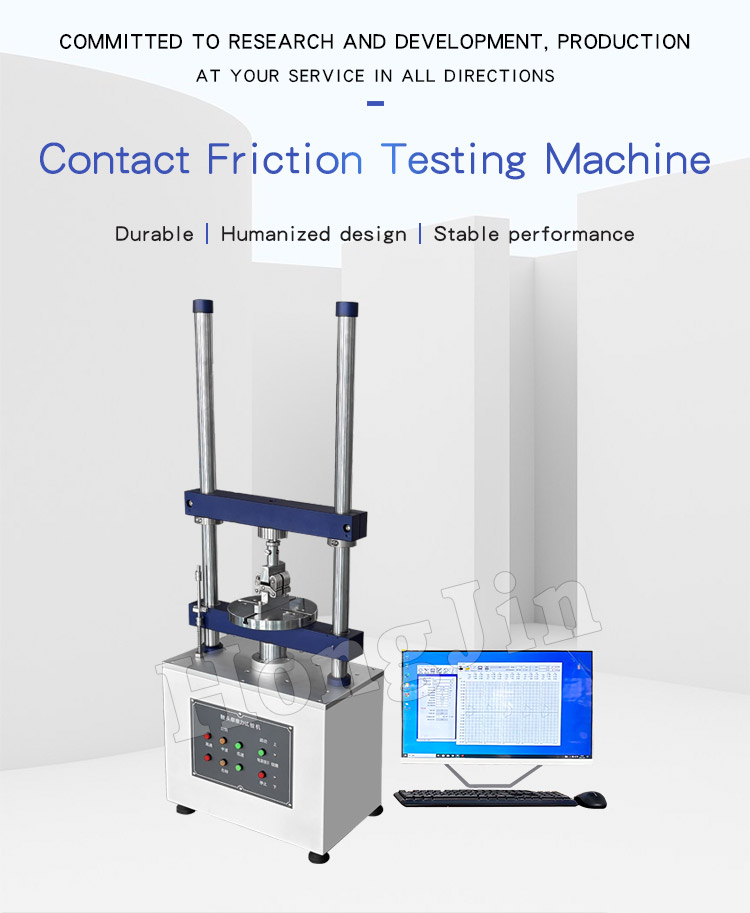

Contact Friction Testing Machine Fully Automatic Insertion And Extraction Force Testing Machine Life Testing Equipment

The fully automatic insertion and extraction force testing machine is mainly used to test the insertion and extraction force performance of connectors, and is suitable for fields such as electronics, automotive, aerospace, and new energy. It is used to test the insertion and extraction force and lifespan of connectors such as USB, HDMI, and SATA, ensuring the reliability of electronic device interfaces.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Features:

The fully automatic insertion and extraction force testing machine adopts a Windows Chinese window program setting, which is easy to operate and automatically saves test data (load-program curve, load decay life curve, test results), and all test conditions can be saved.

Test Items:

1. Connector single-pin insertion/removal test;

2. Connector row insertion/removal test;

3. Connector insertion/removal life test;

4. Connector single-pin retention force test;

5. Connector normal force test;

6. General compression and tensile failure tests;

7. Can be connected to a contact impedance analyzer simultaneously (optional).

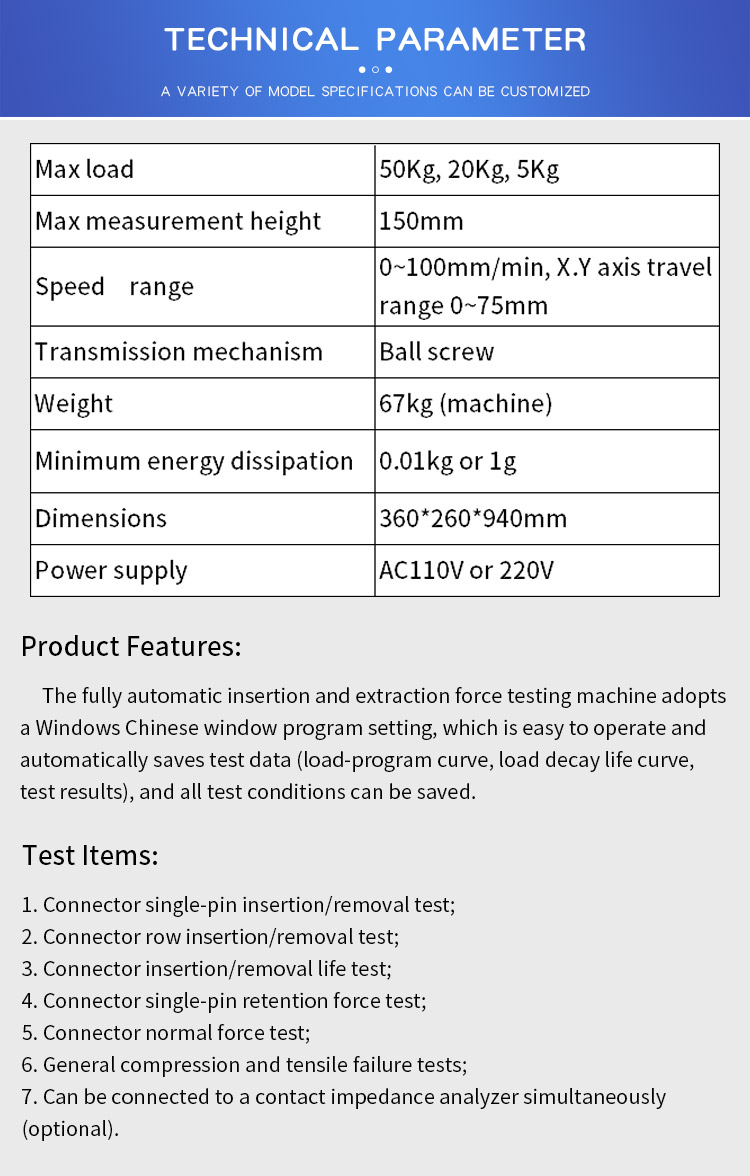

Max load	50Kg, 20Kg, 5Kg
Max measurement height	150mm
Speed range	0~100mm/min, X.Y axis travel range 0~75mm
Transmission mechanism	Ball screw
Weight	67kg (machine)
Minimum energy dissipation	0.01kg or 1g
Dimensions	360260940mm
Power supply	AC110V or 220V
