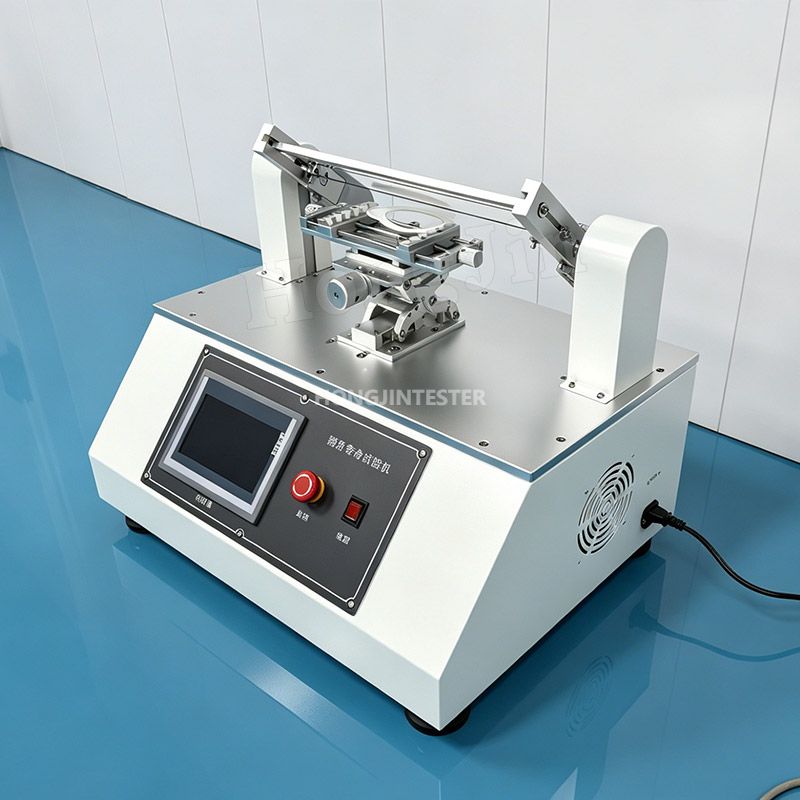

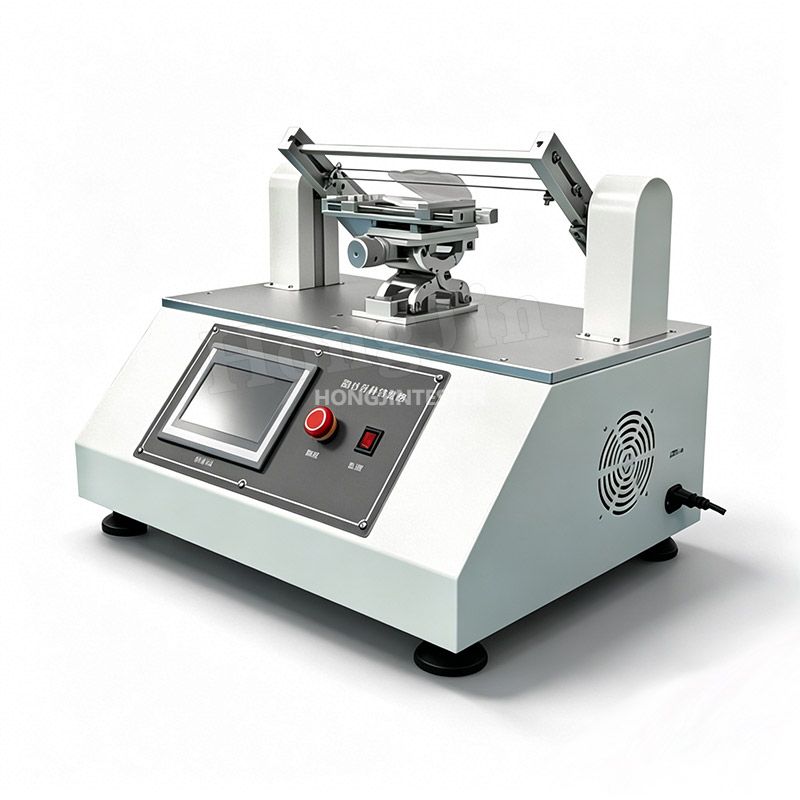

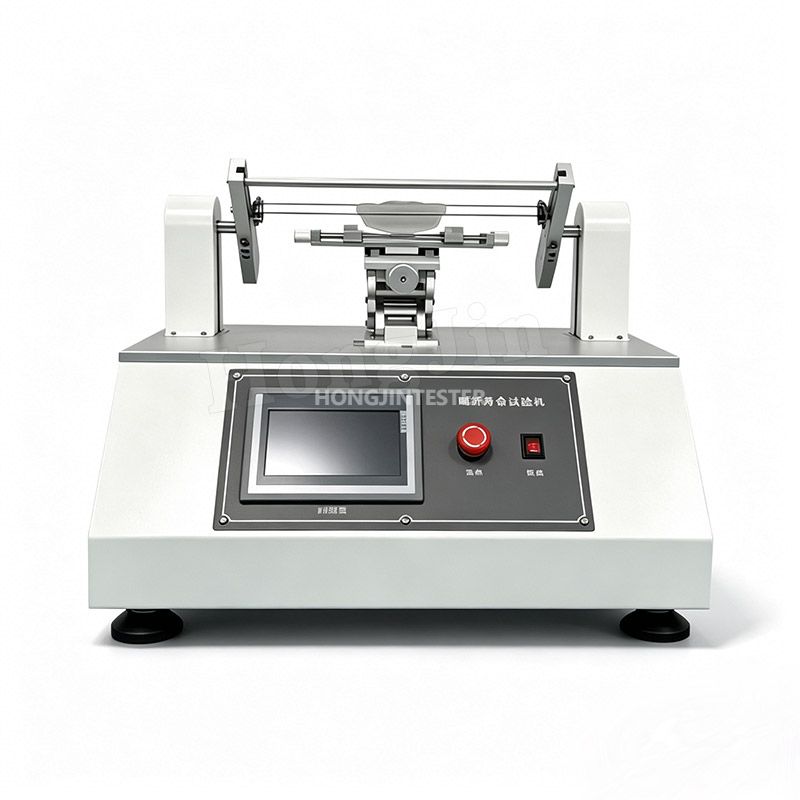

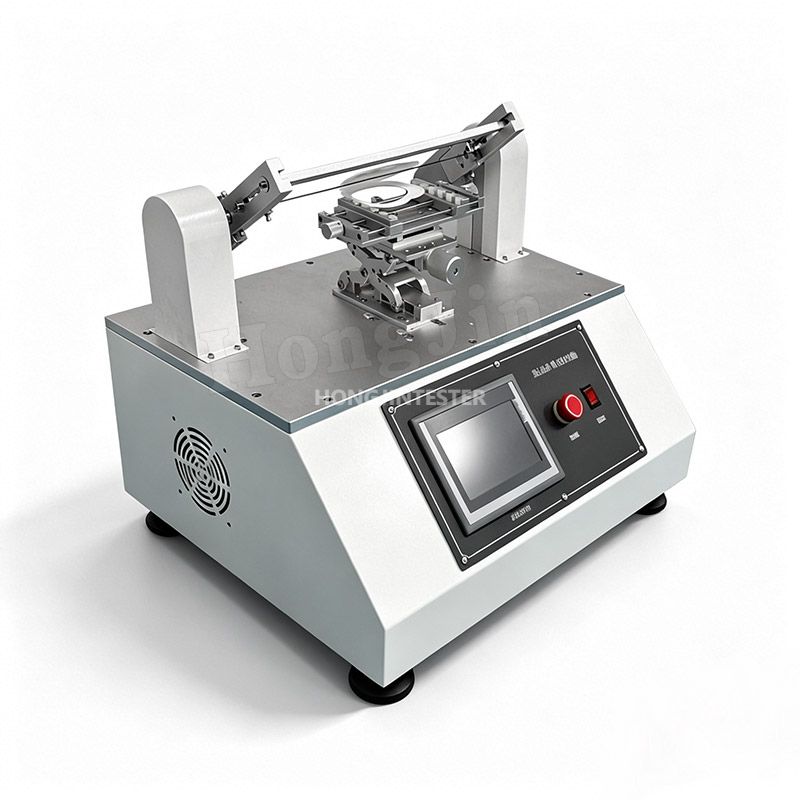

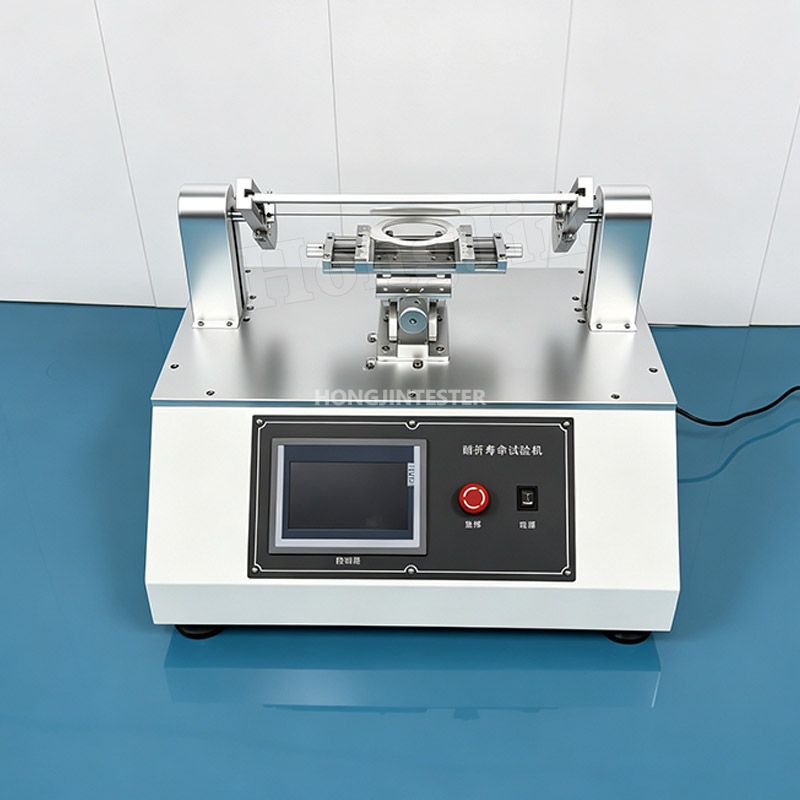

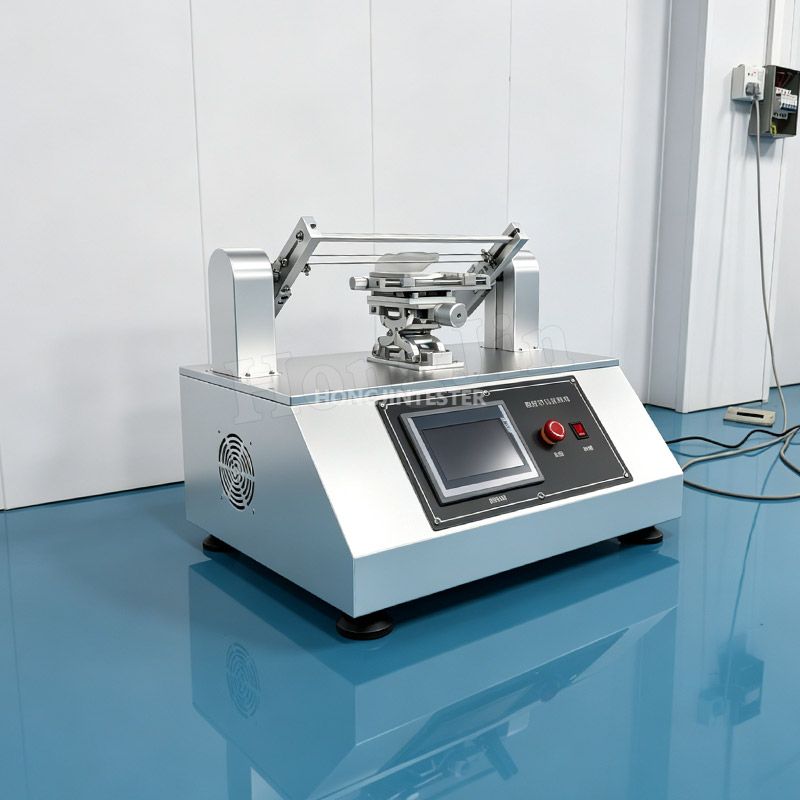

Flip-top Life Tester

Scope of application:
The flip-cap life testing machine is used for testing the flip-cap life of ashtray caps, cosmetic box caps, facial cleanser caps, shower gel caps, shampoo bottles, toothpaste caps, and other flip-cap products. The machine uses a touchscreen control panel and a motor-driven swing arm to simulate the lifespan of bottle caps in actual use under specific parameters such as angle, number of cycles, and speed.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Test Angle:	0-180 degrees (adjustable via touchscreen)
Test Station:	Single station
Angle Display:	Touchscreen display with pointer indicating angle dial
Test Speed:	2-30 times/min (adjustable via touchscreen)
Number of Tests:	0-99999999 times (adjustable via touchscreen and power-off memory)
Test Mode:	Manual mode and automatic test mode
Control System:	Touchscreen + PLC
Fixed Fixture:	Adjustable fixture
Drive System:	Servo motor + reduction system
Swing Arm Length:	0-150mm (adjustable)
Power Supply:	AC220V, 50Hz

Product Features:

1. The cabinet is treated with electrostatic baking paint, and the table and fixtures are made of pure aluminum anodized finish. The overall design is reasonable, the structure is robust, and the operation is safe, stable, accurate, and meets requirements.

2. It adopts touch screen control for setting and display, with a PLC as the control system and stepper motor drive, making testing convenient and fast.

3. Parameters such as angle, speed, and number of tests are adjustable, featuring a user-friendly design for greater practicality.
