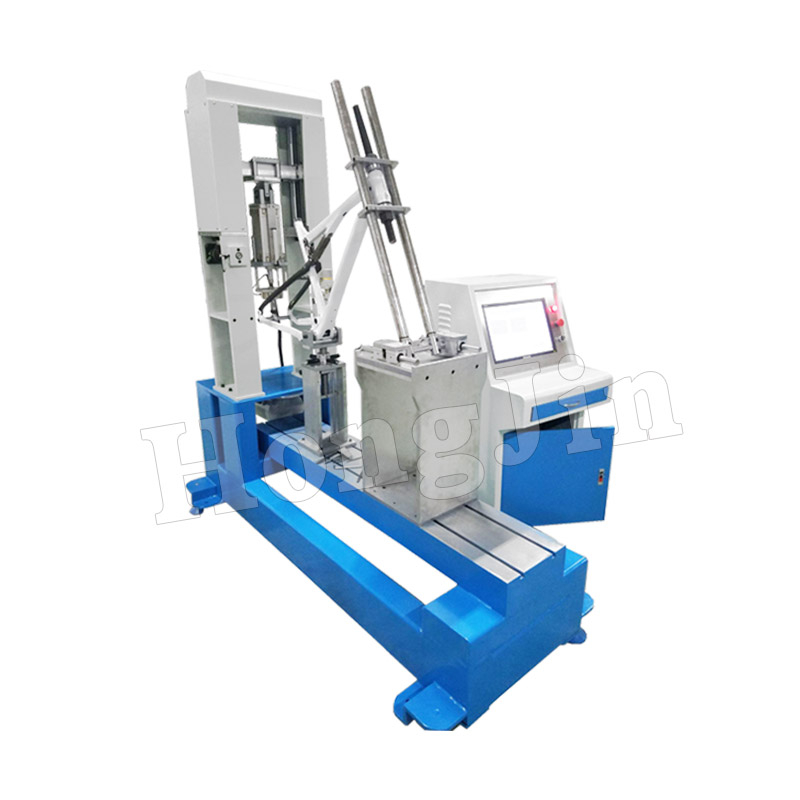

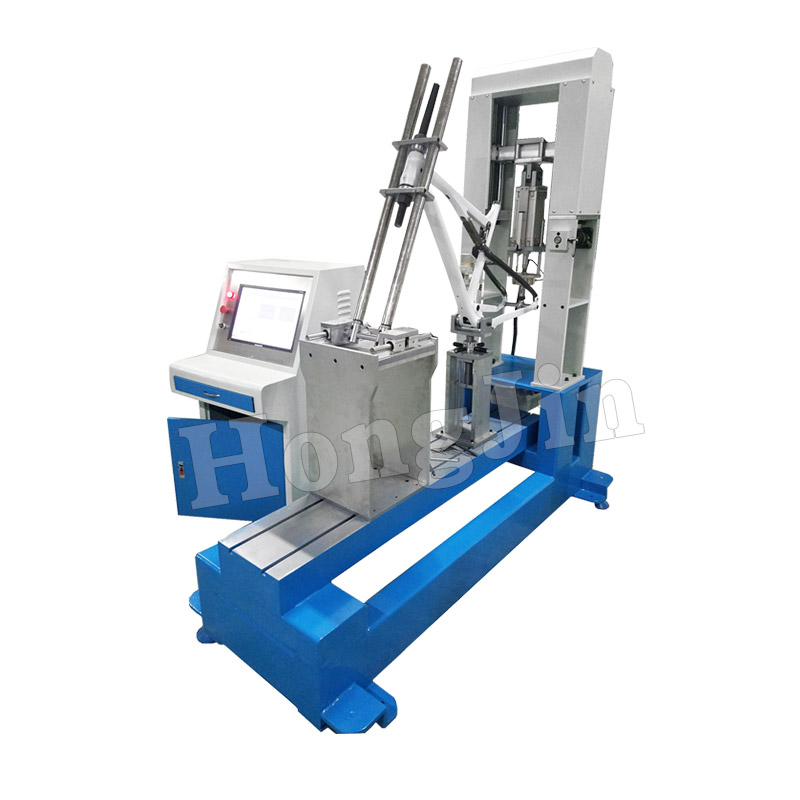

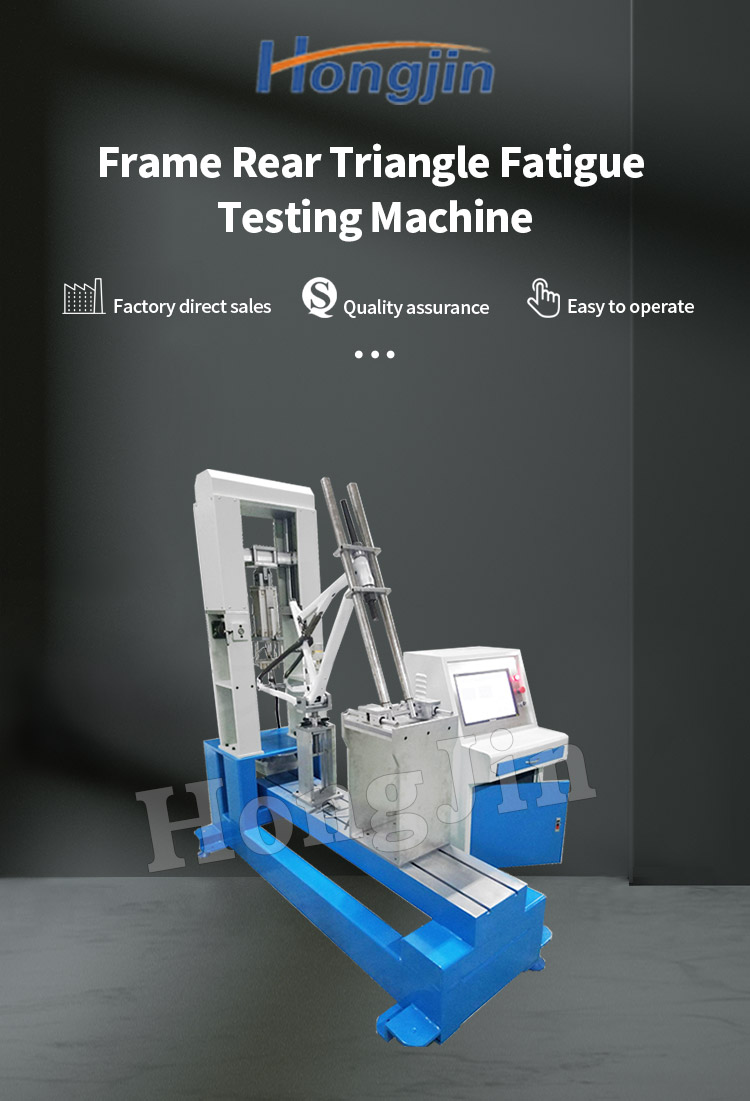

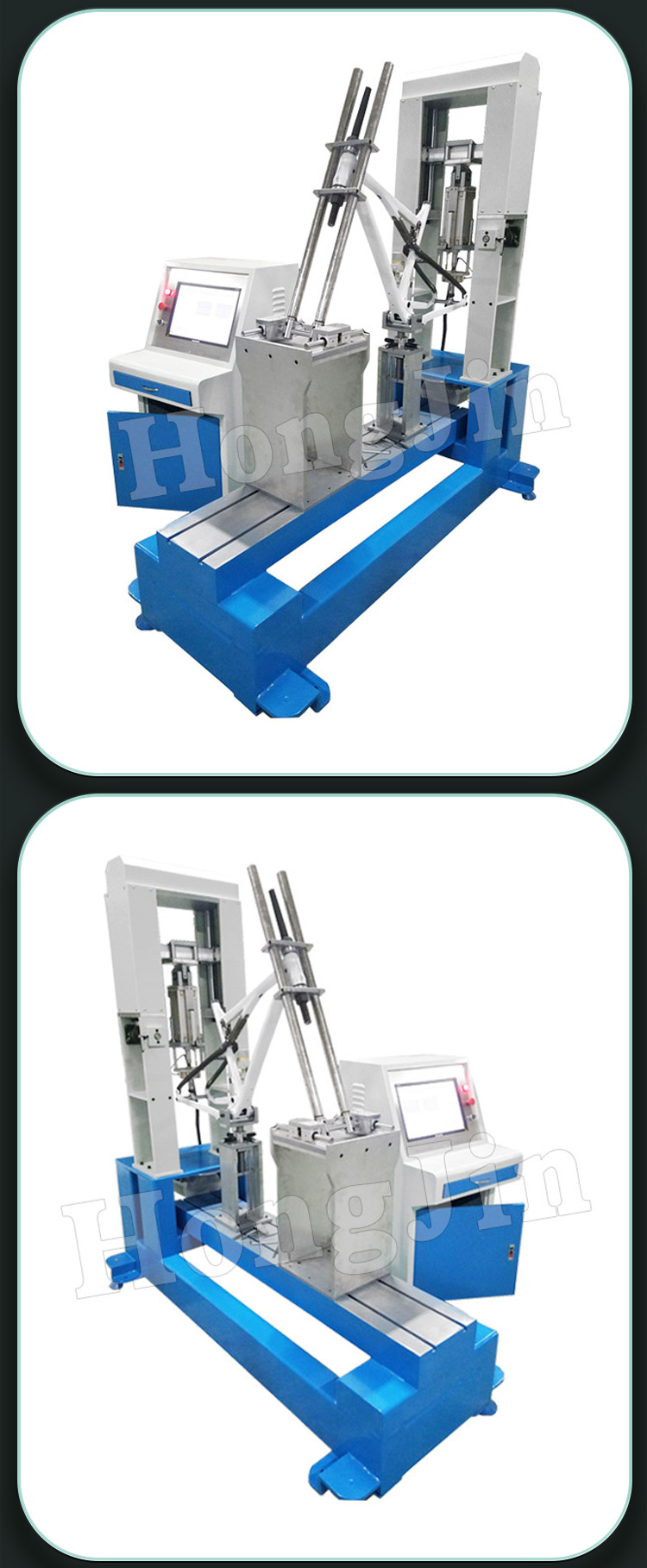

Frame rear triangle fatigue testing machine

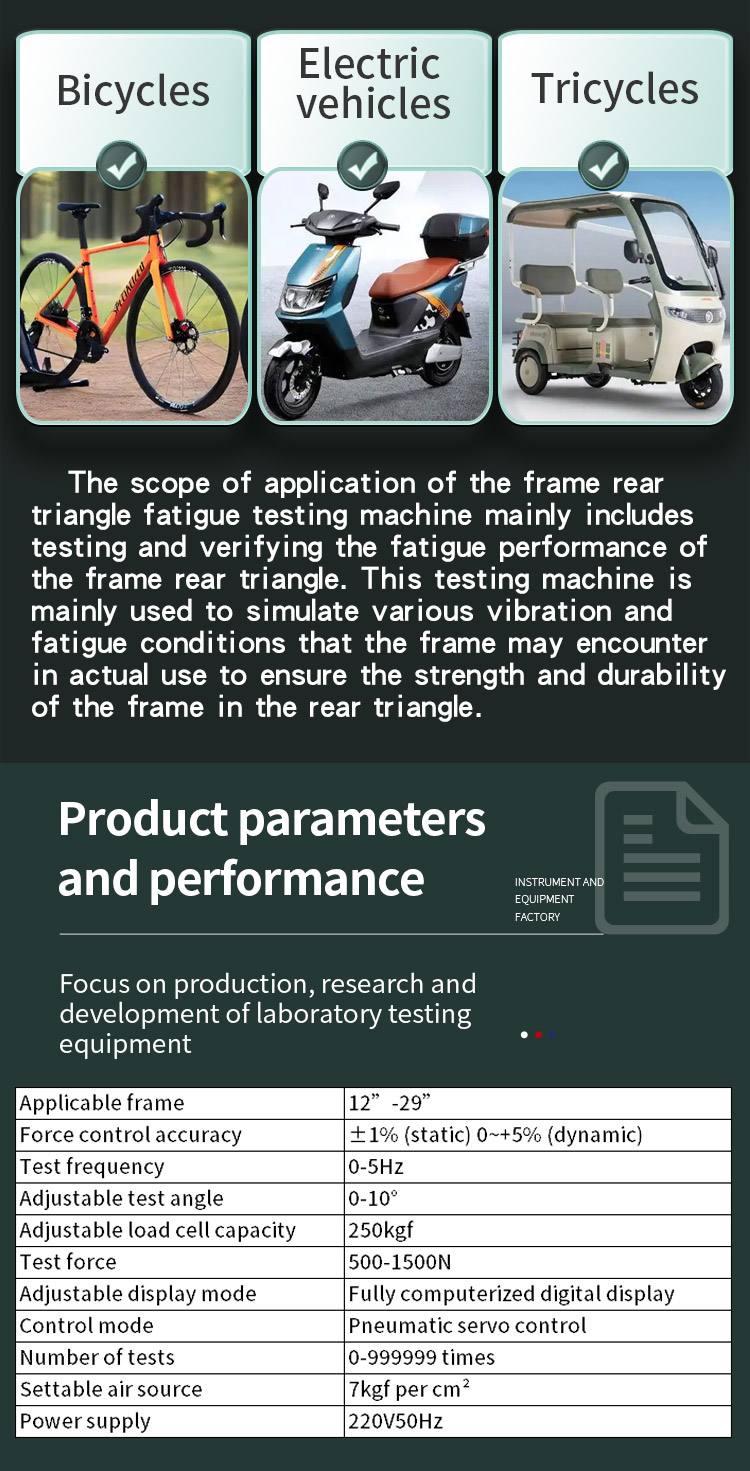

The scope of application of the frame rear triangle fatigue testing machine mainly includes testing and verifying the fatigue performance of the frame rear triangle. This testing machine is mainly used to simulate various vibration and fatigue conditions that the frame may encounter in actual use to ensure the strength and durability of the frame in the rear triangle.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Applicable frame	12”-29”
Force control accuracy	±1% (static) 0~+5% (dynamic)
Test frequency	0-5Hz
Adjustable test angle	0-10°
Adjustable load cell capacity	250kgf
Test force	500-1500N
Adjustable display mode	Fully computerized digital display
Control mode	Pneumatic servo control
Number of tests	0-999999 times
Settable air source	7kgf per cm²
Power supply	220V50Hz
