hongjin
Product features:

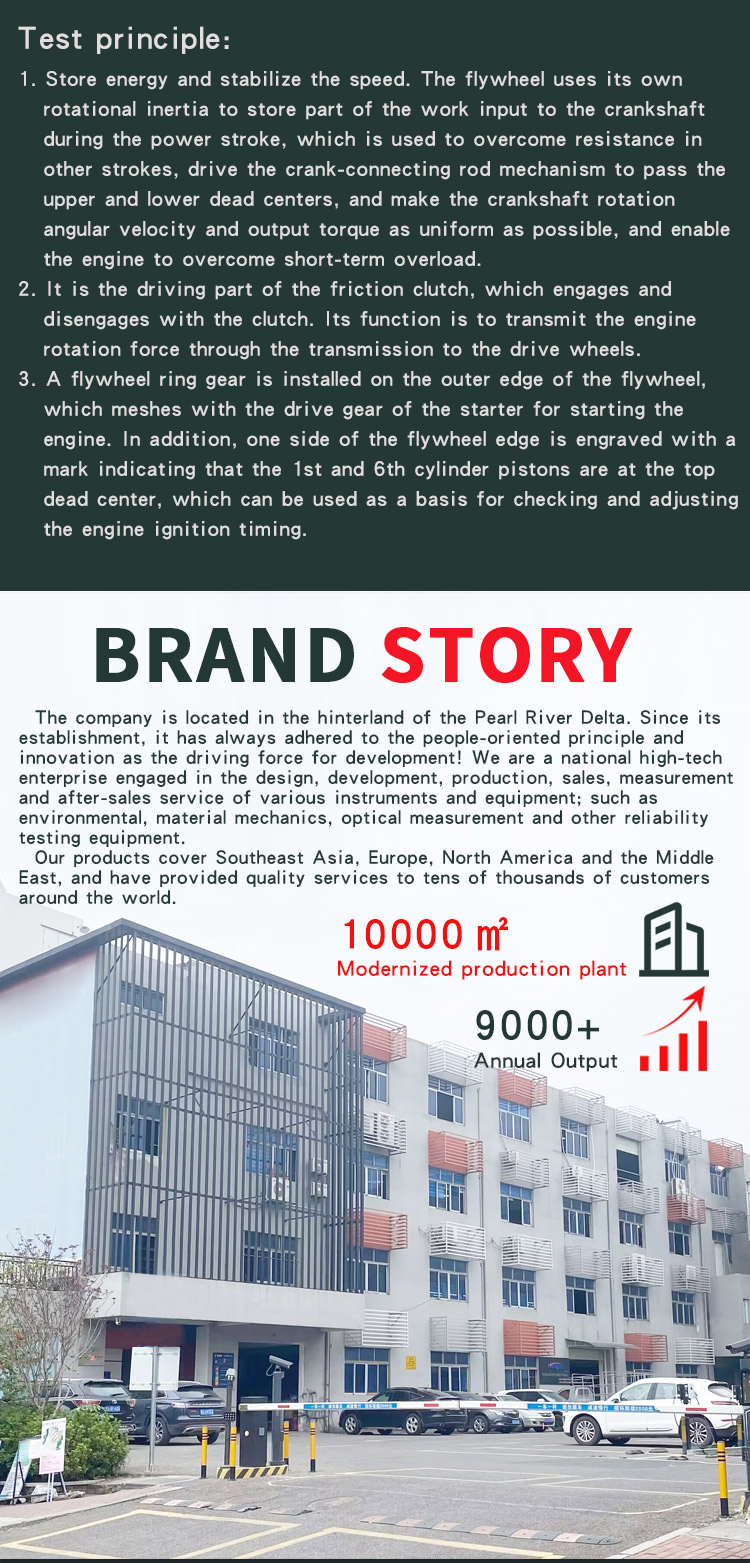

1. Store energy and stabilize the speed. The flywheel uses its own rotational inertia to store part of the work input to the crankshaft during the power stroke, which is used to overcome resistance in other strokes, drive the crank-connecting rod mechanism to pass the upper and lower dead centers, and make the crankshaft rotation angular velocity and output torque as uniform as possible, and enable the engine to overcome short-term overload.
2. It is the driving part of the friction clutch, which engages and disengages with the clutch. Its function is to transmit the engine rotation force through the transmission to the drive wheels.
3. A flywheel ring gear is installed on the outer edge of the flywheel, which meshes with the drive gear of the starter for starting the engine. In addition, one side of the flywheel edge is engraved with a mark indicating that the 1st and 6th cylinder pistons are at the top dead center, which can be used as a basis for checking and adjusting the engine ignition timing.

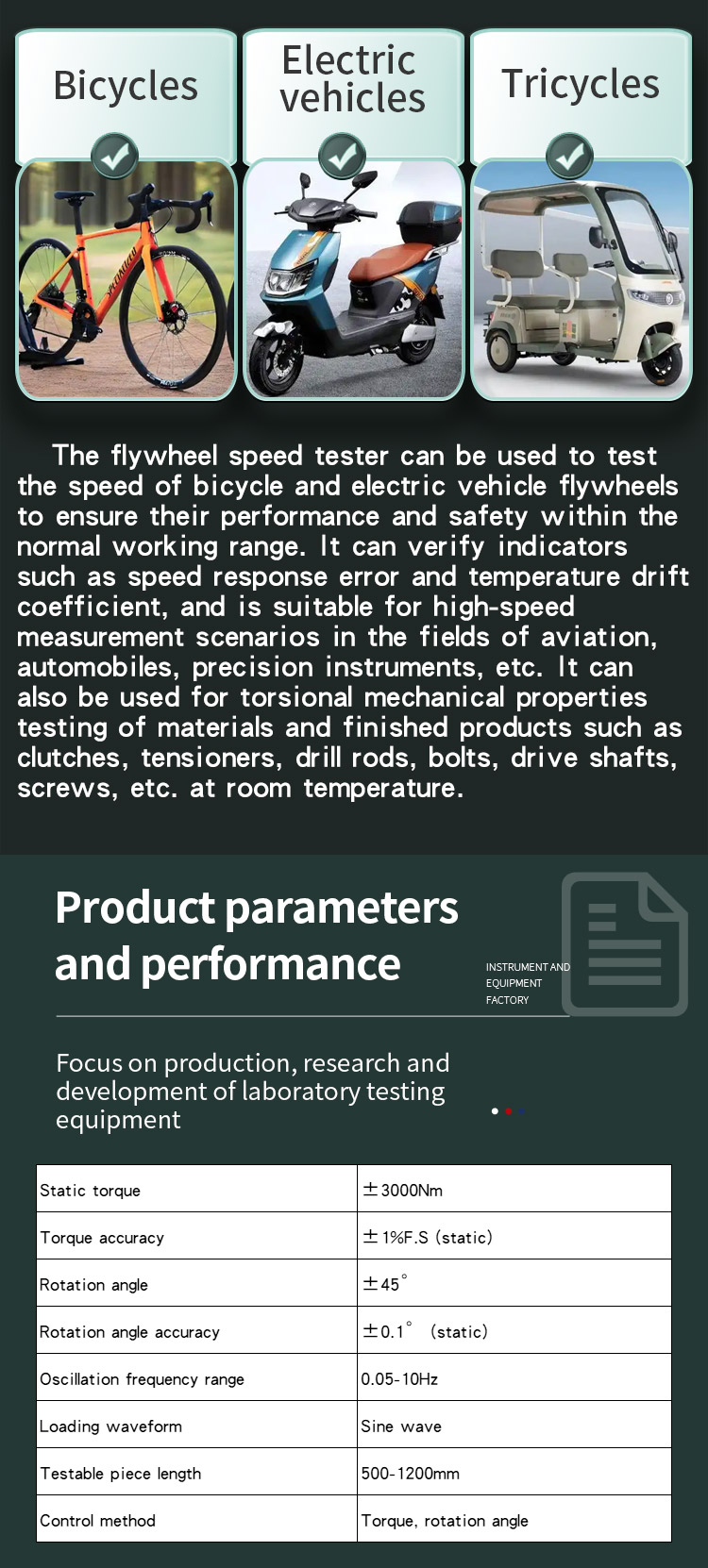

| Static torque | ±3000Nm |
| Torque accuracy | ±1%F.S (static) |
| Rotation angle | ±45° |
| Rotation angle accuracy | ±0.1° (static) |
| Oscillation frequency range | 0.05-10Hz |
| Loading waveform | Sine wave |
| Testable piece length | 500-1200mm |
| Control method | Torque, rotation angle |
Product features:
1. Store energy and stabilize the speed. The flywheel uses its own rotational inertia to store part of the work input to the crankshaft during the power stroke, which is used to overcome resistance in other strokes, drive the crank-connecting rod mechanism to pass the upper and lower dead centers, and make the crankshaft rotation angular velocity and output torque as uniform as possible, and enable the engine to overcome short-term overload.
2. It is the driving part of the friction clutch, which engages and disengages with the clutch. Its function is to transmit the engine rotation force through the transmission to the drive wheels.
3. A flywheel ring gear is installed on the outer edge of the flywheel, which meshes with the drive gear of the starter for starting the engine. In addition, one side of the flywheel edge is engraved with a mark indicating that the 1st and 6th cylinder pistons are at the top dead center, which can be used as a basis for checking and adjusting the engine ignition timing.
| Static torque | ±3000Nm |
| Torque accuracy | ±1%F.S (static) |
| Rotation angle | ±45° |
| Rotation angle accuracy | ±0.1° (static) |
| Oscillation frequency range | 0.05-10Hz |
| Loading waveform | Sine wave |
| Testable piece length | 500-1200mm |
| Control method | Torque, rotation angle |
