Scope of application:

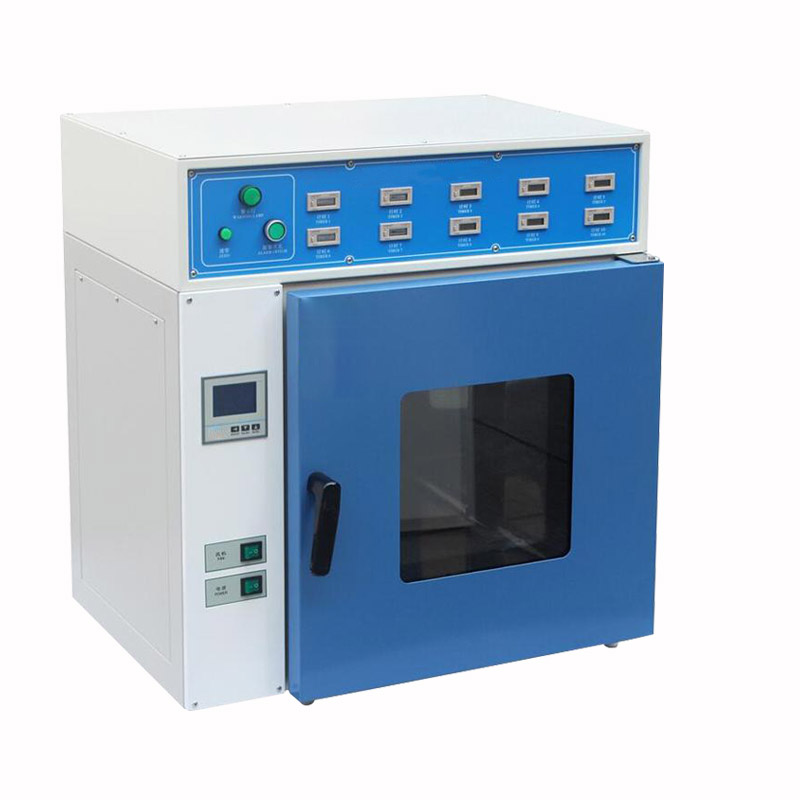

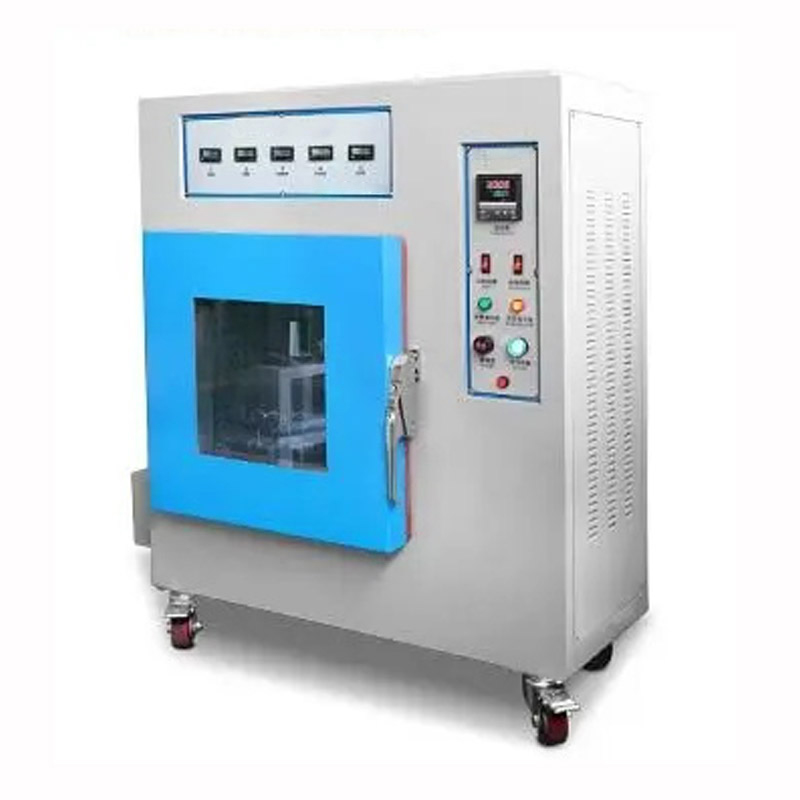

The constant temperature tape retention test machine is mainly used to test the adhesion resistance of the sample, test the adhesiveness of the pressure sensitive tape, static load test, stick the tape to the test board, hang the standard load at the lower end, after a period of automatic timing , Measuring the sliding distance of the tape or the sticking time of the tape is used to evaluate the persistence of the tape adhesion; it is suitable for the stickiness test of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films, etc.
Product parameter table
Test fixture: | 10 sets (timed separately) |
Load: | 1kg, (or specified) |
Chronograph: | 10 sets, 99,999.9 hours |
Temperature control: | Room temperature ~200° C |
Temperature display: | 0.1 ℃ |
Heating method: | Hot air circulation |
Safety device: | With over temperature and electric overload automatic power off protection facilities |
Machine material: | SUS #304 stainless steel plate inside, high grade steel plate paint treatment outside |
Inner box size: | (LXW×H) 45×34×45cm |
Appearance size: | (L×W×H) 97×47×106 cm |
Weight: | 105kg |
Power Supply: | 1∮, AC220V, 15A |
