Scope of application:
1. Front fork drop hammer impact: Test the impact resistance of the front fork when it is subjected to a drop hammer impact.
2. Front fork frame combination drop impact: Simulate the impact of the frame and the front fork during the drop process.
3. Pedal horizontal, vertical, and diagonal hammer impact: Test the reaction of the pedal when it is impacted in different directions.
4. Handlebar combination impact: Test the durability of the handlebar assembly when it is impacted.
5. Crank vertical impact: Test the stability of the crank when it is impacted in the vertical direction.
Test principle:

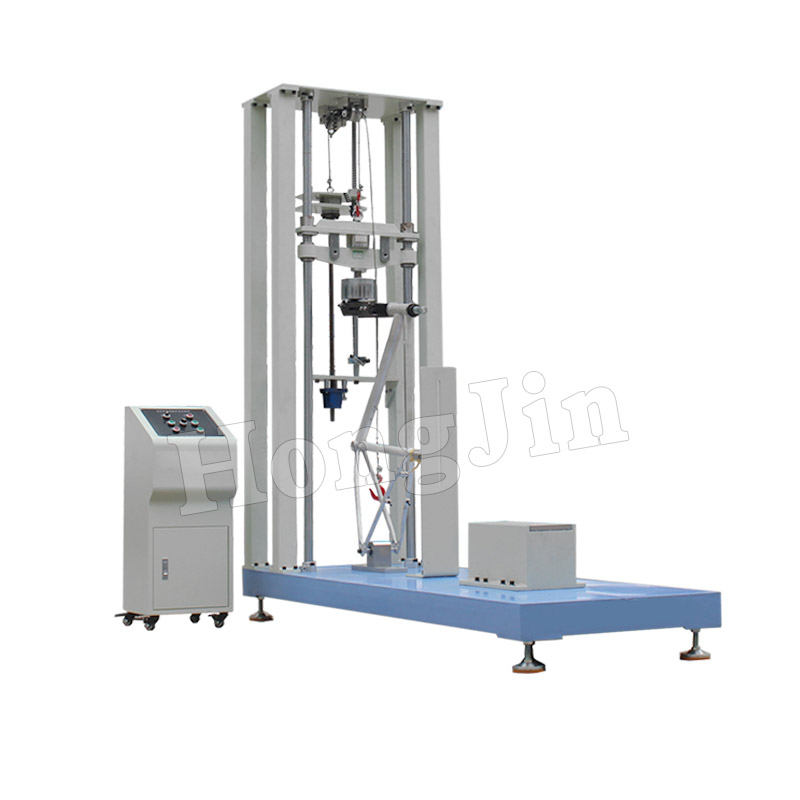

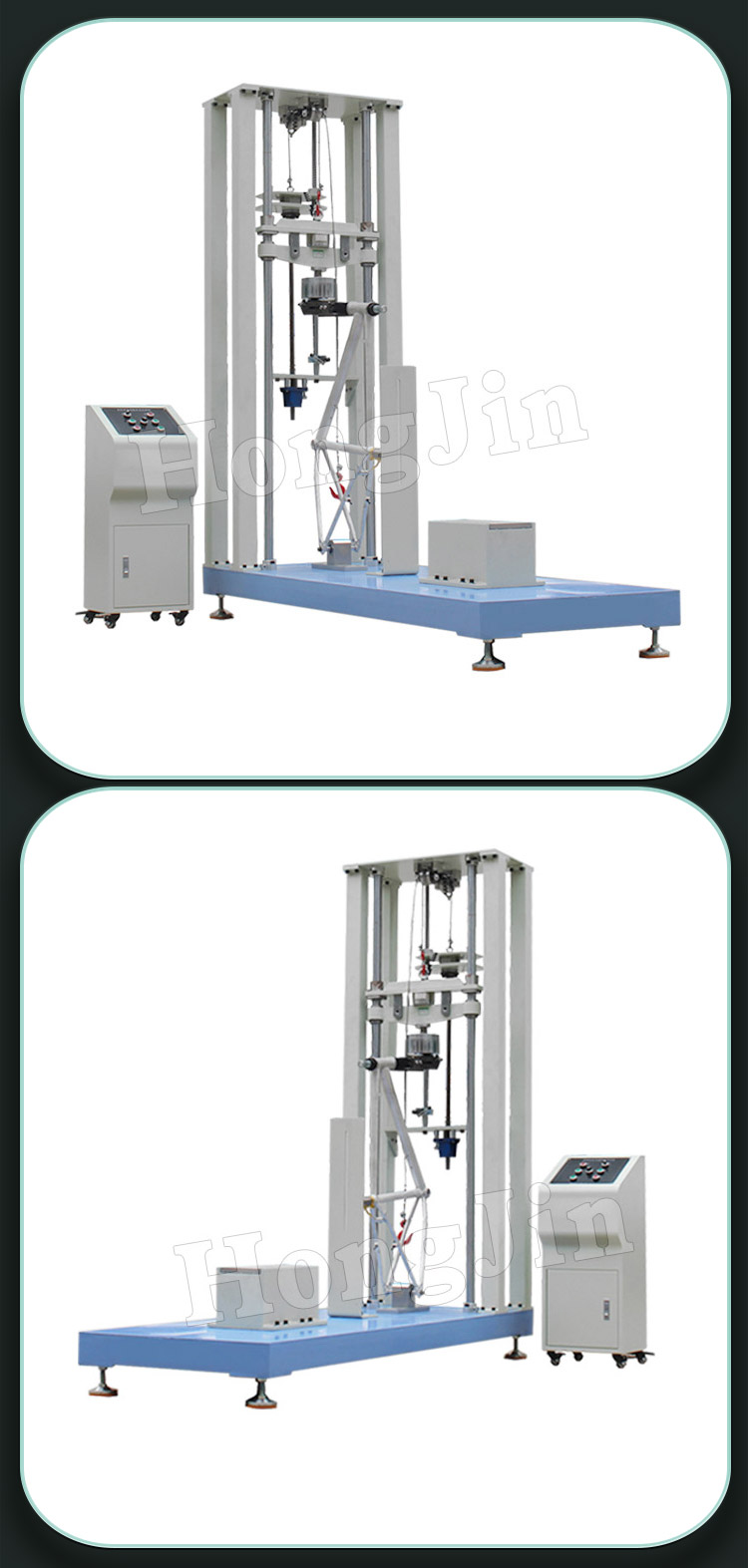

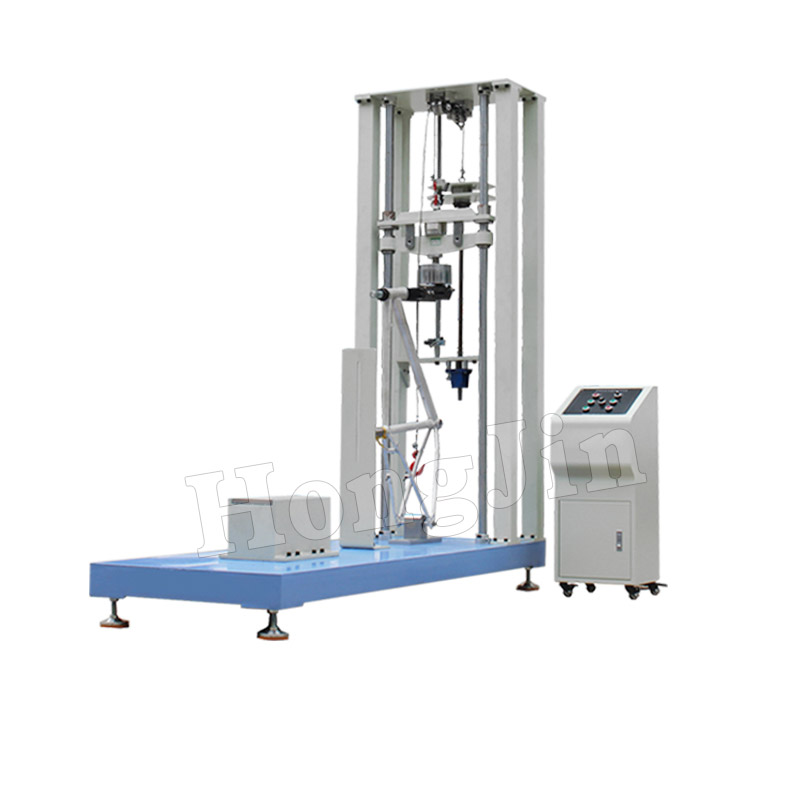

The bicycle multifunctional impact tester simulates the impact phenomenon that the frame and front fork are subjected to when riding a bicycle to test the impact resistance of the frame and front fork.

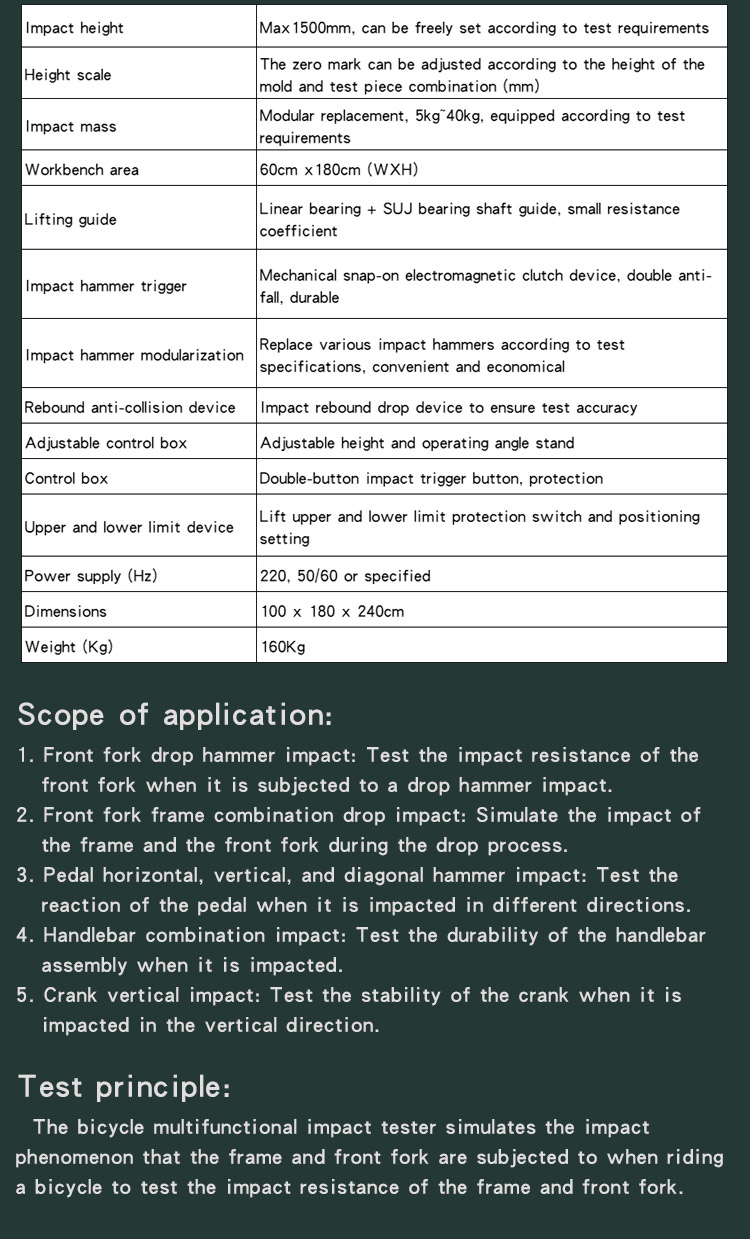

| Impact height | Max1500mm, can be freely set according to test requirements |
| Height scale | The zero mark can be adjusted according to the height of the mold and test piece combination (mm) |
| Impact mass | Modular replacement, 5kg~40kg, equipped according to test requirements |
| Workbench area | 60cm x180cm (WXH) |
| Lifting guide | Linear bearing + SUJ bearing shaft guide, small resistance coefficient |
| Impact hammer trigger | Mechanical snap-on electromagnetic clutch device, double anti-fall, durable |
| Impact hammer modularization | Replace various impact hammers according to test specifications, convenient and economical |
| Rebound anti-collision device | Impact rebound drop device to ensure test accuracy |
| Adjustable control box | Adjustable height and operating angle stand |
| Control box | Double-button impact trigger button, protection |
| Upper and lower limit device | Lift upper and lower limit protection switch and positioning setting |
| Power supply (Hz) | 220, 50/60 or specified |
| Dimensions | 100 x 180 x 240cm |
| Weight (Kg) | 160Kg |
