Test principle:

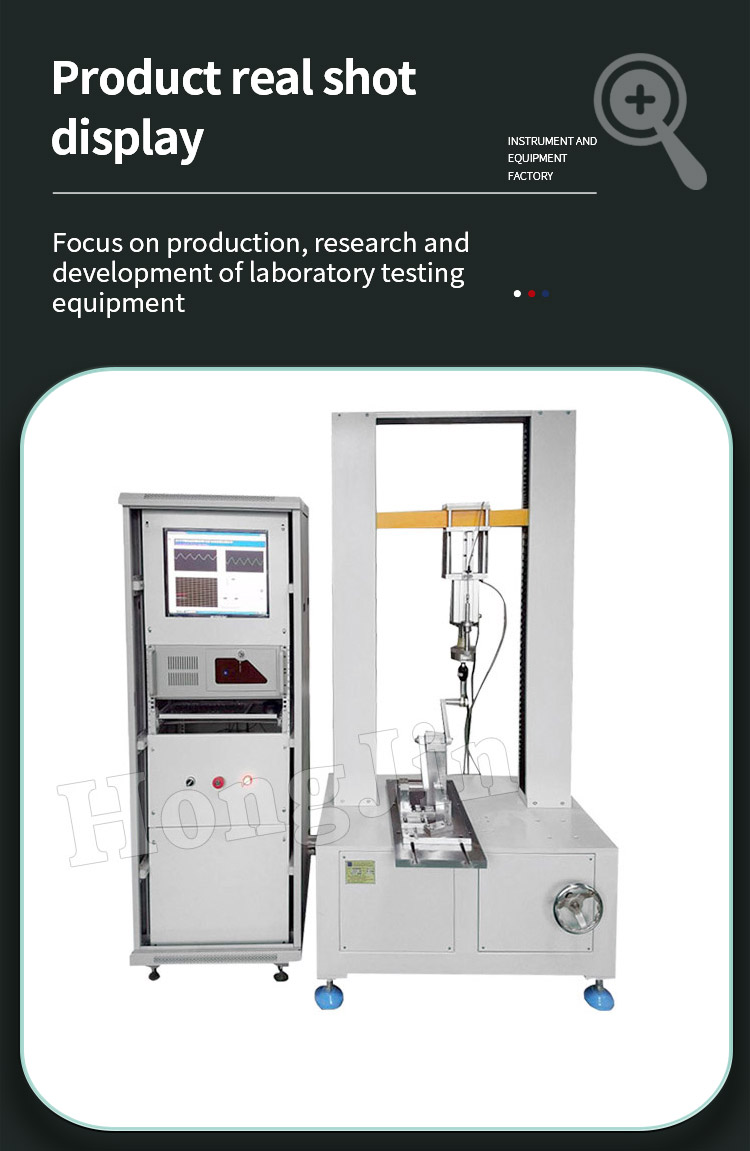

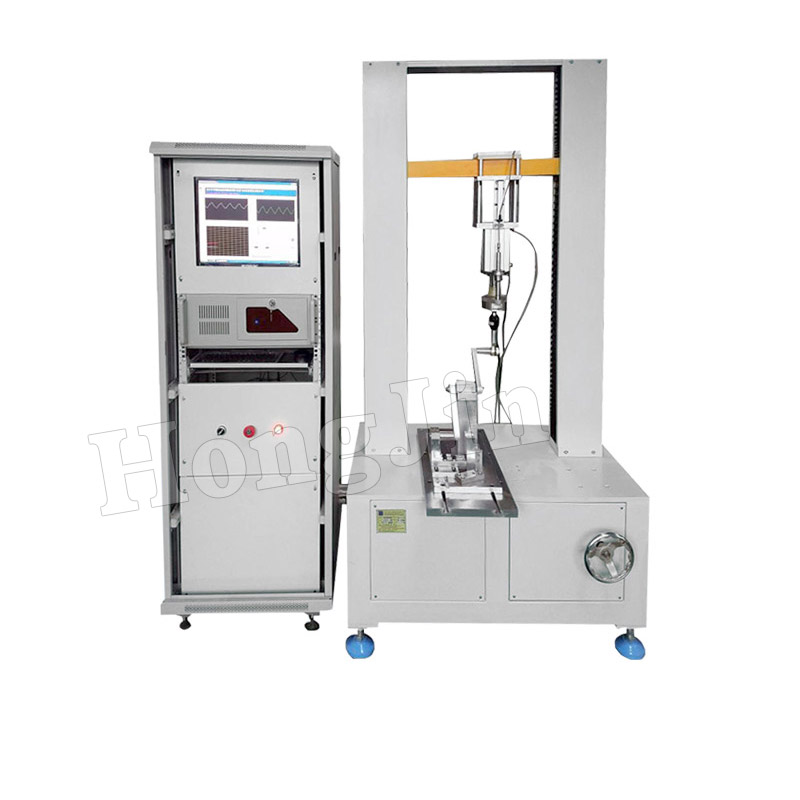

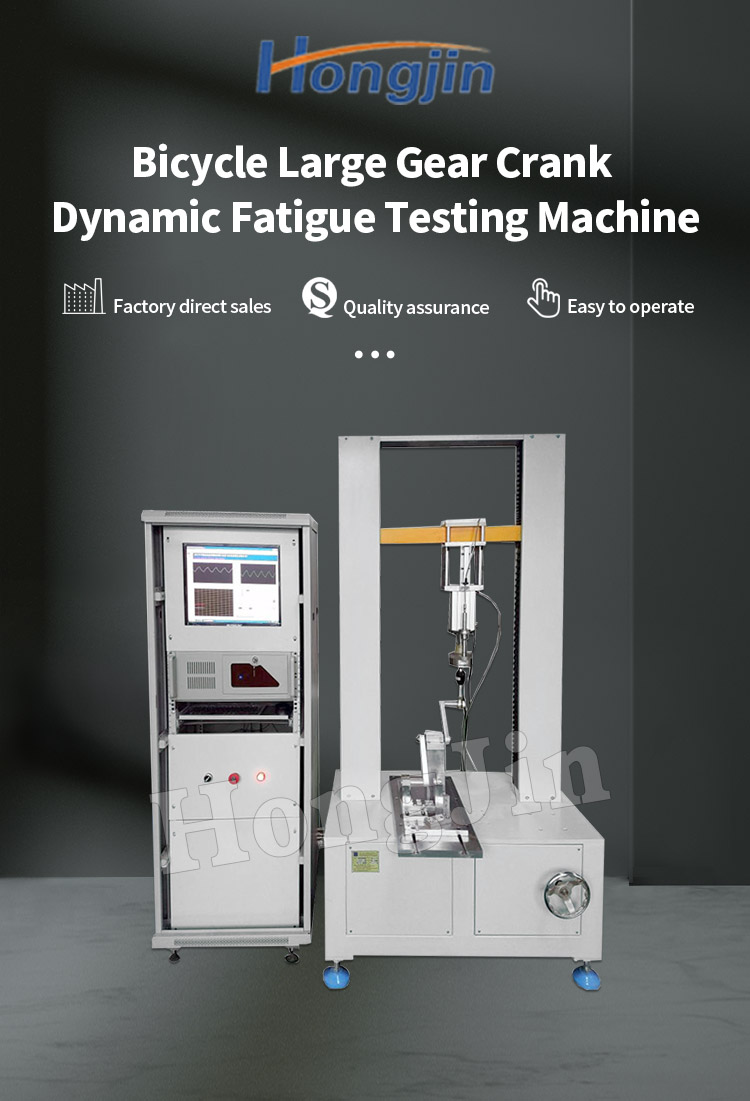

This machine is specially used to test the life of the crank and gear of the bicycle. The object to be tested is fixed on the machine, the test standard load and test speed are set, and the force is applied repeatedly. After reaching the set number of times, the machine automatically stops and checks whether the object to be tested is damaged.

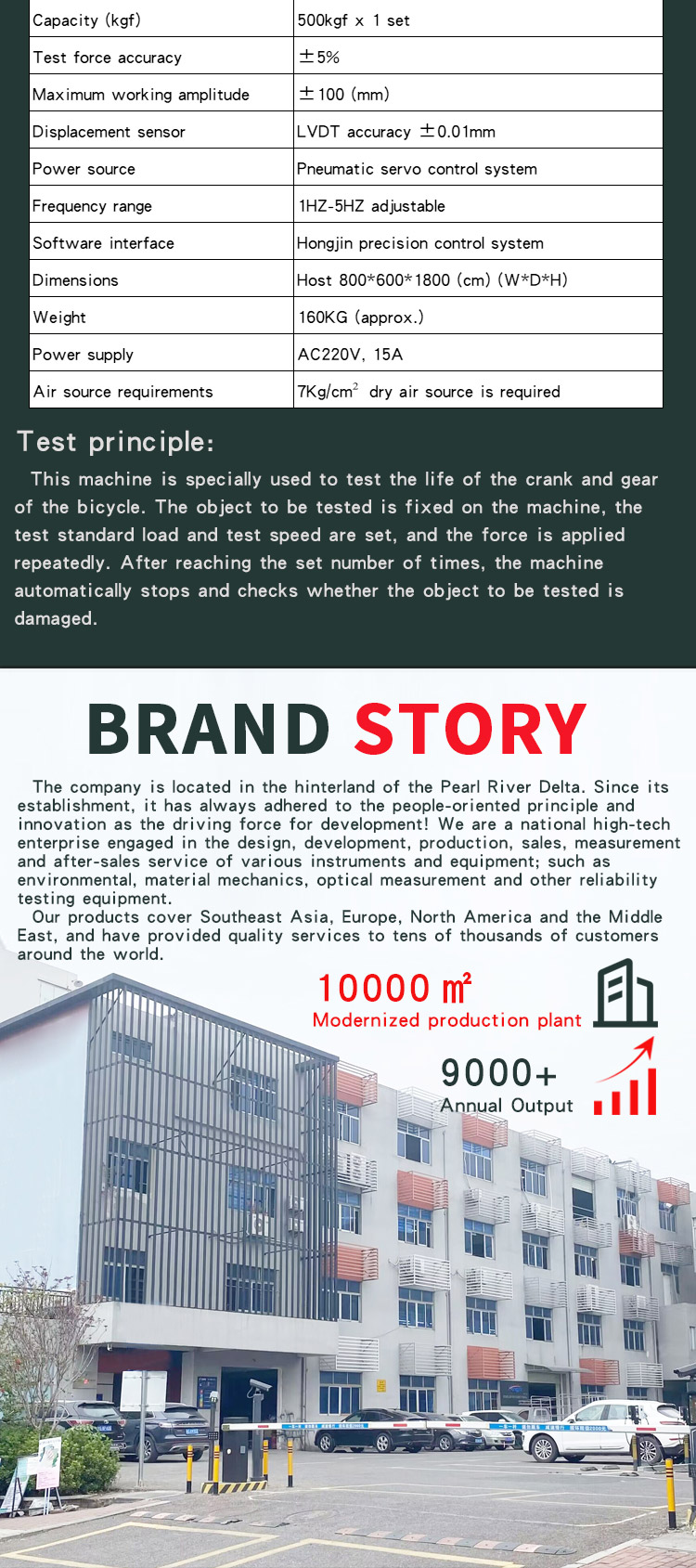

| Capacity (kgf) | 500kgf x 1 set |
| Test force accuracy | ±5% |
| Maximum working amplitude | ±100 (mm) |
| Displacement sensor | LVDT accuracy ±0.01mm |
| Power source | Pneumatic servo control system |
| Frequency range | 1HZ-5HZ adjustable |
| Software interface | Hongjin precision control system |
| Dimensions | Host 800*600*1800 (cm) (W*D*H) |
| Weight | 160KG (approx.) |
| Power supply | AC220V, 15A |
| Air source requirements | 7Kg/cm² dry air source is required |
Test principle:
This machine is specially used to test the life of the crank and gear of the bicycle. The object to be tested is fixed on the machine, the test standard load and test speed are set, and the force is applied repeatedly. After reaching the set number of times, the machine automatically stops and checks whether the object to be tested is damaged.
| Capacity (kgf) | 500kgf x 1 set |
| Test force accuracy | ±5% |
| Maximum working amplitude | ±100 (mm) |
| Displacement sensor | LVDT accuracy ±0.01mm |
| Power source | Pneumatic servo control system |
| Frequency range | 1HZ-5HZ adjustable |
| Software interface | Hongjin precision control system |
| Dimensions | Host 800*600*1800 (cm) (W*D*H) |
| Weight | 160KG (approx.) |
| Power supply | AC220V, 15A |
| Air source requirements | 7Kg/cm² dry air source is required |
