Product features:

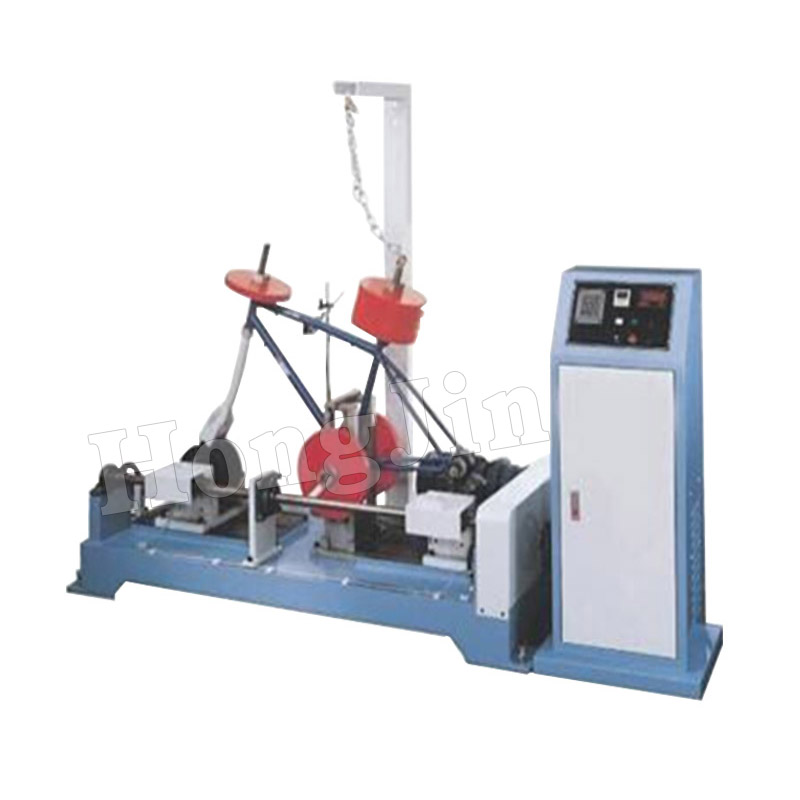

A large rotating wheel is used as the driving wheel to drive the wheel rim to be tested, and "dynamic walking brake test", "brake performance test", "wheel static pressure brake test" and "sway brake test" can be carried out. It is controlled by an industrial computer and the test results can be printed with a micro printer. The load is applied by weight superposition direct pressure, which more realistically simulates the test environment and state.

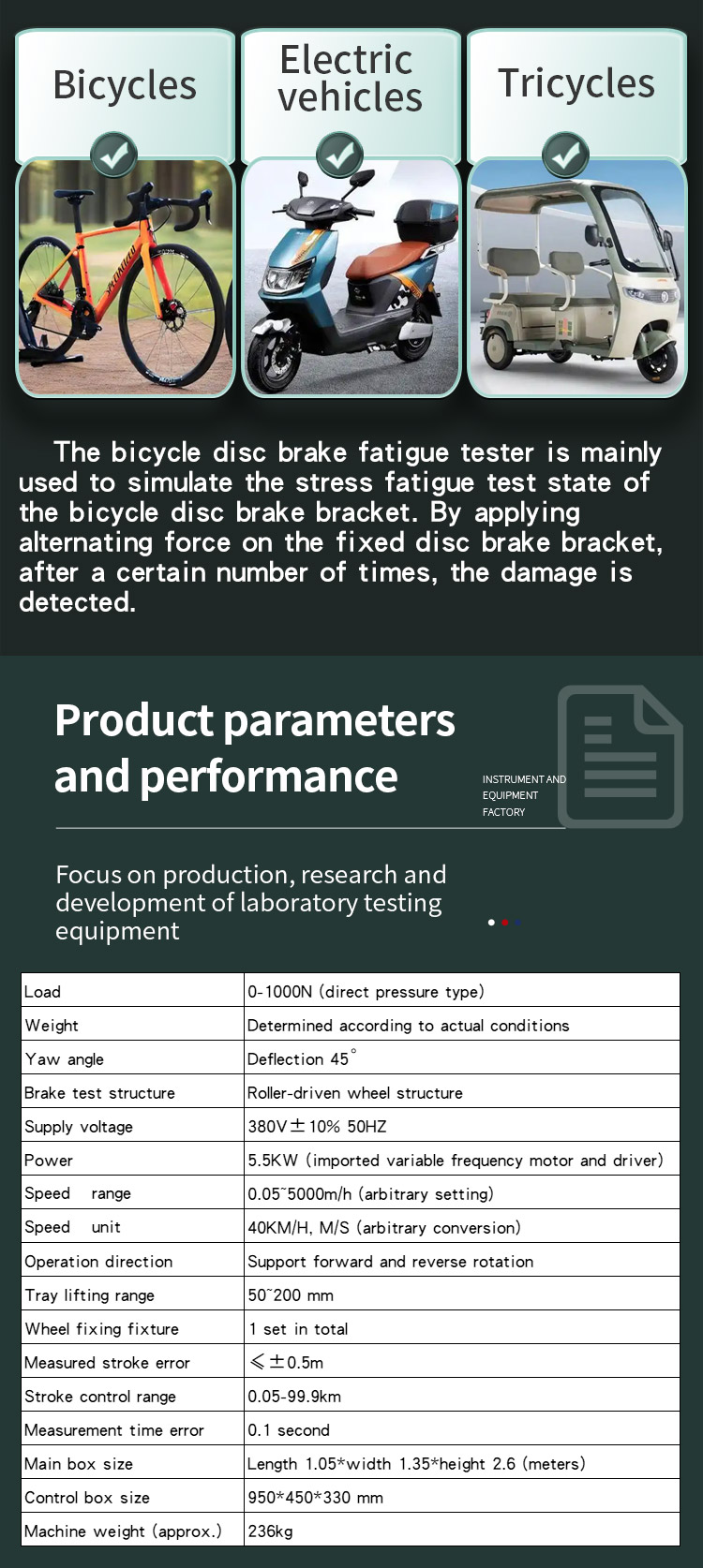

| Load | 0-1000N (direct pressure type) |
| Weight | Determined according to actual conditions |
| Yaw angle | Deflection 45° |
| Brake test structure | Roller-driven wheel structure |
| Supply voltage | 380V±10% 50HZ |
| Power | 5.5KW (imported variable frequency motor and driver) |
| Speed range | 0.05~5000m/h (arbitrary setting) |
| Speed unit | 40KM/H, M/S (arbitrary conversion) |
| Operation direction | Support forward and reverse rotation |
| Tray lifting range | 50~200 mm |
| Wheel fixing fixture | 1 set in total |
| Measured stroke error | ≤±0.5m |
| Stroke control range | 0.05-99.9km |
| Measurement time error | 0.1 second |
| Main box size | Length 1.05*width 1.35*height 2.6 (meters) |
| Control box size | 950*450*330 mm |
| Machine weight (approx.) | 236kg |
