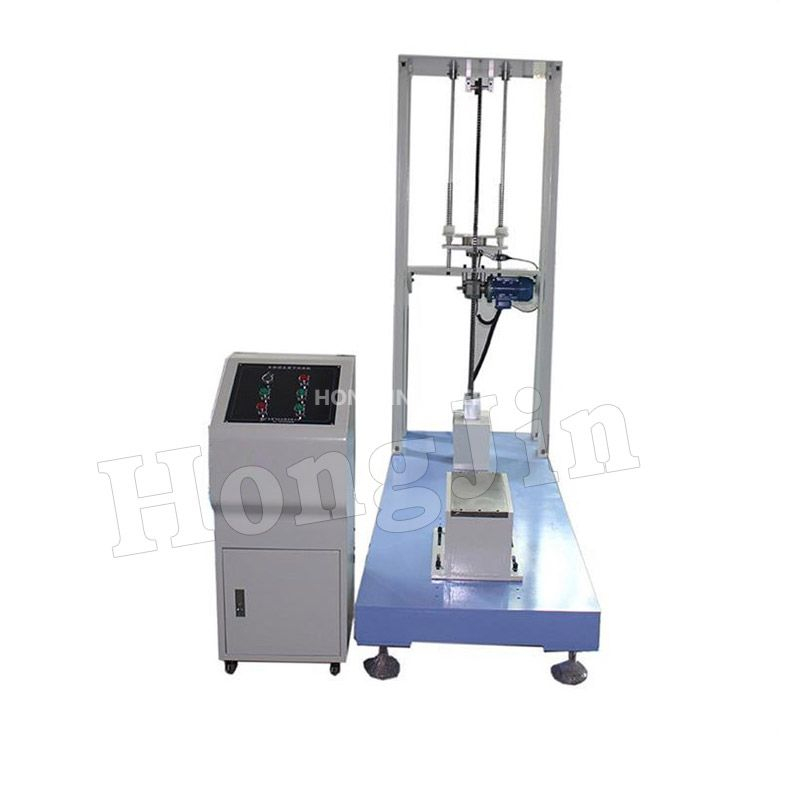

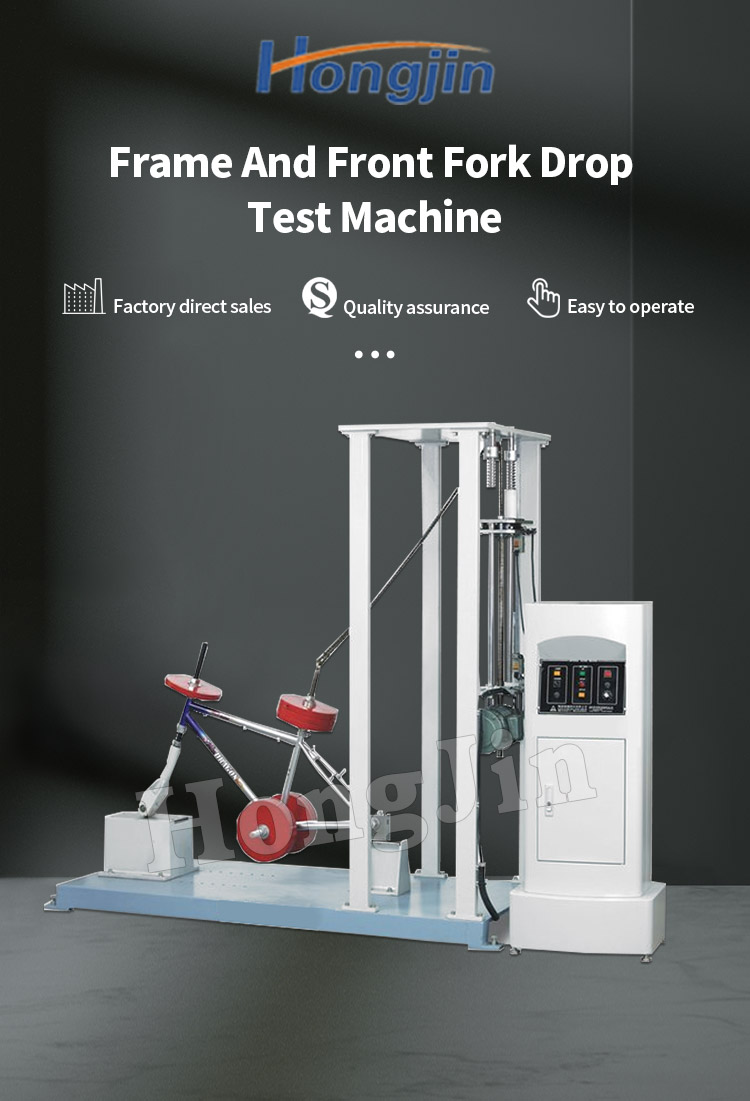

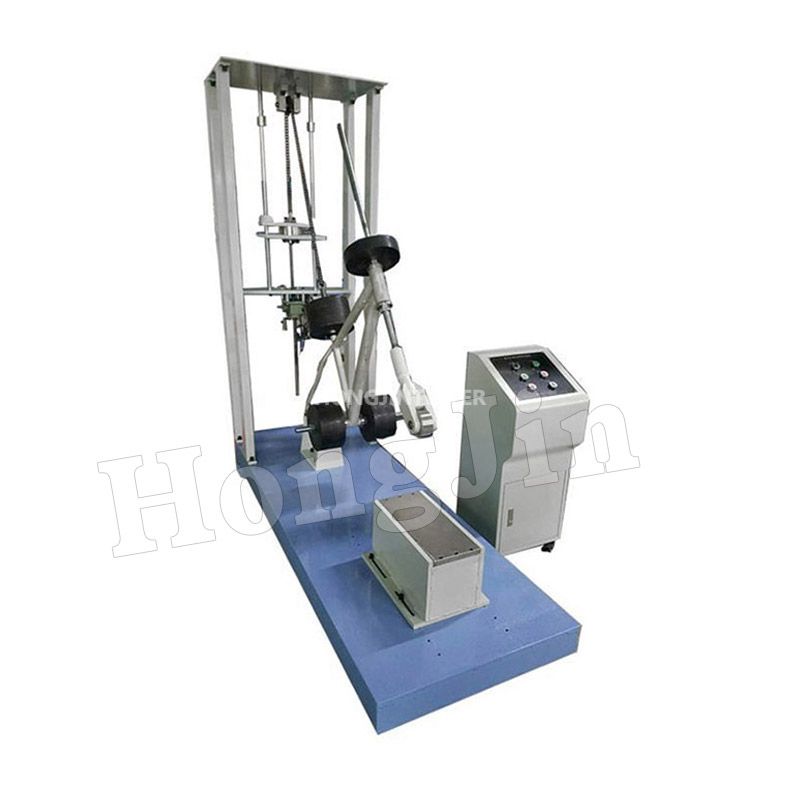

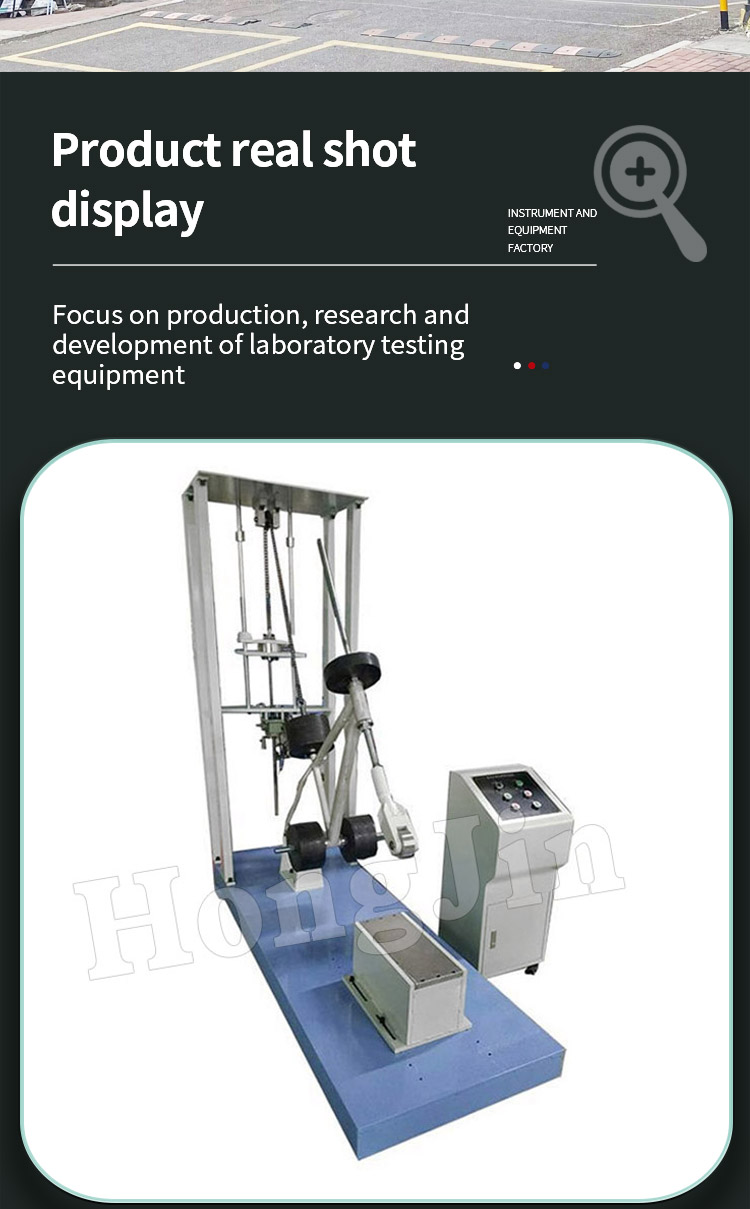

Frame Front Fork Drop Tester

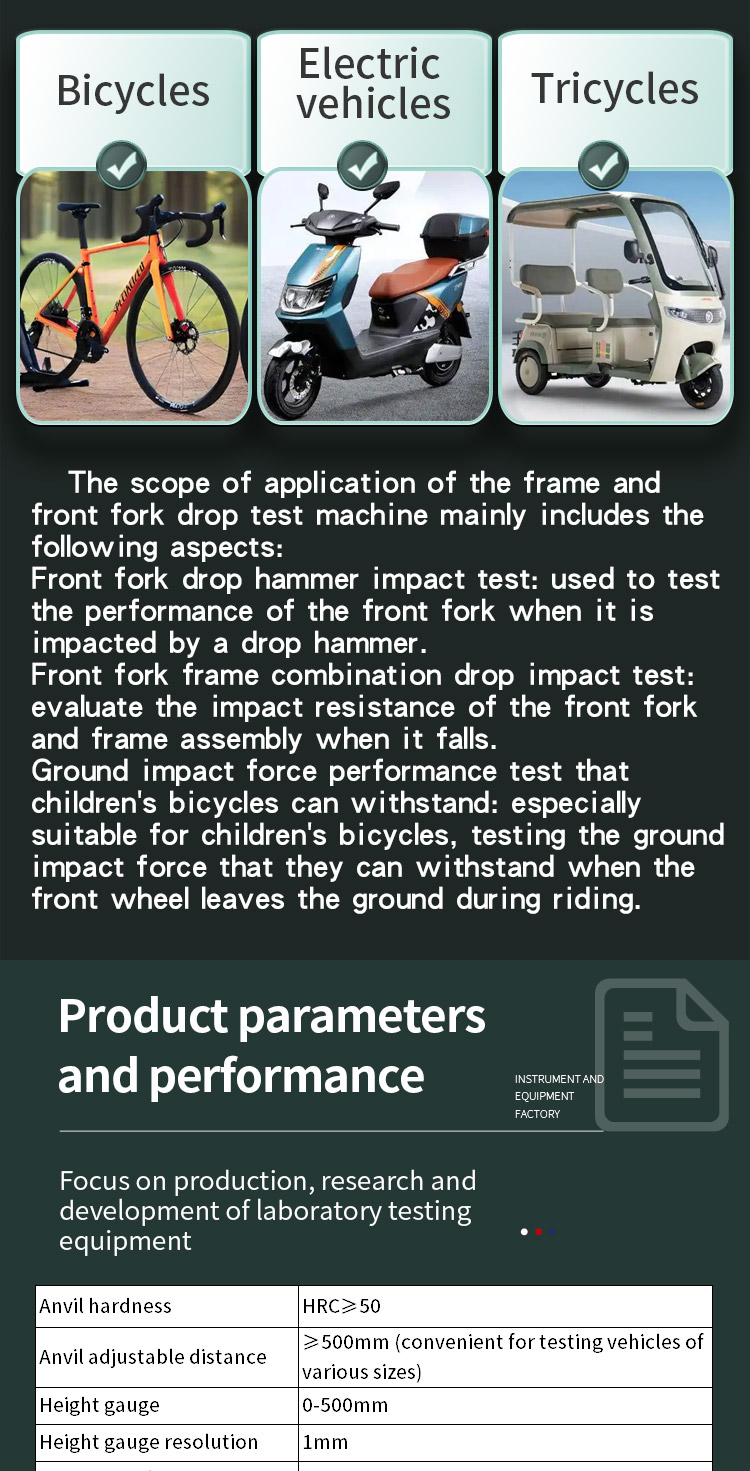

The scope of application of the frame and front fork drop test machine mainly includes the following aspects:
Front fork drop hammer impact test: used to test the performance of the front fork when it is impacted by a drop hammer.
Front fork frame combination drop impact test: evaluate the impact resistance of the front fork and frame assembly when it falls.
Ground impact force performance test that children's bicycles can withstand: especially suitable for children's bicycles, testing the ground impact force that they can withstand when the front wheel leaves the ground during riding.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

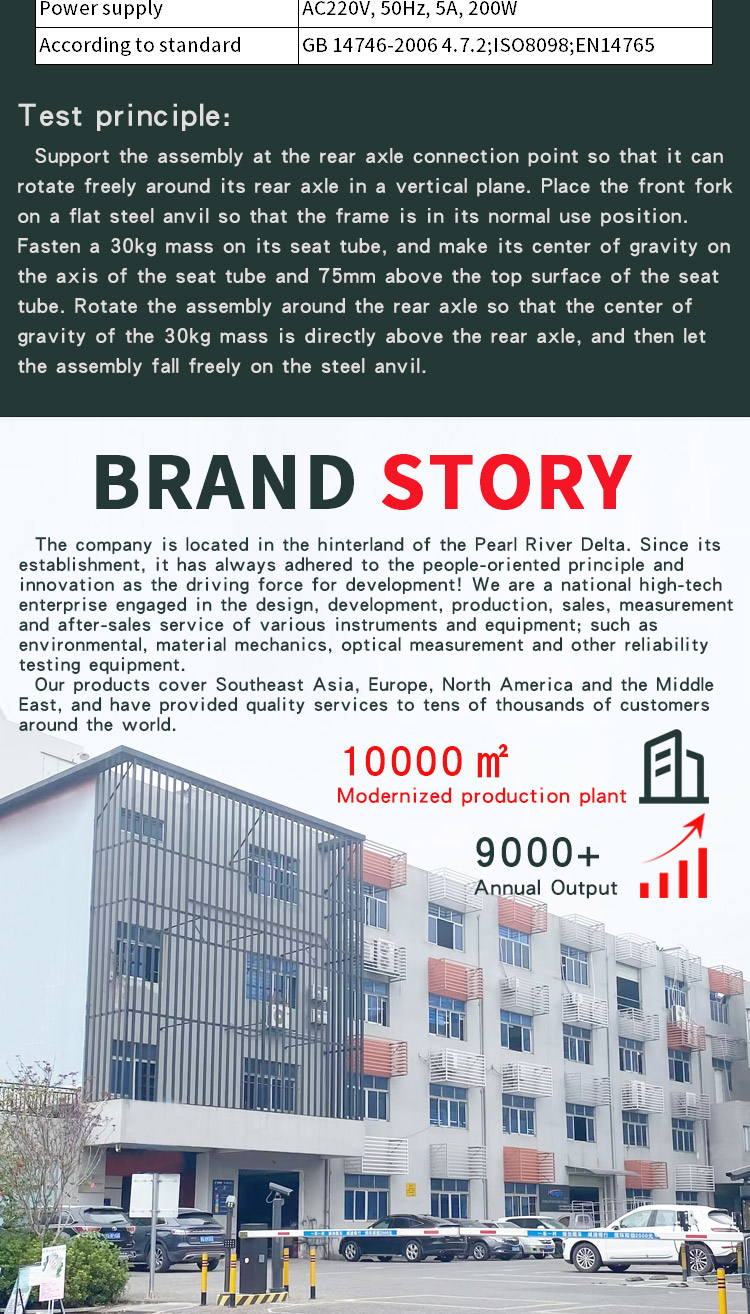

Test principle:

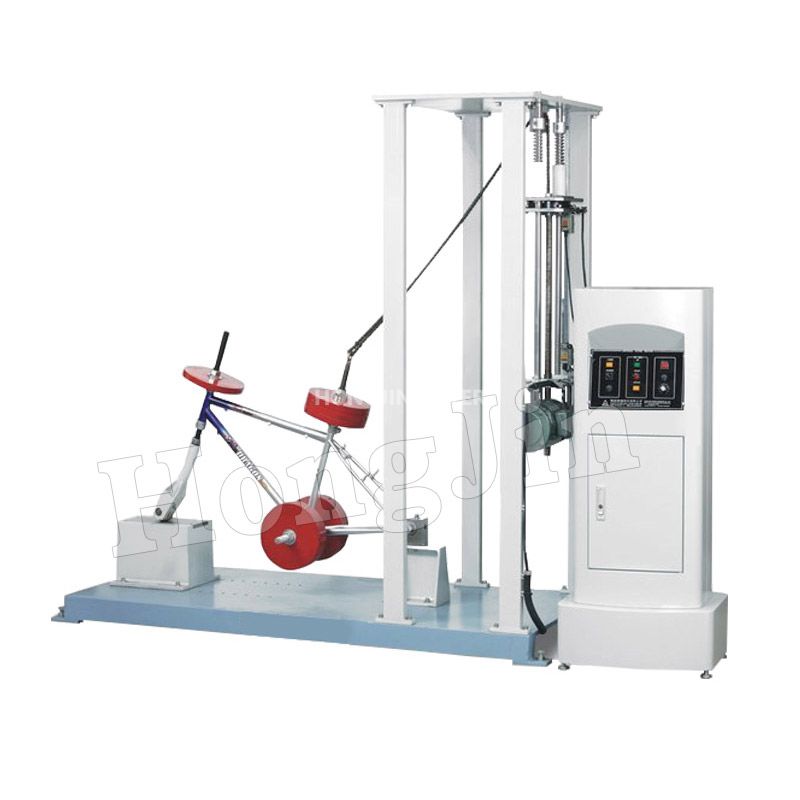

Support the assembly at the rear axle connection point so that it can rotate freely around its rear axle in a vertical plane. Place the front fork on a flat steel anvil so that the frame is in its normal use position. Fasten a 30kg mass on its seat tube, and make its center of gravity on the axis of the seat tube and 75mm above the top surface of the seat tube. Rotate the assembly around the rear axle so that the center of gravity of the 30kg mass is directly above the rear axle, and then let the assembly fall freely on the steel anvil.

Anvil hardness	HRC≥50
Anvil adjustable distance	≥500mm (convenient for testing vehicles of various sizes)
Height gauge	0-500mm
Height gauge resolution	1mm
Power supply	AC220V, 50Hz, 5A, 200W
According to standard	GB 14746-2006 4.7.2;ISO8098;EN14765
