hongjin

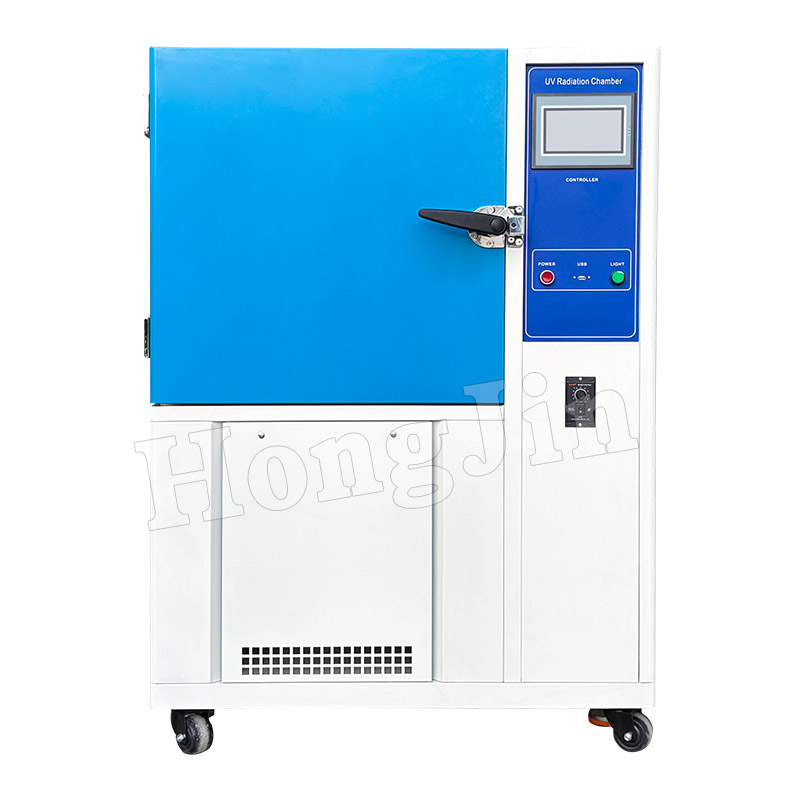

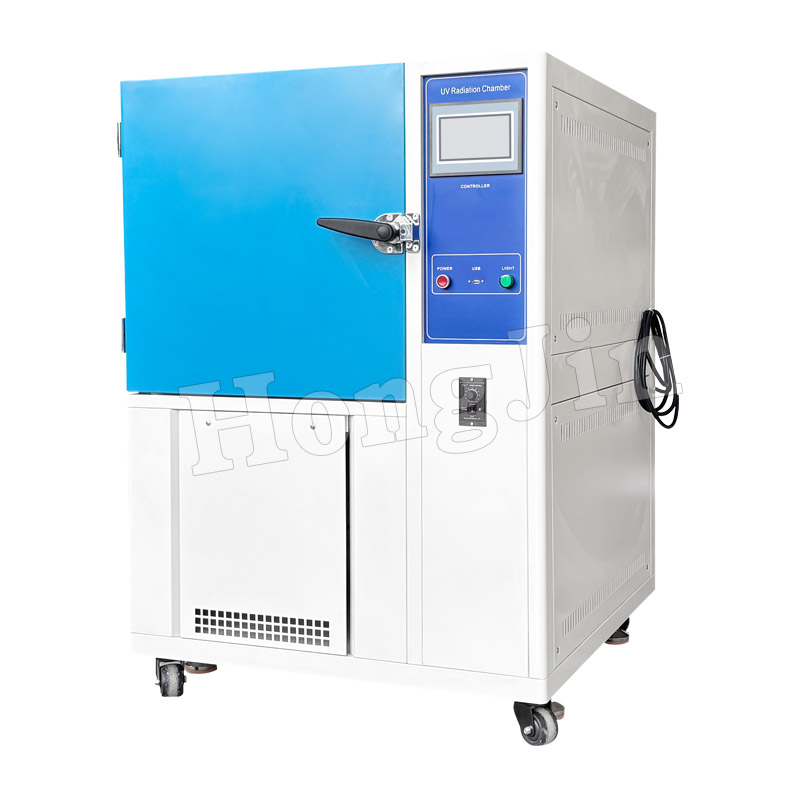

Product features:
1. Box shell material: high-quality cold-rolled plate processing and forming, surface phosphating cleaning, electrostatic spraying treatment;
2. The inner chamber of the working room adopts imported SUS/304 stainless steel mirror panel;
3. Heaters, fan blades and other devices are distributed in the air duct interlayer at one end of the working room;
4. There is a Ф25/50mm cable hole on the left side of the test box;
5. The heating method is nickel-chromium alloy tube-mounted fin heating, which heats up quickly and has uniform temperature distribution;

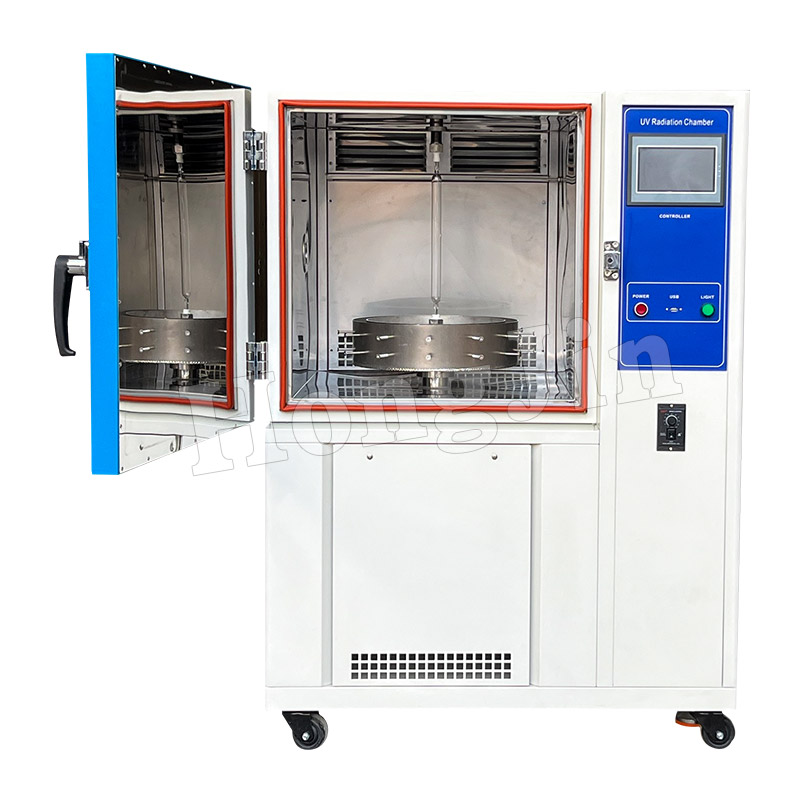

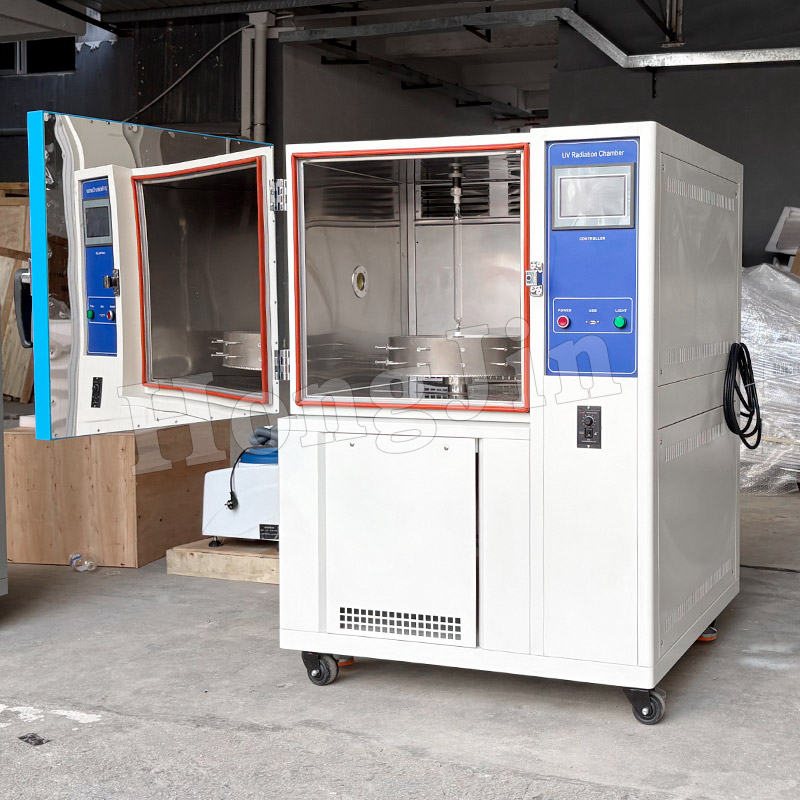

6. The door of the box is open at the front of the box, which is easy to open and close and convenient for the storage and access of the test pieces;

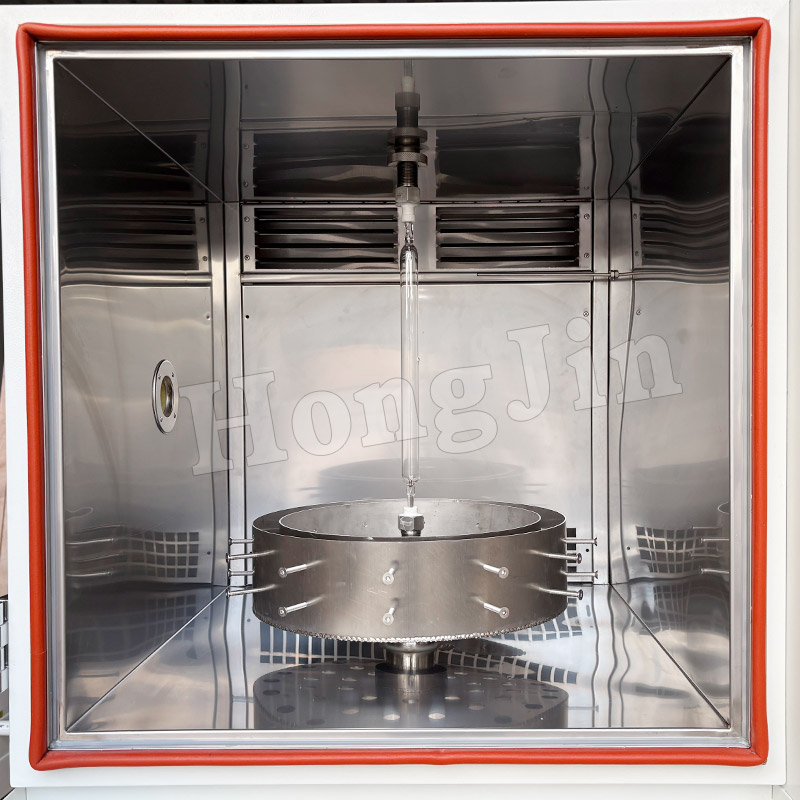

7. The UV light source is installed in the center of the chamber, and the light source replacement design is front-mounted and disassembled;
8. The special sample rack device can easily push in and pull out the test piece;
9. The air duct circulation system ensures the uniformity of the test temperature and meets the requirements of the test standard;
10. The ozone-free quartz tube medium-pressure mercury vapor arc lamp is used to meet the requirements of the irradiation amount in the 300nm~450nm band.

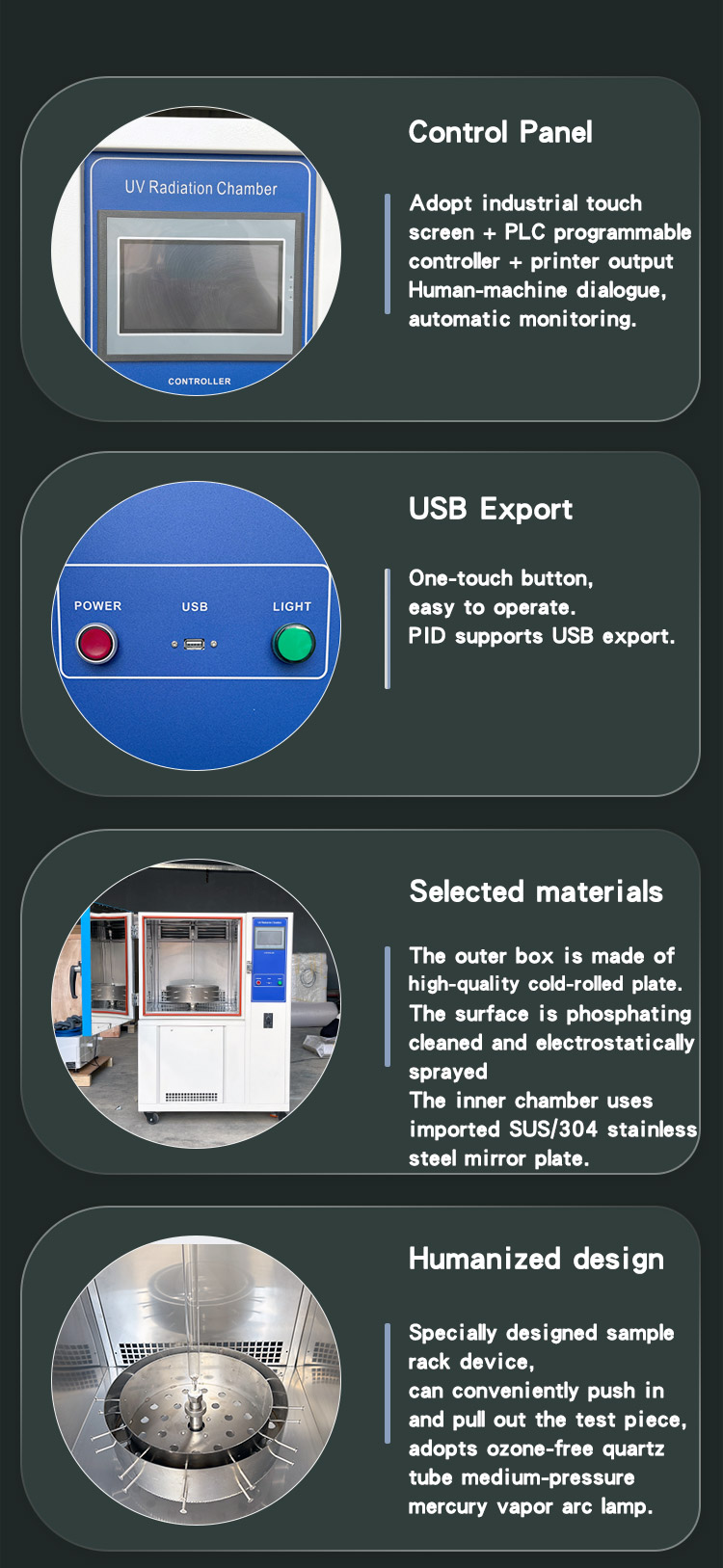

11. Industrial touch screen + PLC programmable controller + printer output human-computer dialogue, automatic monitoring;
12. Blackboard temperature: bimetallic blackboard thermometer, using black aluminum plate to connect the temperature sensor, blackboard temperature instrument controls heating, the temperature is more stable.

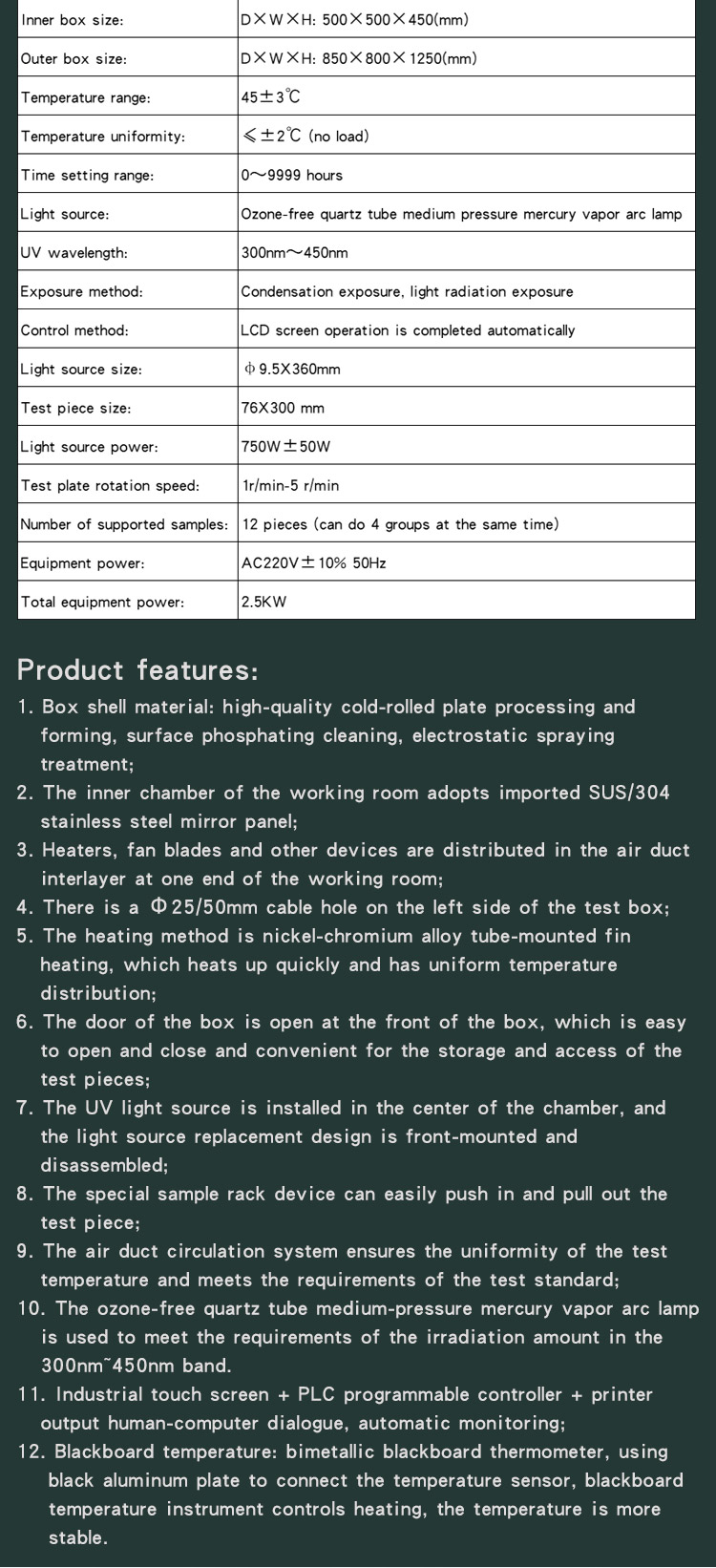

| Inner box size: | D×W×H: 500×500×450(mm) |
| Outer box size: | D×W×H: 850×800×1250(mm) |
| Temperature range: | 45±3℃ |
| Temperature uniformity: | ≤±2℃ (no load) |
| Time setting range: | 0～9999 hours |
| Light source: | Ozone-free quartz tube medium pressure mercury vapor arc lamp |
| UV wavelength: | 300nm～450nm |
| Exposure method: | Condensation exposure, light radiation exposure |
| Control method: | LCD screen operation is completed automatically |
| Light source size: | φ9.5X360mm |
| Test piece size: | 76X300 mm |
| Light source power: | 750W±50W |
| Test plate rotation speed: | 1r/min-5 r/min |
| Number of supported samples: | 12 pieces (can do 4 groups at the same time) |
| Equipment power: | AC220V±10% 50Hz |
| Total equipment power: | 2.5KW |
