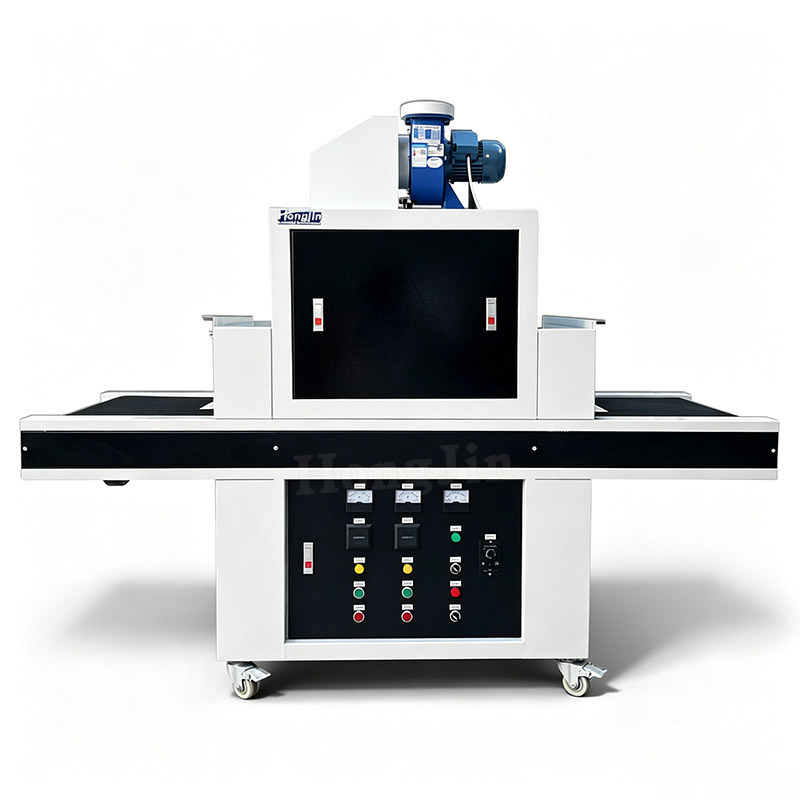

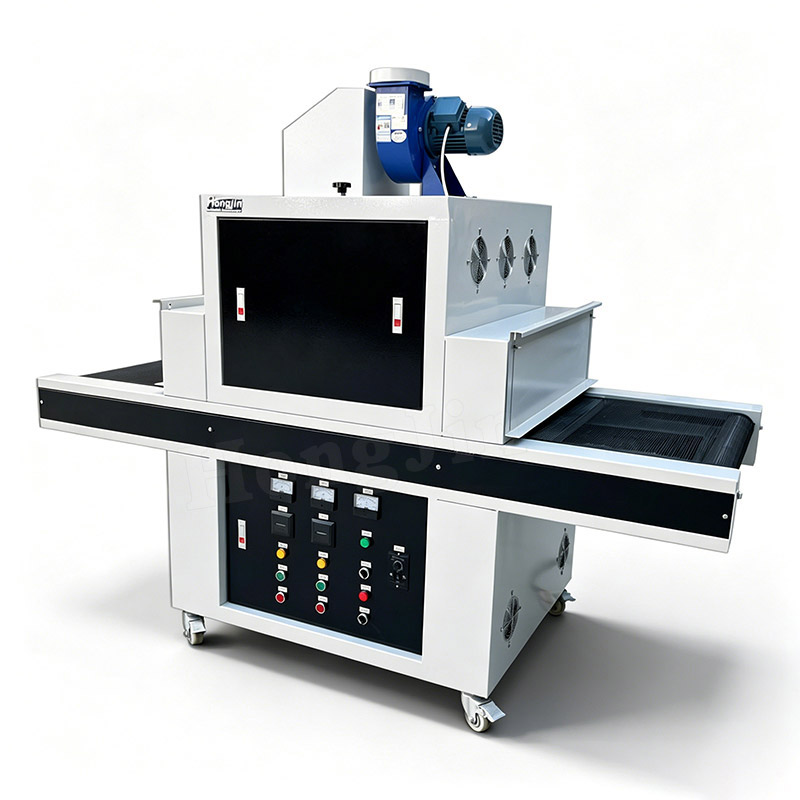

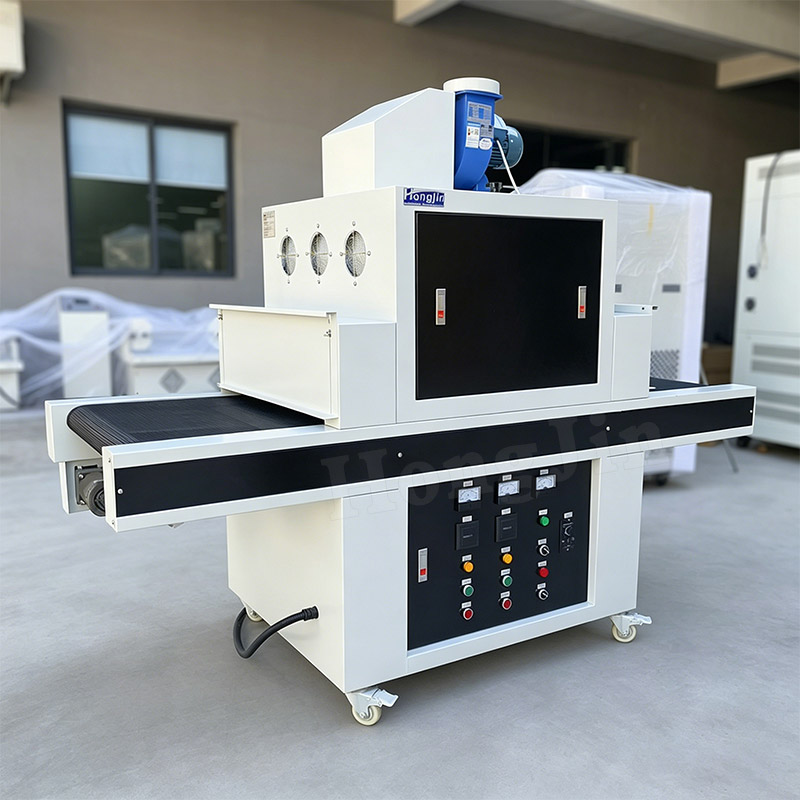

Technical index | |
UV Chamber Dimensions | 1000 × 800 mm |
Overall Dimensions | L2000 × W800 × H1600 mm |
Inlet/Outlet Height | 400 mm |
Inlet/Outlet Open Length | 500 mm each |
Total Power | Approx. 6.2 kW |
Chamber Material | 1.2 mm cold-rolled steel (outer wall) |
Cooling Method | Forced air cooling |
Temperature Control | Dual temperature controllers (separate for each lamp) |
Reflector | High-strength reflective coated tempered glass |
Fan Control | Independent fan control for each lamp (maintains 40–60°C) |
Light Source Type | High-pressure mercury lamp (Hg) |
Lamp Power Density | 60 W/cm |
Peak Wavelength | 365 nm |
Power Adjustment | 100% full power |
Power Supply | 380V AC, 50 Hz |
Total Power | Approx. 6.2 kW |
Conveyor System | |

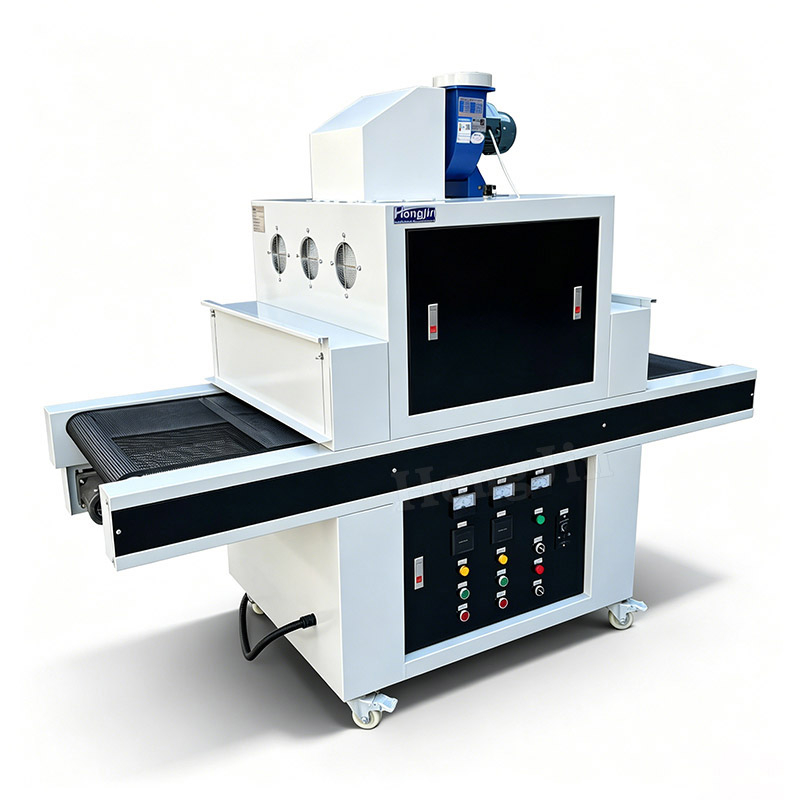

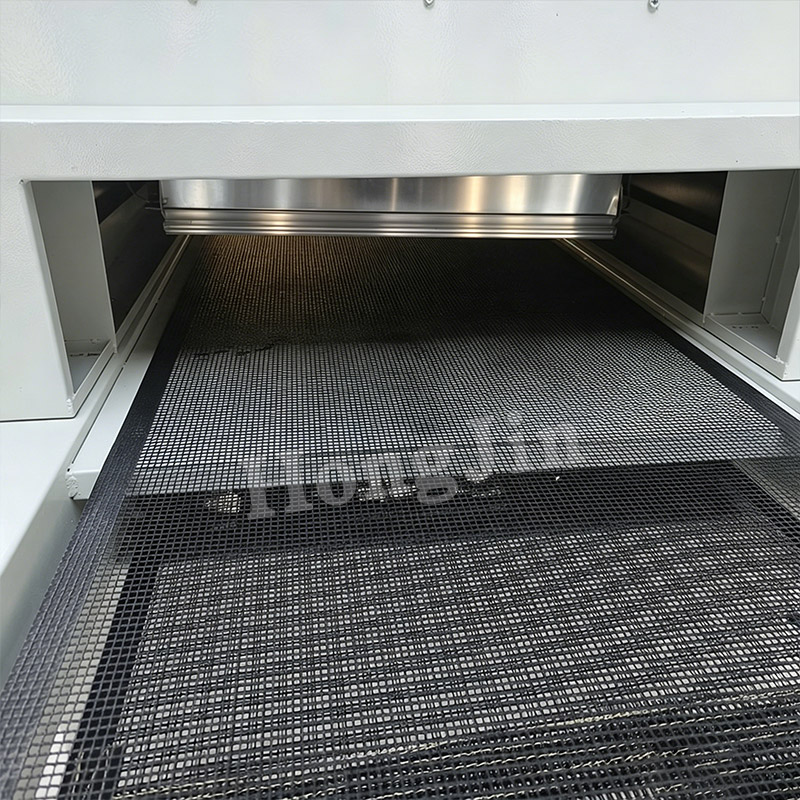

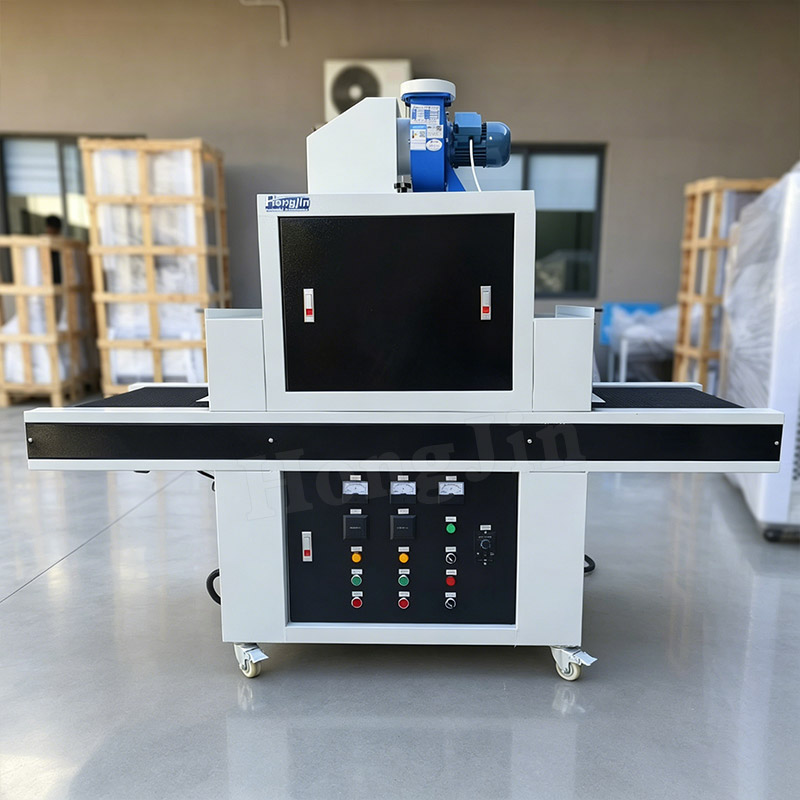

Conveyor Belt Type | PTFE mesh belt |
Belt Width | 600 mm |
Belt Circumference | 4 m (with joint) |
Belt Support | 50 × 50 × 1.5 mm square tube |
Guide Rail | 150 × 80 × 2.0 mm hot-rolled steel (bent) |
Drive System | |
Motor | 120W variable speed motor |
Speed Controller | Electronic speed controller |
Gearbox | Reduction ratio 1:40 |
Conveyor Speed | 1 – 5 m/min (adjustable) |
Drive Roller | Φ80 mm (driving wheel) |
Machine Frame | 50 × 50 × 1.5 mm square tube steel |
Head Cover Plate | 1.2 mm cold-rolled steel |
Power & Control System | |
Ballasts | 2 sets of 3 kW ballasts |
Control Functions | Conveyor start/stop, emergency stop, fan start, UV lamp 1/2 |
Energy Adjustment | 3 levels: High / Medium / Low |
UV Protection | Built-in safety protection |
Cooling Fan Motor | 370 W centrifugal fan (1 unit) |
Product feature:
1.Ultra-Fast Speed: Curing in seconds vs. minutes/hours for thermal methods.
2.Cold Process: LED models keep workpiece temperature rise ≤3°C, ideal for heat-sensitive materials
3.Energy Efficient: UV-LED reduces energy consumption by 50–70% compared to mercury lamps
4.Space Saving: Compact footprint—typical UV system occupies 5–10 ft vs. 100–200 ft for thermal ovens
5.Environmentally Friendly: No VOCs, mercury-free (LED), and lower carbon footprint
6.High Quality Finish: Excellent gloss, scratch resistance, and chemical resistance
7.Instant On/Off: LED systems require no warm-up time, reducing idle energy waste
