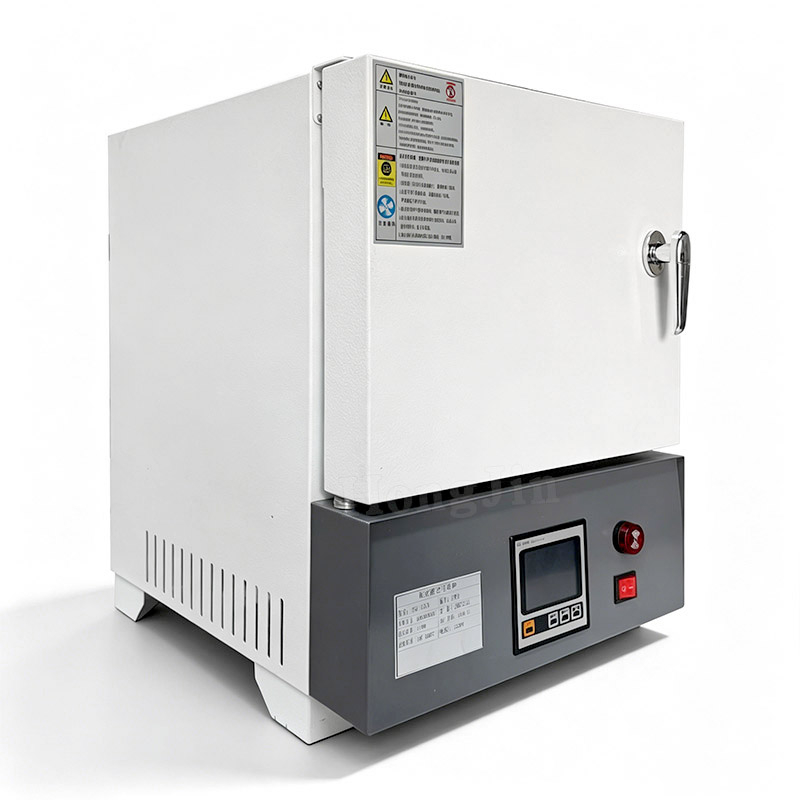

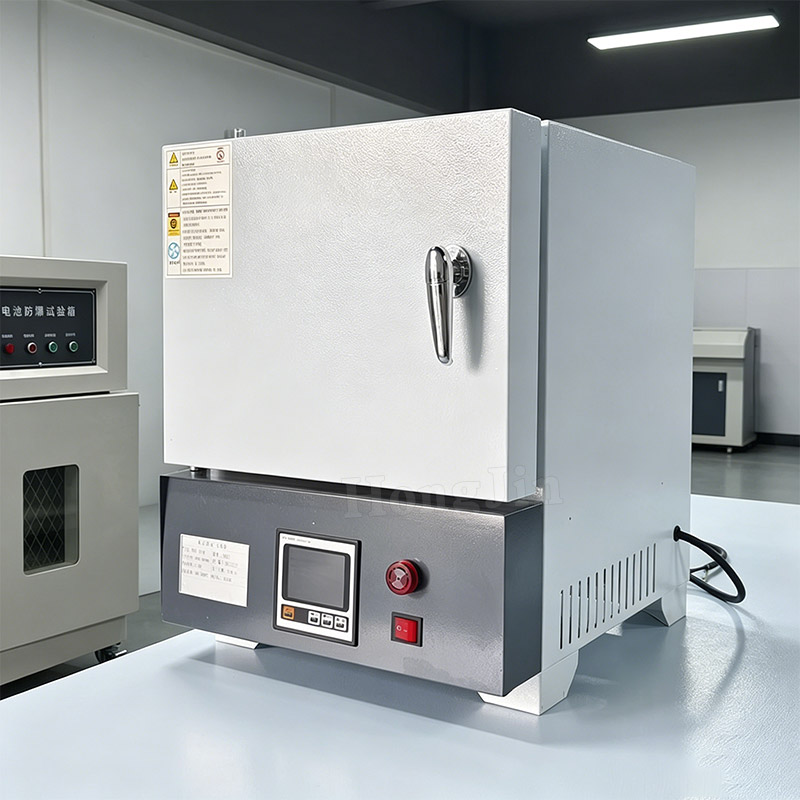

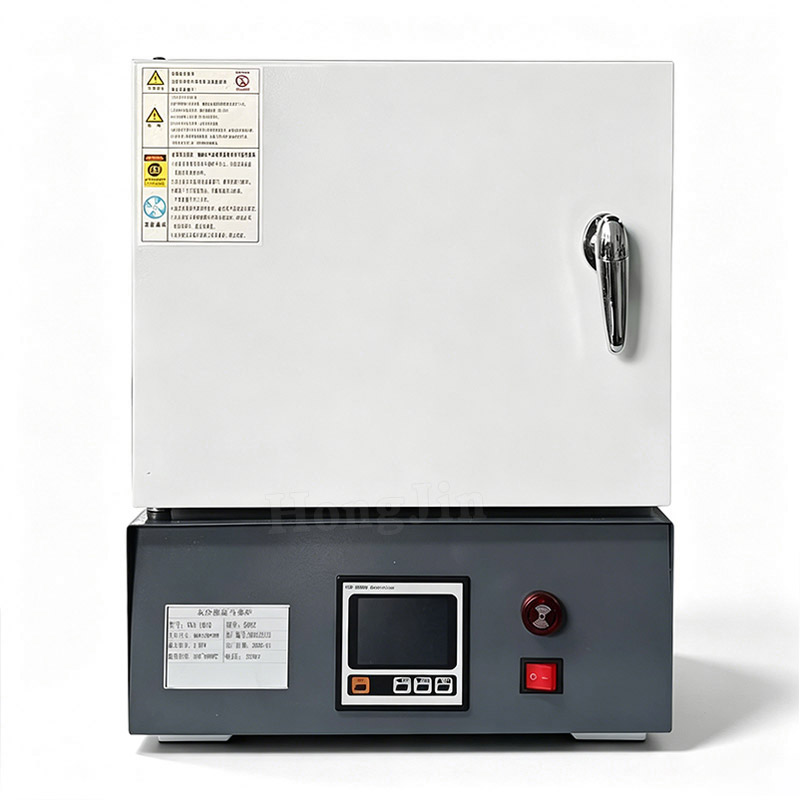

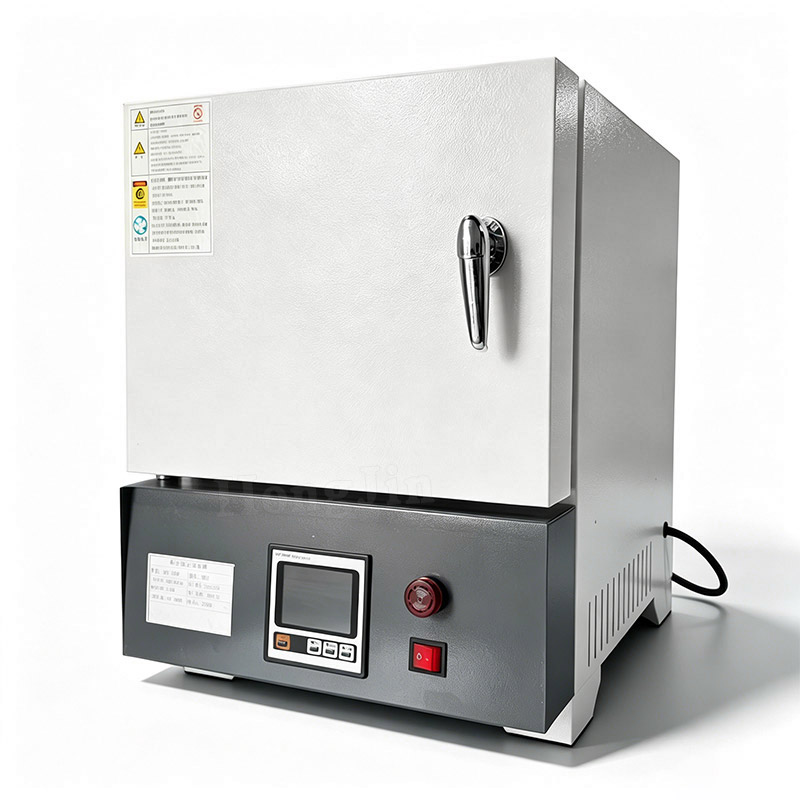

Muffle Furnace

Product Overview:
This Muffle Furnace series of 1000℃/1200℃ box-type ash-dissolving resistance furnaces is a periodic operation type electric furnace, suitable for use in laboratories of industrial and mining enterprises, research institutions, and other organizations for chemical analysis, physical determination of plastic ash content, and heating during general small steel parts heat treatment. (Note: When performing plastic ash analysis, the amount of plastic ash per batch should be less than 50g. The crucible must be covered, as plastic splashing at high temperatures will damage the muffle furnace.)

This series of resistance furnaces is equipped with an intelligent temperature controller and a nickel-chromium/nickel-silicon coupler, enabling measurement, indication, and automatic control of the furnace temperature.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Data	Unit	Furnace Model VNA-1010
Rated Power	kW	2.5
Rated Voltage	V	220V
Phase	-	Single
Rated Temperature	℃	1000
Heating Element Connection	-	Single Series
Empty Furnace Heating-up Time	min	<90
Empty Furnace Power Loss	kW	<1.2
Heat Storage	kWh	<8
Furnace Temperature Uniformity	℃	<15
Furnace Chamber Dimensions (mm) - Length	mm	200
Furnace Chamber Dimensions (mm) - Width	mm	120
Furnace Chamber Dimensions (mm) - Height	mm	80
Overall Dimensions (mm) - Length	mm	530
Overall Dimensions (mm) - Width	mm	390
Overall Dimensions (mm) - Height	mm	520
Weight	kg	45

Product Structure:

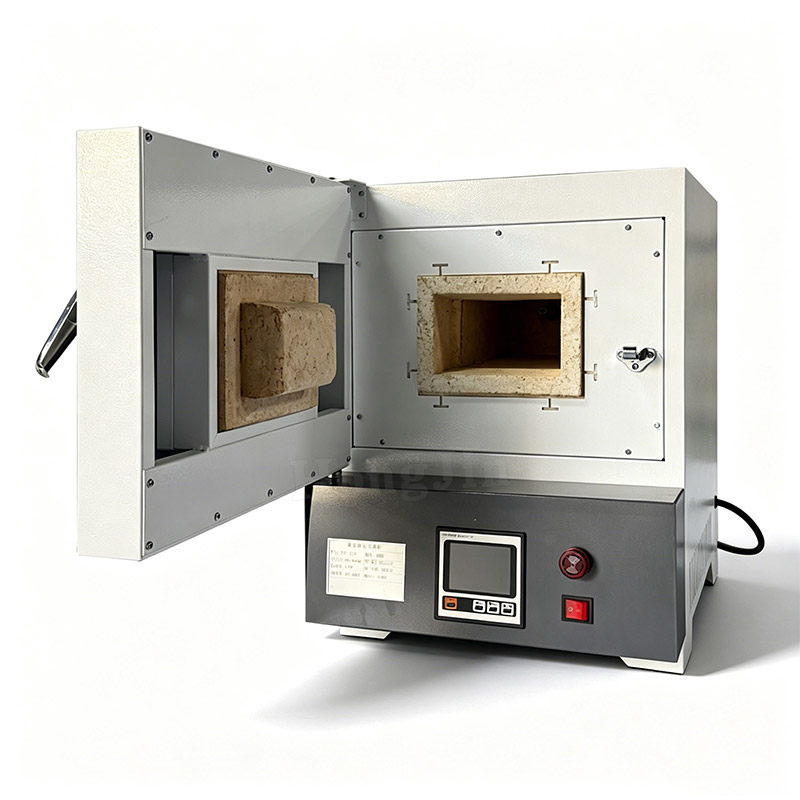

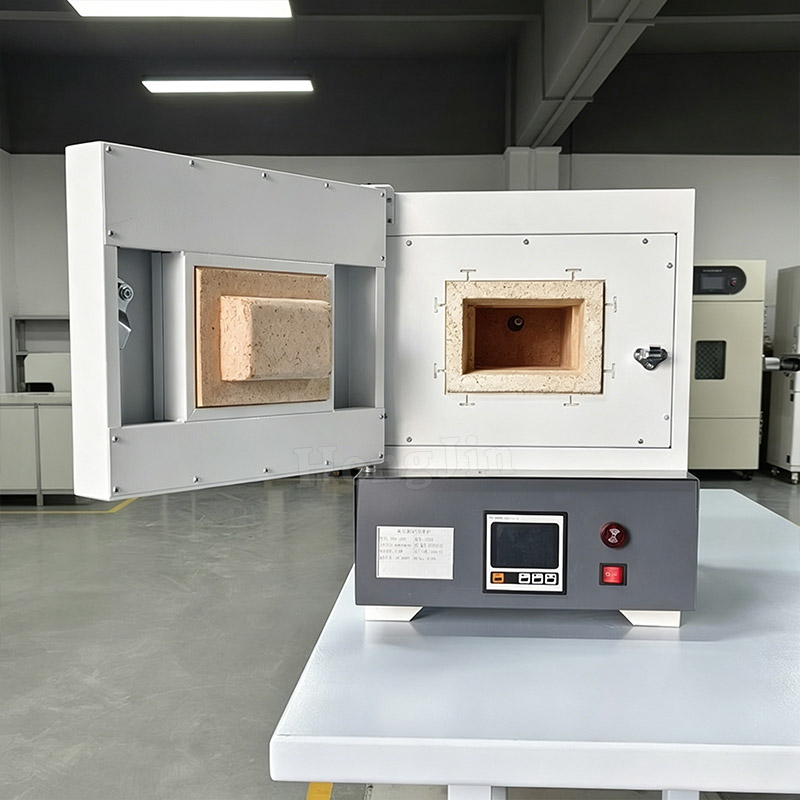

The furnace shell of this series of electric furnaces is made of thin steel plate through folding and welding. The inner furnace lining is a rectangular integral lining made of silicon carbide refractory material. Heating elements, made of iron-chromium-aluminum alloy wire wound into a spiral shape, are inserted into the wire grooves on the upper, lower, left, and right sides of the inner furnace lining. The furnace interior is a sealed structure. The furnace opening bricks and door bricks are made of lightweight refractory material. An insulation layer of refractory fiber and expanded perlite is constructed between the inner furnace lining and the furnace shell.

The furnace door is fixed to the furnace panel by hinges. The door rotates freely. To close, rotate the handle to engage the door hook, and the door will fit snugly against the furnace opening. To open, simply rotate the handle to release the hook and place the door on the left side.

All muffle furnaces in this series adopt an integrated structure. After purchase, users can directly connect the power supply to begin heating the furnace.
