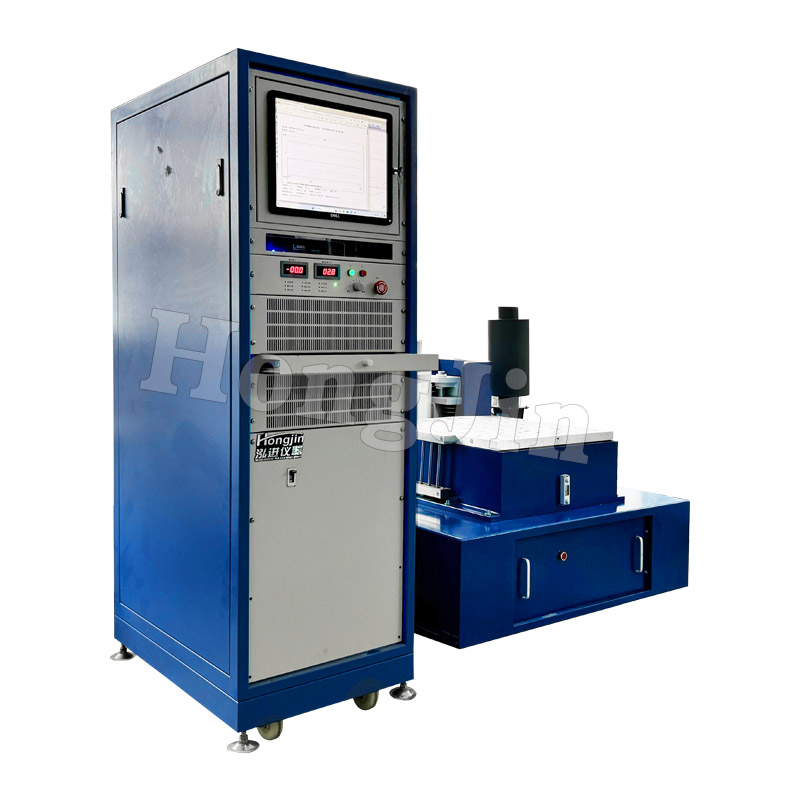

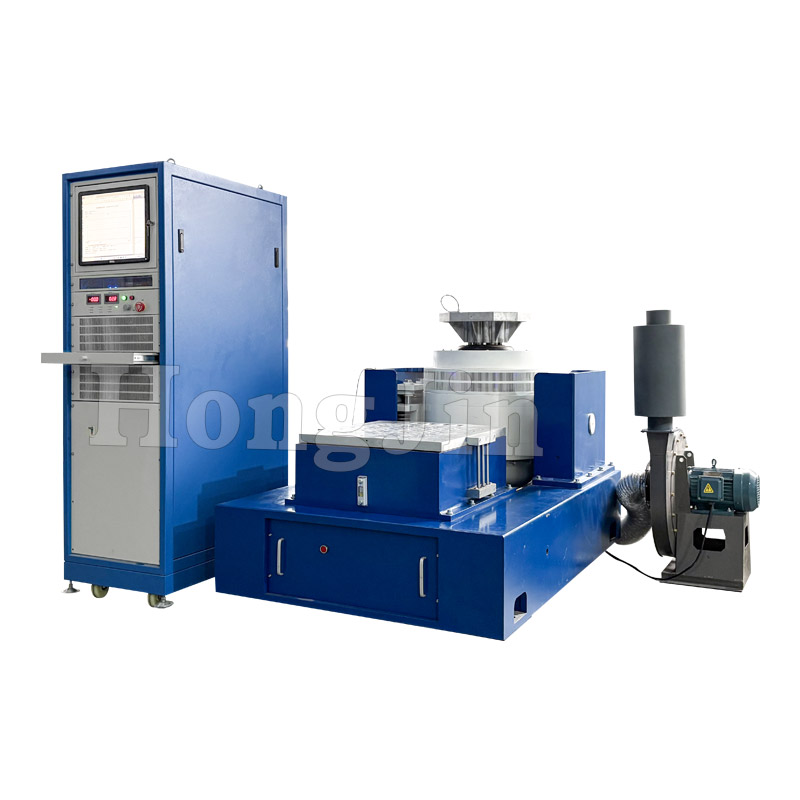

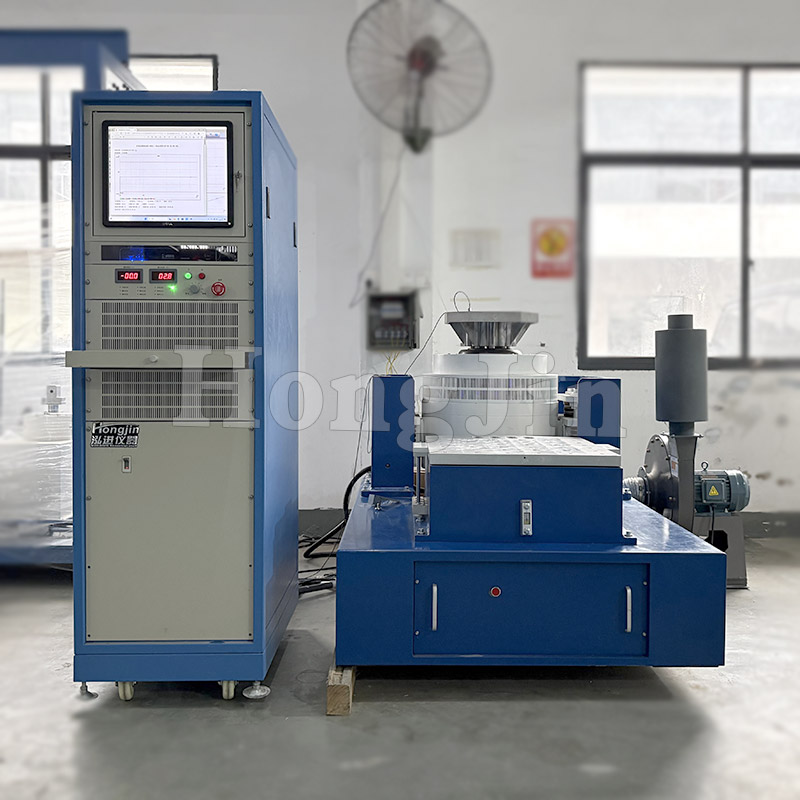

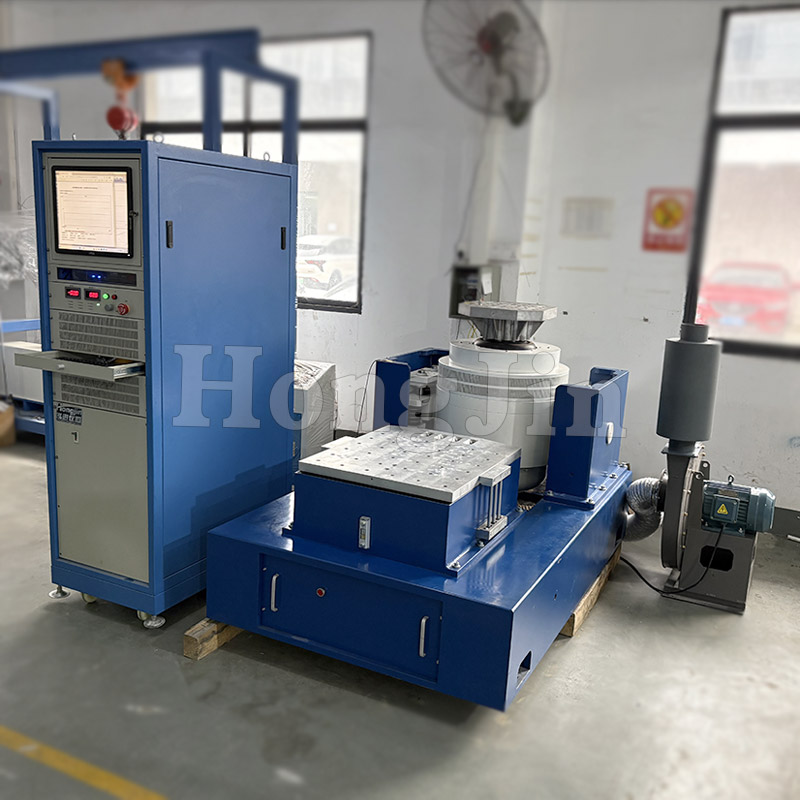

Vertical And Horizontal Vibration Testing Machine

Vertical and horizontal vibration testers simulate vibration environments under laboratory conditions to test the impact strength and reliability in various vibration test application fields. In the laboratory, the vibration tester system can simulate and reproduce sine random, resonance search and dwell, typical impact and road simulation modes. It is essential for product quality assurance and new product development. Specially designed to meet long-term work, the installation of a vibration-resistant base can achieve vertical and horizontal vibration. The standard platform is equipped with a good air pressure vibration isolation device to minimize the vibration transmitted to the building, and in most cases, no additional foundation is required.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product features:

1. Strong suspension system and linear motion guide, strong load-bearing capacity, good guide performance, high stability

2. The center load airbag has large static stiffness, small dynamic stiffness, strong load-bearing capacity, and performance when the amplitude changes

3. Rapid self-diagnosis and high interlocking protection

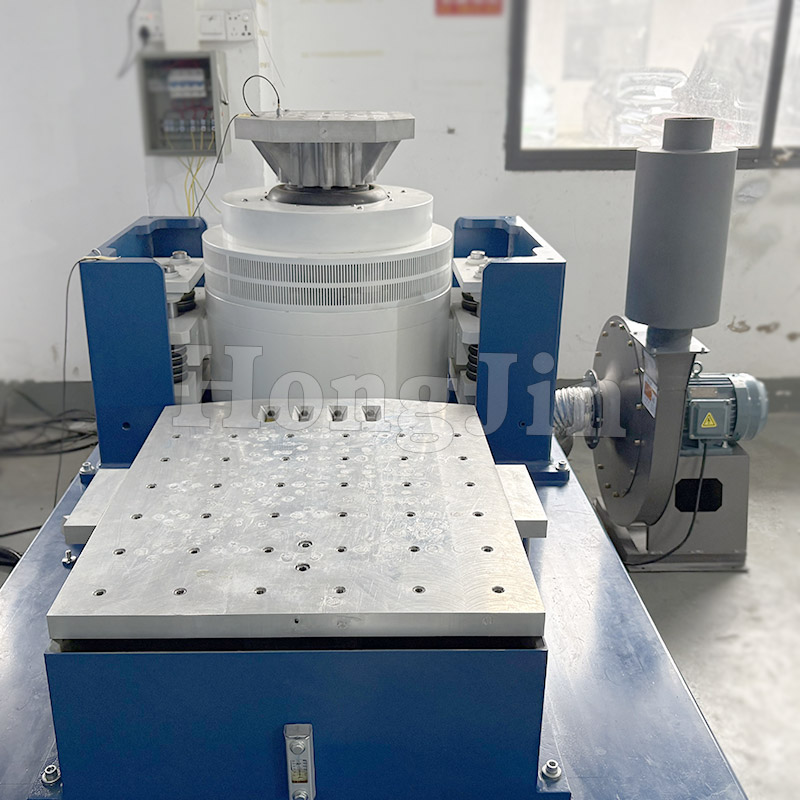

4. The airbag isolation shock-absorbing device makes the vibration table without foundation, perfectly reproduces the vibration shape and reduces vibration transmission

5. Provides different applications of horizontal and vertical expansion platforms

6. The selection and matching of the controller provides simple control

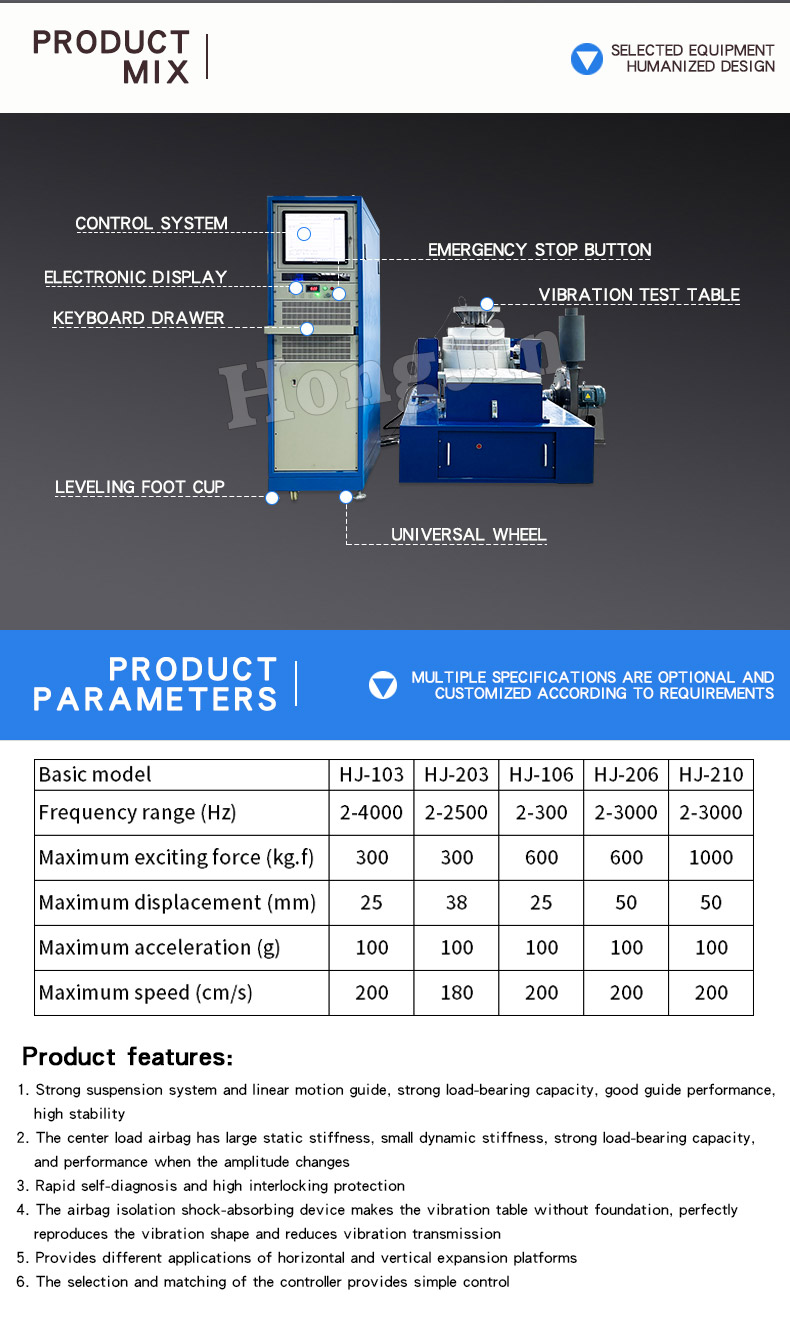

Basic model	HJ-103	HJ-203	HJ-106	HJ-206	HJ-210
Frequency range (Hz)	2-4000	2-2500	2-300	2-3000	2-3000
Maximum exciting force (kg.f)	300	300	600	600	1000
Maximum displacement (mm)	25	38	25	50	50
Maximum acceleration (g)	100	100	100	100	100
Maximum speed (cm/s)	200	180	200	200	200
