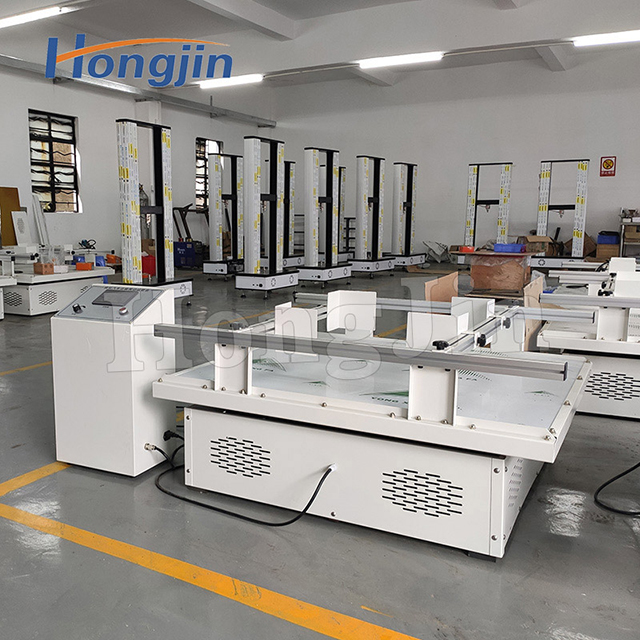

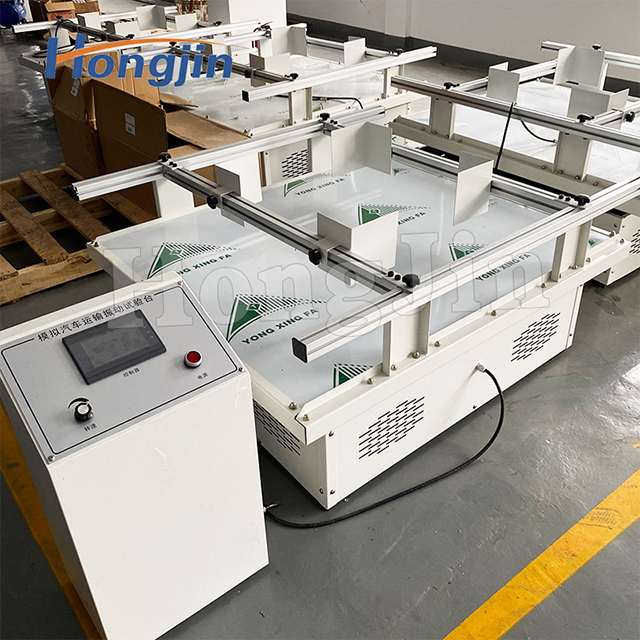

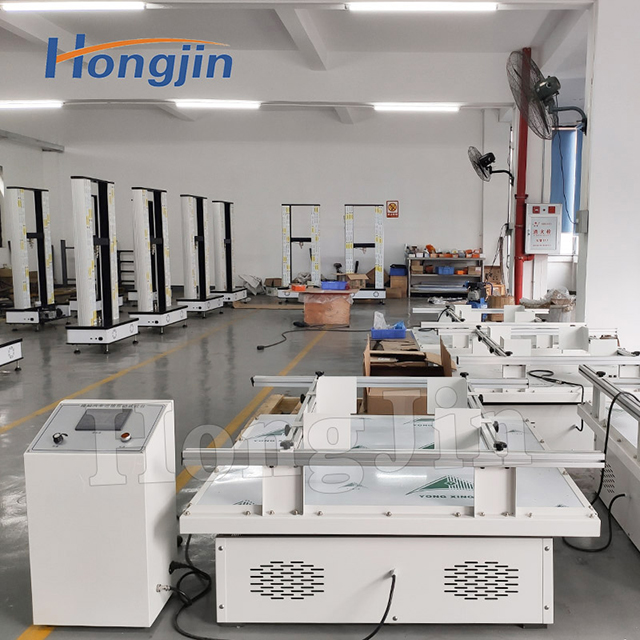

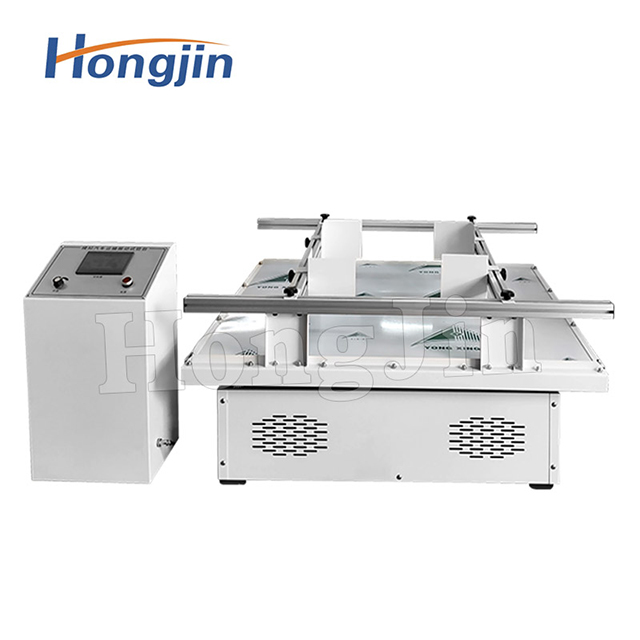

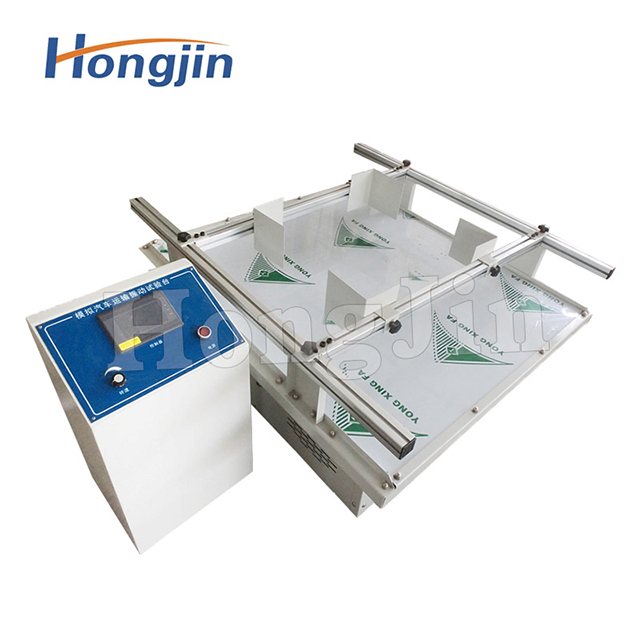

Simulated Transportation Vibration Test Bench

Simulation transport vibration test bench, suitable for toys, electronics, furniture, gifts, ceramics, packaging and other products for simulation transport test.

Product features:

1. Low price: the price is only 10% of similar products in the United States;

2. Vibration frequency using full liquid crystal display vibration frequency, high precision;

3. Synchronous silent belt drive, low noise;

4. The sample fixture adopts guide rail type, easy to operate and safe;

5. The base of the machine adopts heavy channel steel base with vibration damping rubber, which is easy to install and smooth to run without installing anchor screws.

6. Dc motor speed regulation, smooth operation, strong load capacity.

7. According to the European and American similar equipment restructuring, rotary vibration, in line with European and American transportation standards.

Product parameters:

Model number 100 200 300 600 1000
Rotational speed 100-300RPM (RPM) Vibration display accuracy 0.1RPM (RPM)
Mode of vibration Reciprocating (galloping) 25.4MM (1 inch)
Time sets the art circle 0.1seconds-300hours The time limit of all motion is 0-15s
Maximum load 100 200 300 600 1000
Effective table surface (MM) 1000×1200 1000×1200 1000×1300 1300×1500 1400×1500
Motor power 1HP 2HP 3HP 5HP 10HP
Speed regulation mode Dc speed control or AC frequency control Power requirements 220V50/60HZ
Non-standard specification Can be customized according to the requirements of special specifications vibration table
