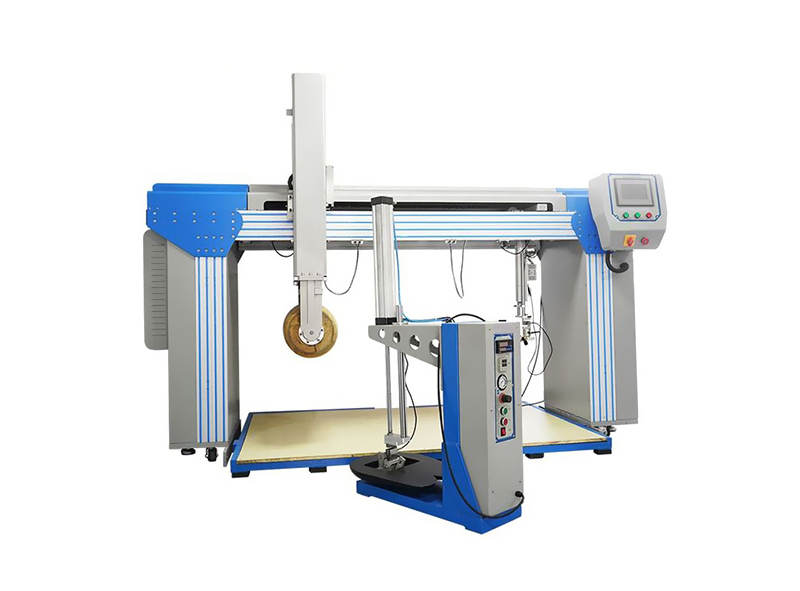

The durability of the mattress edge is mainly to test the durability of the mattress edge to meet the requirements of various mattress manufacturers and standards. It is used to determine the quality and service life of mattresses, and strictly abide by the requirements of national standards for mechanical testing. Suitable for strong spring mattresses, ordinary spring mattresses, foam mattresses, brown fiber elastic mattresses, etc.
| Way to control | PLC control and touch screen |
| Roller chamfer | R30 |
| Maximum diameter of roller | 300±1mm |
| Motor | Panasonic Servo Motor |
| Test trip | The center line of the mattress is 250mm on each side |
| Loading pad size | 380*495*75mm |
| vertical downward load | 1000N |
| total number of trials | 5000 times |
| Hold time | (3±1)s |
| Height measurement accuracy | ±0.5mm |
| Height measuring pad | The measuring surface is a flat and smooth rigid cylinder |
| Measuring block diameter | 100mm, chamfer R10 |
| Block application speed | 100±20mm/min |
| Exterior | paint treatment |
| Test table material | Stainless steel |
| Test table height from the ground | 500mm |
| Dimensions | About 3160*2450*1800mm (length*width*height) |
| Weight | about 2 tons |
| Power | AC2201V 50HZ single-phase about 2KW |
The durability of the mattress edge is mainly to test the durability of the mattress edge to meet the requirements of various mattress manufacturers and standards. It is used to determine the quality and service life of mattresses, and strictly abide by the requirements of national standards for mechanical testing. Suitable for strong spring mattresses, ordinary spring mattresses, foam mattresses, brown fiber elastic mattresses, etc.
| Way to control | PLC control and touch screen |
| Roller chamfer | R30 |
| Maximum diameter of roller | 300±1mm |
| Motor | Panasonic Servo Motor |
| Test trip | The center line of the mattress is 250mm on each side |
| Loading pad size | 380*495*75mm |
| vertical downward load | 1000N |
| total number of trials | 5000 times |
| Hold time | (3±1)s |
| Height measurement accuracy | ±0.5mm |
| Height measuring pad | The measuring surface is a flat and smooth rigid cylinder |
| Measuring block diameter | 100mm, chamfer R10 |
| Block application speed | 100±20mm/min |
| Exterior | paint treatment |
| Test table material | Stainless steel |
| Test table height from the ground | 500mm |
| Dimensions | About 3160*2450*1800mm (length*width*height) |
| Weight | about 2 tons |
| Power | AC2201V 50HZ single-phase about 2KW |
