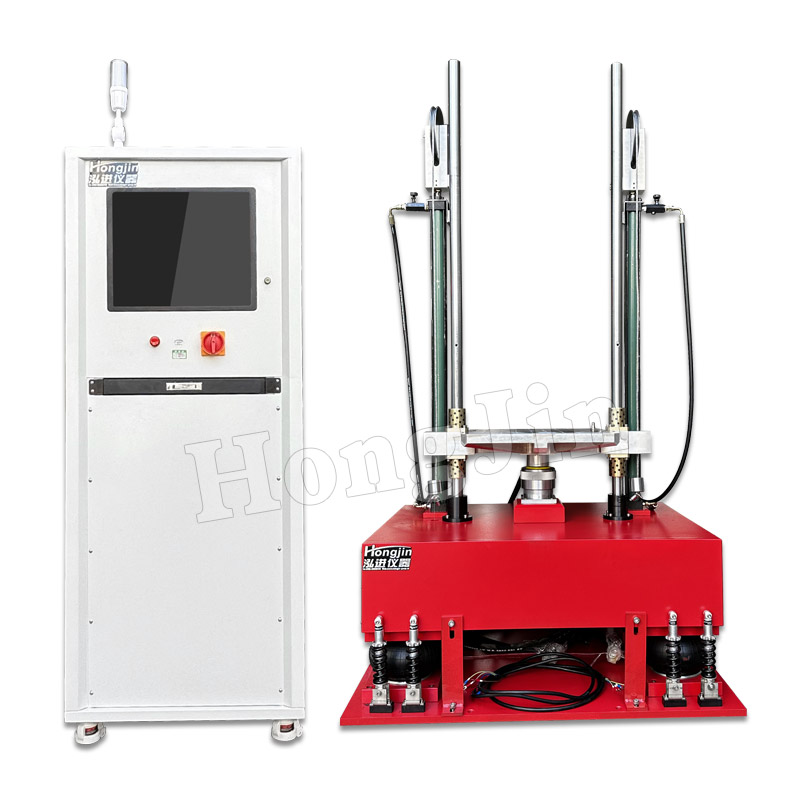

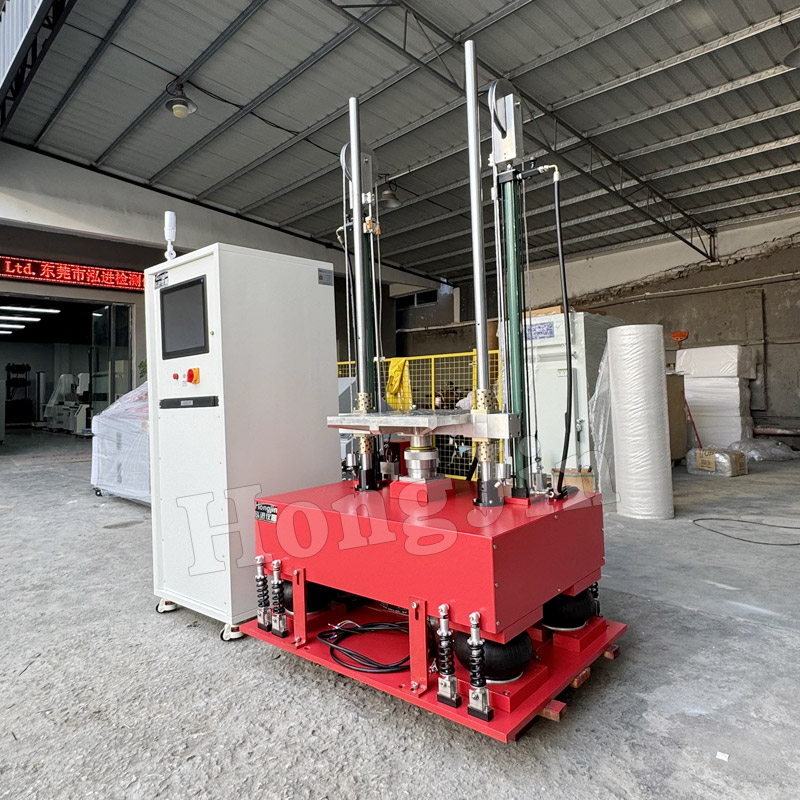

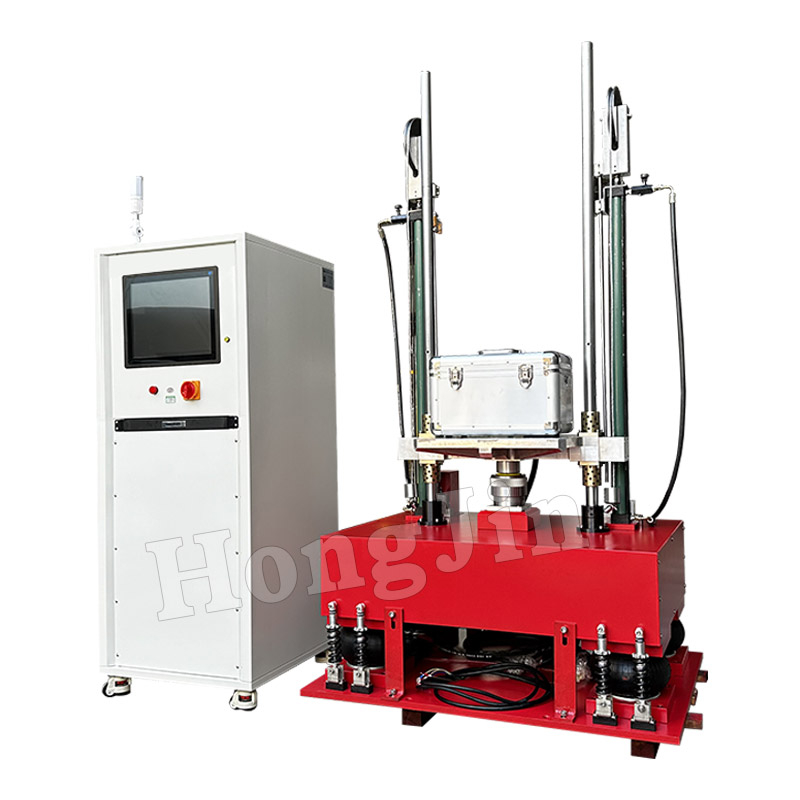

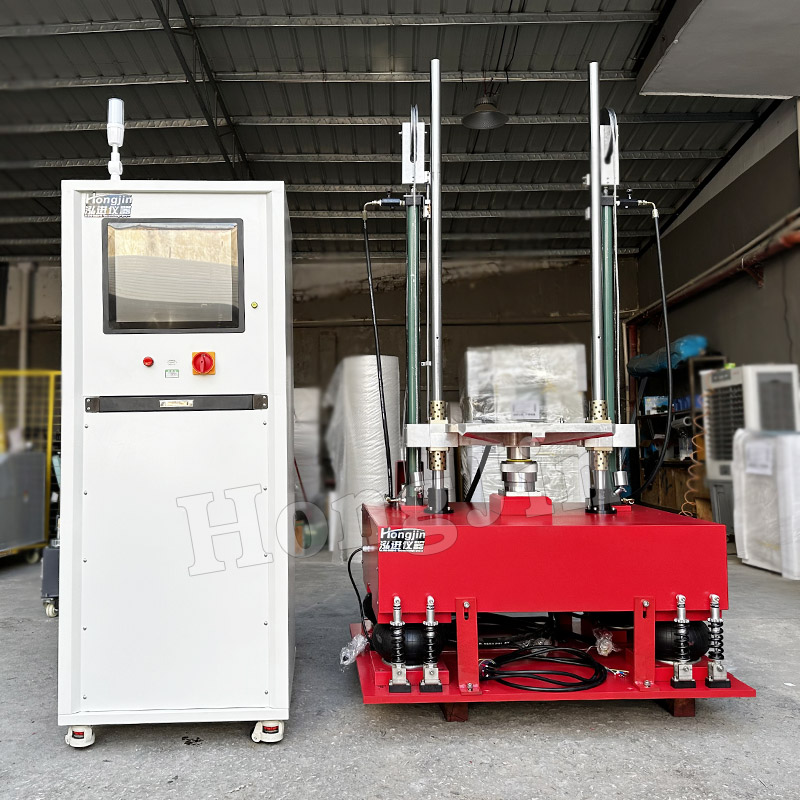

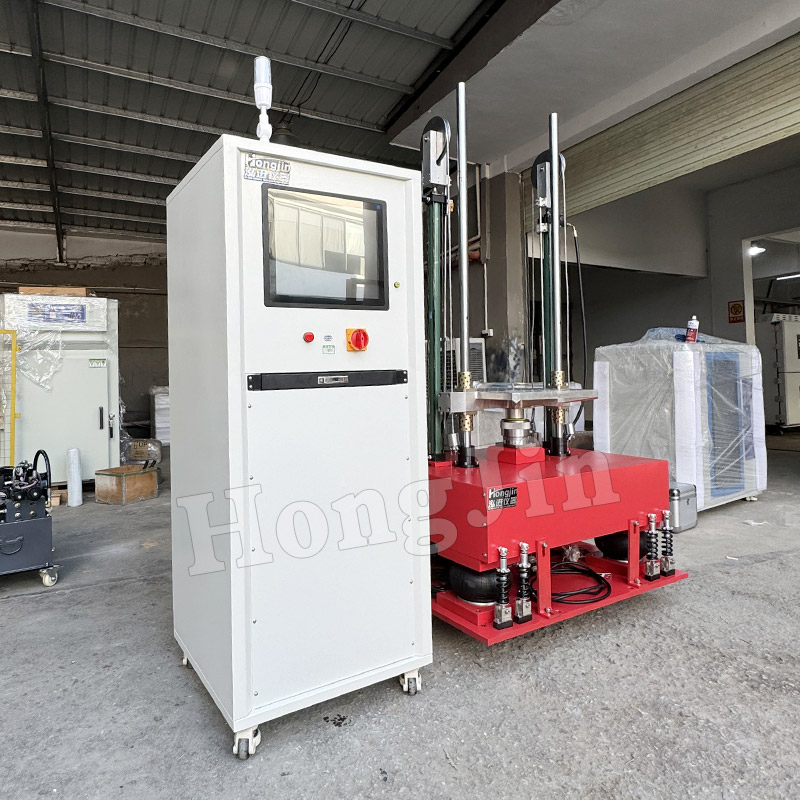

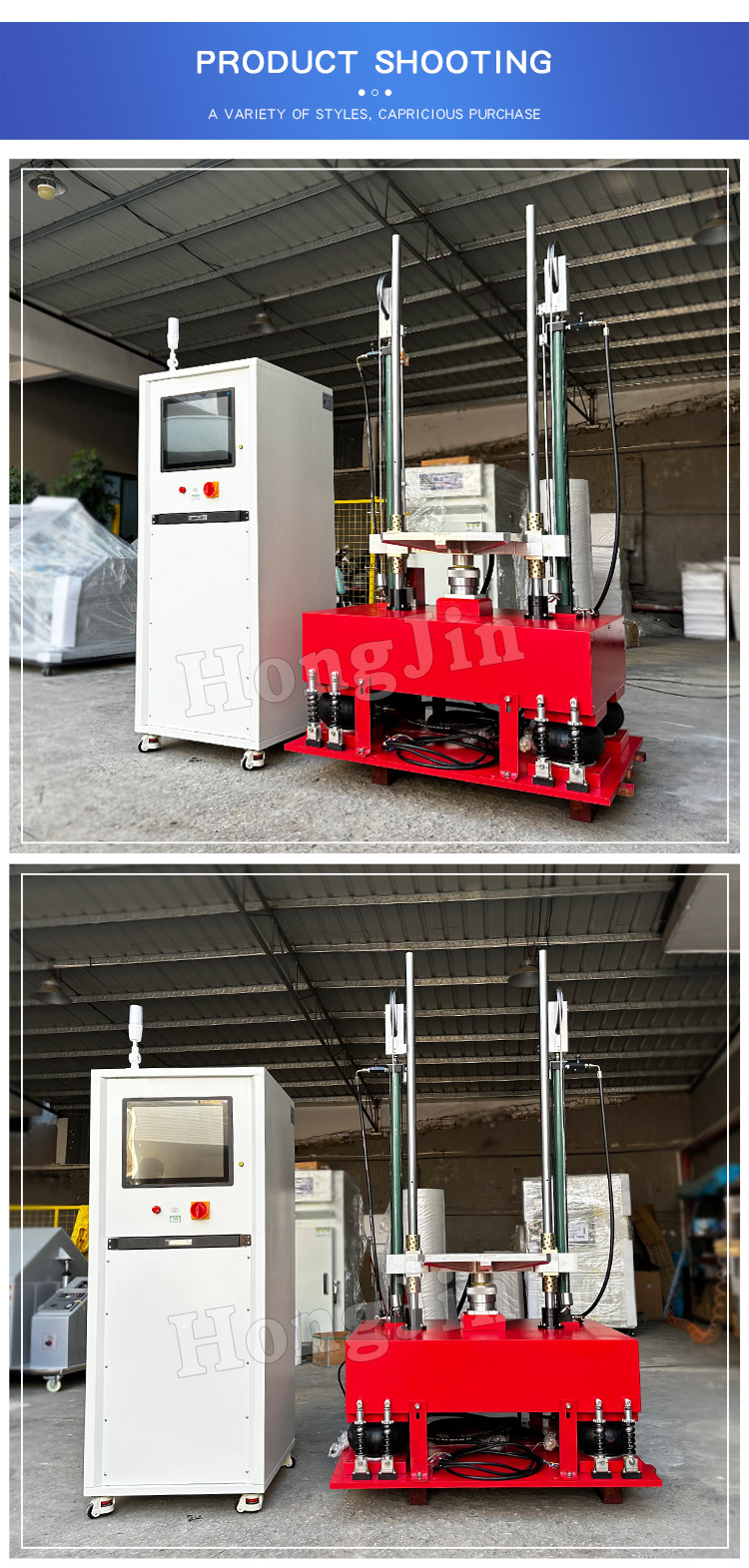

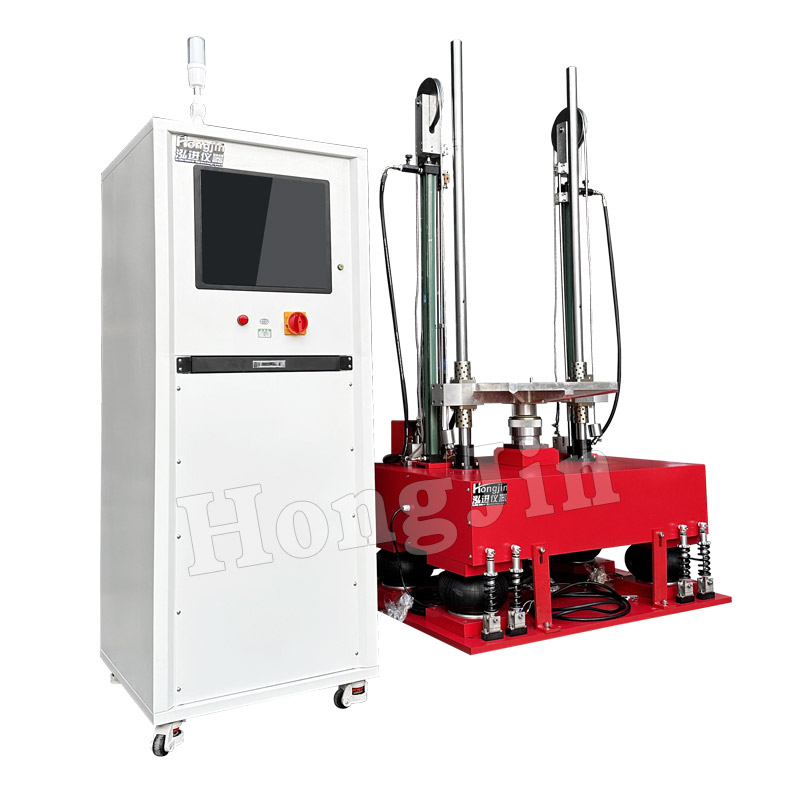

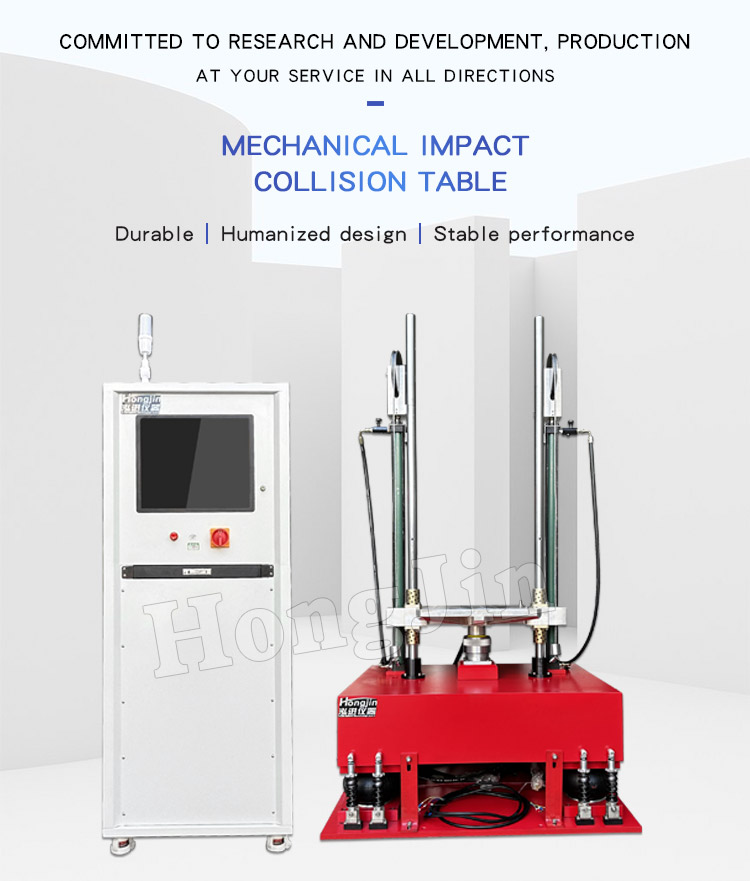

System principle:

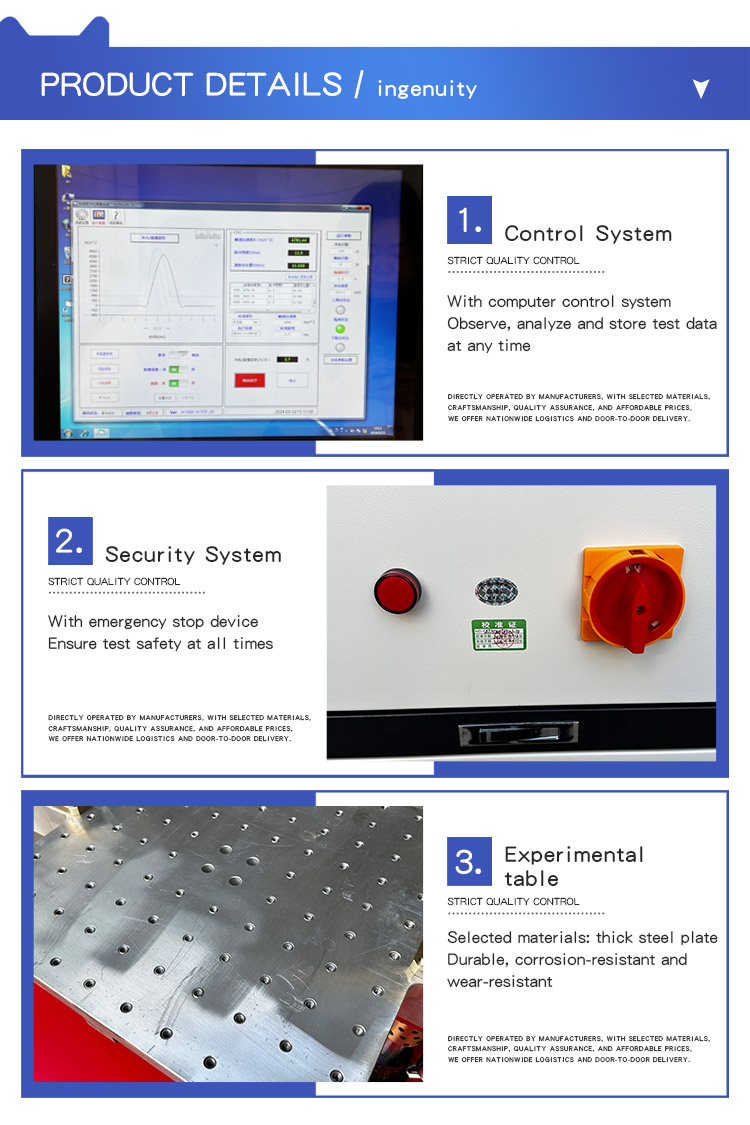

The size of the VB-CJ-200 impact test table can be customized. The table structure is carefully designed after finite element optimization analysis. It has high structural strength and high frequency response. Through the high acceleration impact test, it can achieve an acceleration duration of 0.5ms and the impact is half sine. The waveform complies with the test specifications. It has a built-in anti-secondary impact device. The platform is equipped with a high-efficiency vibration damping device. The impact height is digitally set and executed automatically.
| model: | HJ-200 |
| Maximum load: | 200Kg (including clamp) |
| Table size: | 500mm×500mm |
| Impact peak acceleration range: | Half sine wave: 100～1000m/s² |
| Pulse duration: | Half sine wave: 2.5～20ms |
| Shock waveform: | half sine waveform |
| Maximum impact drop height: | 1.5m |
| Wave shape difference: | When the pulse duration is ≤3ms, the peak acceleration tolerance is ±20%; |
| Pulse duration tolerance is ±15%; | |
| When the pulse duration is >3ms, the waveform deviation should be within the range specified by the standard. | |
| Speed change: | Tolerance is ±15% |
| Anti-secondary impact device: | Hydraulic braking device |
| Impact table body dimensions: | (1000×500×2600) (mm) can be customized according to actual parameter requirements |
| Impact platform weight (approx.): | 500kg |
| Power consumption: | 2KVA |
| Working conditions: | Table power supply voltage: 220V±10% AC50Hz |
| Ambient temperature: 0℃-40℃ | |
| Relative humidity: ≤90% (25℃) | |
| Surrounding environment: no corrosive media, dry and ventilated | |
| Electromagnetic field interference and strong vibration sources that affect normal work | |
| Standards compliant: | GJB150, GJB360, GB2423 and other requirements |
