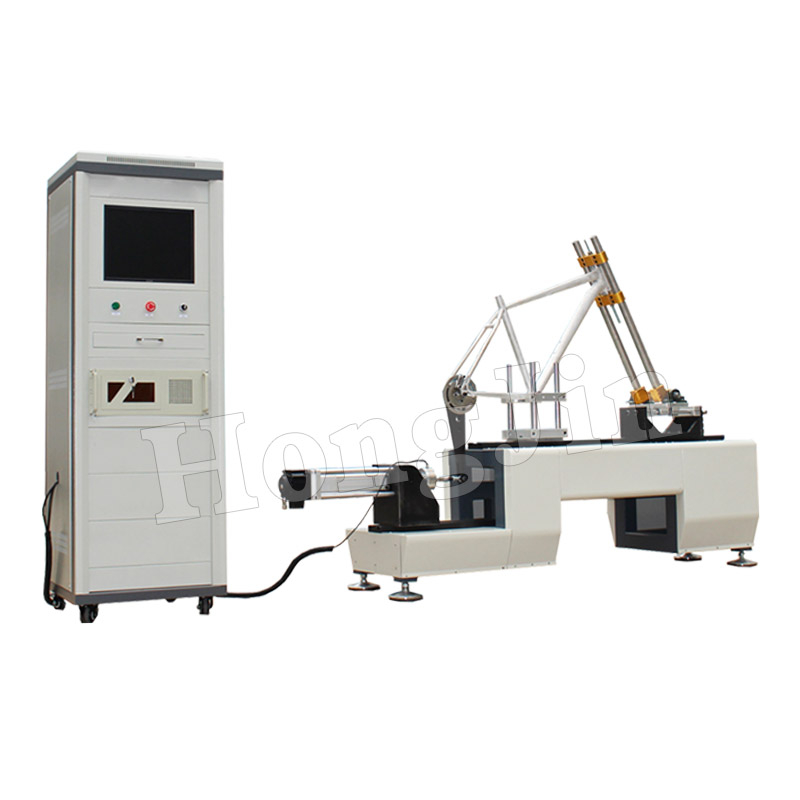

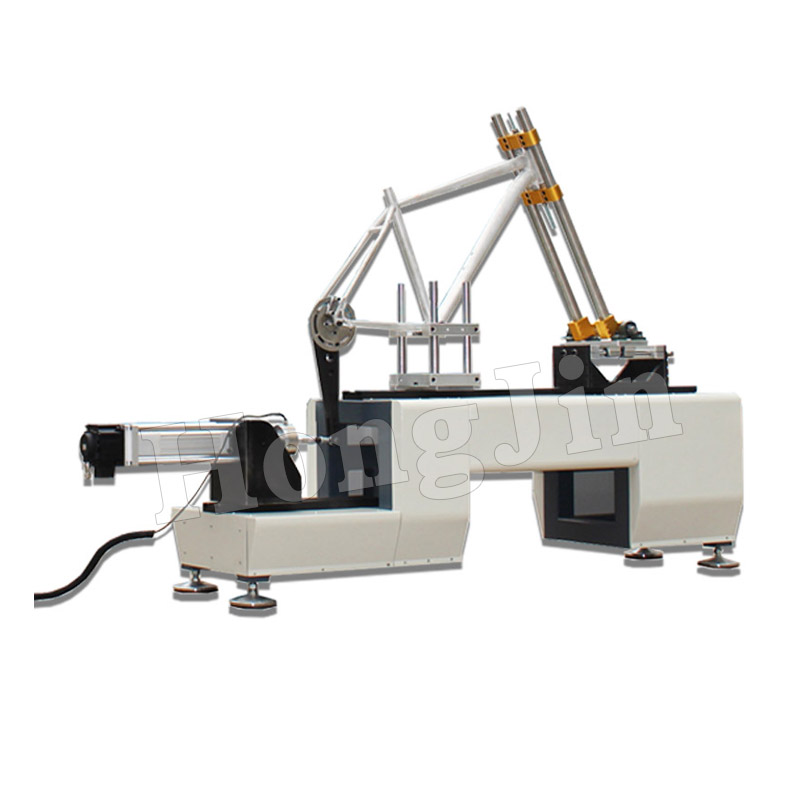

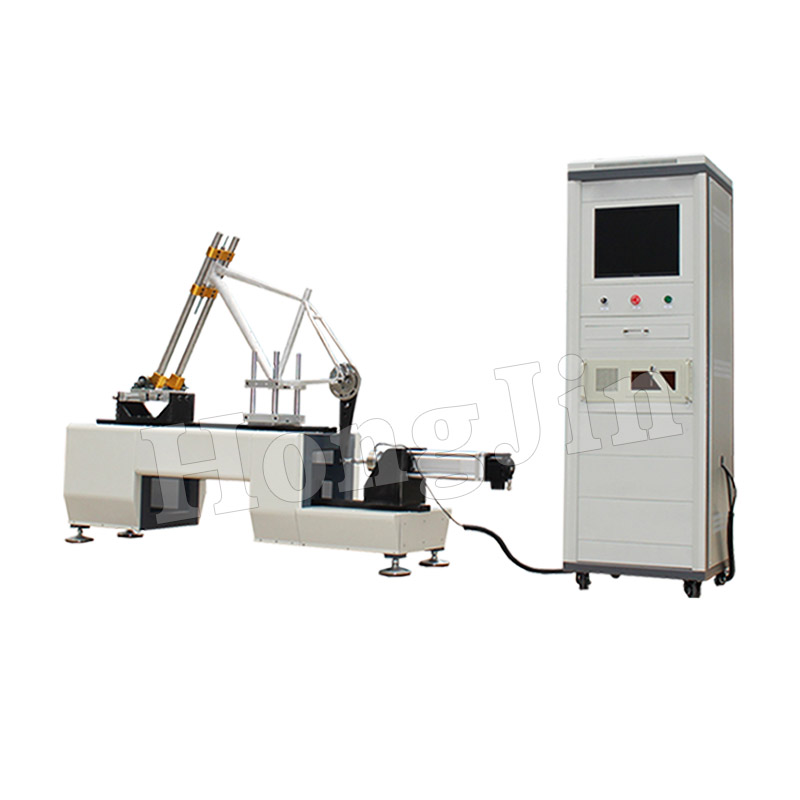

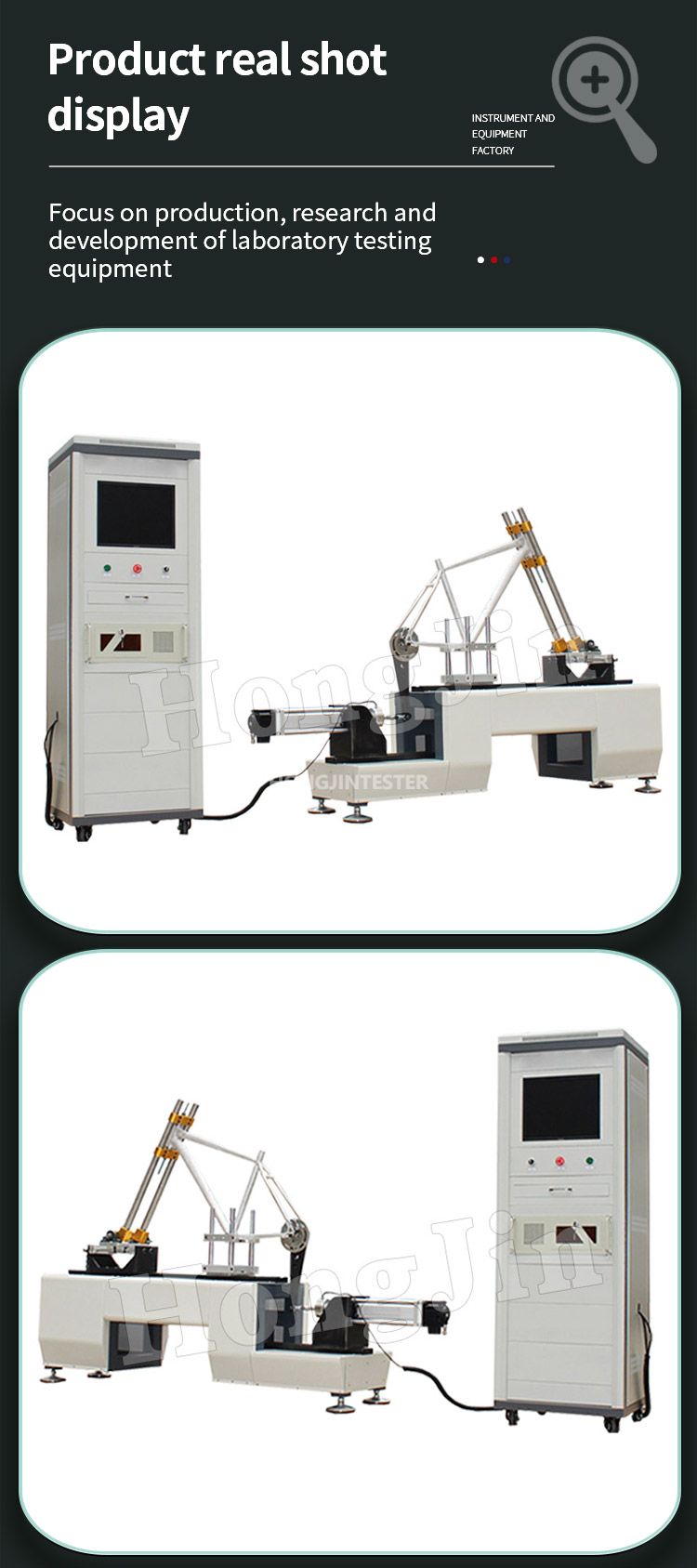

Frame vertical dynamic and disc brake dynamic fatigue testing machine

The scope of application of the vertical disc brake dynamic fatigue tester for bicycle frames mainly includes the fatigue test of the disc brakes on bicycle frames in the vertical direction. The tester is mainly used to simulate the fatigue test state of the bicycle frame under the force of the disc brake fixing frame. By applying fatigue force with a certain frequency, load and test number, the durability and reliability of the frame are judged by checking the degree of damage of the sample after the test.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

Product Overview:

This testing machine is designed for the vertical direction of bicycle frames and the fatigue resistance test standards of disc brakes. After the bicycle frame is installed on the fixture of this testing machine, a fatigue force with a certain frequency, load and number of tests is applied to it. After the test, the degree of damage to the sample is checked to determine the damage.

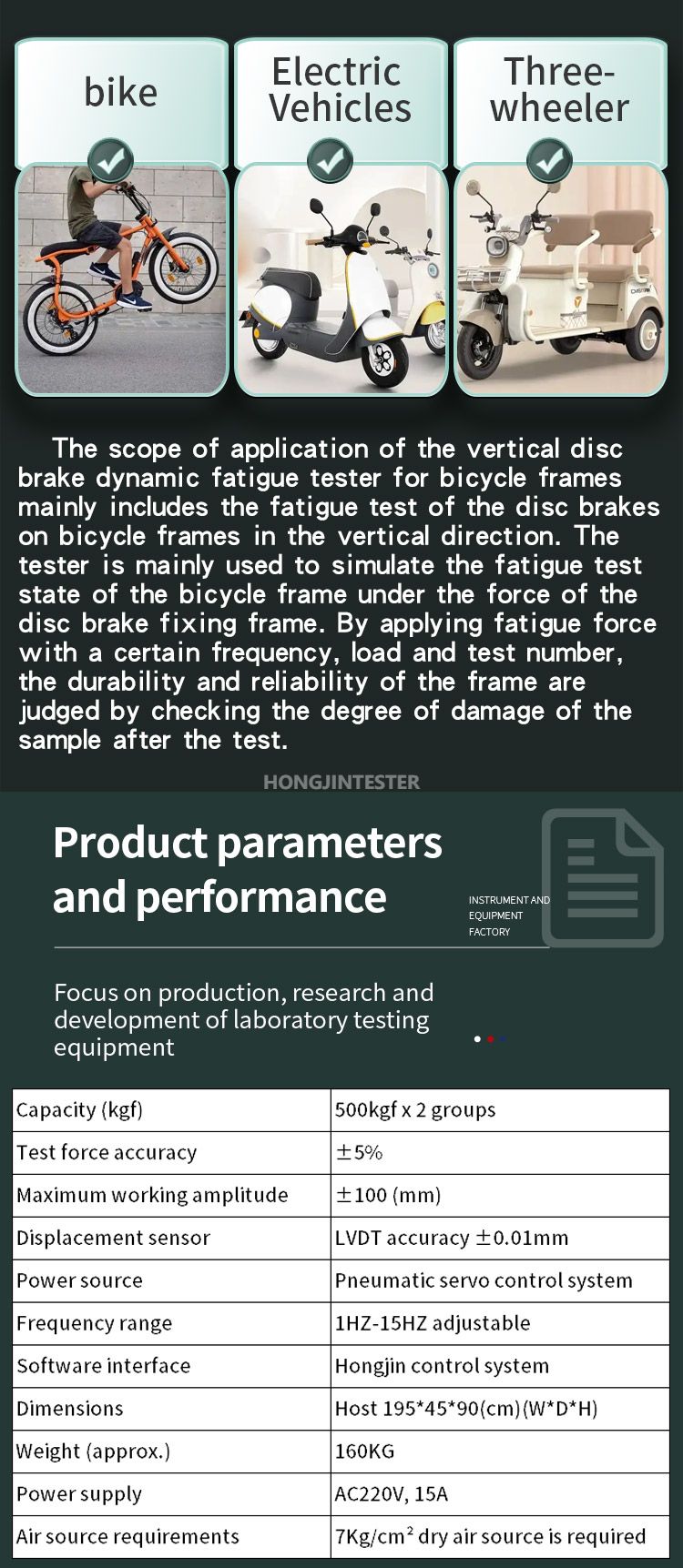

Capacity (kgf)	500kgf x 2 groups
Test force accuracy	±5%
Maximum working amplitude	±100 (mm)
Displacement sensor	LVDT accuracy ±0.01mm
Power source	Pneumatic servo control system
Frequency range	1HZ-15HZ adjustable
Software interface	Hongjin control system
Dimensions	Host 1954590(cm)(WDH)
Weight (approx.)	160KG
Power supply	AC220V, 15A
Air source requirements	7Kg/cm² dry air source is required
