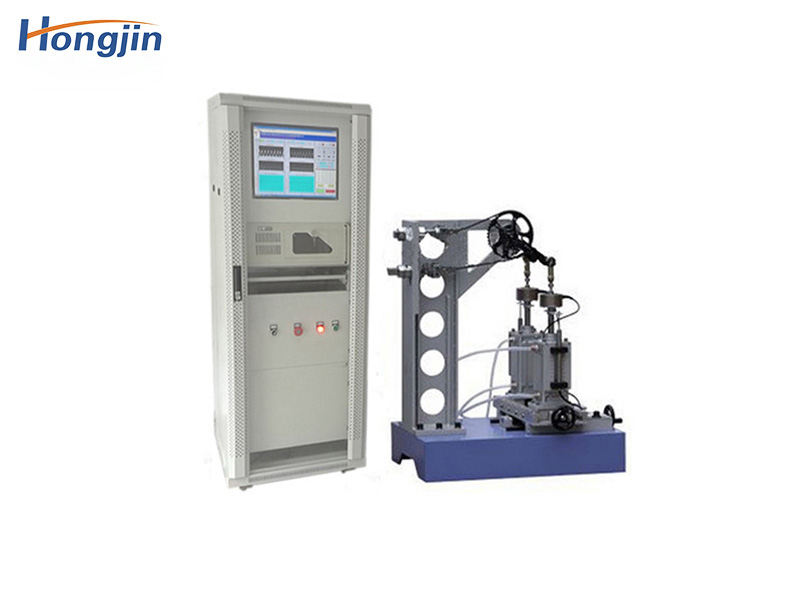

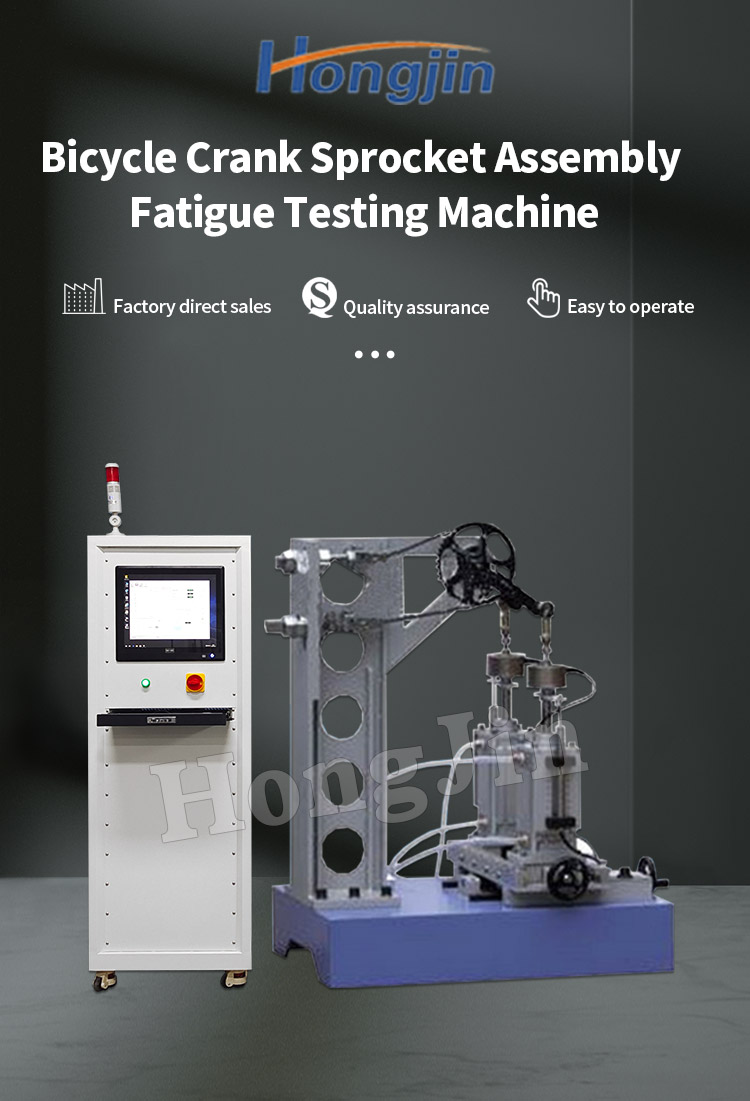

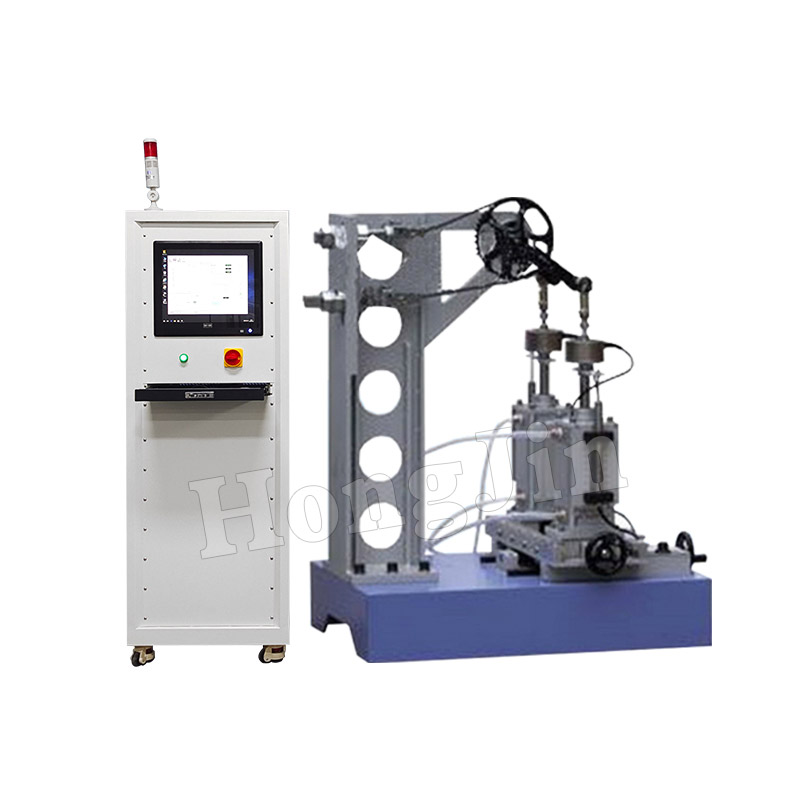

Bicycle Crank Sprocket Assembly Fatigue Testing Machine

Bicycle crank sprocket assembly fatigue testing machine, this machine is used to simulate the actual use of the bicycle sprocket crank, apply a certain force to the use position of the left and right pedal shafts, and detect the wear after a certain number of times.

Availability:

Quantity:



Inquire Add to Basket

Brand:
hongjin

Product Description

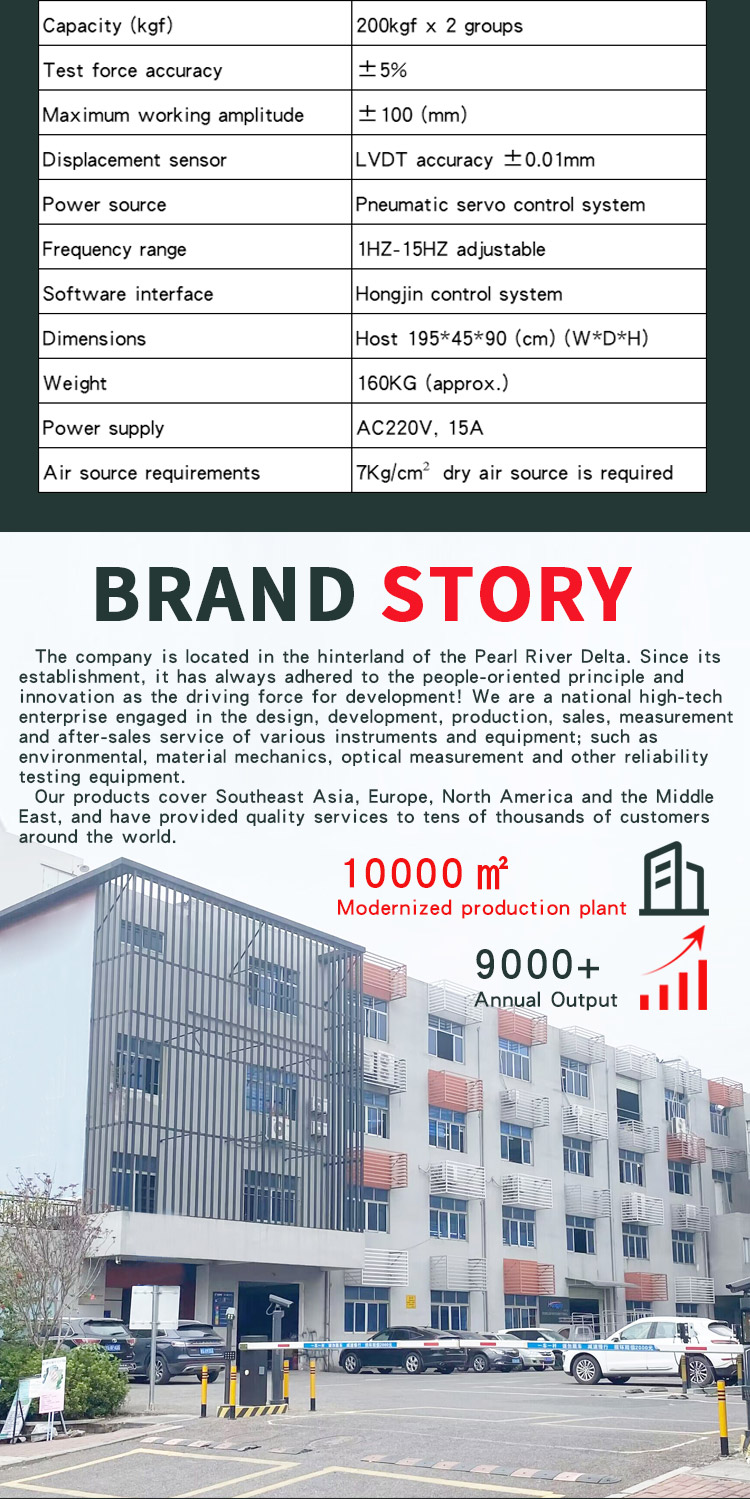

Capacity (kgf)	200kgf x 2 groups
Test force accuracy	±5%
Maximum working amplitude	±100 (mm)
Displacement sensor	LVDT accuracy ±0.01mm
Power source	Pneumatic servo control system
Frequency range	1HZ-15HZ adjustable
Software interface	Hongjin control system
Dimensions	Host 1954590 (cm) (WDH)
Weight	160KG (approx.)
Power supply	AC220V, 15A
Air source requirements	7Kg/cm² dry air source is required
