Scope of application:
It is mainly used to measure the drag resistance of e-cigarettes, suitable for e-cigarette production quality control and e-cigarette inspection. When inhaling air with a fixed flow rate of 17.5ml/s is simulated on the e-cigarette, a certain vacuum pressure will be generated at the suction end of the e-cigarette. This pressure is the suction resistance, referred to as the suction resistance. By measuring this pressure, the suction resistance and mouth number life can be measured.
Working principle:

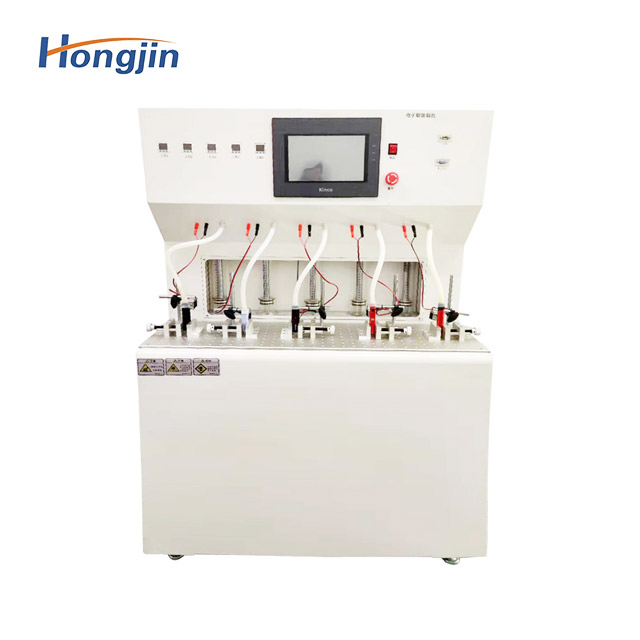

E-cigarette smoking machine can be called mouth number life testing machine, smoking mouth number machine, e-cigarette mouth number machine, smoke volume testing machine. E-cigarette testing equipment, its working principle is that this machine is used to test the finished e-cigarette, e-cigarette battery rod, e-cigarette atomizer and other one-smoke and one-stop life instruments. The suction capacity of each mouth can be controlled by itself, and the cylinder piston type suction is adopted. By setting the corresponding smoking duration, smoking volume and smoking frequency, the e-cigarette is judged to be qualified or not.
Features:
1. The suction volume can be set;
2. The suction flow can be set;
3. The computer automatically detects the changing trend of voltage, current, and resistance stability during the smoking process of electronic cigarettes;
4. It can do mouth count test;
5. All test data are automatically saved in the computer.
Product parameter table
Test time: | 0~999999 (touch screen adjustable) |
Number of tests: | 0~999999 (touch screen adjustable) |
Control mode: | PLC control, touch screen man-machine interface display; |
Test station: | 5 work station; |
Pressure range: | A instantaneous 2070kPa, accuracy ±10%; Controllable frequency band (1500~3000) can be satisfied,B Continuous pressure at 21mL flow rate, accuracy ±10%; (convenient measurement and calibration) |
Exhaust hole: | Diameter 42.87mm, precision soil 0.05mm; |
Pressure drive: | High speed booster pump; |
Sample fixture: | Each group of jig double track, jig V-type self-tightening type (customizable); |
Pressure mode: | Vacuum sucker seal, small hole pressure; |
Injection driver: | Stepper motor; |
Position adjustment: | Manual adjustment; |
Maximum pressure: | 10000 kPa, (air compressor customer); |
Pressure display: | Pressure gauge display; |
Flow display: | Five flow sensor feedback displays separately; |
Control software: | According to the standard requirements can set the test time, times, pressure mode, and can copy the test data through the U disk |
Equipment size: | 1400*800*1500mm (L*D*H) ; |
Power supply: | 220V50Hz |
