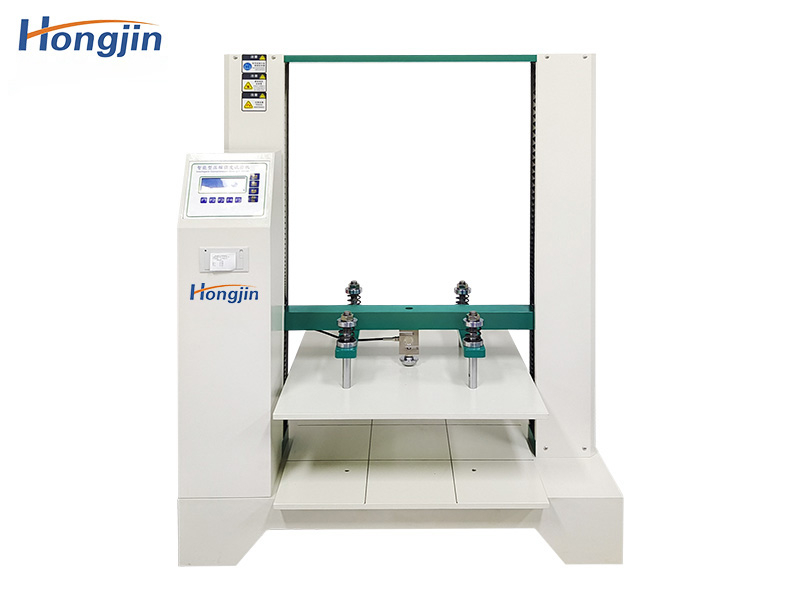

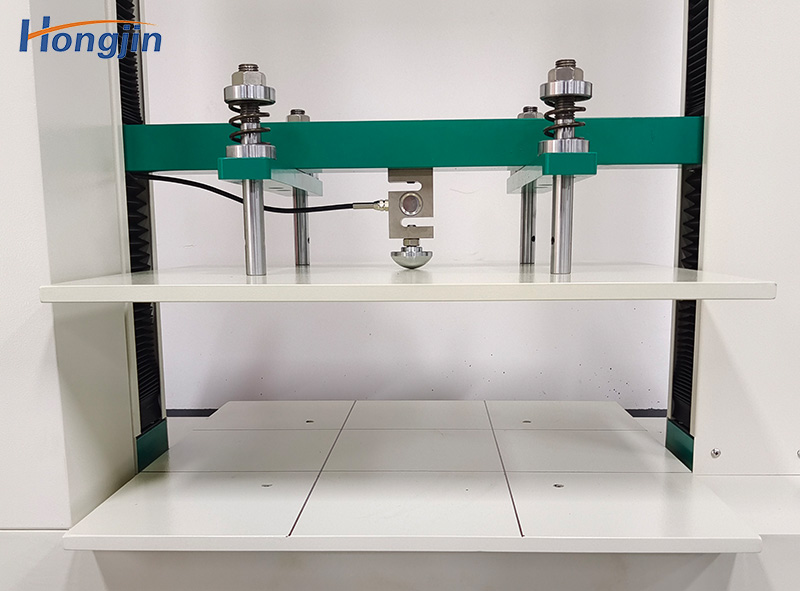

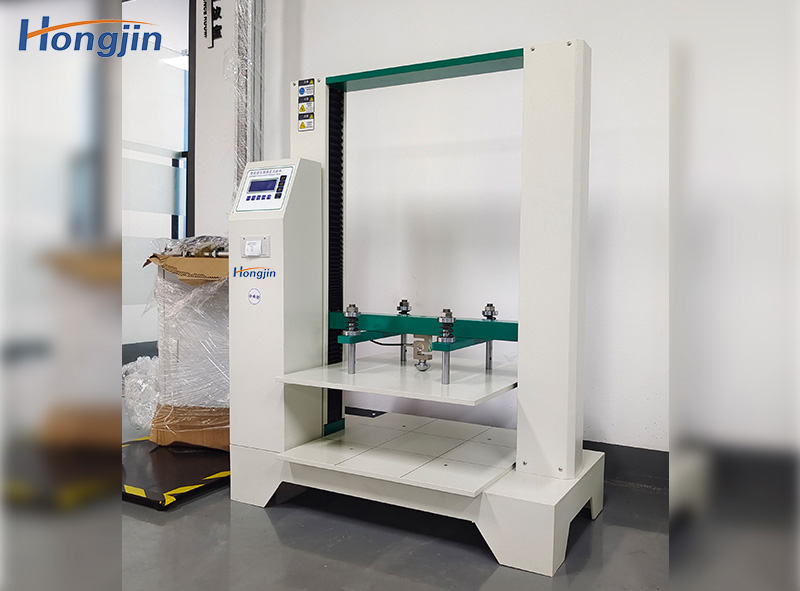

Carton compression testing machine

The carton compression tester is suitable for the compression, deformation and stacking tests of corrugated boxes, honeycomb boxes and other packages. And take into account the compression test of plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels and other containers.

1. Microcomputer control system and PVC control panel are convenient for users to use.

2. The instrument has the functions of testing, display, memory, statistics, printing and real-time display of compression curve.

3. Man-machine dialogue, input test parameters, optional test method, and complete the test automatically.

4. It can complete fixed pressure, deformation measurement; fixed deformation, resistance pressure measurement; maximum crushing force and stacking test.

5. The micro-printer prints the test results.

6. With overload protection, fault alarm, limit stroke protection functions.

Specifications 600*600*600 800*800*800 1000*1000*1000 1200*1200*1200 1500*1500*1500
Capacity selection 1000kg、2000kg、5000kg Can choose any one of them
Resolution 1/100000
Test speed 0.5mm-300mm/min Can input any speed
Test stroke 1000mm、1200mm、1500mm Can be selected arbitrarily
Test width 1000mm、1200mm、1500mm Can be selected arbitrarily
Machine weight 550kg
Using electricity AC-220V、50-60HZ 4A
Selected capacity Generally, the maximum force value of the failure of the specimen is about 2 times
