Setting standard:
Designed according to EN14764:2005, ISO4210-2014 standards, a large rotating wheel is used as the driving wheel to drive the wheel rim to be tested, and "dynamic walking test", "brake performance test", "wheel static pressure test" and "deflection test" can be performed. The load is applied by weight superposition direct pressure, which more realistically simulates the test environment and state; (the fixture is based on the sample provided by the customer).

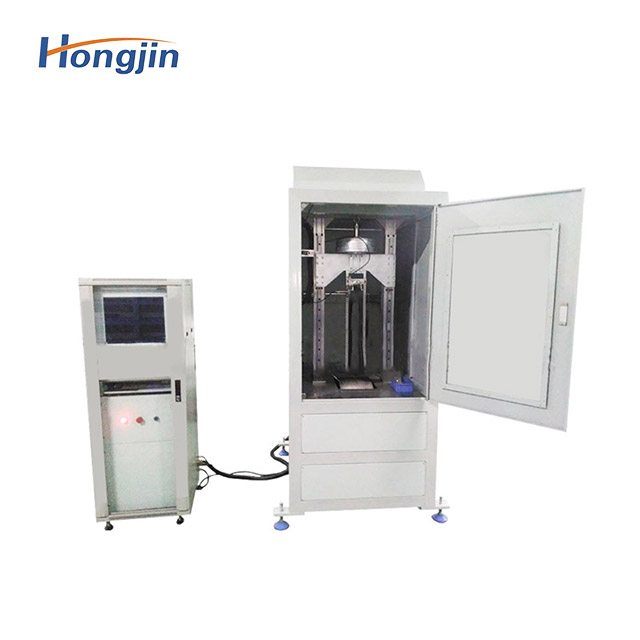

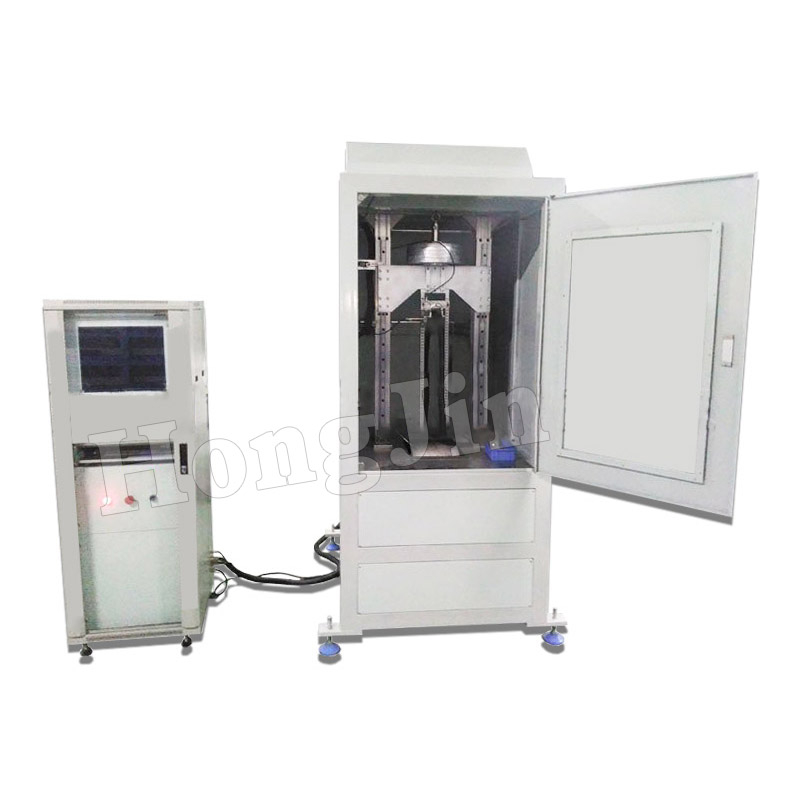

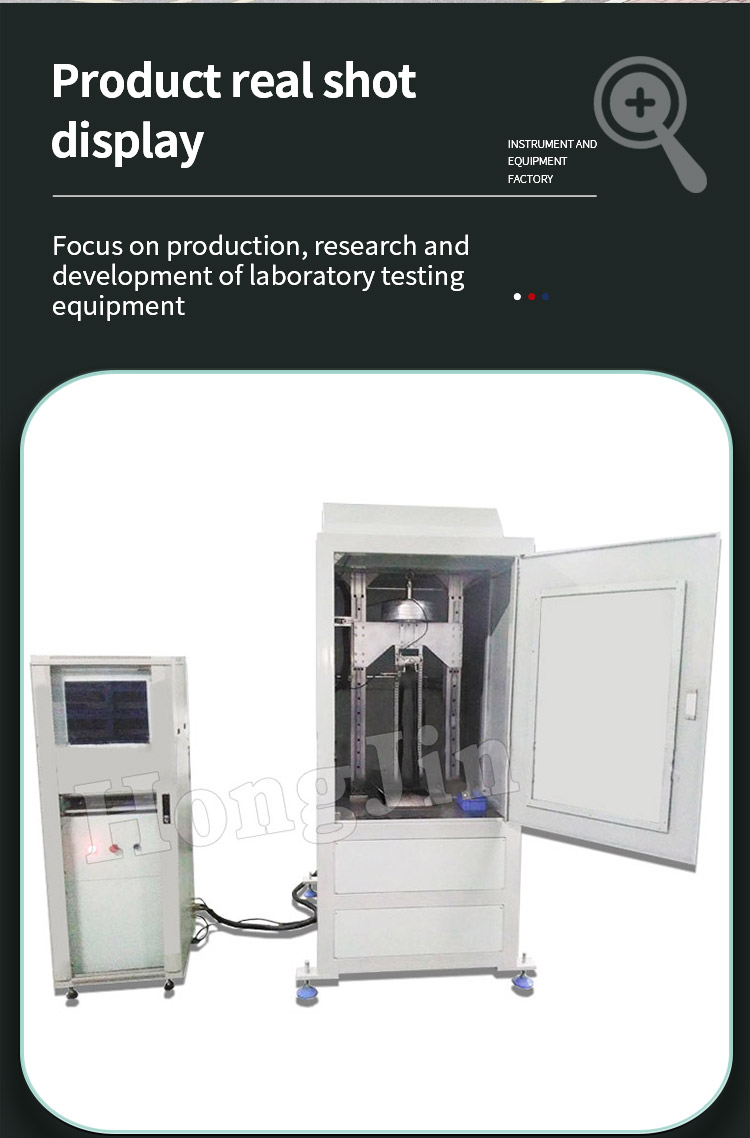

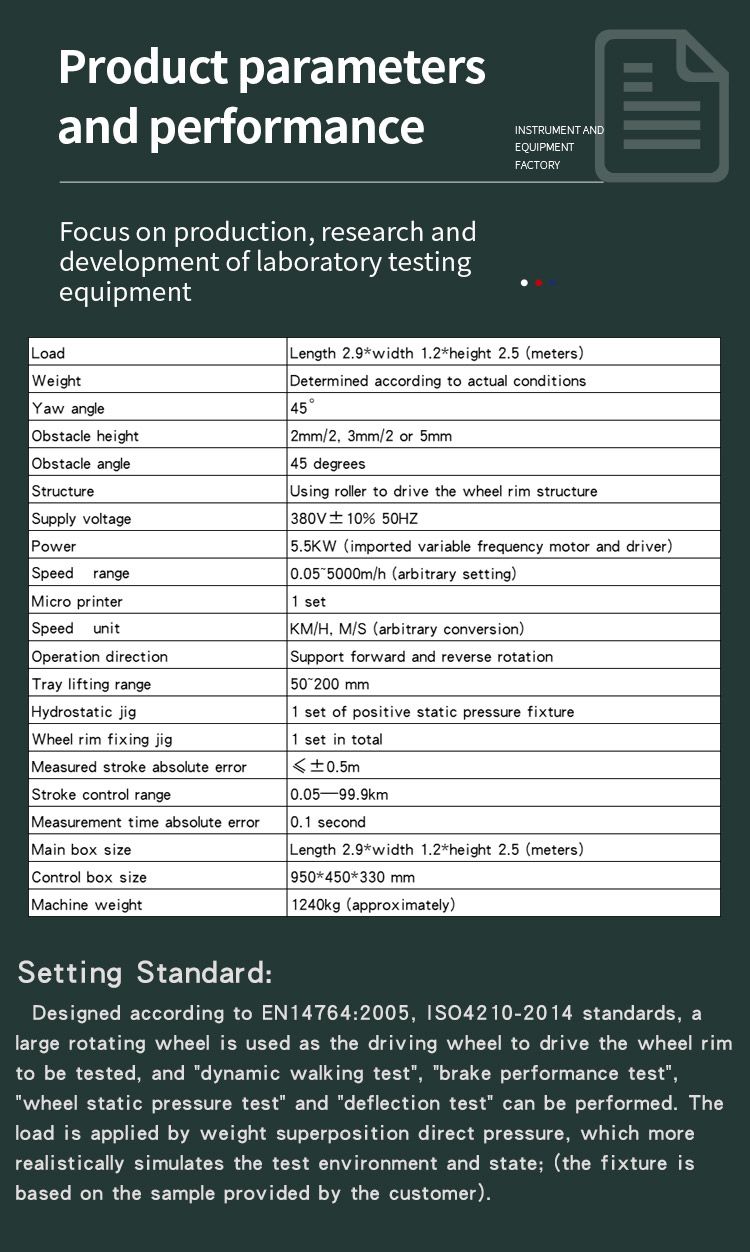

| Load | Length 2.9*width 1.2*height 2.5 (meters) |
| Weight | Determined according to actual conditions |
| Yaw angle | 45° |
| Obstacle height | 2mm/2, 3mm/2 or 5mm |
| Obstacle angle | 45 degrees |
| Structure | Using roller to drive the wheel rim structure |
| Supply voltage | 380V±10% 50HZ |
| Power | 5.5KW (imported variable frequency motor and driver) |
| Speed range | 0.05~5000m/h (arbitrary setting) |
| Micro printer | 1 set |
| Speed unit | KM/H, M/S (arbitrary conversion) |
| Operation direction | Support forward and reverse rotation |
| Tray lifting range | 50~200 mm |
| Hydrostatic jig | 1 set of positive static pressure fixture |
| Wheel rim fixing jig | 1 set in total |
| Measured stroke absolute error | ≤±0.5m |
| Stroke control range | 0.05—99.9km |
| Measurement time absolute error | 0.1 second |
| Main box size | Length 2.9*width 1.2*height 2.5 (meters) |
| Control box size | 950*450*330 mm |
| Machine weight | 1240kg (approximately) |
