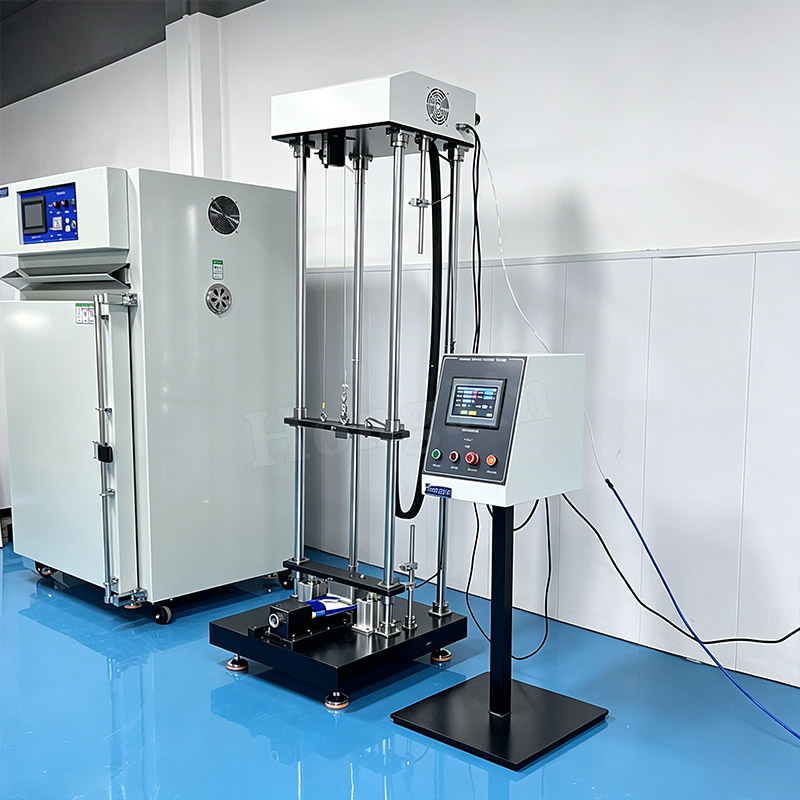

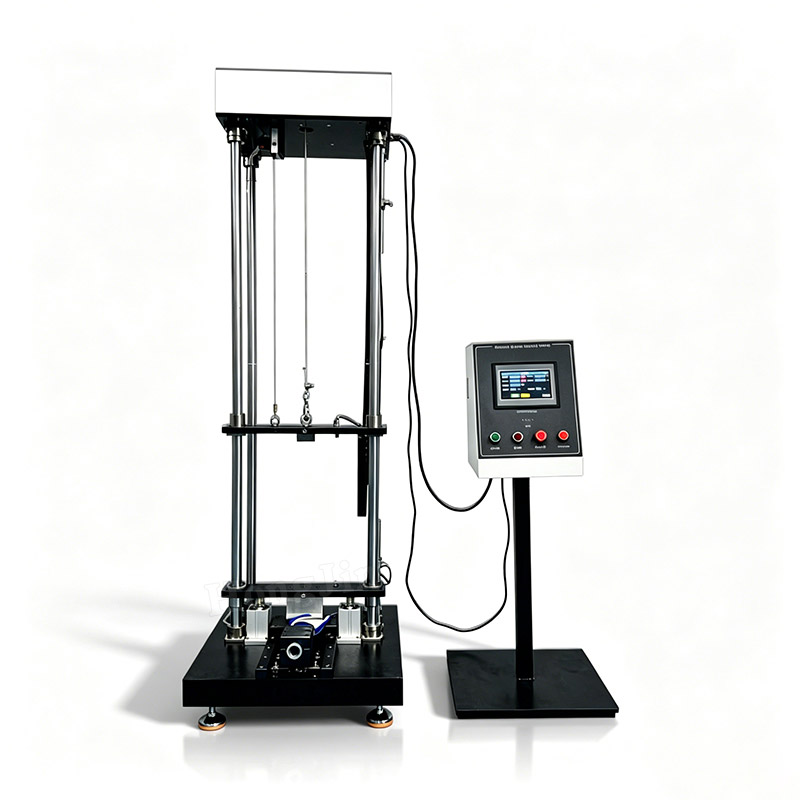

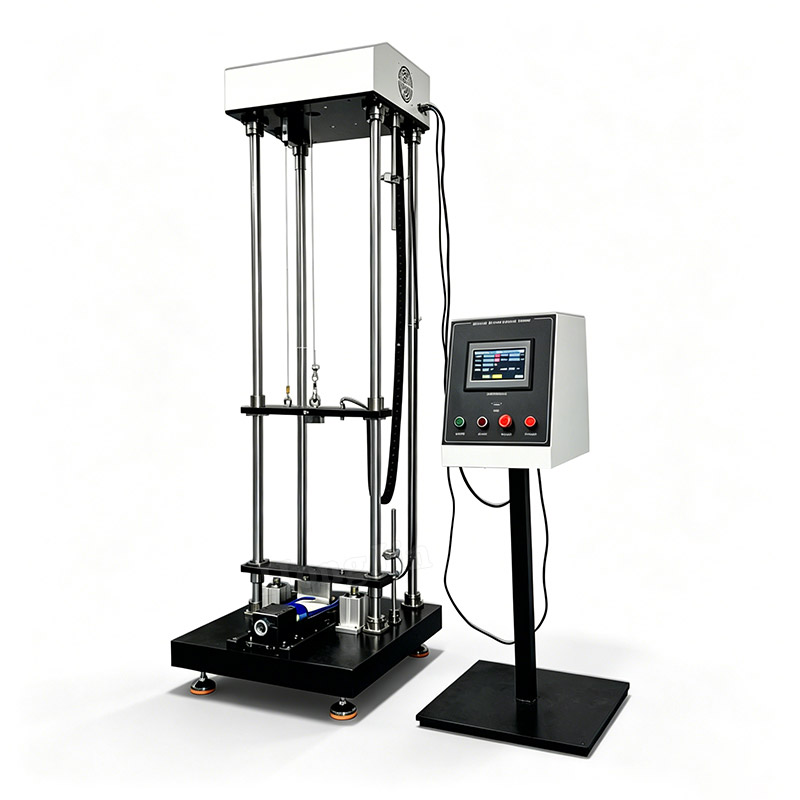

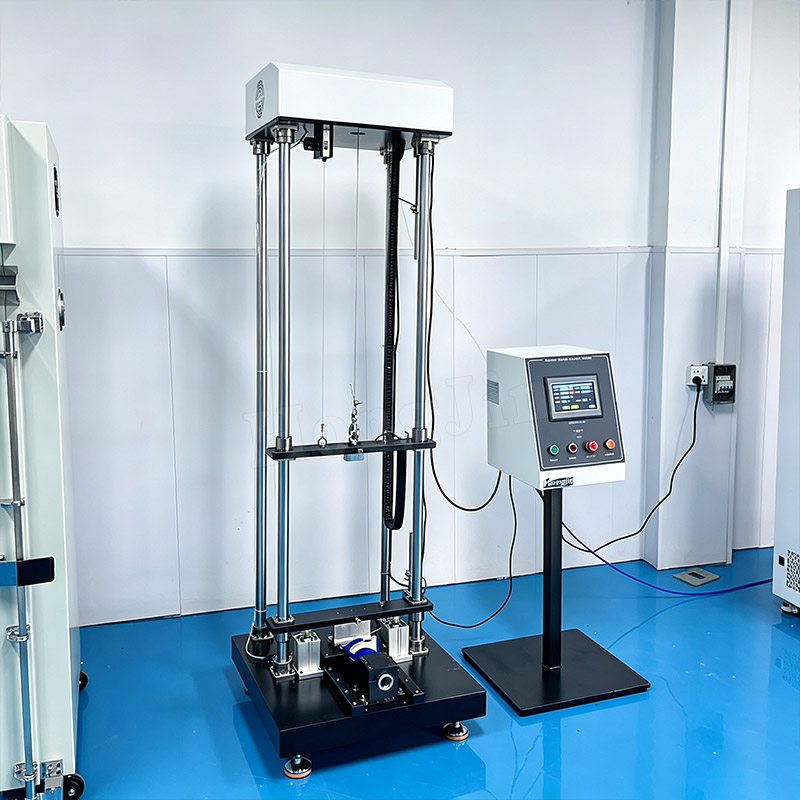

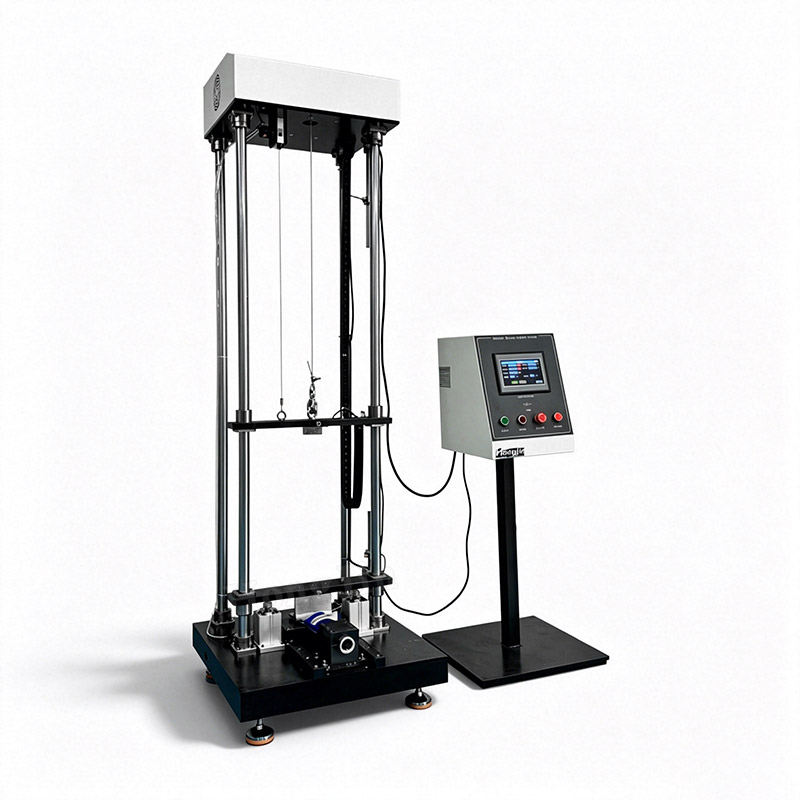

| Quantity: | |
|---|---|
Effective testing height: | 1200mm. |
Impact energy: | 25J; 45J |
Impact hammer: | (10±0.2)kg per set. (Can be configured according to customer requirements) |
Impact blade: | Impact hammer, radius 15±1mm, length ≥125mm, heat-treated hardened. |
Displacement sensing device: | Encoder signal feedback. |
Impact method: | Free fall. |
Release method: | Electromagnetic release. |
Safety protection: | The equipment has a newly added safety lock function (to prevent the impact hammer from falling and injuring personnel due to accidental power failure). |
Anti-secondary impact: | Double cylinder. |
Secondary sensing switch: | Photoelectric switch. |
Control method: | Touch screen + PLC program control, real-time display of impact height and hammer drop speed. The required impact energy can be directly input and the required impact height can be calculated. |
Dimensions: | 69*65*188cm; Control box: 60*60*120cm |
Weight: | 205kg |
Power supply: | AC220V 10A |

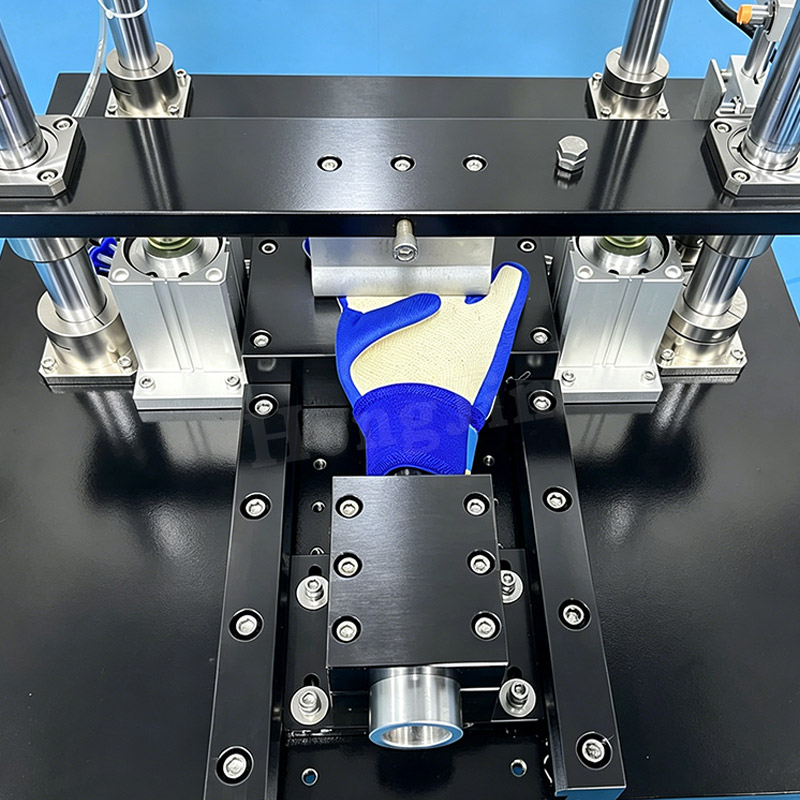

Glove-shaped steel pipe fixing base, diameter 48±2mm (movable forward and backward). | |
Equipped with a speed sensor to calibrate the G-acceleration loss caused by frictional resistance. | |
Features:
1. Surface treatment: Powder electrostatic spraying, cured at 200℃ to ensure long-lasting colorfastness;
2. Mechanical components are made of non-corrosive materials and stainless steel;
3. Precision high-grade motor drive, accurate control, smooth operation, and low noise;
4. Touchscreen control with menu-driven operation;
5. One-button fully automatic testing, simple and convenient operation;
6. Imported high-precision bearings, low friction, high accuracy;
7. Supports dual-cylinder anti-secondary impact;
8. Specially designed high-strength anti-tensile wire mesh for safety, reliability, and long lifespan;
9. Customizable energy output, speed display, and automatic positioning adjustment function;
10. Optional protective netting to prevent test pieces from flying and injuring operators;
11. Laser-sensor switch for high energy accuracy and sensitive sensing;
12. Independent control panel to prevent vibration and ensure accurate data.
