Product Overview:

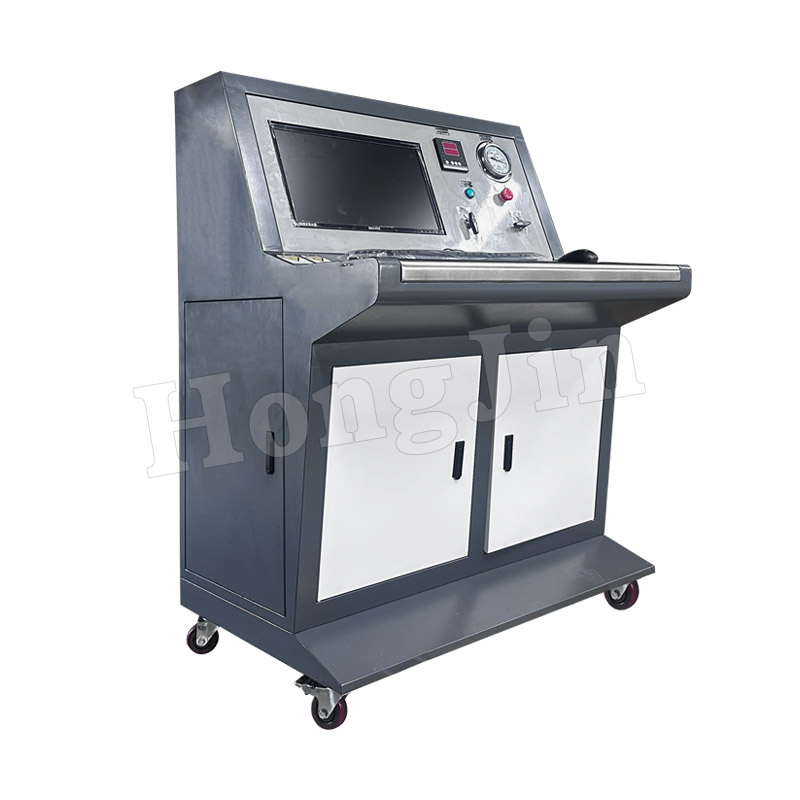

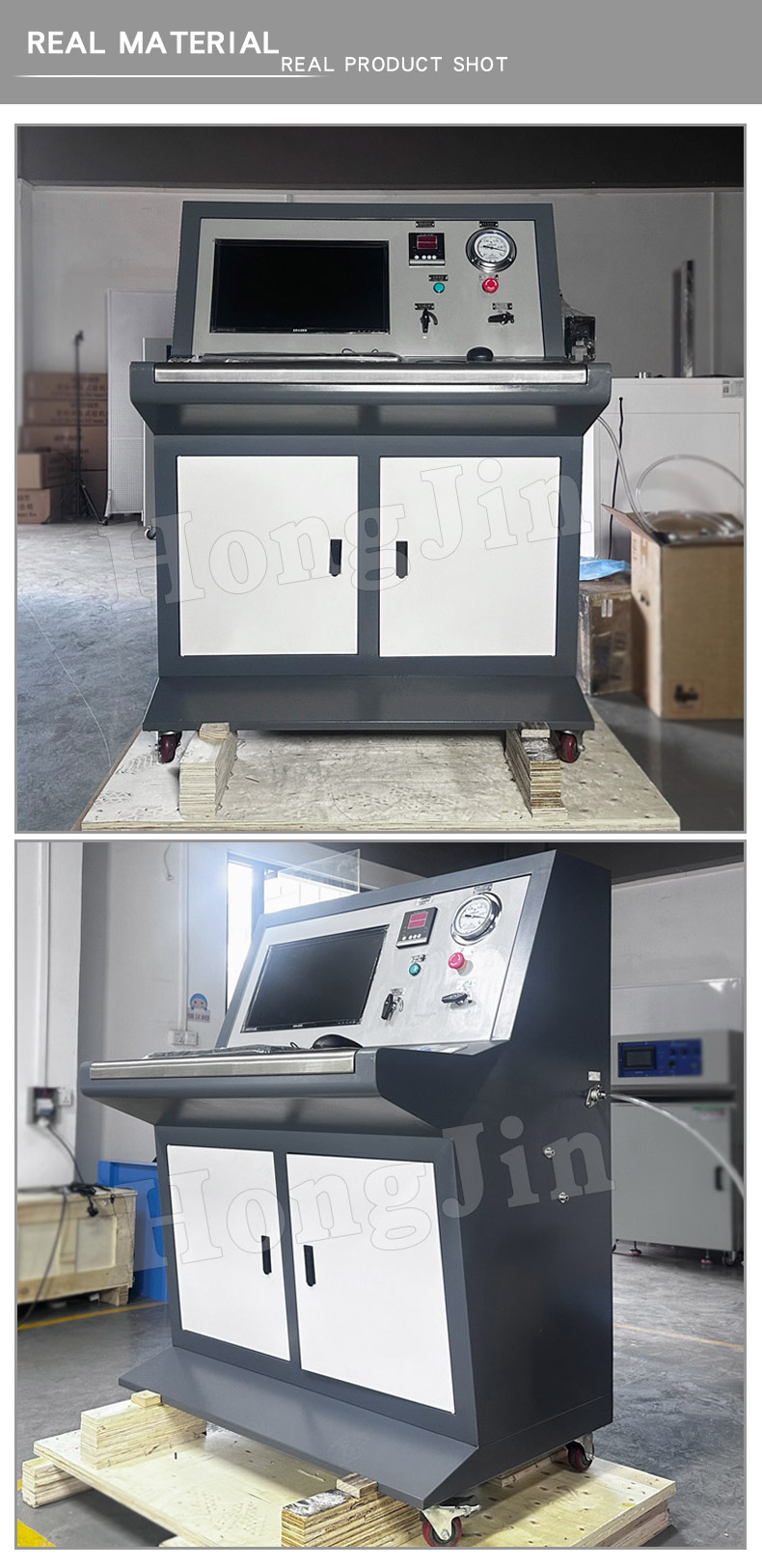

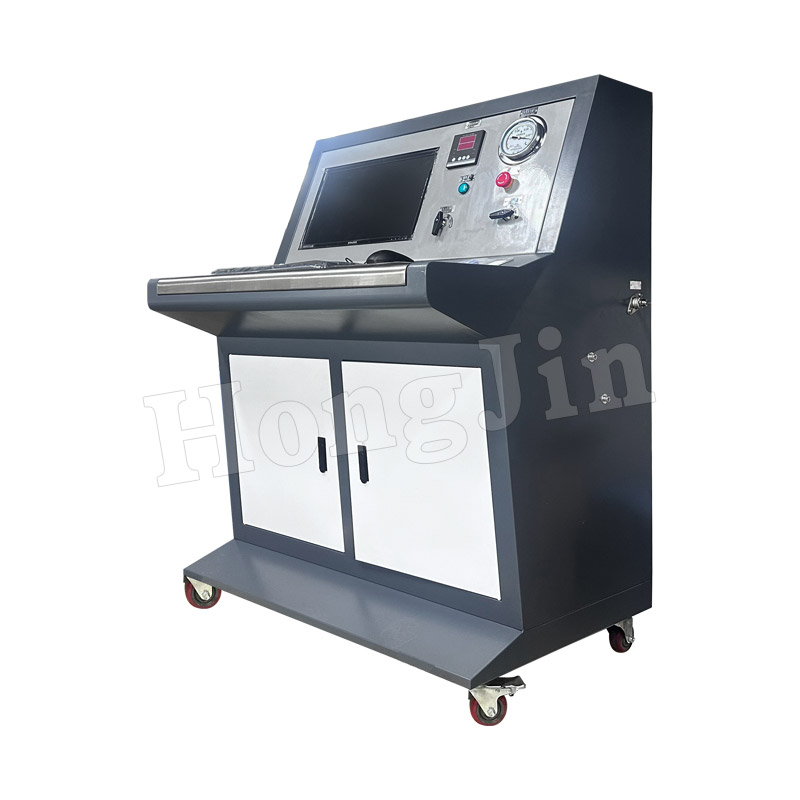

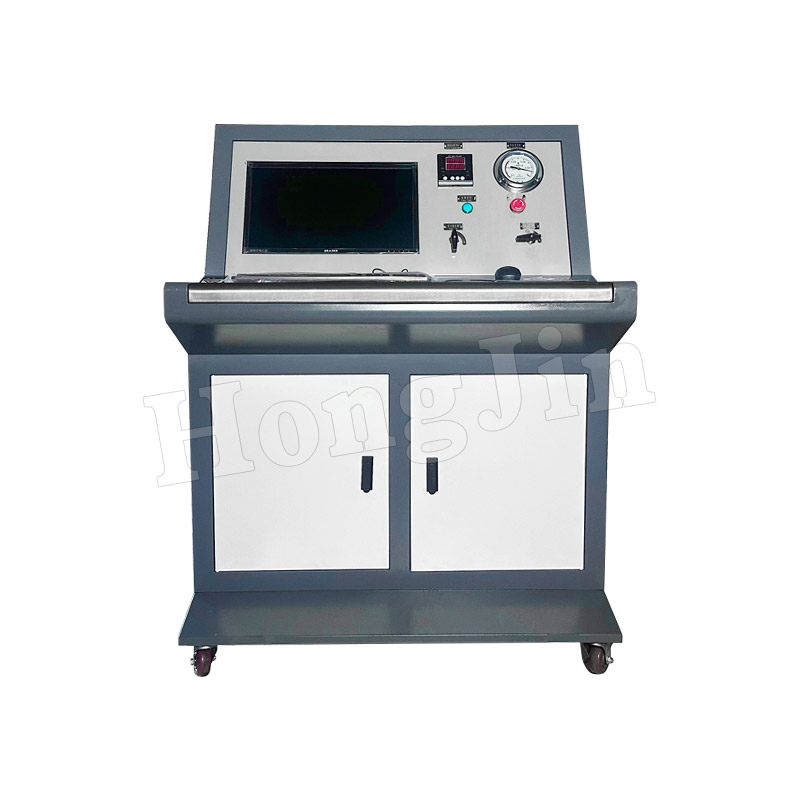

The vacuum collapse testing machine for rubber hoses is mainly used for vacuum collapse testing of rubber hoses. A 300mm long hose is immersed in oil heated to 150℃ for 70 hours. A steel ball must freely pass through the length of the hose at an atmospheric pressure of 88kPa or lower. It is widely used in the research, design, and quality control of rubber hose products. By testing the collapse performance of the hose under vacuum conditions, its collapse resistance can be evaluated, guiding product design and material selection.
Product Features:
1. This testing system can inspect samples of different sizes. The testing process is automated, easy to perform, and provides accurate information on collapse performance.
2. It uses high-precision sensors and a digital display, allowing for the storage, retrieval, and printing of test results.
3. It offers a choice between manual or computer control, enabling a dual manual/automatic control system.

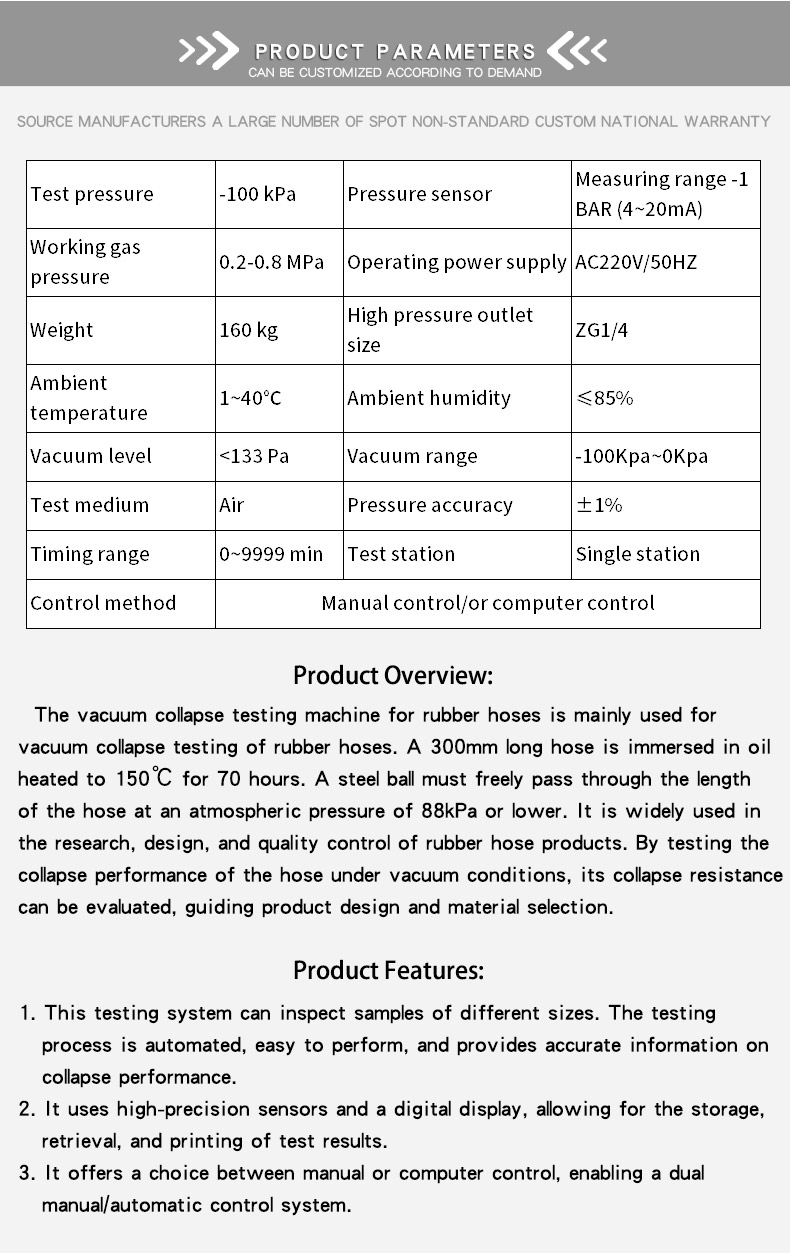

| Test pressure | -100 kPa | Pressure sensor | Measuring range -1 BAR (4~20mA) |
| Working gas pressure | 0.2-0.8 MPa | Operating power supply | AC220V/50HZ |
| Weight | 160 kg | High pressure outlet size | ZG1/4 |
| Ambient temperature | 1~40℃ | Ambient humidity | ≤85% |
| Vacuum level | <133 Pa | Vacuum range | -100Kpa~0Kpa |
| Test medium | Air | Pressure accuracy | ±1% |
| Timing range | 0~9999 min | Test station | Single station |
| Control method | Manual control or computer control | ||
