1. Precise vertical lifting device. The latest upgrade is the vertical lifting device components imported from Switzerland. It is made of special functional materials and has the characteristics of high precision, no gap in transmission, smooth operation, corrosion resistance, lifetime maintenance-free, and long service life.
2. Driven by servo motor. With the vertical lifting device and program control system imported from Switzerland, to ensure the accuracy and stability of the operation, the effect of completely eliminating the lifting vibration has been achieved, and the coating film is uniform.

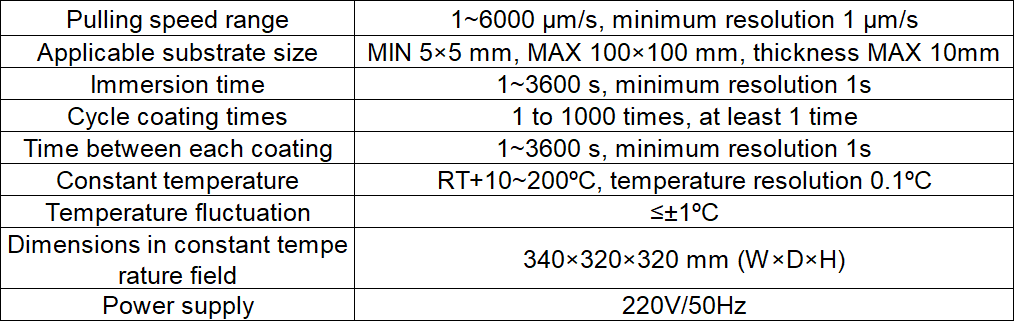

3. Multi-parameter automatic program control. There are six parameter settings: descending speed, dipping time, pulling speed, coating size, coating times, coating interval time, all parameters are continuously adjustable and precisely controlled. After the coating program is set, the entire coating process from descending to dipping to pull-up coating runs fully automatically.
4. The coating system adopts a 7-inch LCD touch screen to make the control more convenient; when running, various parameters are displayed in real time, and the coating process can be understood more intuitively;
5. The entire coating process is carried out in a constant temperature temperature field. The constant temperature field temperature control system adopts LCD liquid crystal display, which can precisely control the temperature and has good temperature uniformity. Multi-stage program temperature control can be set.
6. The upper and lower ends are equipped with limit sensors. When lifting or lowering, it will automatically stop at the limit to avoid overrunning of lifting or lowering.
7. Both high and low speeds run smoothly, and the operation is continuous and smooth. There is no vibration of the liquid surface during coating, which makes the film more uniform;
8. The specially designed flat-mouth fixture can hold the sample evenly on both sides, so that the sample will not be damaged;
1. Precise vertical lifting device. The latest upgrade is the vertical lifting device components imported from Switzerland. It is made of special functional materials and has the characteristics of high precision, no gap in transmission, smooth operation, corrosion resistance, lifetime maintenance-free, and long service life.
2. Driven by servo motor. With the vertical lifting device and program control system imported from Switzerland, to ensure the accuracy and stability of the operation, the effect of completely eliminating the lifting vibration has been achieved, and the coating film is uniform.
3. Multi-parameter automatic program control. There are six parameter settings: descending speed, dipping time, pulling speed, coating size, coating times, coating interval time, all parameters are continuously adjustable and precisely controlled. After the coating program is set, the entire coating process from descending to dipping to pull-up coating runs fully automatically.
4. The coating system adopts a 7-inch LCD touch screen to make the control more convenient; when running, various parameters are displayed in real time, and the coating process can be understood more intuitively;
5. The entire coating process is carried out in a constant temperature temperature field. The constant temperature field temperature control system adopts LCD liquid crystal display, which can precisely control the temperature and has good temperature uniformity. Multi-stage program temperature control can be set.
6. The upper and lower ends are equipped with limit sensors. When lifting or lowering, it will automatically stop at the limit to avoid overrunning of lifting or lowering.
7. Both high and low speeds run smoothly, and the operation is continuous and smooth. There is no vibration of the liquid surface during coating, which makes the film more uniform;
8. The specially designed flat-mouth fixture can hold the sample evenly on both sides, so that the sample will not be damaged;
