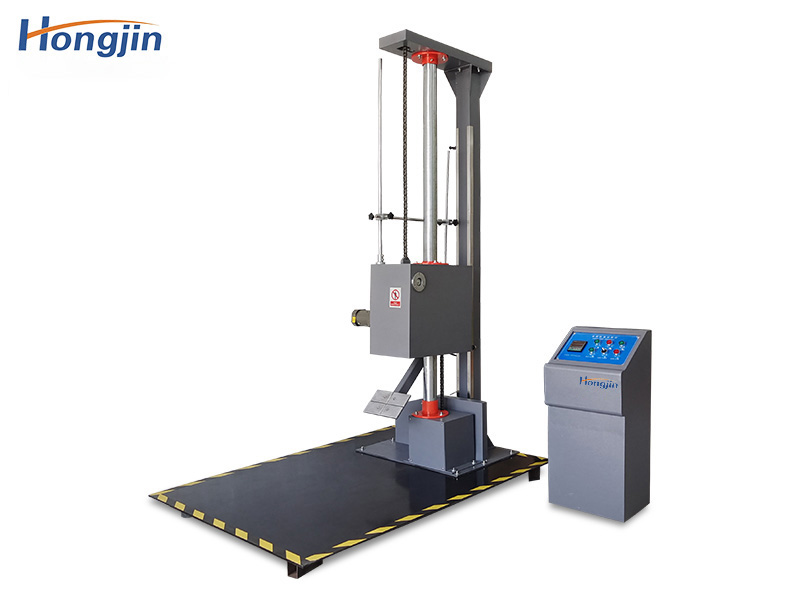

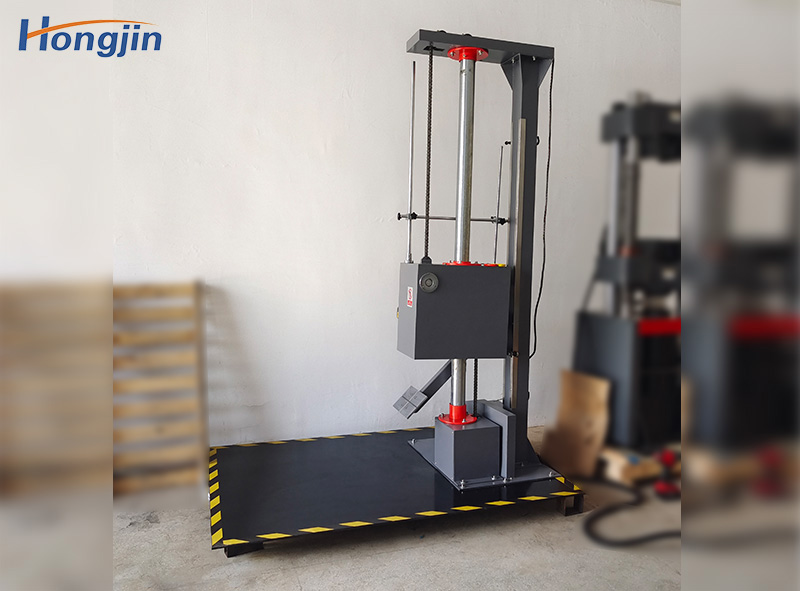

Lock drop tester

The lock drop tester is specially used to test the damage of product packaging by falling, and to evaluate the impact resistance during transportation and handling. It adopts double-column guidance, and the number of times of height drop can be set. The work is stable and reliable, and it can realize the drop of edge, face and corner, which meets GB/T4857.5-92 and ISO2248-1972E. The machine adopts photoelectric control, which can set the drop height of seven gears, and can also choose the drop height freely. The drop release adopts electromagnetic control, which can make the sample fall freely in an instant, and perform drop impact test on the edges, corners and planes of the packaging container.

The drop tester can perform free drop test on the surface, corner and edge of the package. It is equipped with a digital display height indicator and a decoder for height tracking, so that the product drop height can be accurately given, which is consistent with the preset drop height error. more than 2% or 10mm. This machine adopts a single-arm double-column structure, with electric reset, electric control drop and electric lifting devices, which is easy to use; the unique hydraulic buffer device greatly improves the service life, stability and safety of the machine. The single-arm setting can easily place the product, and the angle error between the impact surface of the drop angle and the plane of the bottom plate is less than or equal to 5 degrees. The drop test machine is further divided into a small object drop test machine and a packaging drop test machine. The maximum weight of the test product of the lock drop test machine is 2kg ± 100g, while the maximum weight of the test product of the packaging drop test machine is 80kg ± 2Kg
