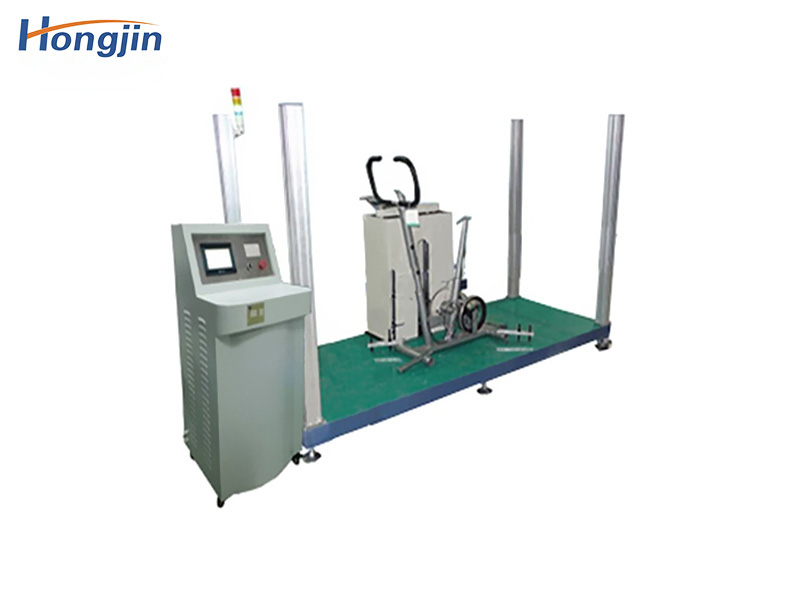

Exercise bike durability testing machine

This testing machine is designed according to test standards such as EN957, ASTM F1250, ISO20957, etc. It can perform fatigue test on indoor and outdoor fitness machine parts and the whole machine. The test method is that the servo motor drives the exercise bike to drive.


1. Perform a fatigue test

2. Test times: 0-999999 can be set arbitrarily

3. Test speed: 0-100RPM frequency converter stepless speed regulation, and can test forward and reverse automatically.

4. PLC automatic control, the touch screen observes all the force values and speeds; detects the running time and the cumulative number of times; adopts the touch screen control, all operations can be intuitively operated on the touch screen. The use of special control software can realize multi-channel closed-loop control, and complete the functions of automatic control and automatic measurement of the test.

5. The number of detections can be set. After the detection is completed, the equipment will automatically stop and alarm.

6. It has the function of stop/power-off memory and breakpoint detection and shutdown; after a sudden power failure, the device can be automatically protected by calling again after a sudden power failure.

7. Save the data, and continue to run according to the parameters set before the power failure, no need to manually go to boot to set the parameters

8. Shutdown method: automatic shutdown and alarm when the number of tests is reached, the equipment is damaged or the deformation is too large

9. The equipment has a fault self-diagnosis system, which can automatically diagnose and display fault codes when the equipment fails, which is convenient for inspection and troubleshooting

10. Equipped with various fixtures required for testing
