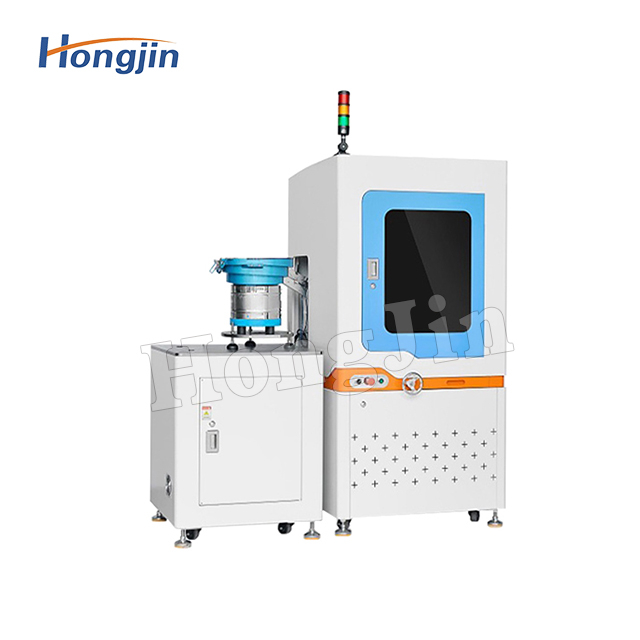

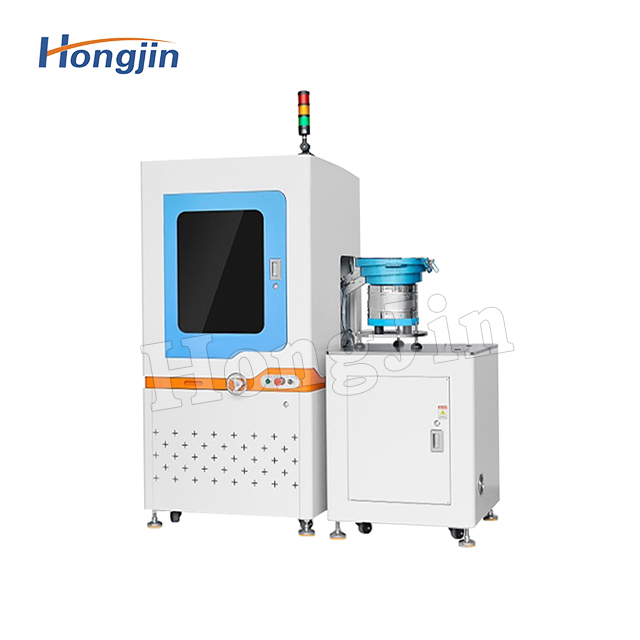

Dial Image Screening Machine

The indexing plate image screening machine adopts a high-efficiency image detection system. It uses an industrial CCD camera to take advantage of the high light transmittance of glass. The object can be stably placed on the detection glass plate through the vibrating plate and can be detected. In addition, a camera can be added at the bottom to detect through the glass plate, which is suitable for objects that need to be inspected on both sides and without oil stains. The image of the object to be inspected is obtained, and then the industrial computer is matched with the software system developed by the company's R&D team to compare the images. The relationship between the size and the low-cost, high-efficiency automated inspection and testing operations.


Indexing plate image screening machine, also known as indexing plate image detection equipment, indexing plate visual inspection equipment, detection functions include multi-section height, multi-degree width, broken needle, plug hole, invalid tooth length (lower neck tooth height) , tooth bottom diameter, tooth outer diameter, tooth spacing, oblique teeth, poor tooth rolling, screw length, whether the head is plated, whether there is chamfering, plug hole, eccentricity, whether there is teeth, etc.
