Scope of application:

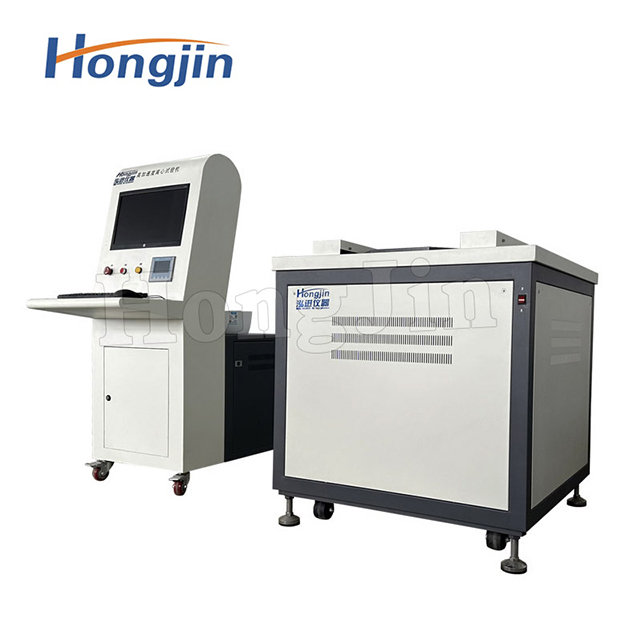

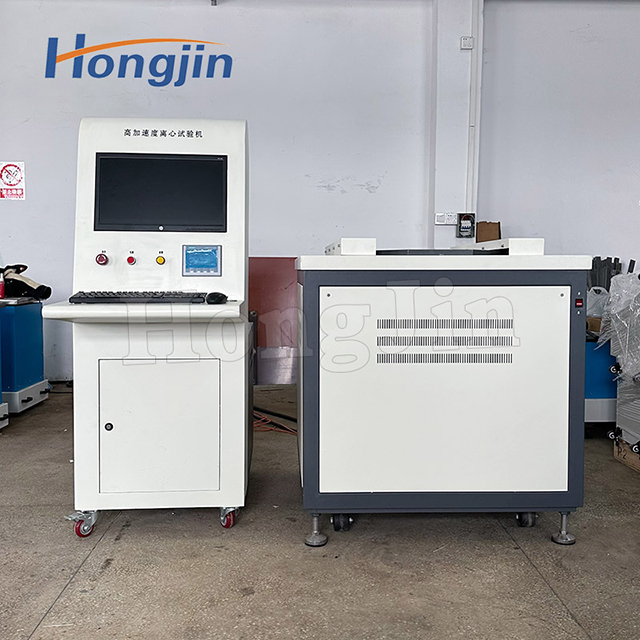

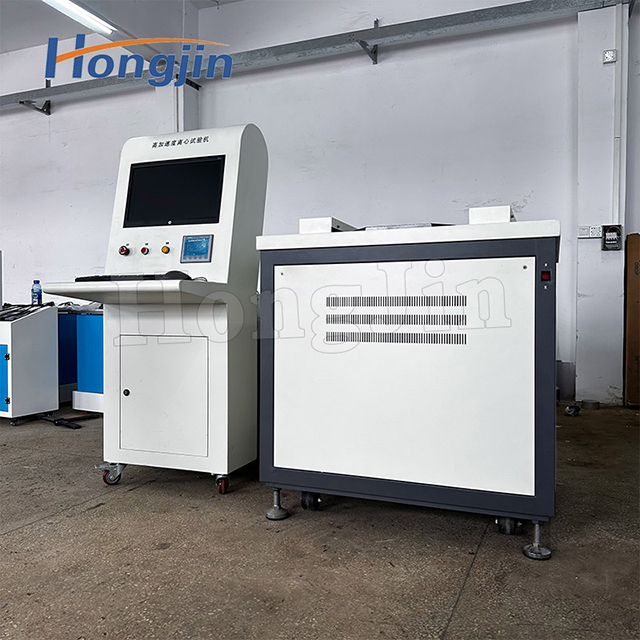

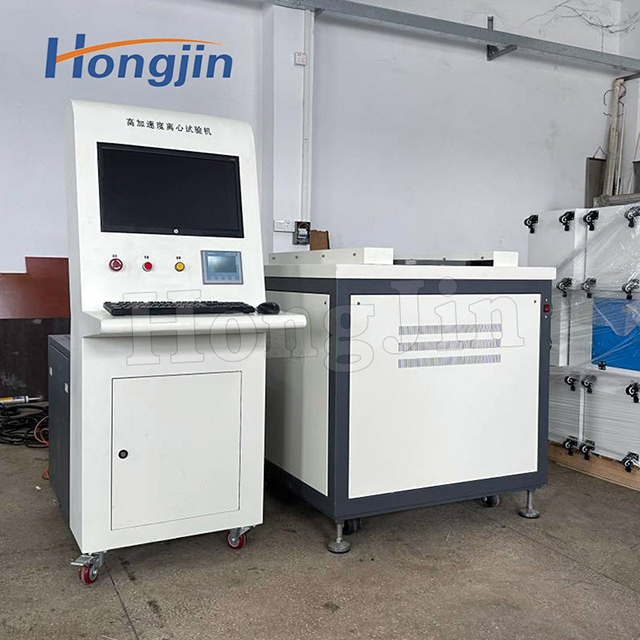

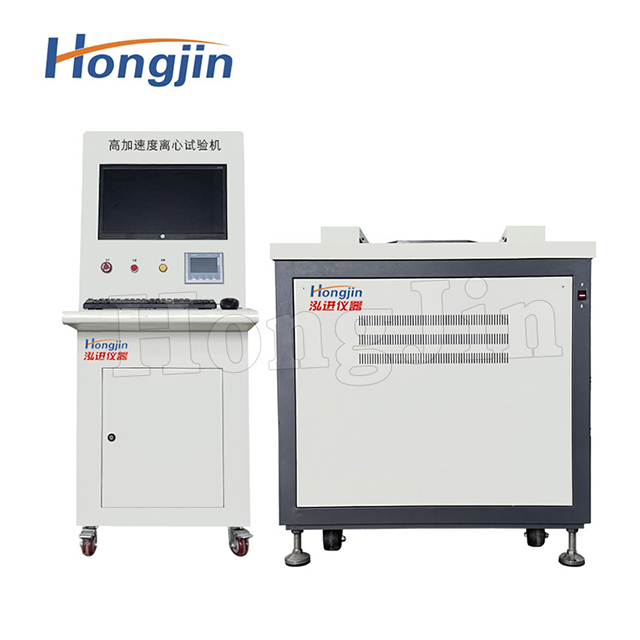

Steady state acceleration centrifugal testing machine for determining electronic components, small equipment and other electrical and electronic products under the action of forces (except gravity) generated by dynamic overload environment. The structure of the response and performance is good, as well as to assess the structural integrity of some components, and verify that these components in the expected use of the environment under the composite acceleration stress is normal and the bearing capacity of the structure.
Product features:

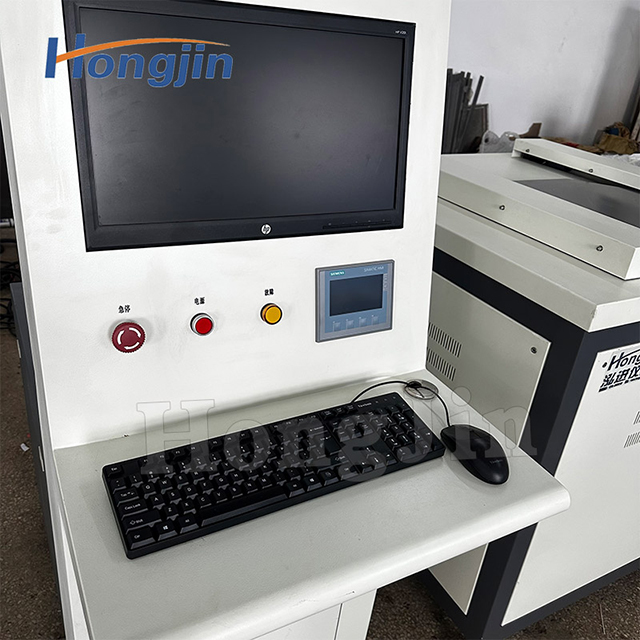

1, automatic computer remote real-time control interface, the operator only need to enter a simple value, you can start the equipment, accurate completion of the acceleration test;
2, the control interface can display the test curve, tolerance and test time in real time;
3, according to the different requirements of the test to achieve multi-stage acceleration continuous test;
4, can achieve open circuit, over limit, overspeed protection;
5, in the case of no automatic control or automatic control failure, the equipment can still be manually controlled to complete the test.
Product parameter table
| Maximum load: | 0.04 (can be customized according to the product) |
| Acceleration range: | 6 Work stations (optimize the design of work stations according to users' trial products) |
| Number of working stations: | 10m/s2~30000m/s2 (15g~3000g) (magnetic absorption method 1000g) acceleration stability and accuracy can be better than 3% |
| Maximum speed of working spindle: | 17000r/min (based on calculated radius) |
| Rotation direction of working spindle: | Rotate in a clockwise direction |
| Direction of trial product test: | x, Y and z coordinate directions are carried out respectively (determine the sub-fixture) |
| Test installation calculation radius: | 130mm (according to the user's test product optimization design) universal sand burial method of the turntable diameter 335mm, tank 50mm diameter x 50mm height, four stations. Magnetic suction method and special fixture installation can be designed 8-16 stations, each station 0.04kg. |
| Starting time: | Less than 5min (the time from motor startup of centrifuge to reach steady-state acceleration) |
| Speed up time: | t1=n/65 (preset by the system, you do not need to calculate it during operation) t1: speed up time n: rotating speed |
| Continuous working time: | 5min (duration of centrifuge operation in steady-state acceleration state) |
| Vacuum pump: | 2xZ-4 380V 550W |
| Main motor: | Three-phase asynchronous motor Y132S1-2, 5.5W, 2880r/min |
| Overall dimensions: | 920mm length ×920mm width ×1200mm height (body) 630mm width ×1000mm depth ×1350mm height (control cabinet)900Kg (body) 100Kg (control cabinet) |
| Main machine weight: | 900Kg (body) 100Kg (control cabinet) |
| Centrifuge working environment: | Power supply: three-phase five-wire system 380± 10V 50Hz 6.5kVA |
| Temperature: (5~35) oc Humidity: < 80%RH | |
| Environment: there should be no corrosive gas and liquid around; No strong electromagnetic interference. |
