Applicable criteria:
GB/T 31485-2015 "Power batteries for electric vehicles safety requirements and test methods" GB/T 31241-2014 "portable electronic products with lithium ion batteries and battery pack safety requirements" UN38.3 "United Nations dangerous goods transport test and standard manual" IEC62133 Safety Requirements for batteries (groups) composed of cells and for use in portable Devices UL 1642:2012 Lithium Battery Standard

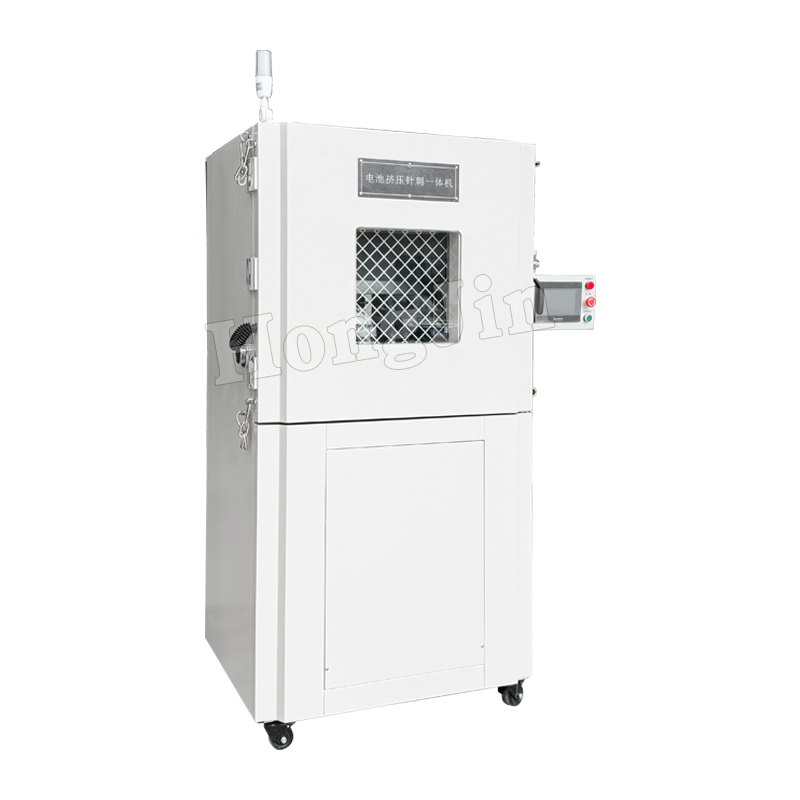

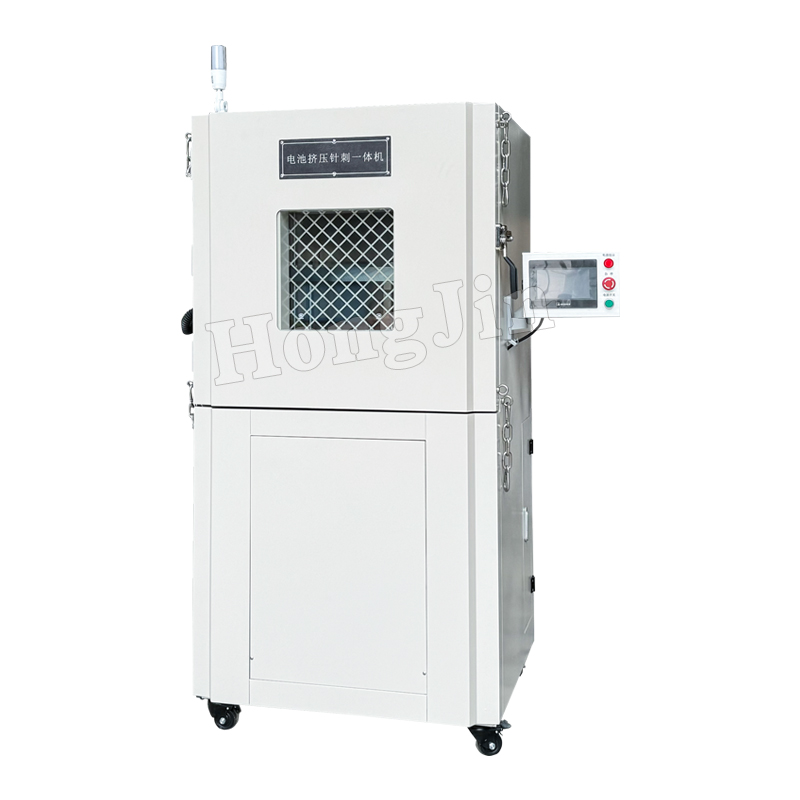

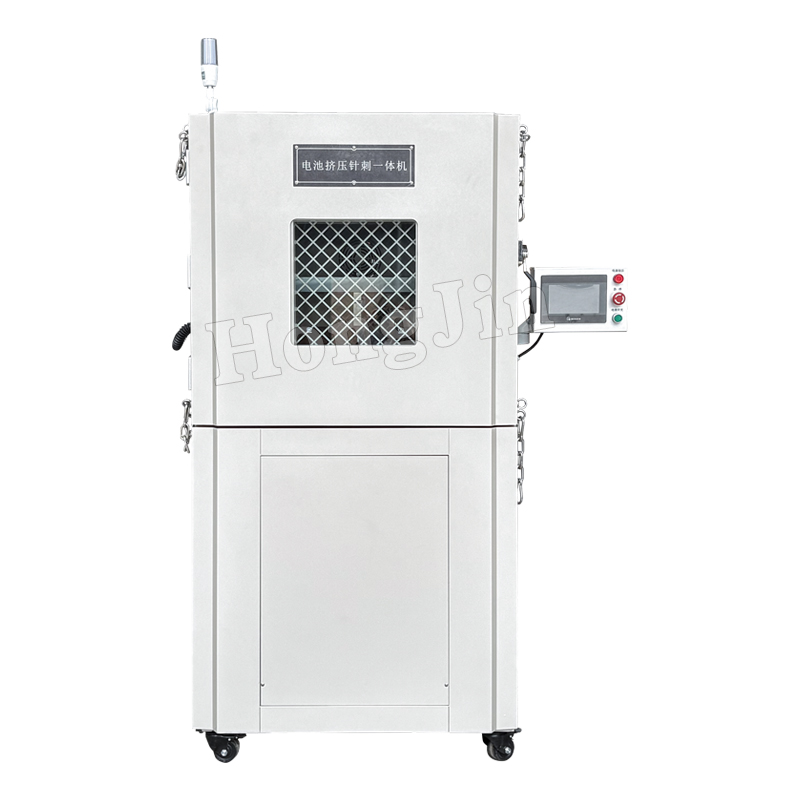

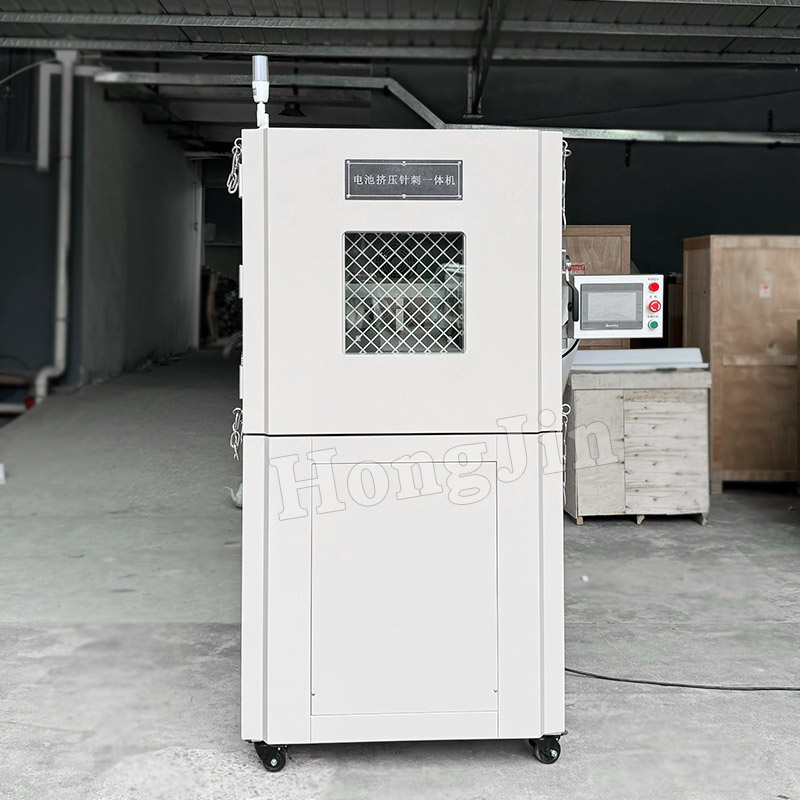

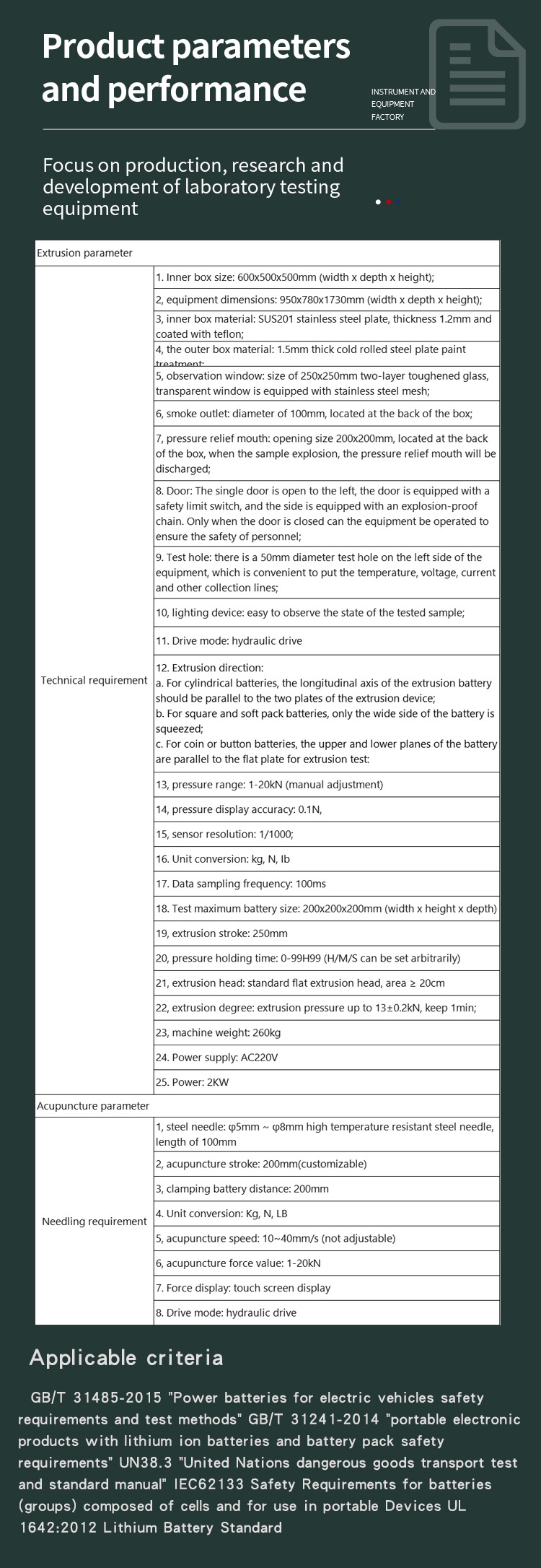

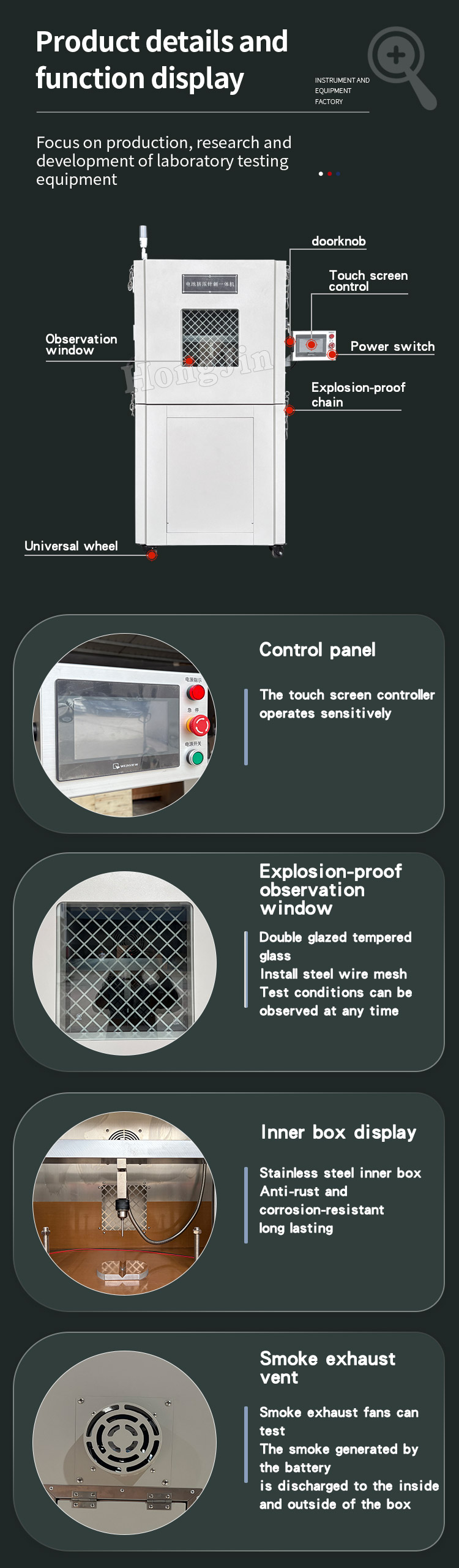

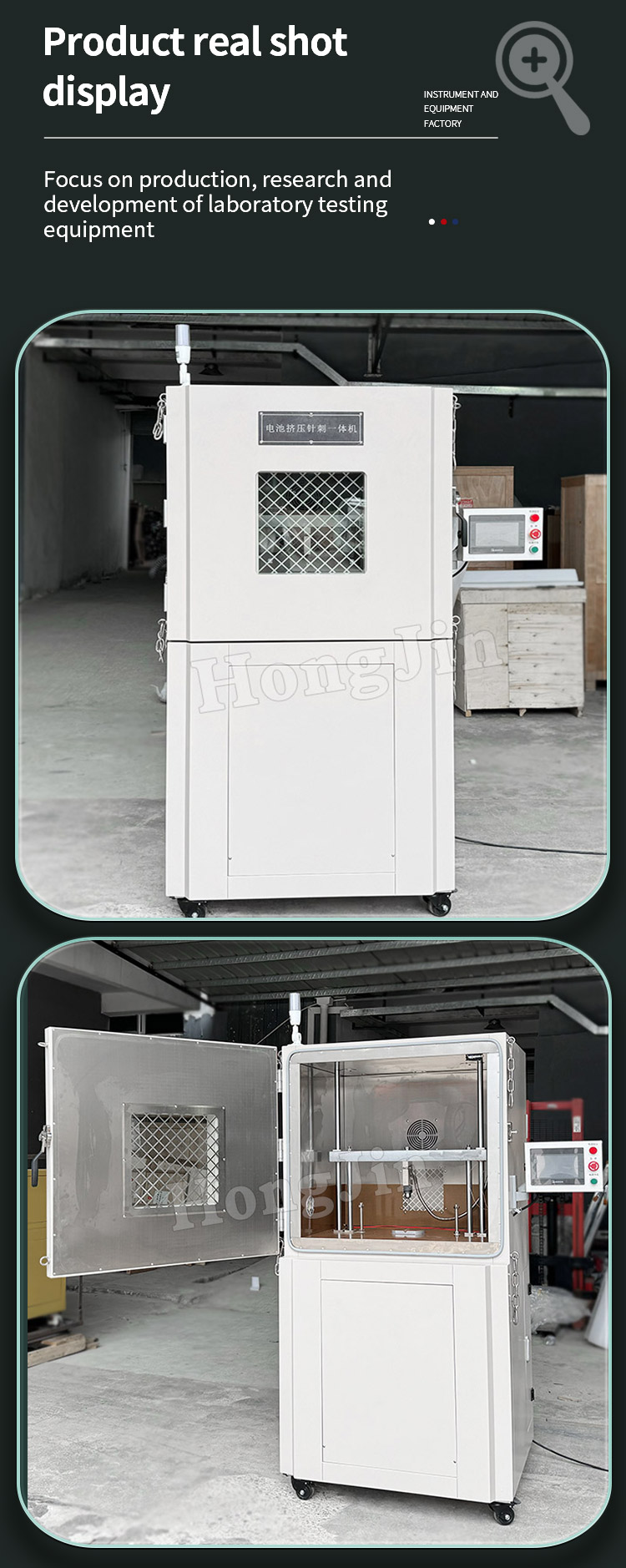

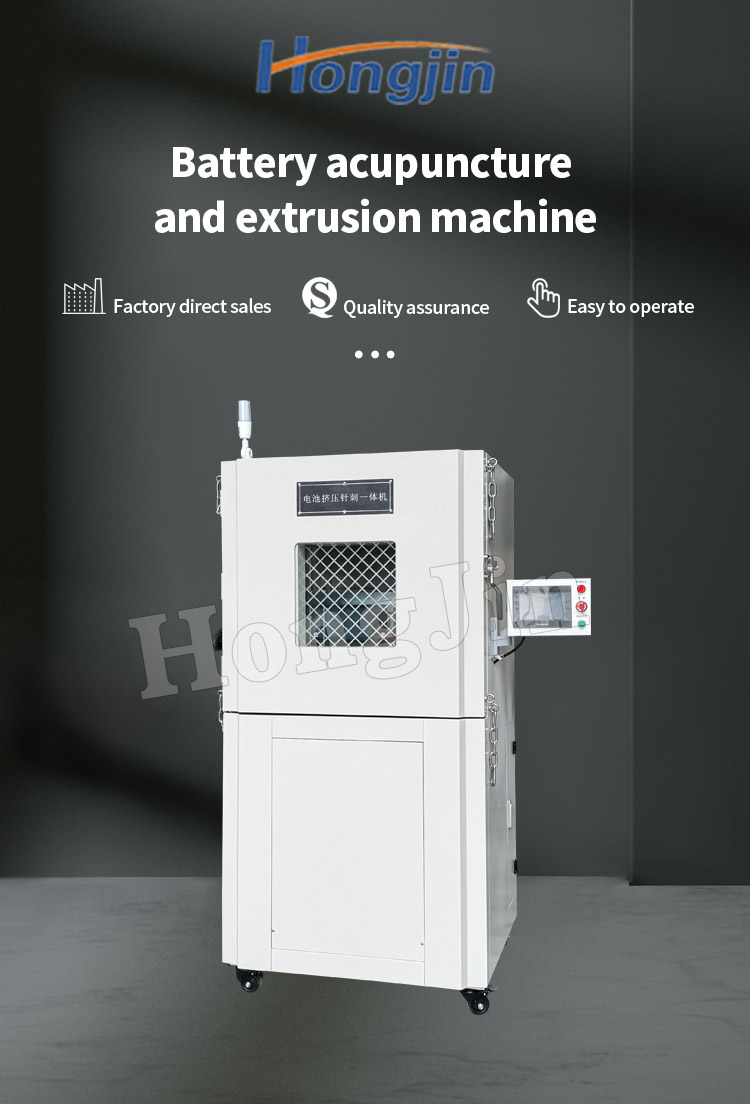

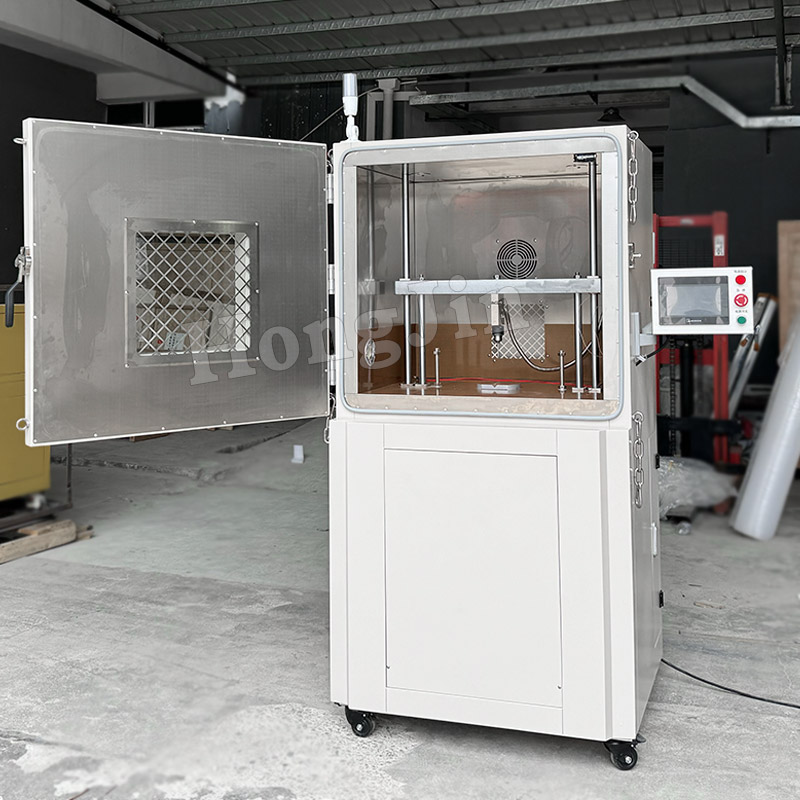

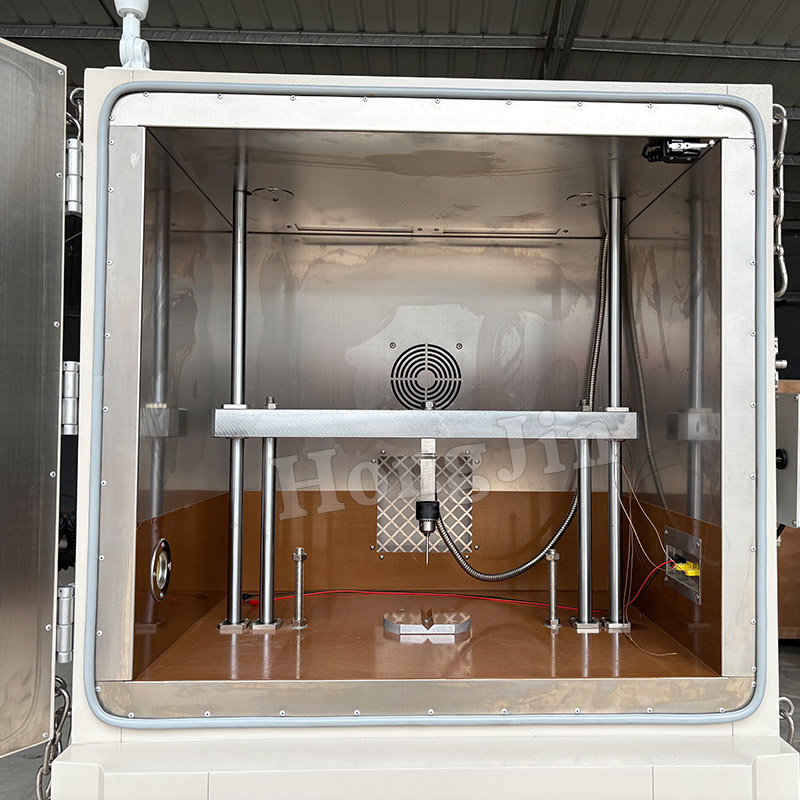

| Extrusion parameter | |
| Technical requirement | 1. Inner box size: 600x500x500mm (width x depth x height); |
| 2, equipment dimensions: 950x780x1730mm (width x depth x height); | |
| 3, inner box material: SUS201 stainless steel plate, thickness 1.2mm and coated with teflon; | |
| 4, the outer box material: 1.5mm thick cold rolled steel plate paint treatment; | |
| 5, observation window: size of 250x250mm two-layer toughened glass, transparent window is equipped with stainless steel mesh; | |
| 6, smoke outlet: diameter of 100mm, located at the back of the box; | |
| 7, pressure relief mouth: opening size 200x200mm, located at the back of the box, when the sample explosion, the pressure relief mouth will be discharged; | |
| 8. Door: The single door is open to the left, the door is equipped with a safety limit switch, and the side is equipped with an explosion-proof chain. Only when the door is closed can the equipment be operated to ensure the safety of personnel; | |
| 9. Test hole: there is a 50mm diameter test hole on the left side of the equipment, which is convenient to put the temperature, voltage, current and other collection lines; | |
| 10, lighting device: easy to observe the state of the tested sample; | |
| 11. Drive mode: hydraulic drive | |
| 12. Extrusion direction: a. For cylindrical batteries, the longitudinal axis of the extrusion battery should be parallel to the two plates of the extrusion device; b. For square and soft pack batteries, only the wide side of the battery is squeezed; c. For coin or button batteries, the upper and lower planes of the battery are parallel to the flat plate for extrusion test: | |
| 13, pressure range: 1-20kN (manual adjustment) | |
| 14, pressure display accuracy: 0.1N, | |
| 15, sensor resolution: 1/1000; | |
| 16. Unit conversion: kg, N, Ib | |
| 17. Data sampling frequency: 100ms | |
| 18. Test maximum battery size: 200x200x200mm (width x height x depth) | |
| 19, extrusion stroke: 250mm | |
| 20, pressure holding time: 0-99H99 (H/M/S can be set arbitrarily) | |
| 21, extrusion head: standard flat extrusion head, area ≥ 20cm | |
| 22, extrusion degree: extrusion pressure up to 13±0.2kN, keep 1min; | |
| 23, machine weight: 260kg | |
| 24. Power supply: AC220V | |
| 25. Power: 2KW | |
| Acupuncture parameter | |
| Needling requirement | 1, steel needle: φ5mm ~ φ8mm high temperature resistant steel needle, length of 100mm |
| 2, acupuncture stroke: 200mm(customizable) | |
| 3, clamping battery distance: 200mm | |
| 4. Unit conversion: Kg, N, LB | |
| 5, acupuncture speed: 10~40mm/s (not adjustable) | |
| 6, acupuncture force value: 1-20kN | |
| 7. Force display: touch screen display | |
| 8. Drive mode: hydraulic drive | |
