The xenon lamp test chamber adopts xenon arc lamps, which can simulate the full spectrum of sunlight and reproduce destructive light waves in different environments. It can provide corresponding environmental simulation and accelerated testing for scientific research, product development, and quality control. The xenon lamp test chamber can be used for the selection of new materials, improvement or change testing of existing materials, to evaluate the durability of material composition changes, and can simulate the changes caused by materials exposed to sunlight under different environmental conditions.
Dongguan Hongjin Testing Instrument Co., Ltd.was founded in June 2007 It is a high-tech manufacturing company that specializes in the design and automatic control of large-scale non-standard testing equipment like simulated environmental testing, material mechanics testing, optical dimension measurement, vibration impact stress testing, new energy physics testing, product sealing testing, and so on! We serve our customers with the utmost passion, adhering to the company concept of "quality first, honesty first, committed to innovation, and sincere service," as well as the quality principle of "striving for excellence."

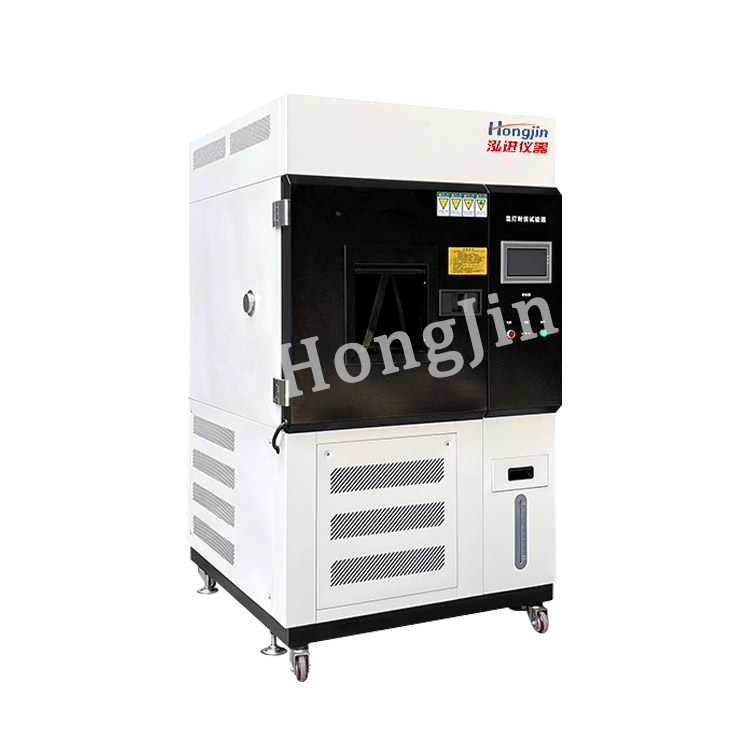

Product characteristics of Hongjin water-cooled xenon lamp aging test chamber
(1) Full spectrum xenon lamp.
(2) Multiple filtering systems are available for selection.
(3) Water spray function.
(4) Relative humidity control.
(5) Test chamber air temperature control system.
(6) Irregular shaped flat product shelves for easy placement of products.
(7) Xenon arc lamps imported from the United States.
(8) Easy to install and use, with little need for daily maintenance.
(9) The lifespan of xenon arc lamps depends on the level of irradiance used, with a typical lamp lifespan of 1600 hours. The lamp can be quickly and easily replaced, and the long-lasting filter ensures that the required spectrum is maintained.
(10) The latest air-cooled xenon lamp technology solves the problem of high failure rate in the heat dissipation method of water-cooled xenon lamps, allowing users to easily replace the lamp tubes; Easy to maintain.
Usage method of water-cooled xenon lamp aging test chamber
1. Preparation: Place the test chamber on a stable ground, insert the power cord, and ensure that the power cord plug is firmly connected to the socket. Check if the test box is properly placed and place the test samples in the test box.
2. Adjusting parameters: According to the testing requirements, set the power, wavelength, and testing time of the xenon lamp to ensure the validity and accuracy of the testing data. When setting parameters, attention should be paid to the load and adjustment time of the test chamber, as well as the setting of the current and voltage of the xenon lamp.
3. Start testing: After adjusting the relevant parameters, start the test chamber and place the sample in the test chamber. Observe and record the emission status of the xenon lamp in the test chamber and the temperature changes of the sample appropriately for subsequent analysis and processing.
4. Stop testing: When the testing time arrives, the operation of the test chamber should be stopped in a timely manner and the tested sample should be taken out. Pay attention to safe operation, avoid scalding and electric shock, and at the same time, discharge the residual atmosphere in the test chamber for the next use.
In summary, the water-cooled xenon lamp aging test chamber needs to operate under appropriate conditions and adjust the corresponding parameters according to the testing requirements to ensure the accuracy and effectiveness of the test data. During use, attention should be paid to the load and adjustment time of the test chamber, as well as the setting of the current and voltage of the xenon lamp, to avoid equipment failure caused by excessive use. Finally, after the test is completed, the residual atmosphere in the test chamber should be discharged and the equipment should be properly stored.
